10.1" Display & Audio 1280x800 IPS - HDMI/VGA/NTSC/PAL

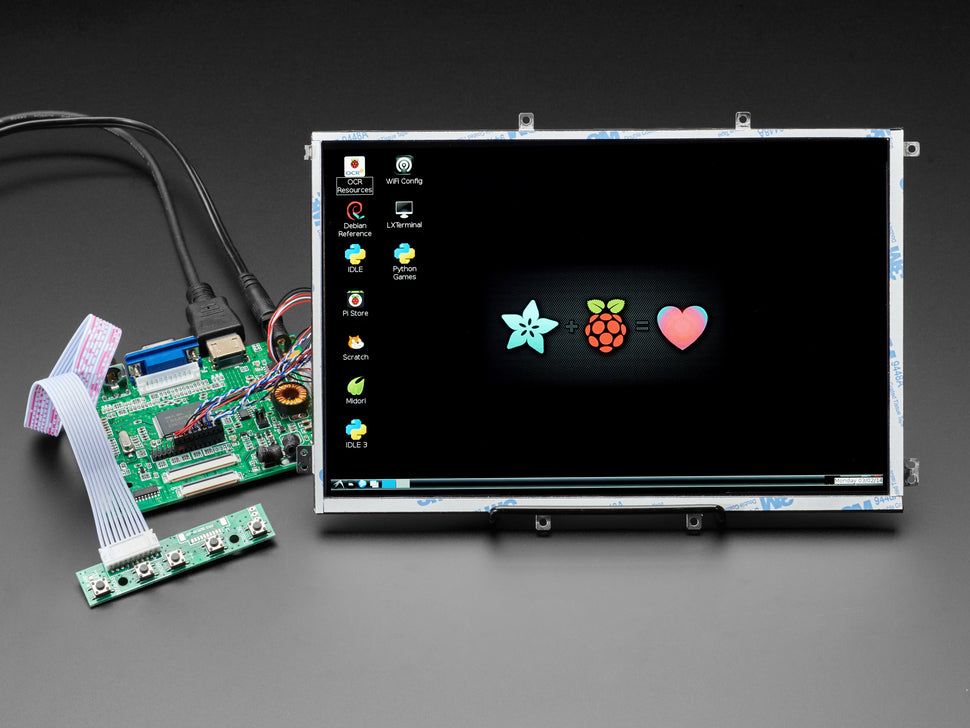

Make a lovely audio/video setup with a 10.1" IPS screen featuring HDMI stereo speaker support. This bright 10.1" TFT display boasts a high resolution of 1280 x 800 pixels and excellent viewing angles, perfect for embedded computing projects.

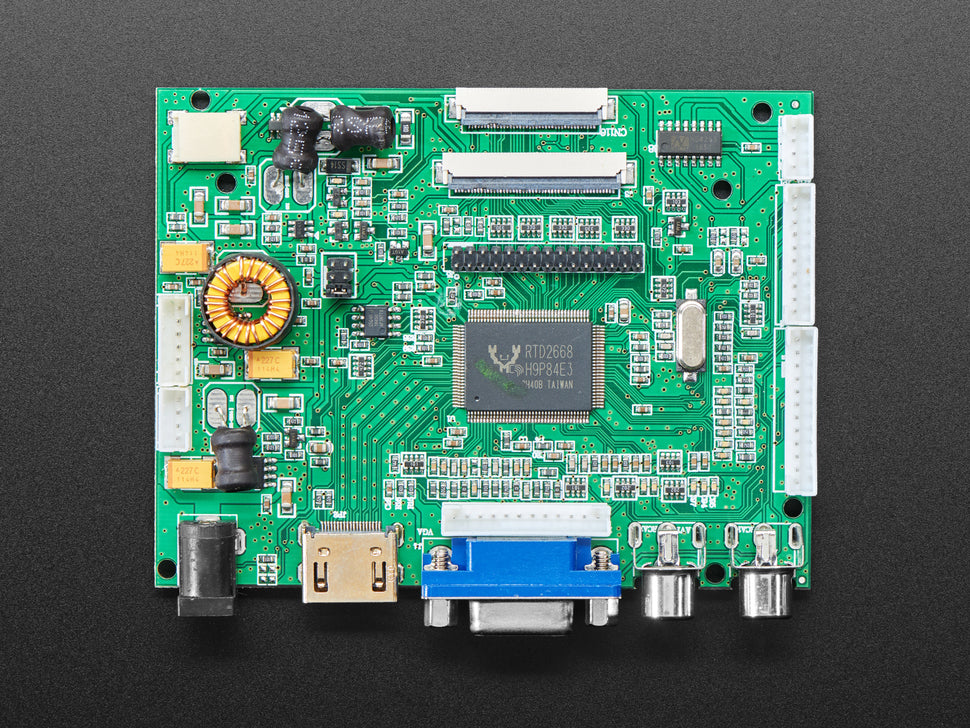

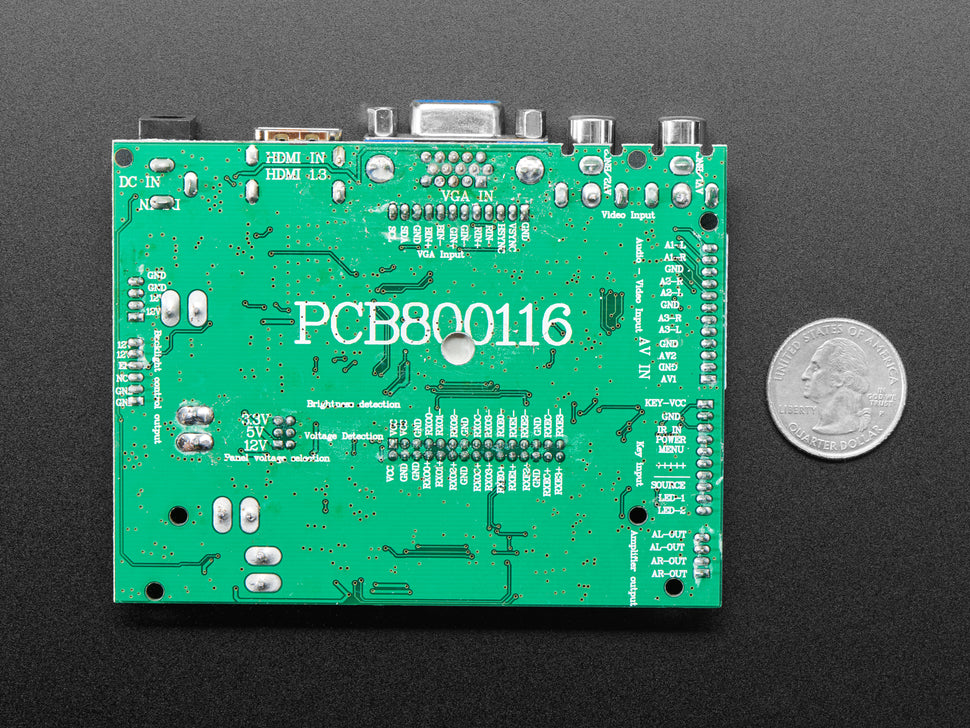

The display measures 10" diagonally and includes a driver board with HDMI, VGA, and Composite inputs, as well as a stereo 4 ohm 3W output. Setup is simple: connect a 9-12V DC adapter, a digital video source to one of the inputs, and two 4-8 ohm speakers to the output pins.

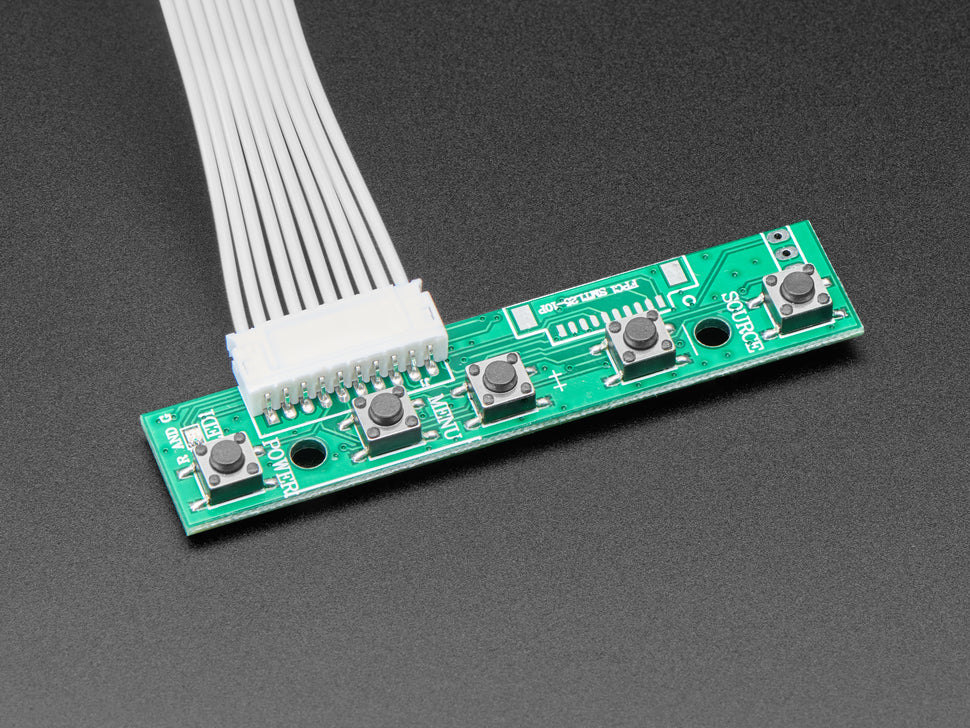

Control buttons on a wired PCB allow easy access to a menu for adjusting brightness, color, and contrast. The display auto-detects input sources but also allows manual selection.

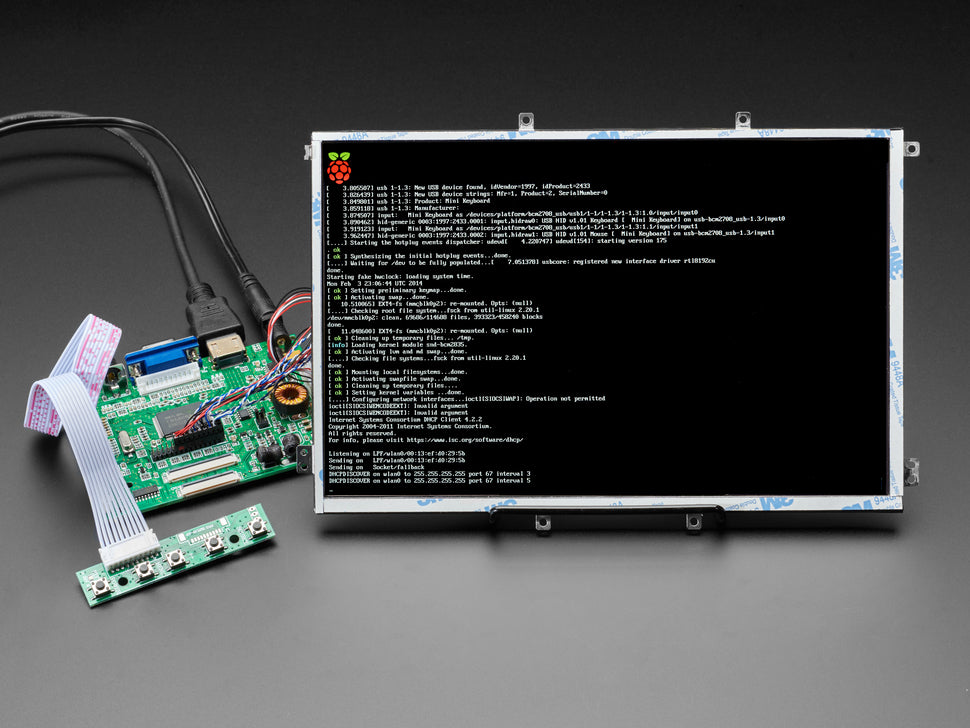

Compatible with Raspberry Pi, BeagleBone Black, and other HDMI, VGA, or NTSC/PAL devices (not DVI or SECAM). Power adapter and speakers are not included.

• 10.1" IPS screen with 1280x800 resolution
• HDMI, VGA, and Composite input support
• Stereo 4 ohm, 3W speaker output
• Includes wired PCB with control buttons and menu system
• Power: 9-12V DC adapter required (not included)
• Compatible with Raspberry Pi and other devices with HDMI/VGA/NTSC/PAL output
• Not HDCP compatible (cannot use secured HDMI sources)

For suggested Raspberry Pi config.txt settings and more information, visit our HDMI Display ÜBERGUIDE.
