802.3af PoE Output Data & Power Splitter - 5/9/12V

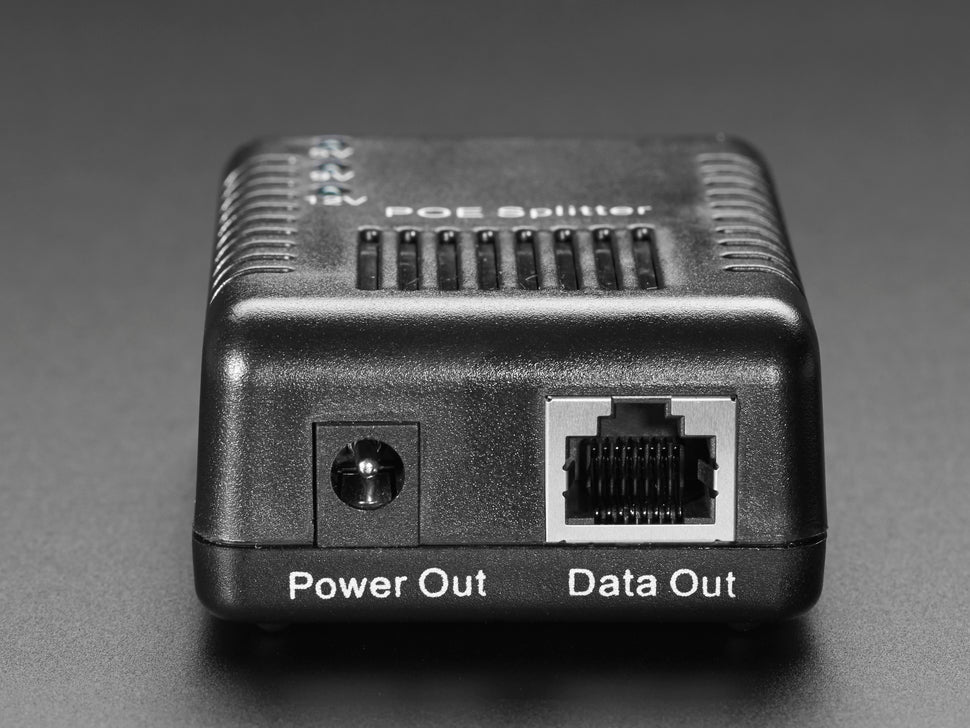

Power over Ethernet (PoE) splitters simplify project wiring by connecting any 802.3af-capable router to Ethernet devices that don't support PoE natively. This splitter separates the combined PoE signal (data and power) from one cable into separate Ethernet data and regulated DC power lines.

This economical, practical, and reliable multi-voltage PoE output splitter complies with IEEE 802.3af standard. It supports 10/100M data transmission and accepts 44V-57V input voltage, making it suitable for various PoE power supply equipment, including standard or non-standard PoE injectors and PoE switches.

• IEEE 802.3af compliant
• Supports 10/100M data transmission
• Input voltage range: 44V-57V DC
• Supplies 1 Amp regulated DC power via DC barrel jack

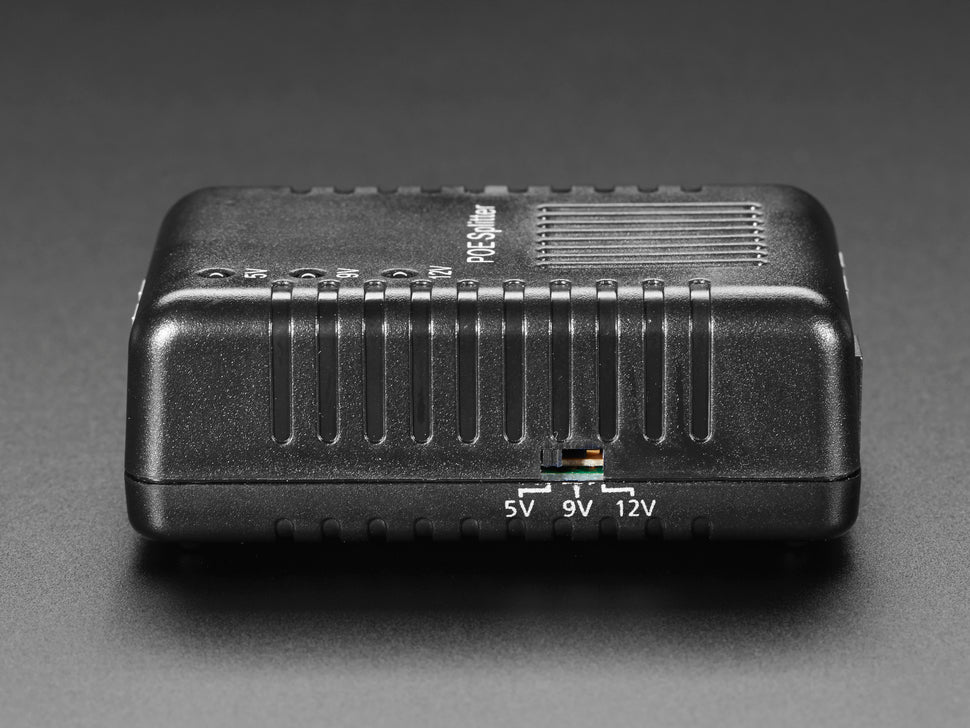

• DIP switch selectable output voltage: 5V, 9V, or 12V
• Includes multiple DC plugs with positive-tip output: 5.5mm/2.5mm, 5.5mm/2.1mm, 4.8mm/1.8mm, 3.4mm/1.3mm

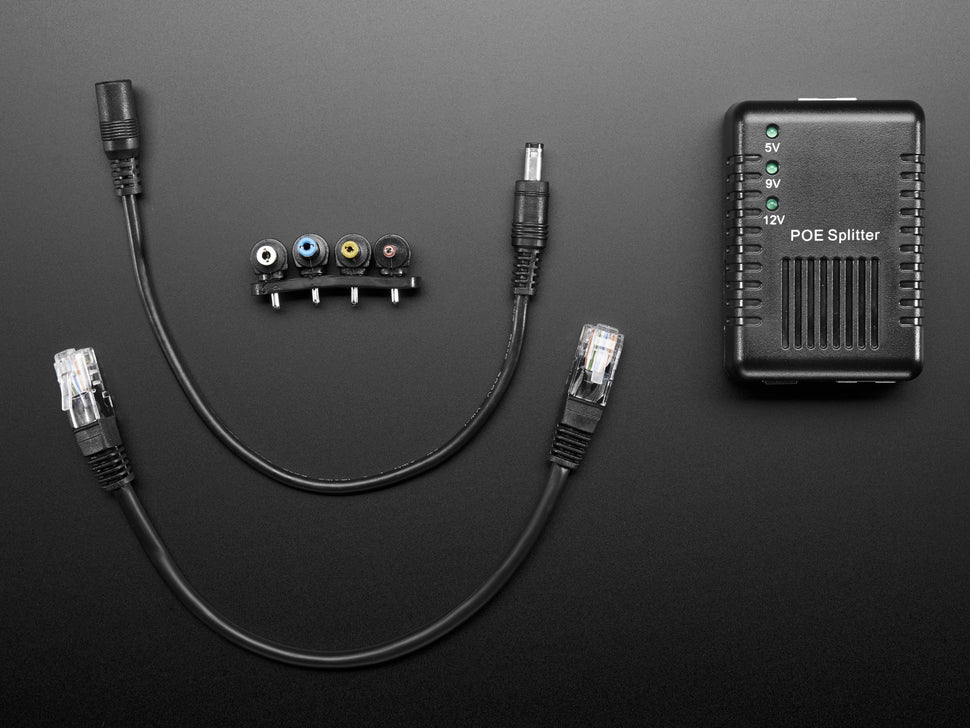

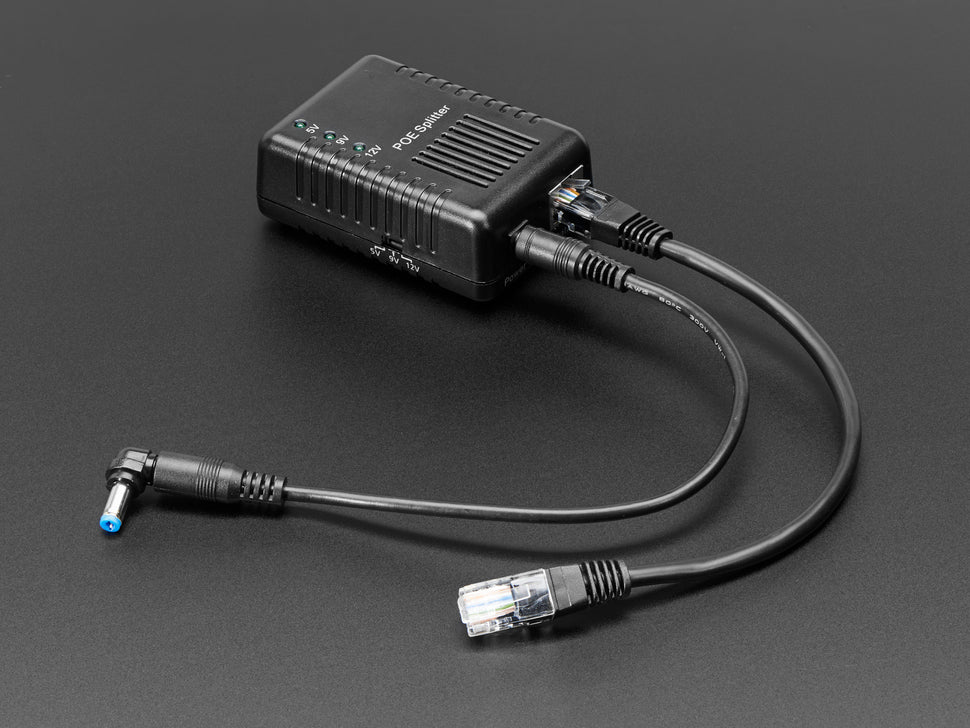

The package includes the splitter with power and data output cables.

Note: For use only with true 802.3af routers. If you don't have a PoE injector, check out the passive PoE cable kit.
