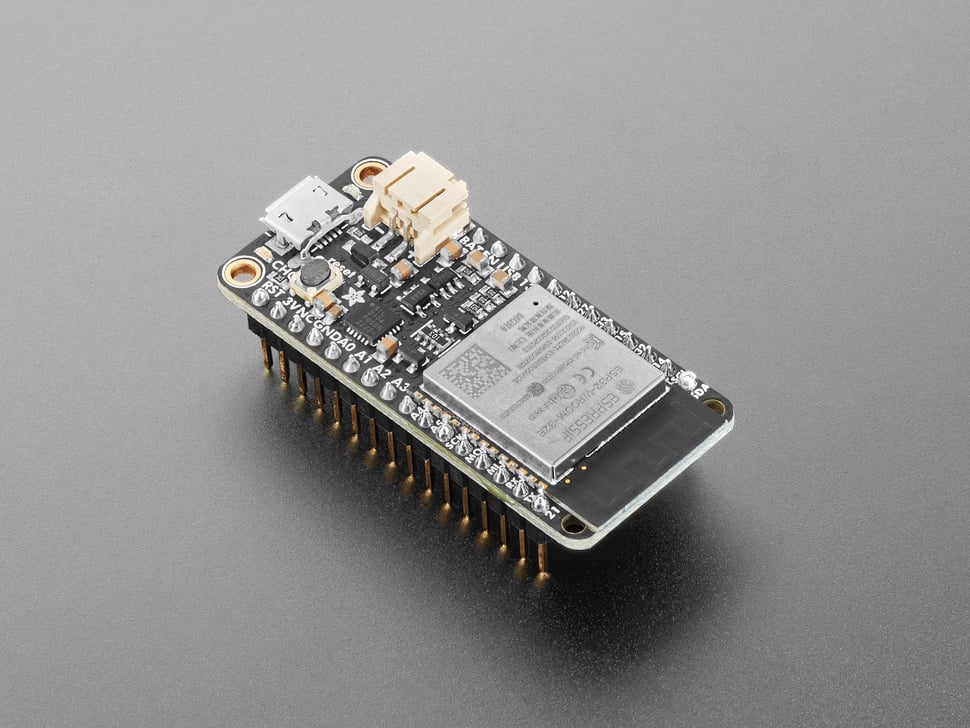

Adafruit HUZZAH32 ESP32 Feather Board - Assembled Plain Headers

The Adafruit HUZZAH32 is an ESP32-based Feather board featuring the official WROOM32 module with pre-assembled plain 0.1" headers for quick and easy use.

This powerful board boasts a dual-core 240 MHz Tensilica LX6 microcontroller with 600 DMIPS, 4 MB SPI flash, integrated WiFi 802.11b/g/n and Bluetooth Classic/LE, and a wide array of peripherals. It is compatible with the extensive Feather ecosystem including 50+ Feather Wings for expanding its capabilities.

The ESP32 offers multiple GPIO pins, analog inputs and outputs, UARTs, SPI, I2C, capacitive touch, PWM, and more. The board includes a built-in USB-to-serial converter, automatic bootloader reset, and a LiPo battery charger (batteries and cables are not included).

Perfect for makers with some experience, it supports Arduino IDE and ESP-IDF for development.

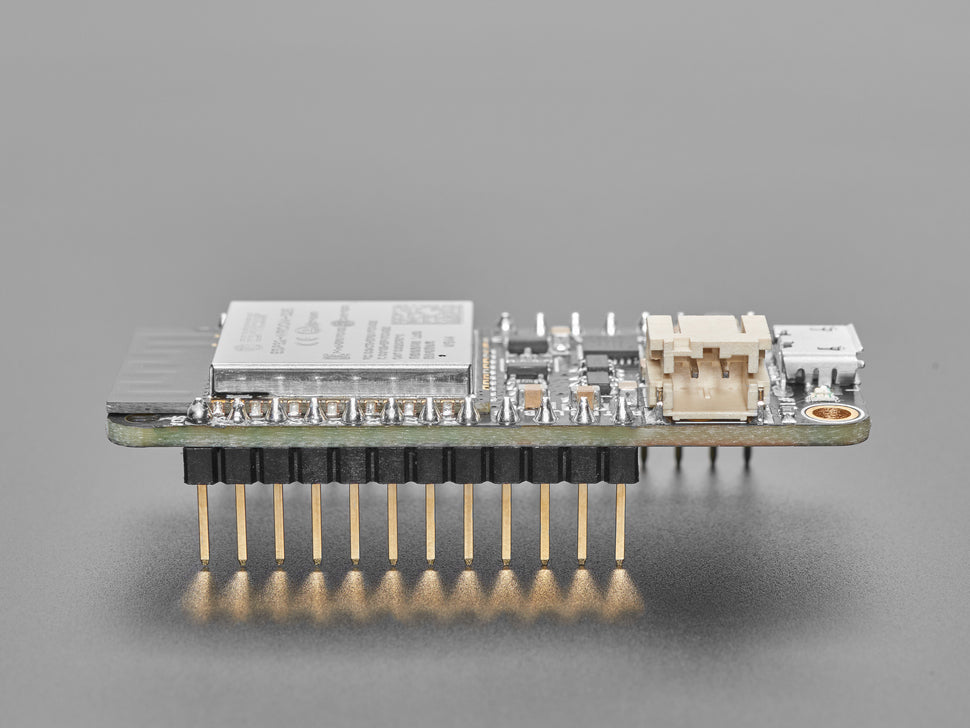

• Pre-assembled plain 0.1" headers
• ESP32 dual-core 240 MHz processor
• 4 MB SPI Flash memory
• Integrated Bluetooth Classic and Bluetooth Low Energy
• WiFi 802.11b/g/n HT40
• Built-in LiPo charger and USB-to-serial converter
• Compatible with over 50 Feather Wings
• Dimensions: 50.0mm x 23.0mm x 15.6mm
• Weight: 8.4 grams

For detailed documentation, guides, pinouts, and more, visit the Adafruit HUZZAH32 ESP32 Feather Learn Guide.
