Adafruit Music Maker FeatherWing - MP3 OGG WAV MIDI Synth Player

Bend all audio files to your will with the Adafruit Music Maker FeatherWing! This FeatherWing features the VS1053B codec chip that can decode a wide variety of audio formats such as MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, WAV (PCM and ADPCM). It allows you to adjust bass, treble, and volume digitally.

The FeatherWing interfaces via SPI and can be used with any Feather Board to play audio from an SD card. It also includes a built-in MIDI synth/drum machine that reads classic MIDI data to produce dozens of instruments and sample effects.

Features include:

• VS1053B codec chip supporting Ogg Vorbis, MP3/MP2/MP1, MP4, AAC, WMA, FLAC, WAV/PCM, MIDI decoding
• Stereo audio output with proper audio filter caps suitable for headphones, stereo systems, or powered speakers
• MicroSD card socket supporting FAT16/FAT32 cards from 64MB or greater
• Built-in MIDI synth/drum machine with dozens of instruments

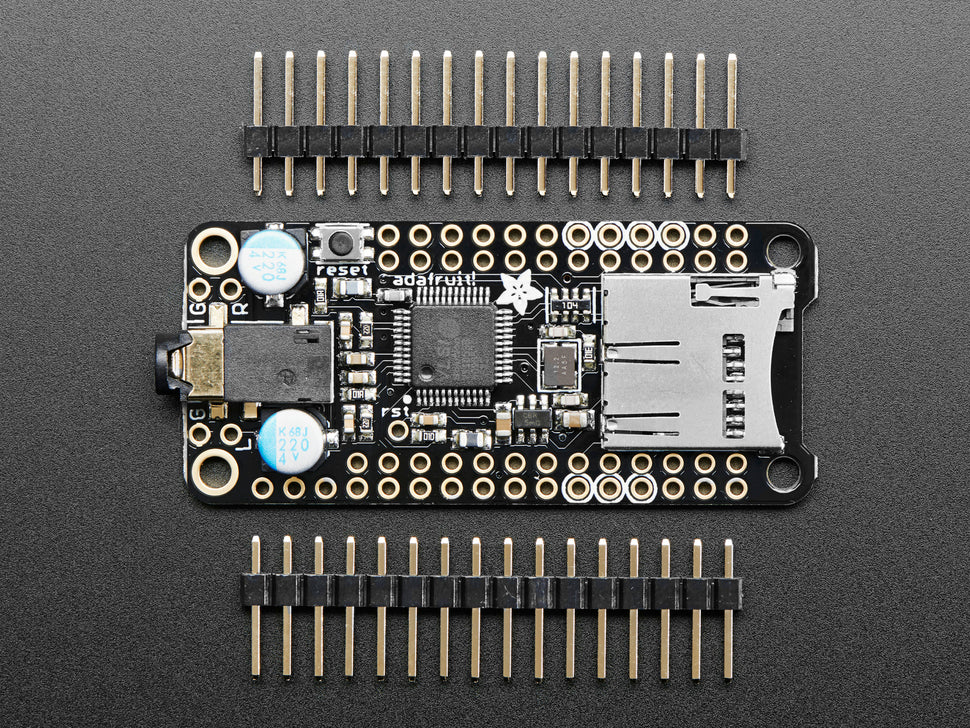

Each order includes one tested FeatherWing and two sticks of 0.1" male headers for connection to your Feather Board. Some soldering is required to attach headers. Note: Headphones, SD card, and Feather Board are not included.

Example code, wiring diagrams, library code, schematics, and Fritzing object available in the tutorial.
