ScoutMakes DRV5011 Digital Magnetic Hall Effect Sensor

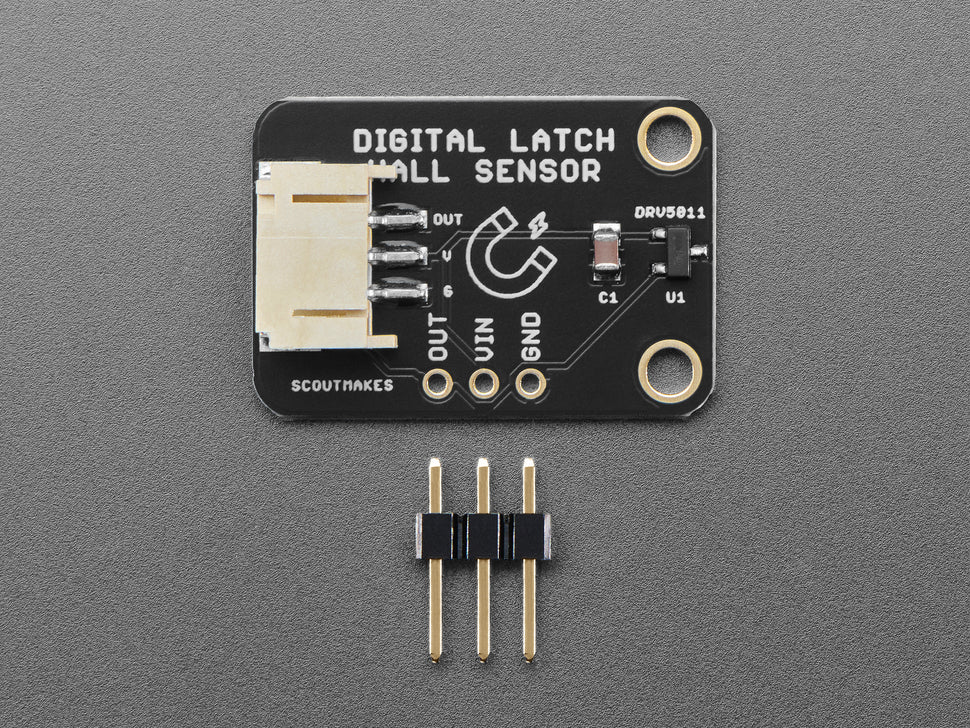

This is a breakout for the Texas Instruments DRV5011 Digital Magnetic Latch Hall Effect Sensor. It is the perfect way to add magnetic sensing to your project. The sensor has a digital output that goes LOW when a south-side magnetic field is detected, and will stay low until a north-side field is detected, then it goes back HIGH. This makes it great for detecting a rotating magnet since you'll get nice clean pulses on the transition from N to S and S to N.

Key Features

• Digital output for magnetic field detection
• Latching output for clean pulse transitions
• 3-pin header for breadboard use

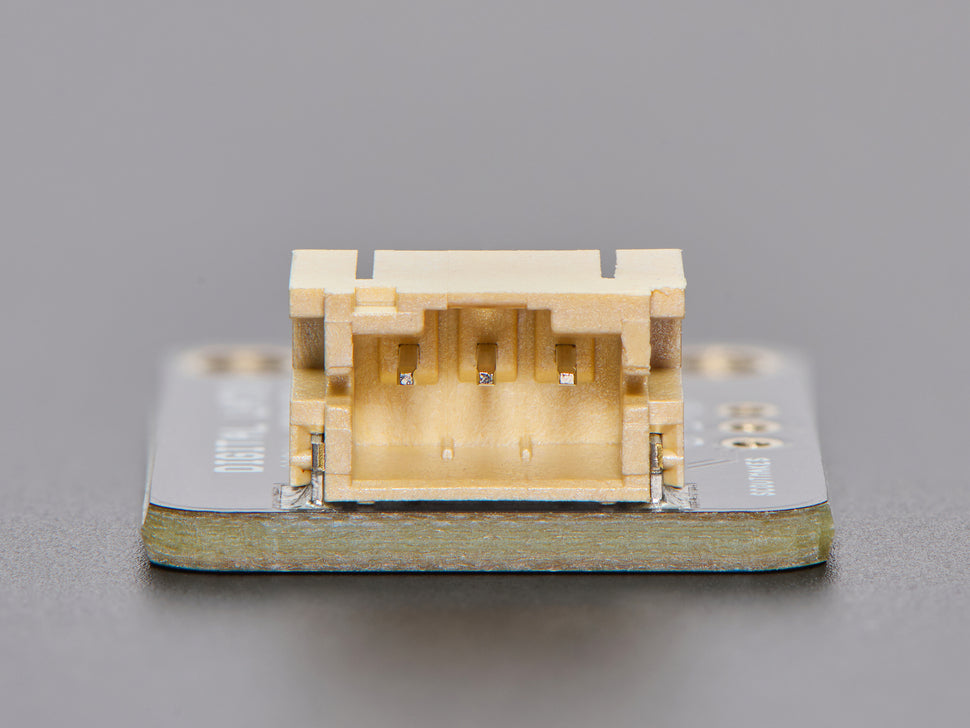

• JST PH 3-pin input connector for solderless use

Technical Specifications

Applications

Ideal for detecting rotating magnets and applications requiring magnetic field detection with latching output.
