Adafruit USB Type C Plug Breakout

Throw out all those Mini and Micro B USB cables you have in a plastic bin - the next generation of USB connectors is here with USB C! USB C connectors are the new standard, featuring a symmetric and reversible design, more data pins, and higher current output capability. This breakout board gives you all the basics needed plus a resistor configuration to ensure 5V power delivery.

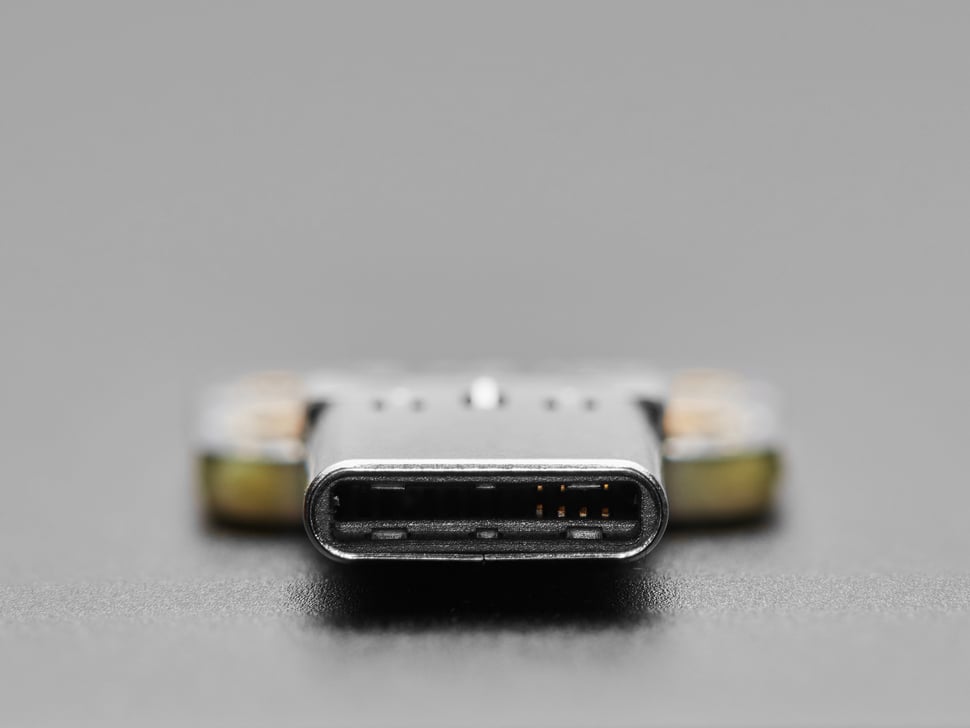

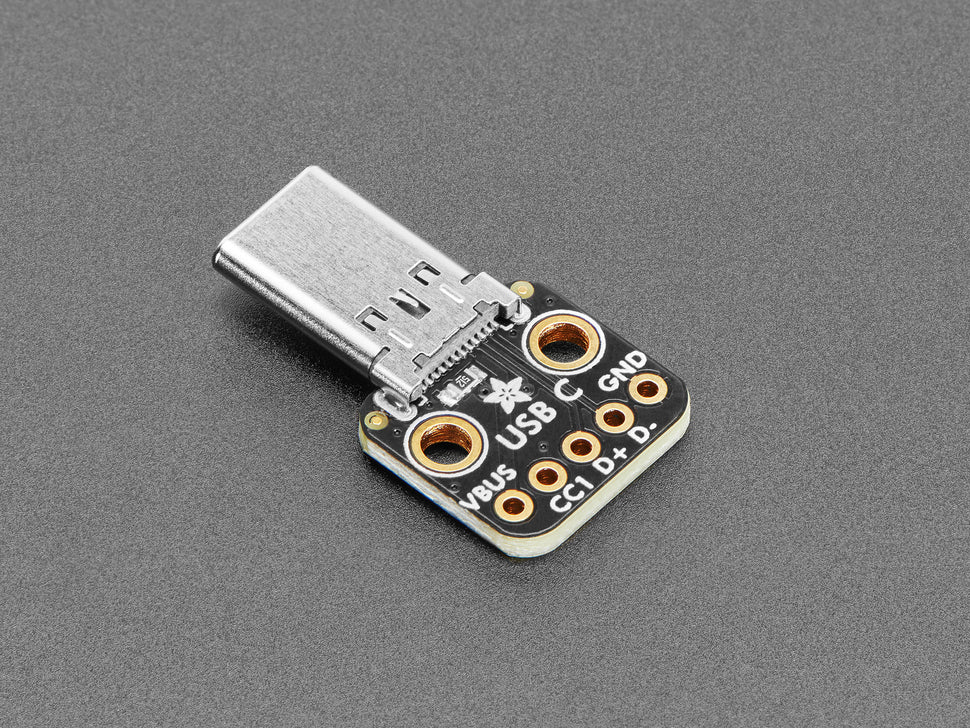

This breakout uses a plug with a semi-through hole mounting configuration for mechanical stability; however, it should not be bent purposefully like a Type A.

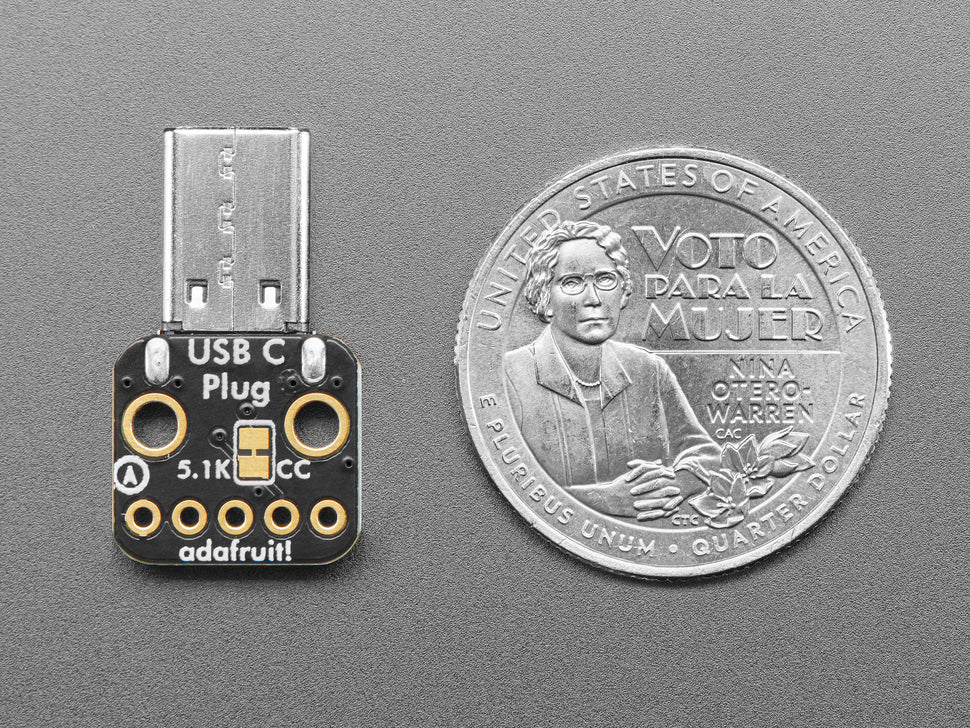

Features a 5.1K resistor on the CC1 pin to communicate to the upstream port for 5V at up to 1.5A, depending on the power source.

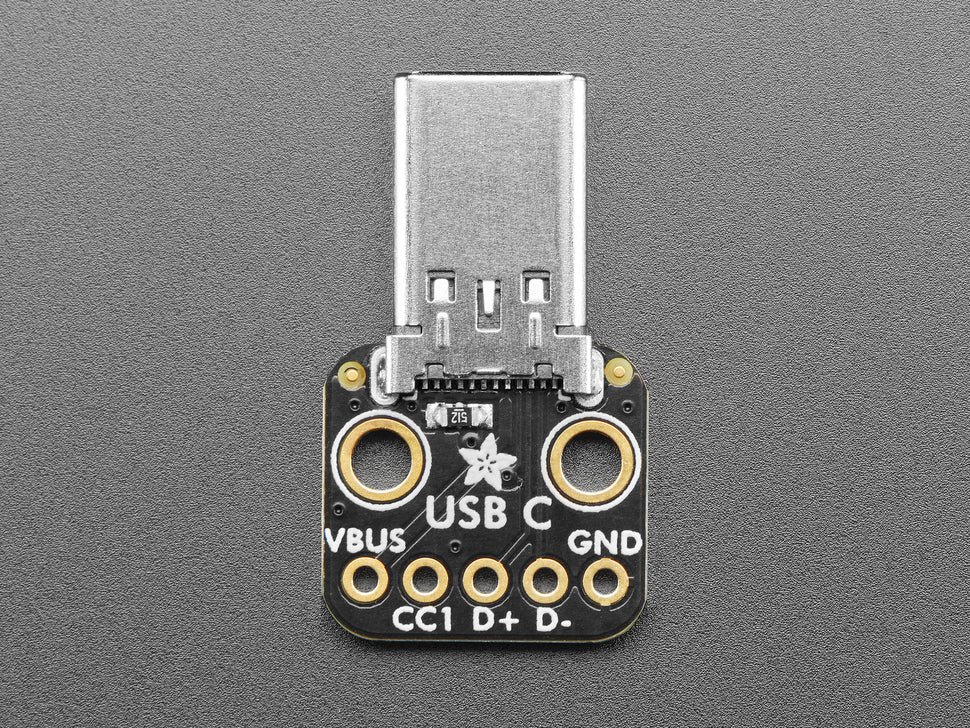

Unlike USB Type C sockets, this plug side intentionally uses only one set of D+/D-/CC pins to signal cable orientation. Connections on this breakout correspond to the 'A' side data pins.

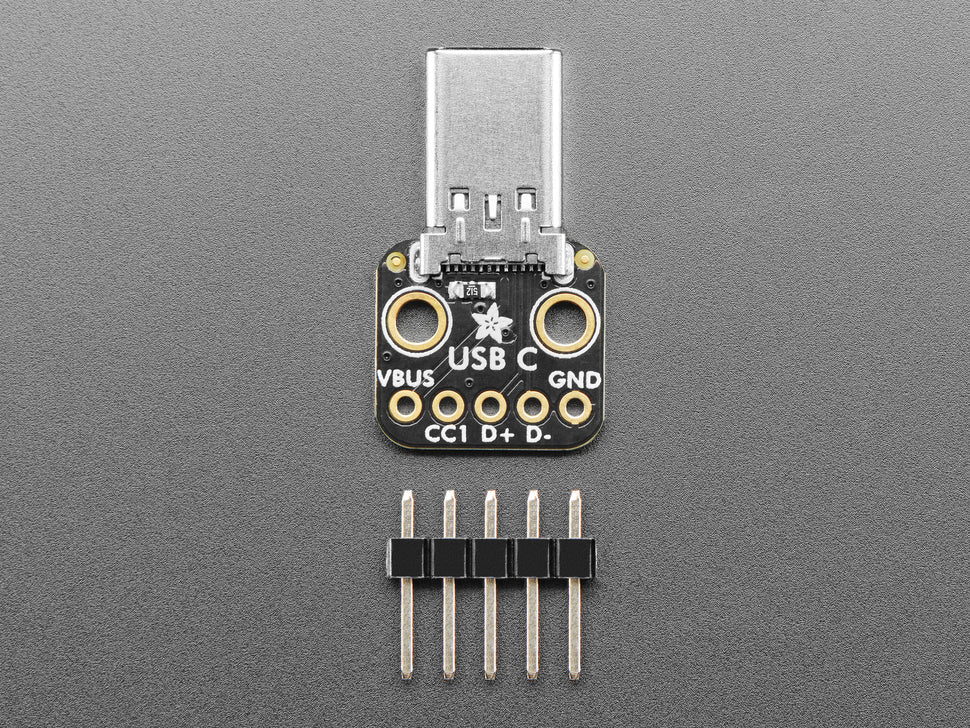

For most uses, connect VBUS to 5V input, GND to ground, and D+ and D- as usual.

Reference: Introduction to USB C app note

• Symmetric, reversible USB Type C plug breakout
• Semi-through hole mounting for stability
• 5.1K resistor on CC1 pin for 5V/1.5A power delivery
• Compatible with standard USB 5V input, data lines
• Compact dimensions: 24.1mm x 14.3mm x 3.1mm
• Lightweight: 1.1 grams
