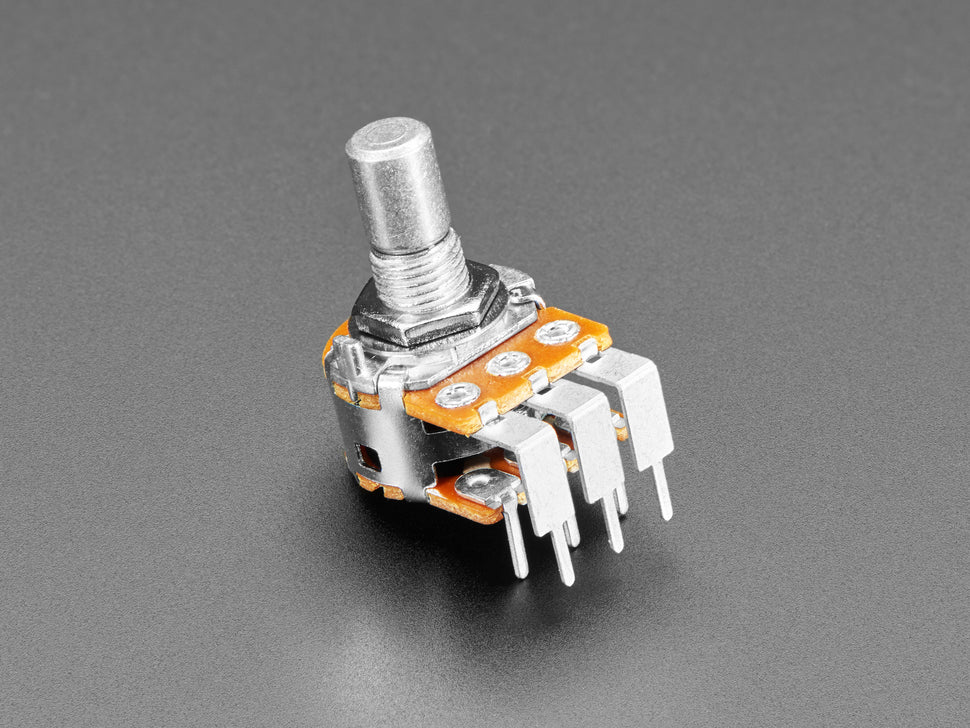

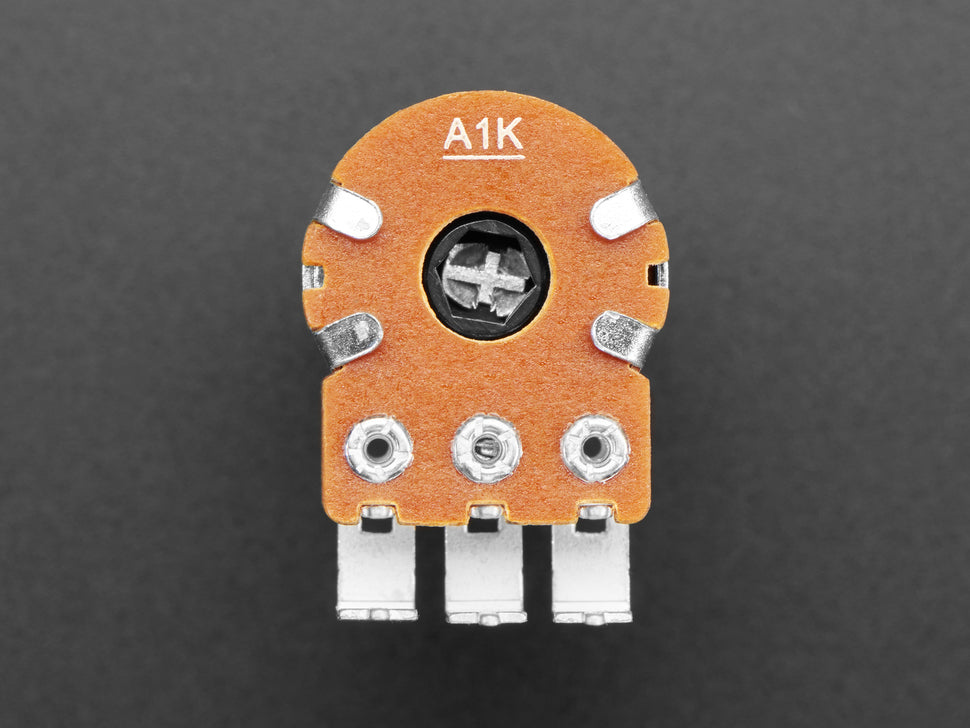

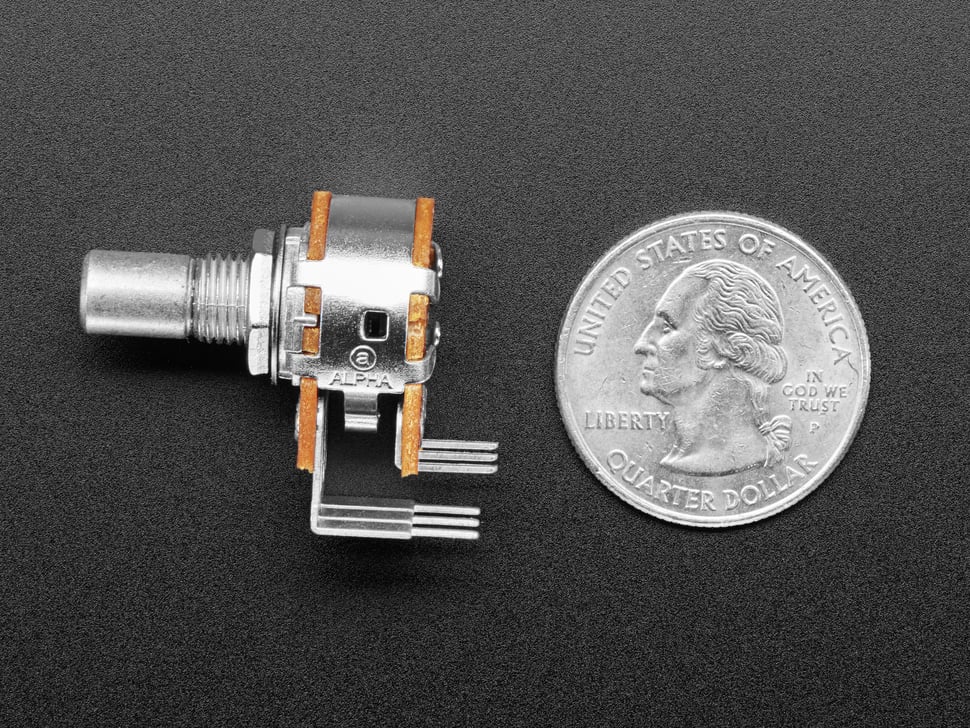

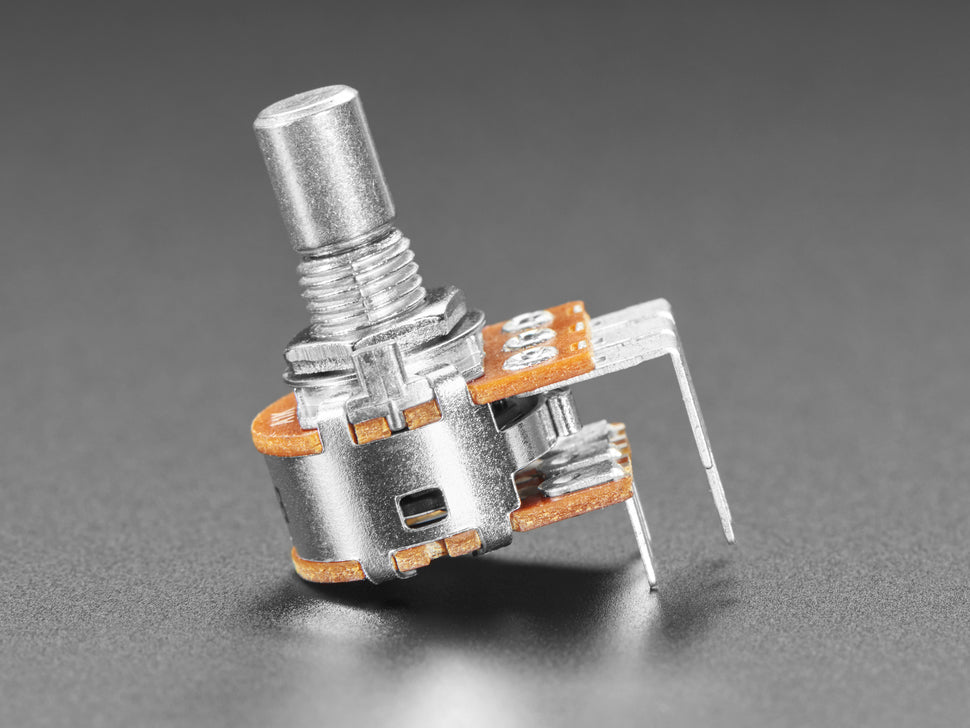

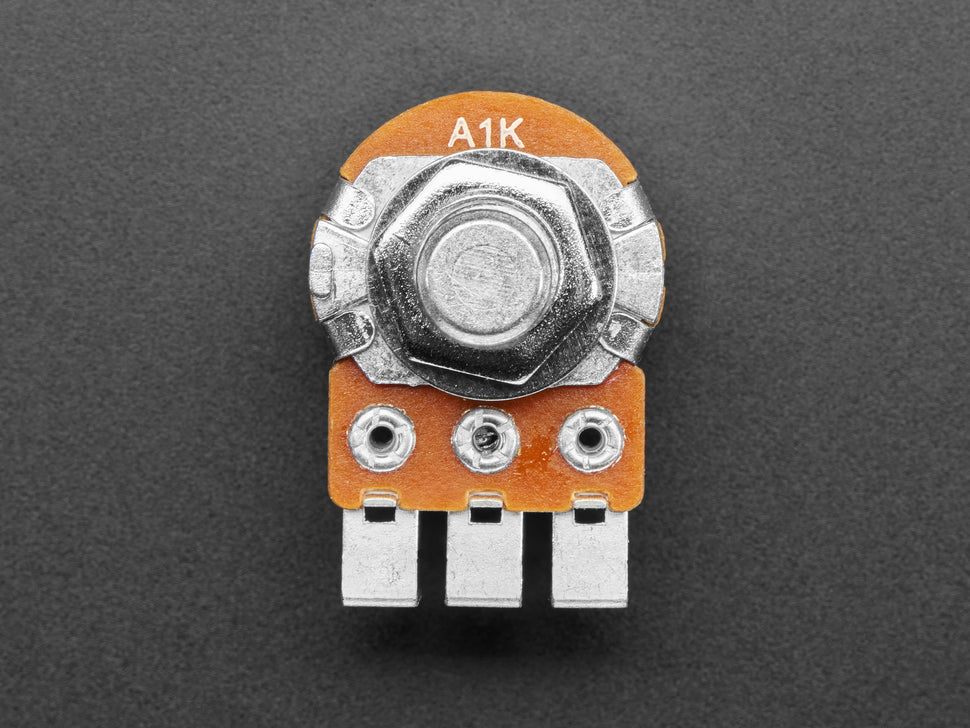

Alpha Dual-Gang 16mm Right-Angle PC Mount 1K Audio Potentiometer

The Alpha Dual-Gang 1K Audio potentiometer is a reliable two-in-one potentiometer stack designed for independent stereo control. Each half features an audio/log taper 1K potentiometer with one shared knob for both. It offers smooth and precise control without shifting on its own. The legs are spaced 0.2" apart with pin-points, compatible with perfboards.

Alpha potentiometers are valued for their reliability and consistent performance, making this a cost-effective and high-quality option. The shaft is round with a nominal diameter of 6mm (measured at 6.3mm) and the pot includes a washer and hex nut for secure panel mounting after prototyping.

• Dual-gang design for stereo control
• Audio/log taper with 1K resistance
• Smooth and stable knob rotation
• Pin-point legs spaced 0.2" for perfboard compatibility
• Round 6mm diameter shaft
• Includes washer and hex nut for panel mounting

Available Resistance Versions: 1K, 5K, 10K ($2.75), 25K, 50K, 100K, 250K, 500K, 1M

Check the datasheet for detailed technical information.
