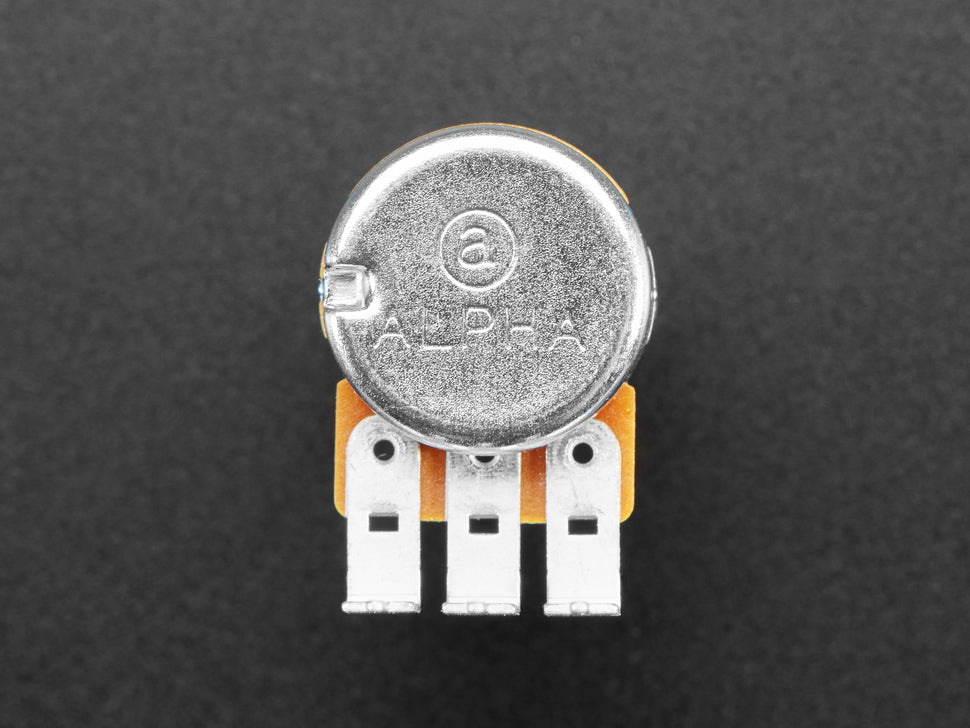

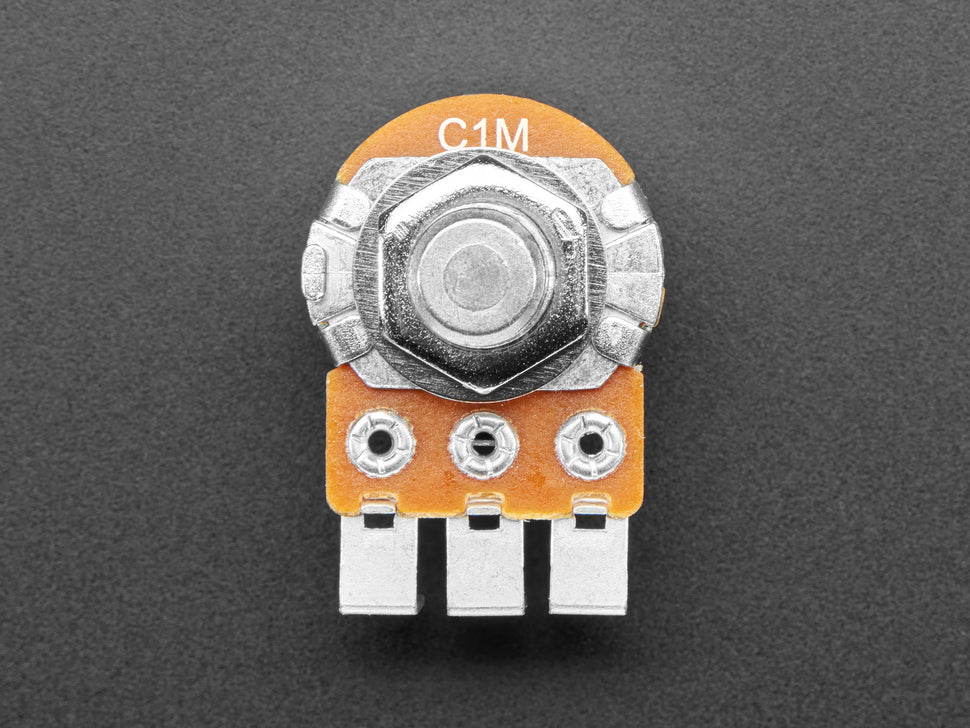

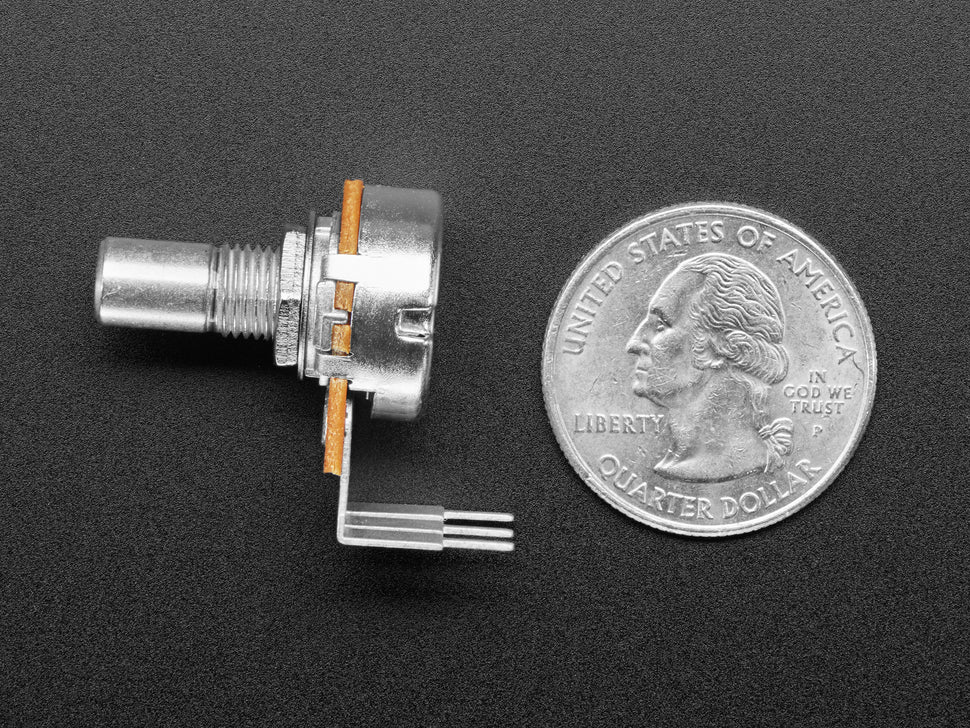

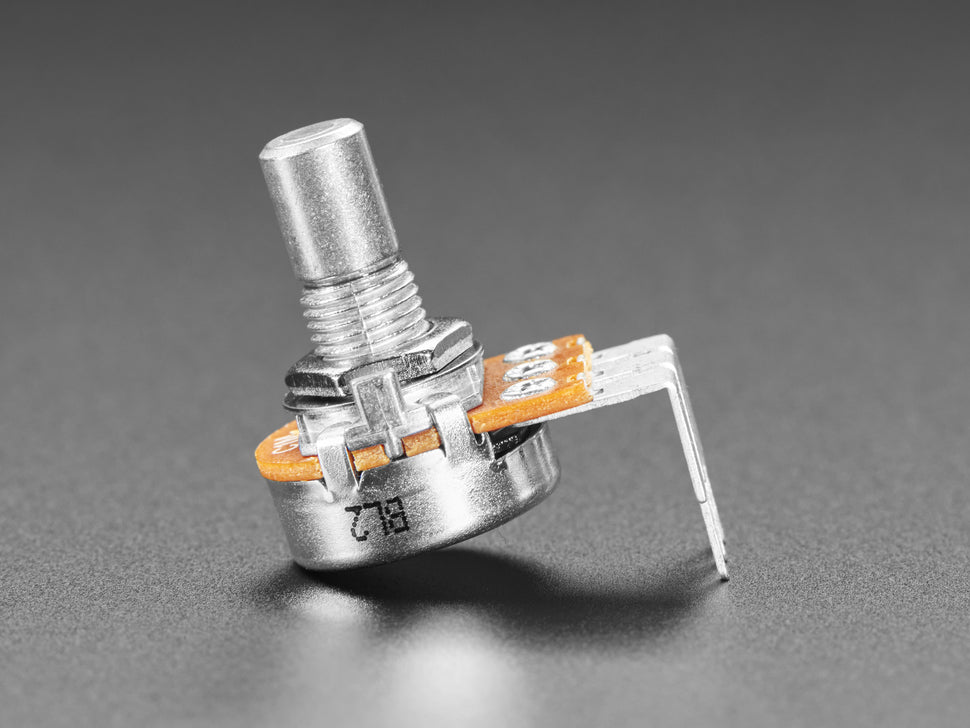

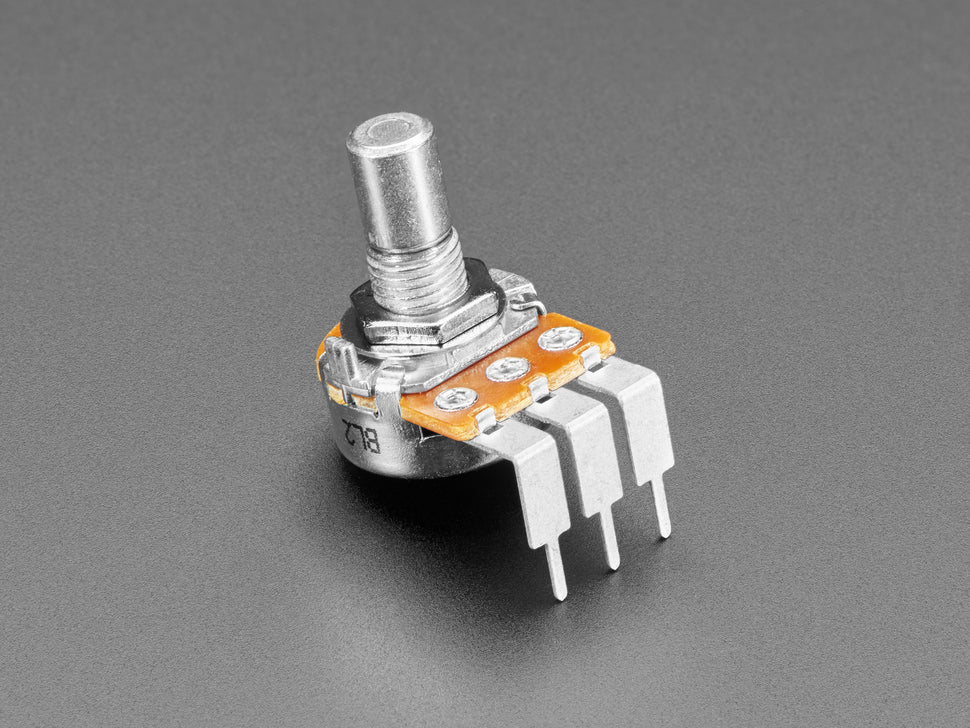

Alpha Single-Gang 16mm Right-angle PC Mount 1M Reverse Audio Potentiometer

The Alpha 1M Reverse Audio potentiometer is a versatile and reliable component suitable for breadboarding or panel mounting. This unique reverse audio taper 1 Megaohm potentiometer operates smoothly and is not prone to accidental movement due to its snug fit.

Key features include 0.2" spaced legs with pin-points for easy breadboard or perfboard insertion, and a round shaft approximately 6mm in diameter. The potentiometer comes with a washer and hex nut for secure panel mounting once prototyping is complete.

Alpha potentiometers are well-known for consistency and reliability, making them a great low-cost, high-quality choice for your projects.

• Reverse audio taper 1 Megaohm potentiometer
• Round 6mm diameter shaft

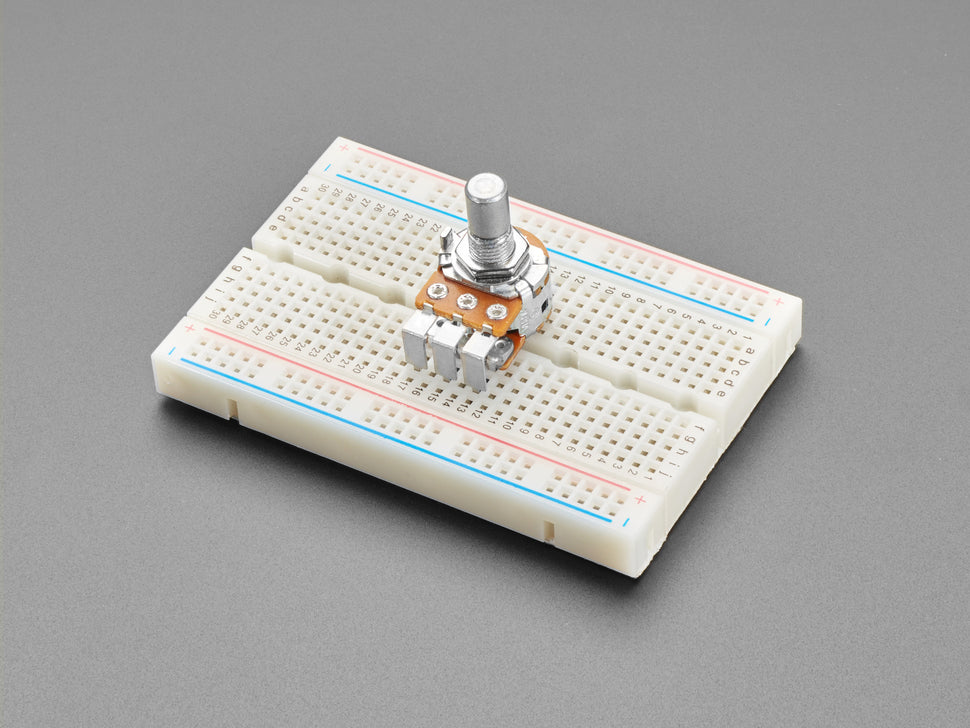

• Legs spaced 0.2" with pin-points for breadboard use
• Includes washer and hex nut for panel mounting
• Smooth operation and durable construction

Additional technical details can be found in the datasheet.
