Description

Drive High-Current Loads with Ease

The BeagleBone Load Cape is an expansion module (cape) that lets your BeagleBone board directly drive high-current loads such as relays, motors, solenoids, and high-current LEDs — without extra external driver circuitry.

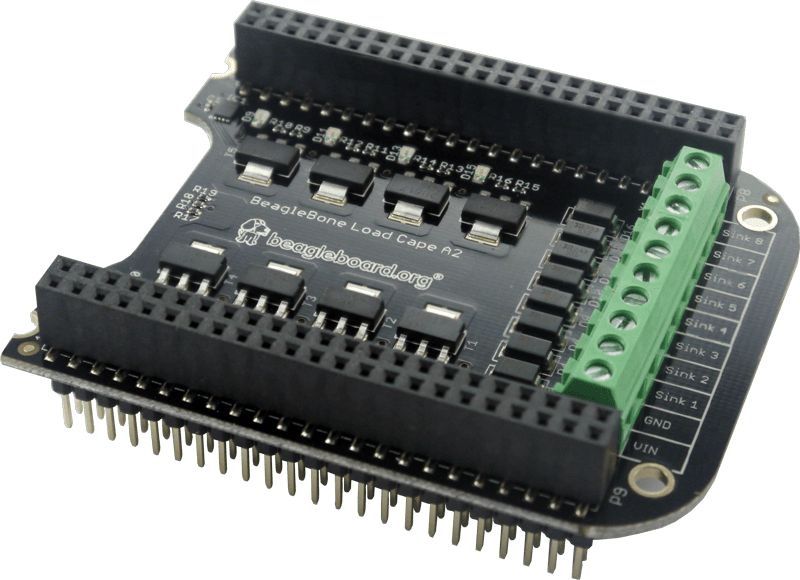

BeagleBone Load Cape

🎯 Key Features

  • Eight 3-ampere, 50-volt current sinks for high-current applications
  • Integrated I2C EEPROM for automatic board identification
  • Follows the standard BeagleBone Cape Interface Specification for plug-and-play compatibility
  • Ideal for driving relays, motors, solenoids, and high-power LEDs directly from your BeagleBone

💡 Technical Specifications

Voltage Rating 50V maximum
Current Capability 3A per sink (8 sinks total)
Interface I2C EEPROM for board ID
Form Factor BeagleBone Cape

🌍 Compatible Platforms

  • BeagleBone Black
  • BeagleBone AI
  • BeagleBone Black Wireless
  • BeagleBone Black Industrial

🌍 Applications

Robotics and automation projects, relay/motor control, solenoid actuation, high-power LED lighting control, and any BeagleBone build that needs to switch high-current loads directly from the cape header.
