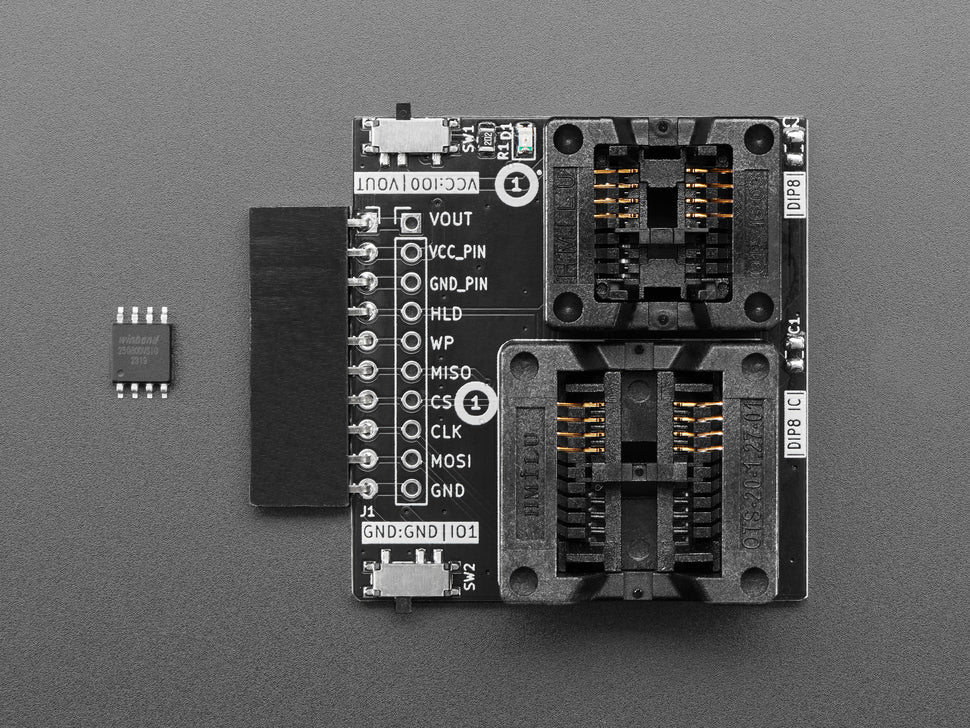

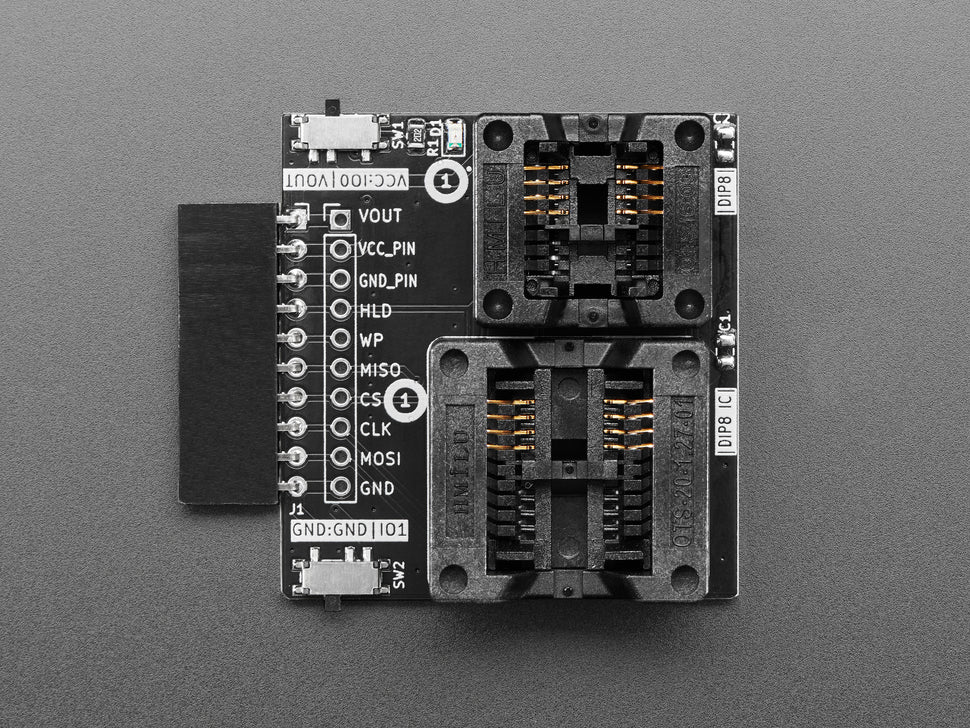

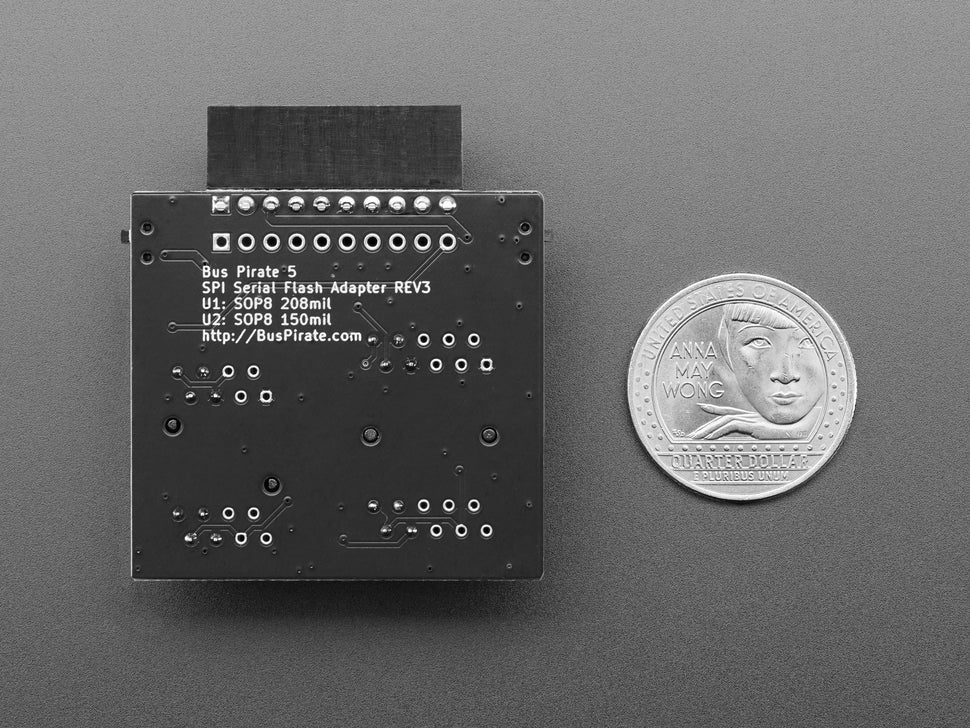

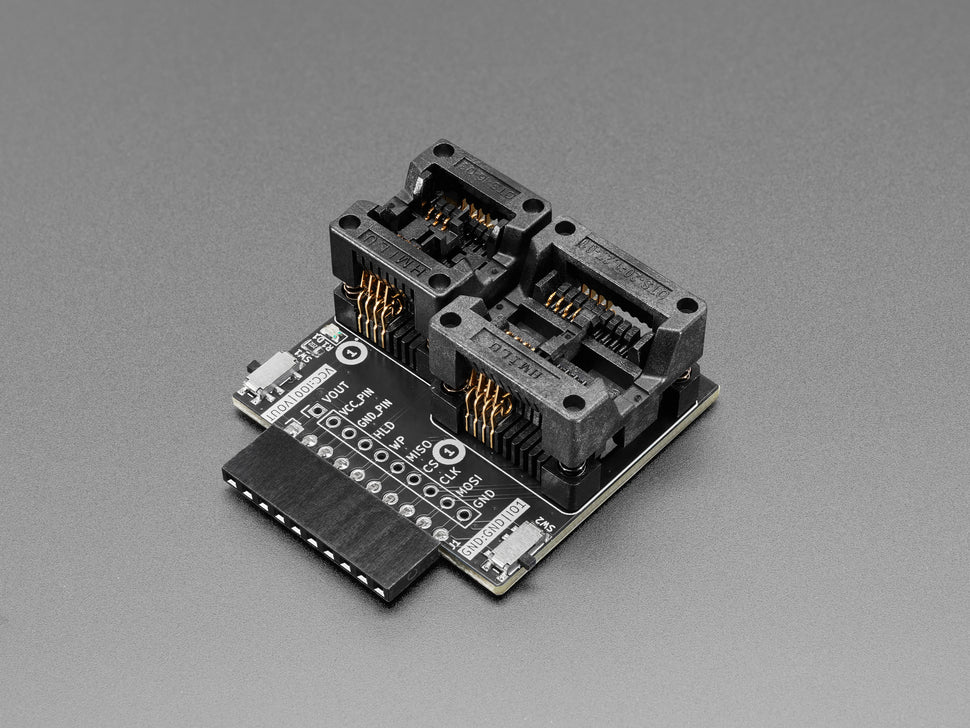

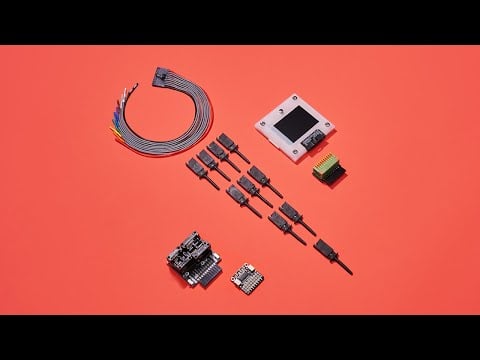

Bus Pirate 5 SOIC / SOP8 SPI Flash Adapter

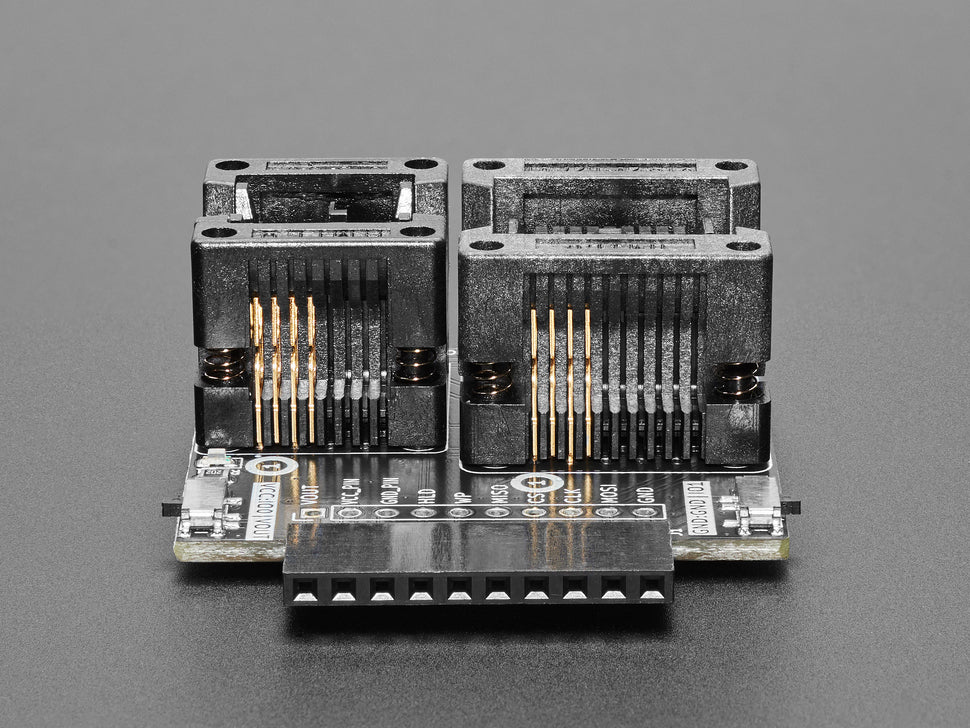

This accessory for the Bus Pirate 5 makes it trivial to program bare flash memory chips without clips or soldering. SOP8 150mil and 208mil are the most common and inexpensive flash packages at the moment. After looking at a number of sockets, the creators of the Bus Pirate 5 chose these adapters, favorites of the mobile phone repair market, for easy insertion and removal of chips although they are a bit bulky with delicate pins. The cost is higher due to the pins, as 16 pins cost double that of an 8 pins socket.

Inserting a chip:

• Press down gently on the top of the socket. The spring fingers will retract.
• Place or drop the chip into the socket with the chip pin 1 marker (dot, stripe, etc) aligned with the socket pin 1 marker.
• Release the socket; the spring fingers will grip the chip.

Removing a chip:

• Press down gently on the top of the socket. The spring fingers will retract.
• Gently lift the chip out of the socket with tweezers or turn the socket over and let the chip fall into your hand.
• Release the socket; the spring fingers will close.

Visit the documentation overview for more information on use and features.
