Cross Laser Diode - 5mW 650nm Red

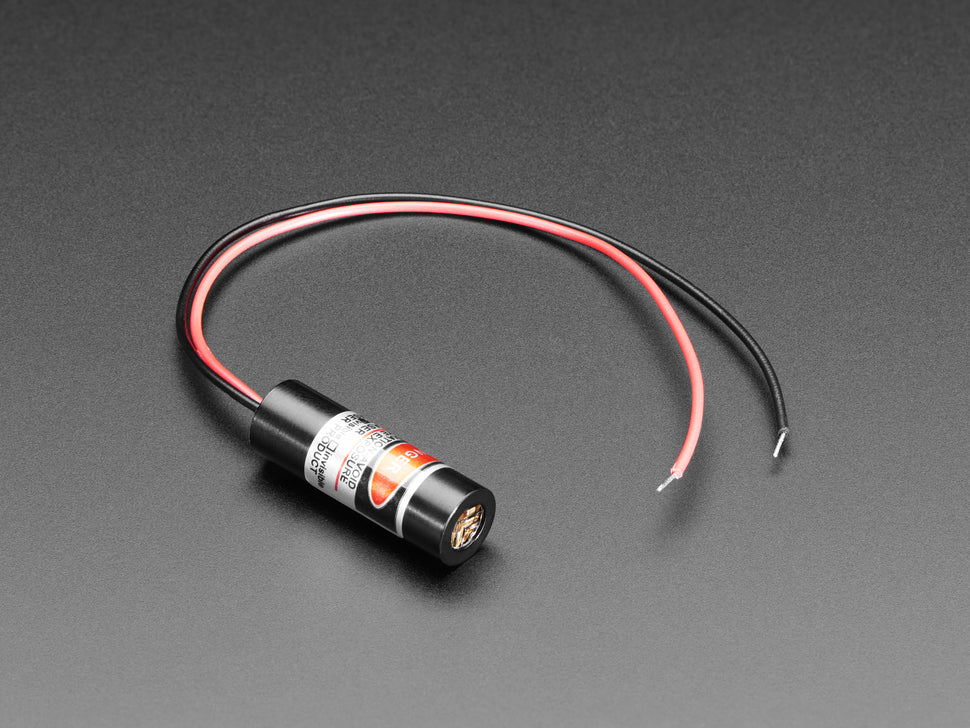

The Cross Laser Diode is a 5mW, 650nm wavelength red laser module designed with an integrated driver and lens that projects a sharp cross pattern. Operating at 2.8V to 5.2V DC and drawing up to 25mA, this Class IIIa laser is ideal for laser-vision guidance, targeting, and embedded electronics projects.

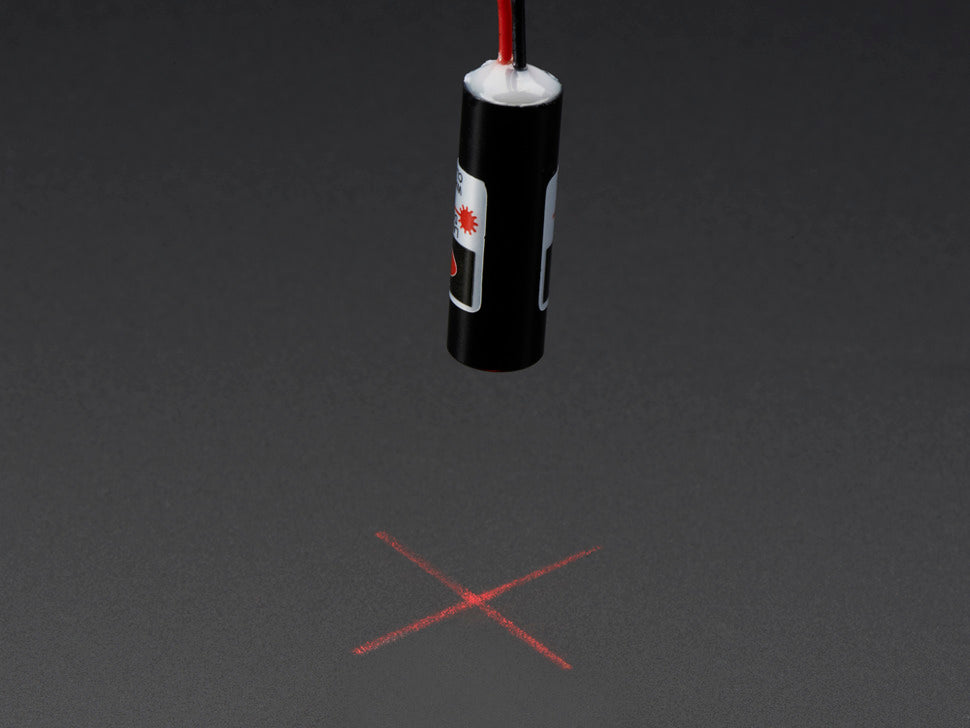

This laser diode module features a beam spread of approximately 60° in both directions, producing a cross that is roughly 5cm tall and 5cm wide from a 5cm distance, with sharp cutoffs at the ends for a defined shape.

Please note: This is not a laser pointer; it requires an external 3V to 5V DC power supply.

• 650nm red wavelength
• 5mW output power
• Class IIIa laser

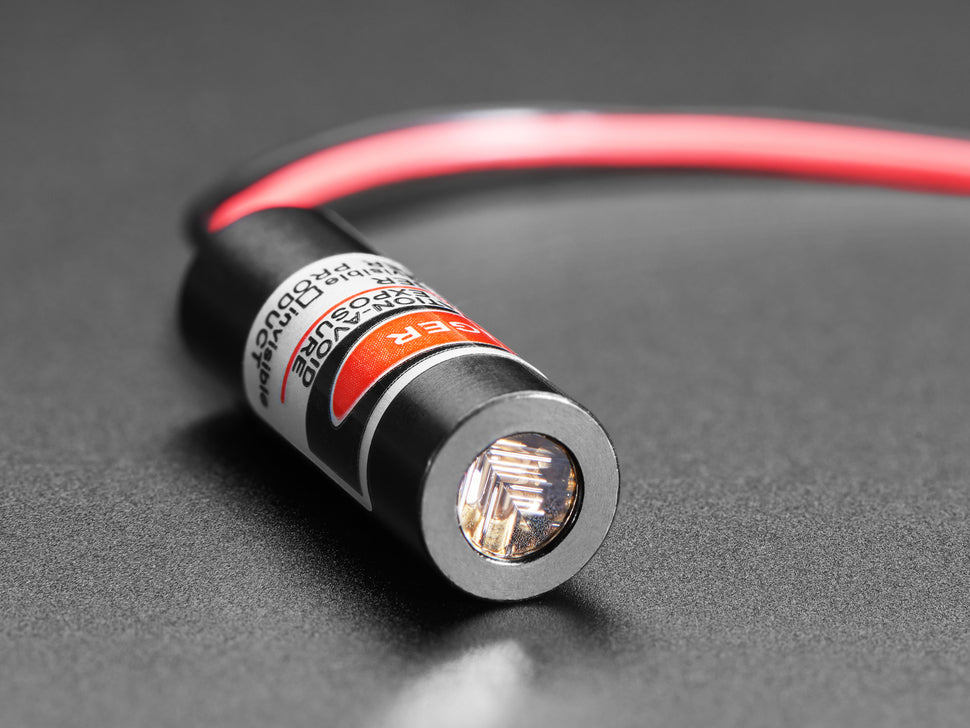

• Integrated driver with lens producing a cross beam
• Operates from 2.8V to 5.2V DC input
• Maximum current draw of 25mA
• Beam spread approximately 60° x 60°
• Operating temperature range: -10°C to 40°C

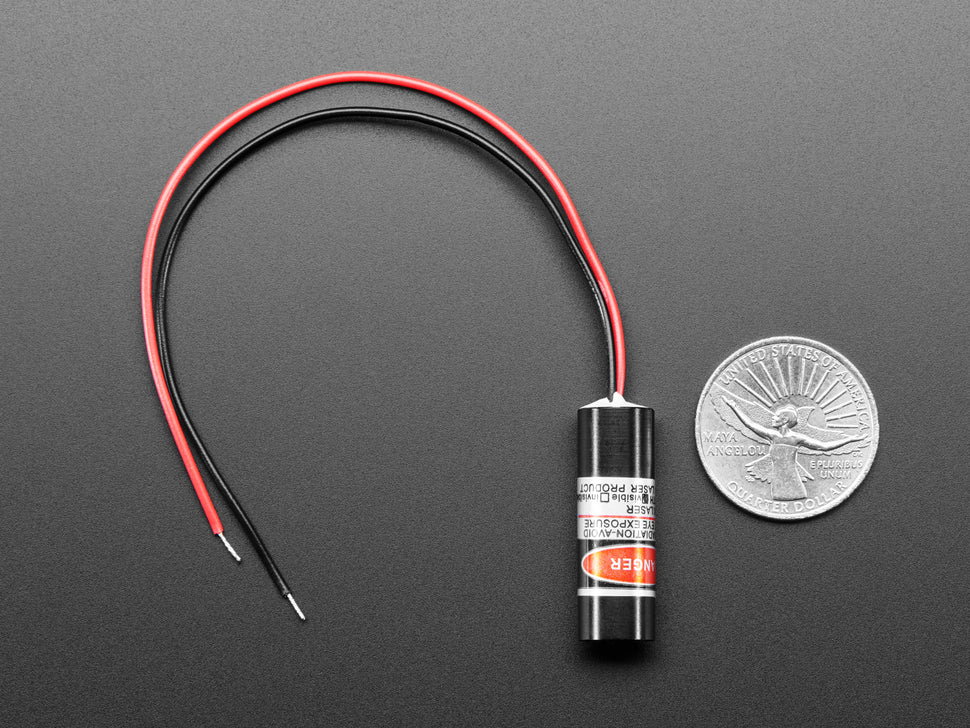

• Compact size: Diameter 10.11mm, Length 32.82mm, Wire length 100mm
• Weight: 11.85g

Safety: Contains a marked 5mW Class IIIa laser diode. Follow proper laser safety guidelines.
