HDMI 4 Pi: 5" Display (No Touch) with Mini Driver - 800x480 HDMI

The HDMI 4 Pi: 5" Display (No Touch) with Mini Driver is a compact 5-inch TFT display with WVGA 800x480 resolution, designed for embedded computing applications. The visible display measures 5" diagonal and features a 'raw' TTL display commonly used in portable electronics.

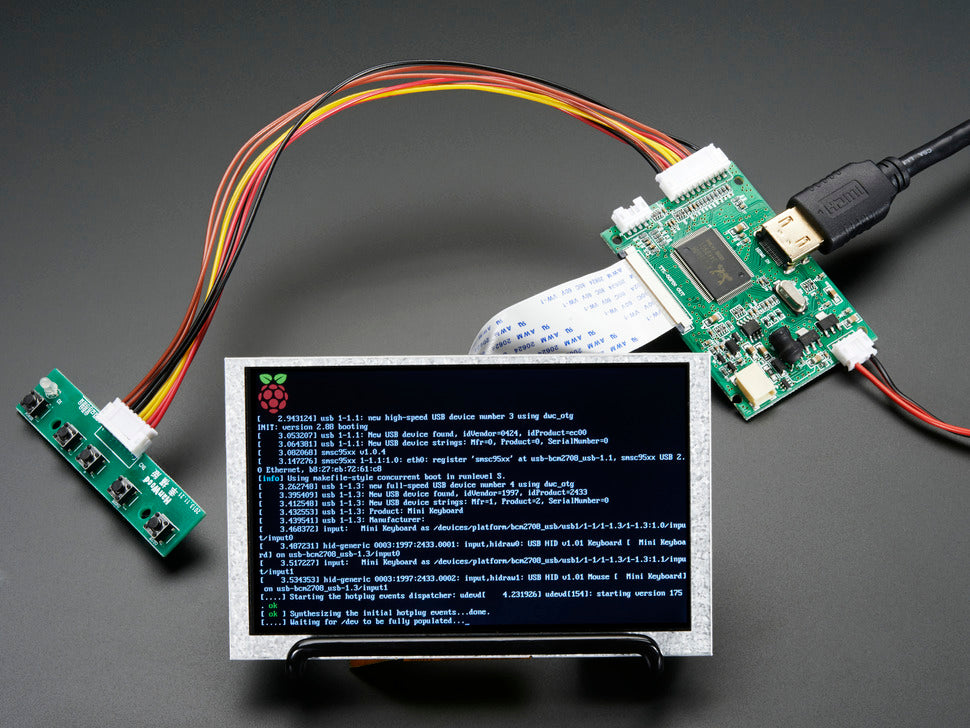

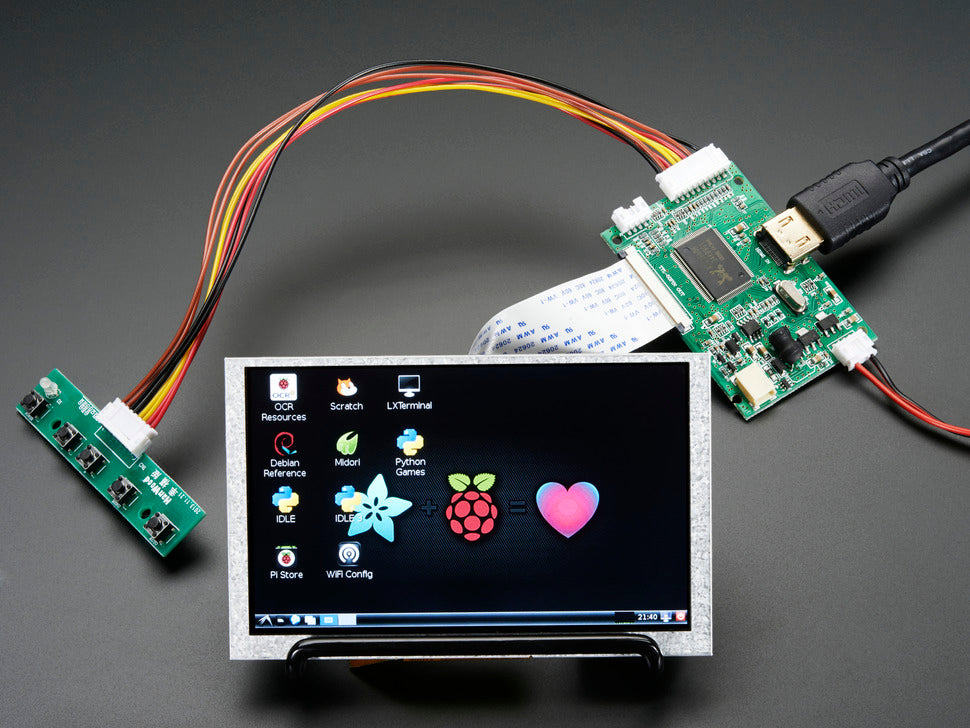

This display includes a small driver board powered via USB Micro B that accepts HDMI input, making it compatible with Raspberry Pi, BeagleBone Black, and other HDMI output devices. It requires a 5V power supply capable of delivering 500mA.

The display is not IPS, so it is best for direct viewing. It offers 200cd/m2 brightness and a 300:1 contrast ratio. The driver board features buttons to adjust brightness, color, and contrast through a menu system.

Key Features:

• 5" WVGA (800x480) TFT display with TTL interface
• Mini driver board with HDMI input
• Powered via USB Micro B, 5V 500mA required
• Brightness: 200cd/m2, Contrast: 300:1
• Visible area: 108mm x 65mm (16:10 aspect ratio)
• Resolution: 800 x 480 pixels

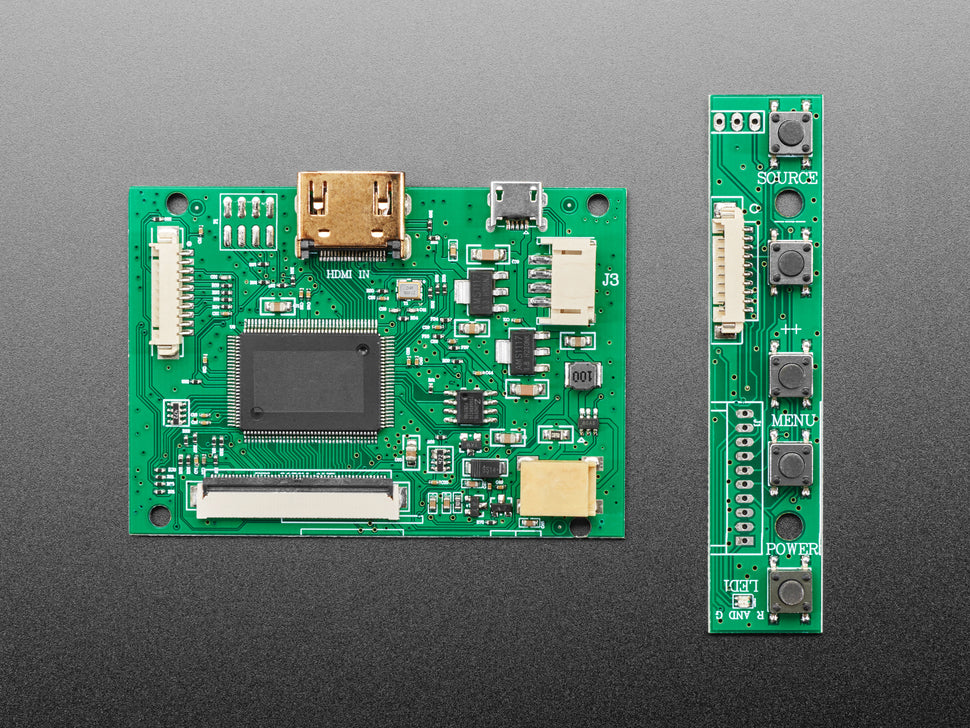

• Driver board includes 5-button control keyboard for display settings
• Compact dimensions: Screen - 76mm x 121mm x 3mm
• Weight: 61g
• Not HDCP compatible

Suitable for Raspberry Pi and other devices with HDMI output. Suggested config.txt adjustment is recommended for Raspberry Pi to set HDMI resolution at 800x480. Power adapter not included; a USB 5V 500mA power supply is required.

Note that this product is currently out of stock. You can sign up to be notified when it becomes available again.
