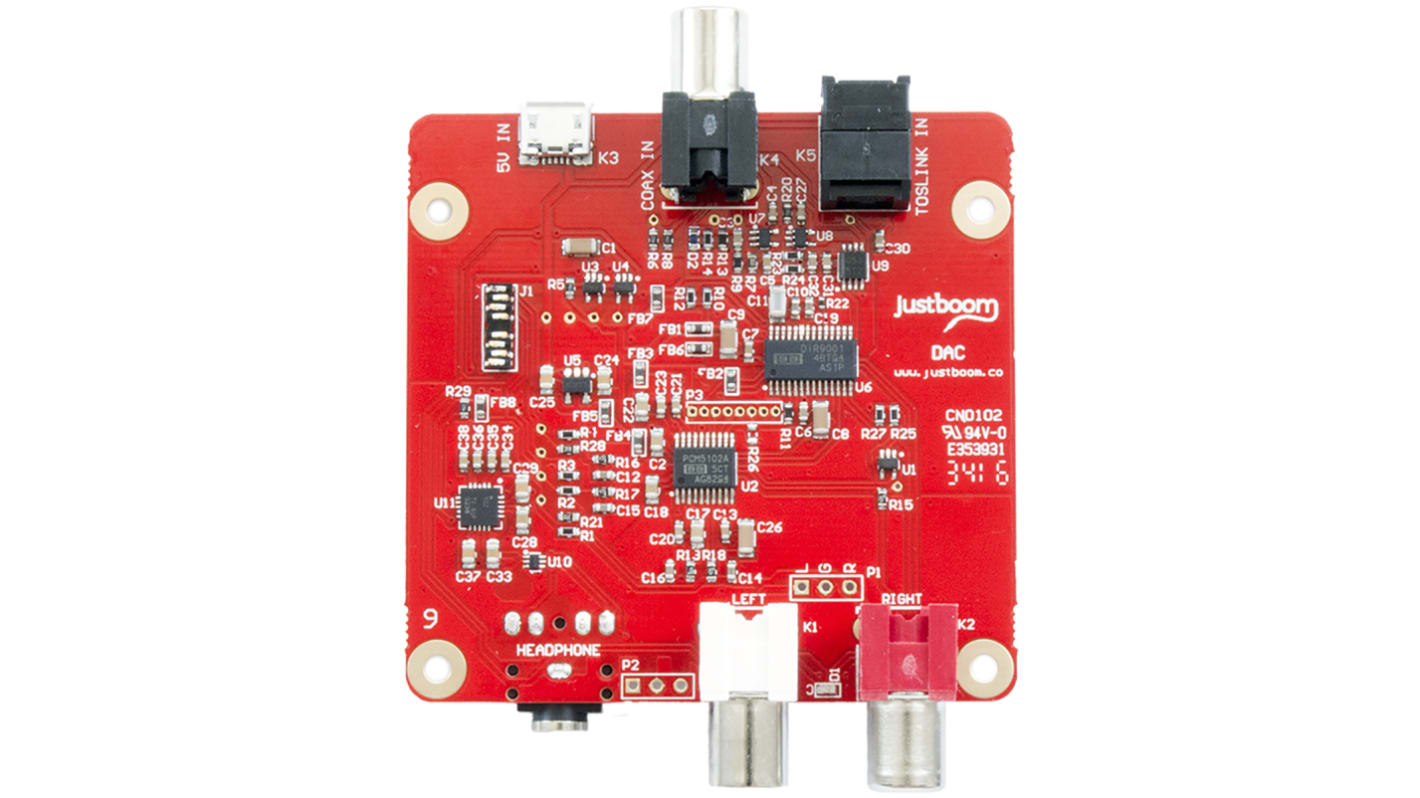

JustBoom 24-Bit DAC Board – Digital-to-Analogue Converter for Raspberry Pi, Powered Speakers & Headphone Amplifiers
Couldn't load pickup availability
Description
Crystal-Clear, High-Resolution Audio for Your Raspberry Pi
The JustBoom DAC is a plug-and-play digital-to-analogue converter (DAC) that delivers high-resolution, 24-bit audio playback from your Raspberry Pi. No soldering required — simply mount it on the Pi's GPIO header and you're ready to go. It works standalone with powered speakers, headphones, or an external audio amplifier, or pairs with the JustBoom Amp for a complete integrated DAC and amplifier solution for passive speakers.
🎯 Key Features
- High-quality audio output up to 108kHz / 24-bit resolution
- S/PDIF input support (optical TOSLINK or electrical RCA/coaxial)
- Integrated DAC and headphone amplifier stage
- RCA line-level output plus 3.5mm headphone output
- Powered via 5V micro USB — no extra power supply hassle
- Compatible with all 40-pin GPIO Raspberry Pi models and the JustBoom Amp
- Plug-and-play — no soldering required
- Mounting hardware included
💡 Technical Specifications
| Converter Type | Digital-to-Analogue Converter (DAC) |
| Featured Device | PCM5102A |
| Resolution | Up to 24-bit / 108kHz |
| Compatible Platform | Raspberry Pi (40-pin GPIO models) |
| Outputs | RCA line-level, 3.5mm headphone |
| Inputs | S/PDIF (optical/coaxial) |
| Power | 5V via micro USB |
| Manufacturer | Pi Supply |
🌍 Applications
Ideal for home hi-fi audio streaming, media centre and set-top box builds, DIY audiophile projects, powered speaker upgrades, and headphone listening stations built around the Raspberry Pi.
📦 Package Contents
JustBoom DAC board, mounting hardware.
