Kitronik ACCESS:bit for BBC micro:bit

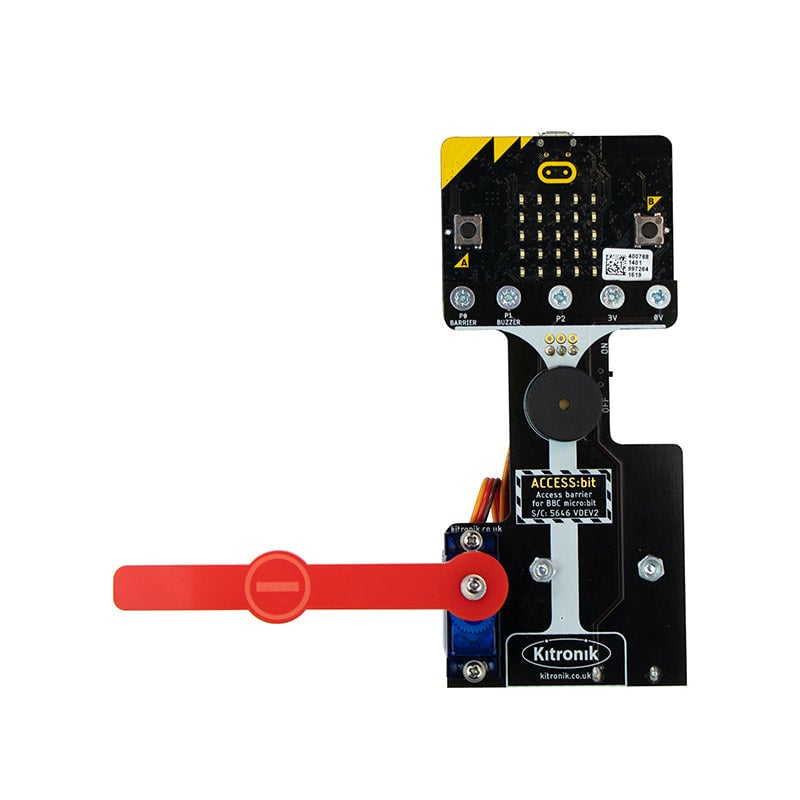

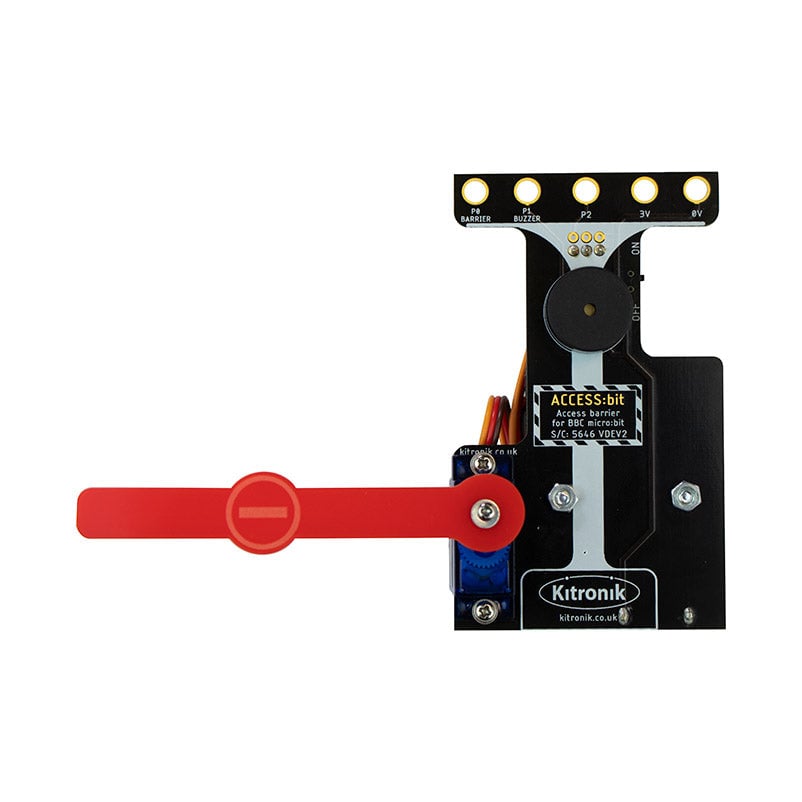

The ACCESS:bit is a bolt-on/clip-on accessory board designed for the BBC micro:bit that simulates an access barrier. It features an integrated battery cage powered by 3xAAA batteries, an on/off switch, and a buzzer for sound effects.

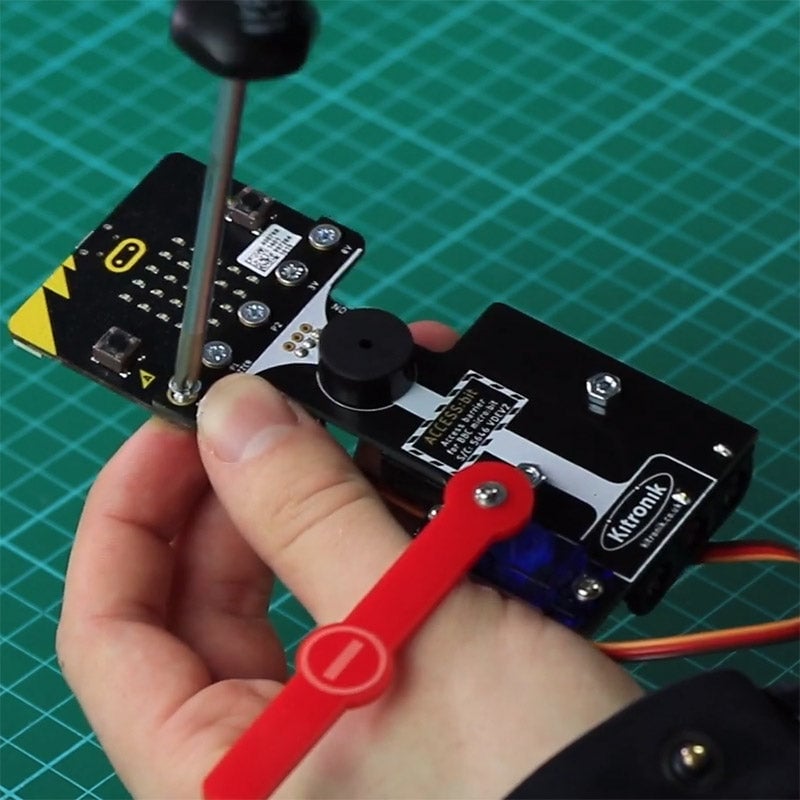

This kit includes a single 180-degree servo, a barrier, and all required fixings. The micro:bit can be attached via countersunk screws or crocodile clips, and its LED matrix remains fully visible to display signals or serve as a sensor.

The ACCESS:bit is compatible with micro:bit V1 and V2 and complements other Kitronik transportation/pedestrian crossing accessories like the STOP:bit and LAMP:bit. Custom MakeCode editor blocks are available to simplify programming.

• Simulates an access barrier for the BBC micro:bit.
• Includes integrated battery pack and buzzer.
• Compatible with bolt-on or clip-on micro:bit mounting.
• Works with STOP:bit and LAMP:bit for larger projects.
• Custom MakeCode blocks available for easier coding.

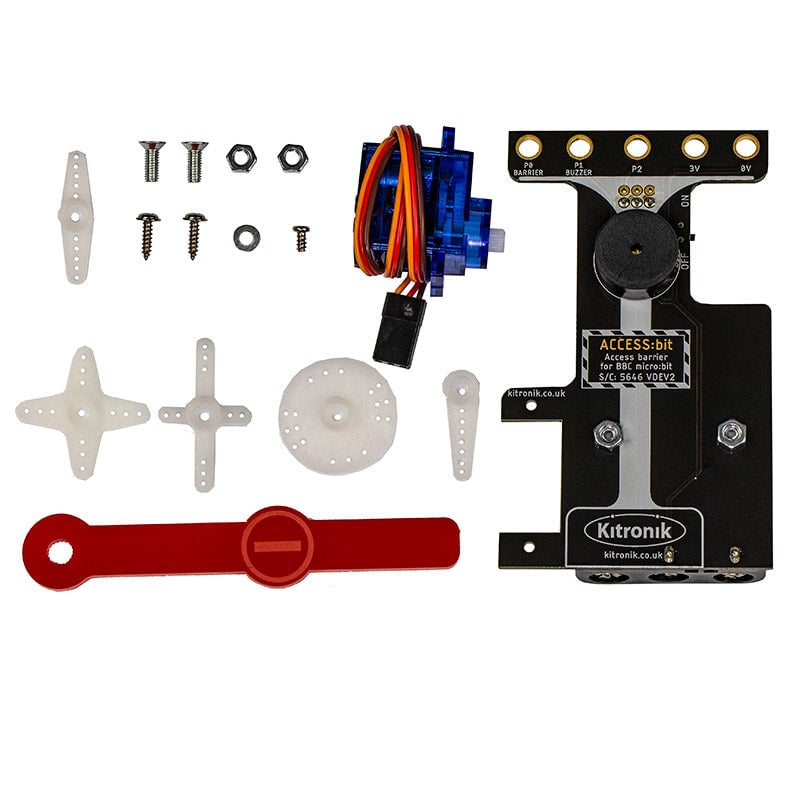

Contents:

• 1 x ACCESS:bit with battery cage
• 5 x M3 countersunk screws and nuts
• 1 x 180-degree servo
• 1 x Access barrier

Dimensions:

• Height: 89mm
• Max Width (barrier extended): 125mm
• Max Depth (with servo): 30mm
• PCB Thickness: 1.6mm

Requires: BBC micro:bit (sold separately), 3x AAA batteries, screwdriver.

Note: Micro:bit is not included.
