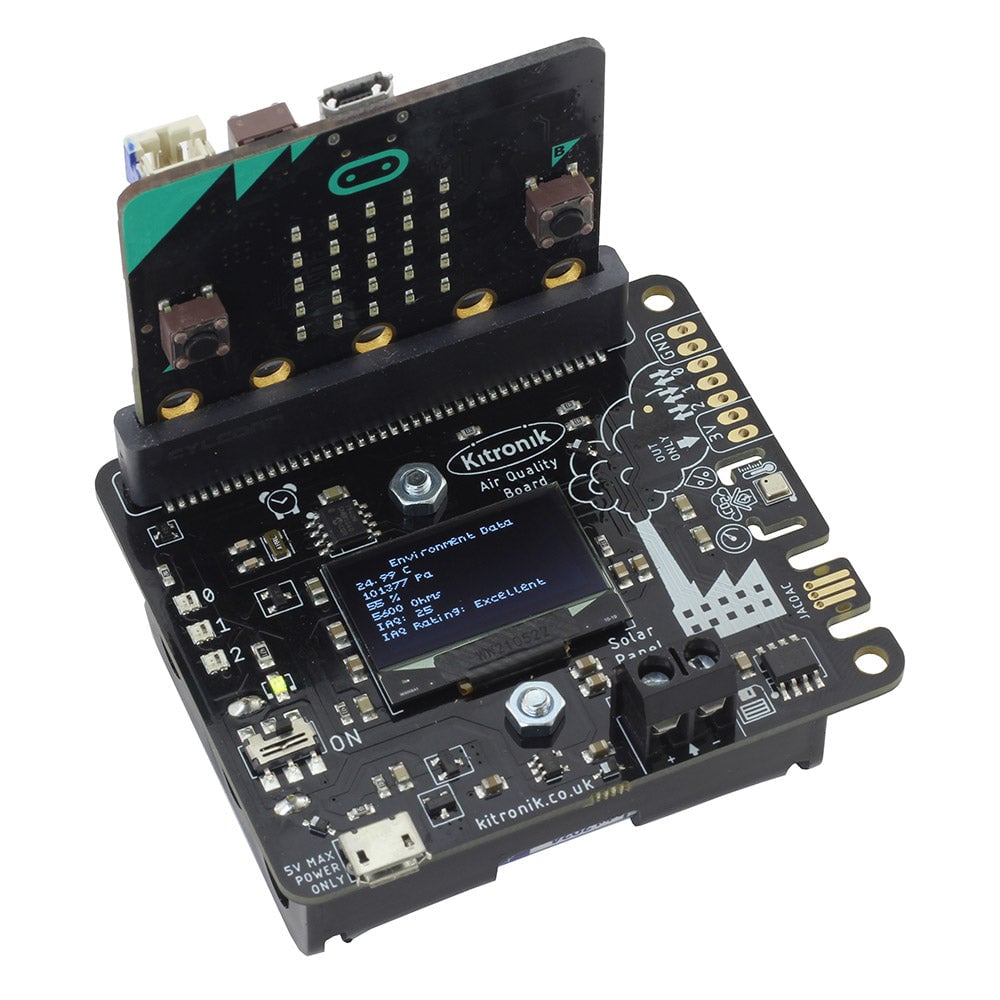

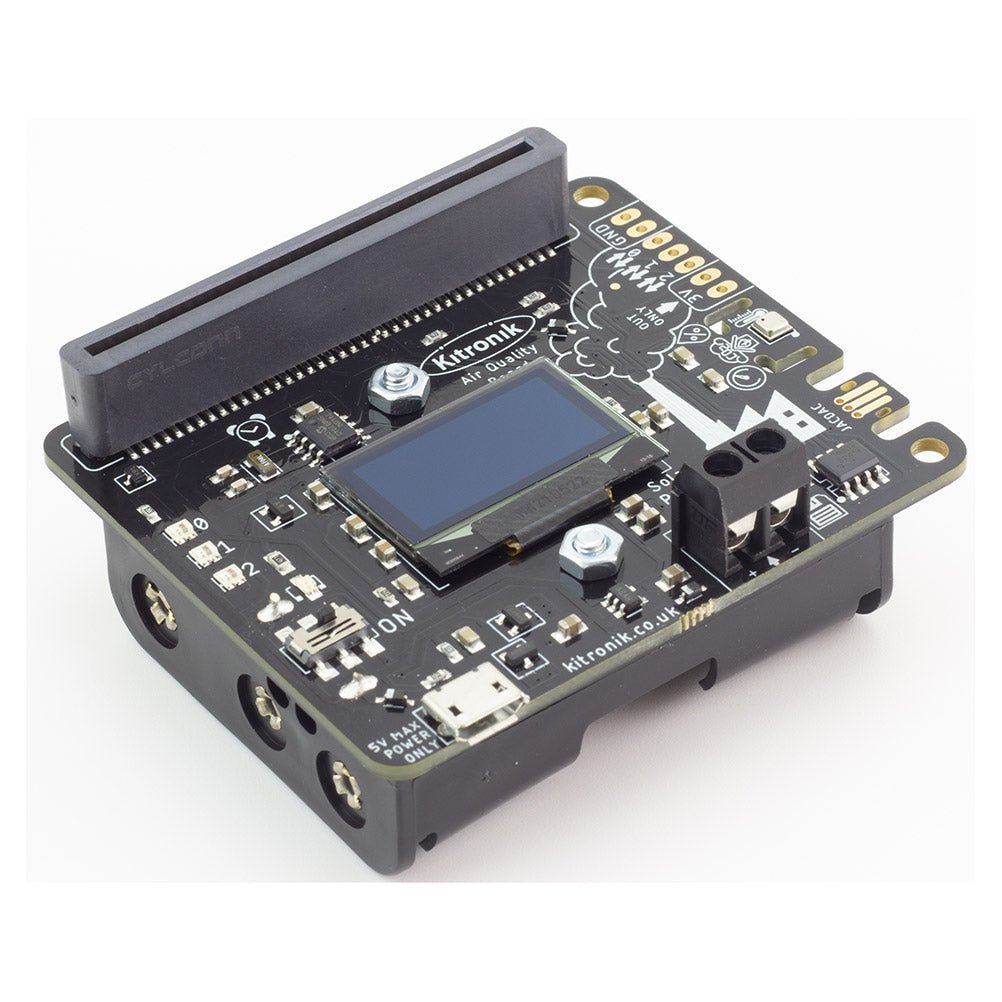

Kitronik Air Quality and Environmental Board for micro:bit

Monitor and analyse the air you breathe with the Kitronik Air Quality Board, an all-in-one air monitoring and reporting solution designed for the BBC micro:bit. Ideal for home, classroom, and office environments, this board offers extensive air quality data collection, onboard memory storage, and an OLED display for real-time feedback.

The board features a variety of sensors to measure temperature, pressure, humidity, air quality index, and eCO2 levels. Data can be logged with timestamps using the integrated real-time clock (RTC) and 1Mbit of EEPROM memory for long-term experiments.

• Compatible with micro:bit V1 & V2 via integrated Edge Connector

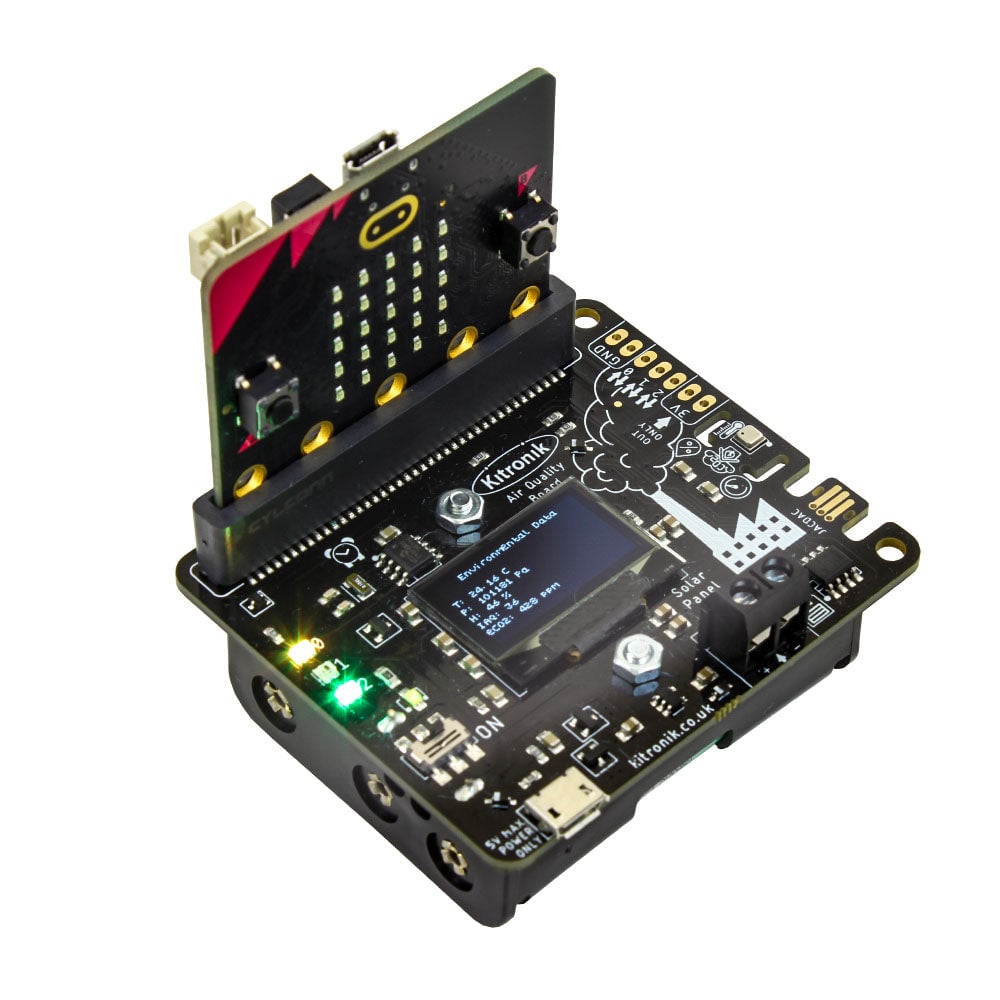

• Includes black and white 128×64 OLED display and 3 status ZIP LEDs for data visualization
• Breakout pads for Pins 0, 1, and 2, plus 3V and GND pads for additional sensors or outputs
• Power options via 3xAA battery holder or micro USB; regulated 3V supply powers micro:bit through edge connector
• Solar cell connection for use with rechargeable NiMh batteries to extend experiment duration
• Custom MakeCode blocks available for easy coding with MakeCode, JavaScript, or Python
• Perfect for long-term air quality monitoring projects in educational settings

Contents:

• 1 x Kitronik Air Quality Board for BBC micro:bit

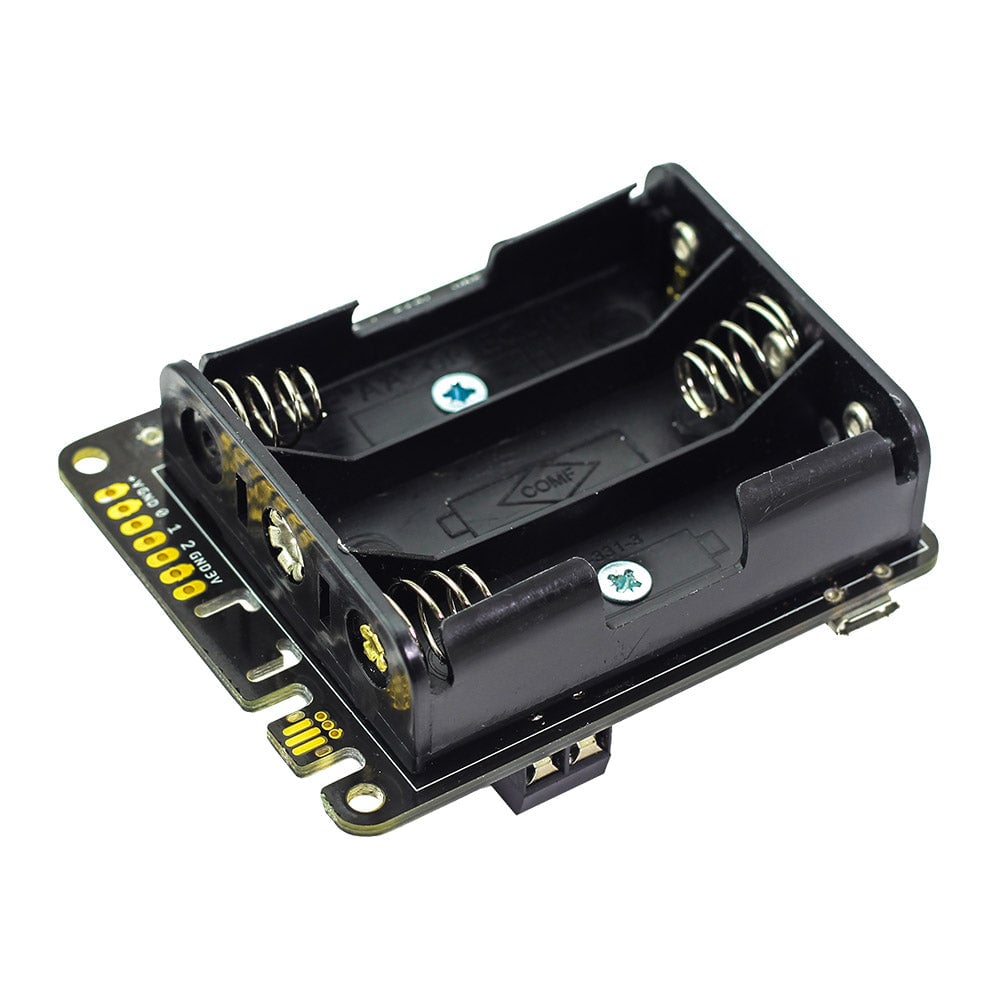

• 1 x 3xAA battery holder
• 1 x USB lead

Dimensions:
Length: 68.5mm
Width: 48mm
Height: 28.5mm
PCB Thickness: 1.6mm
