Kitronik Breadboard Breakout for the BBC micro:bit

The Kitronik Breadboard Breakout for the BBC micro:bit is designed to plug your micro:bit into a standard 2.54mm pitch breadboard easily for prototyping and experimentation.

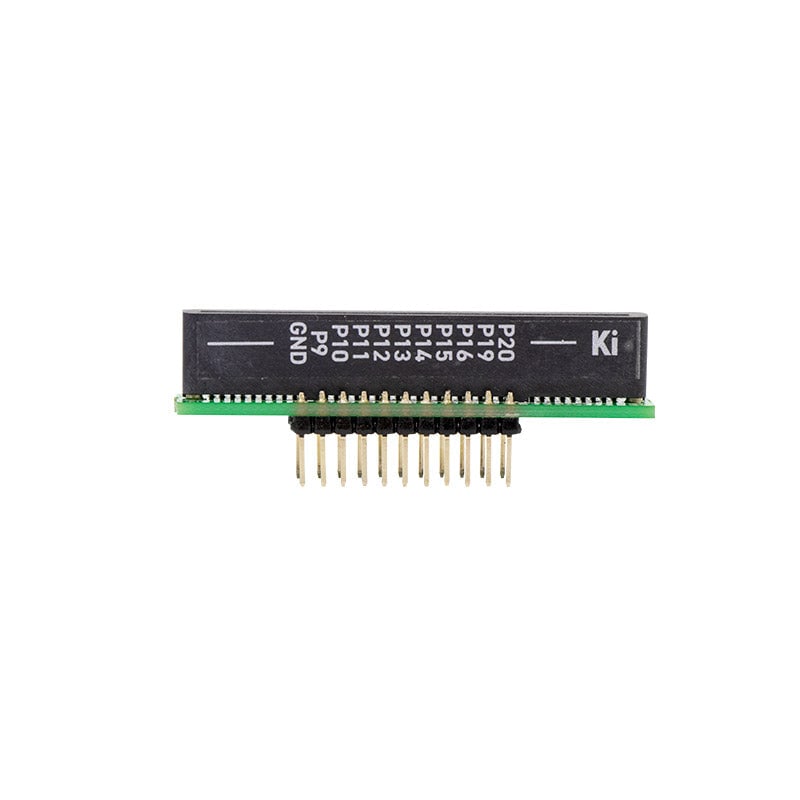

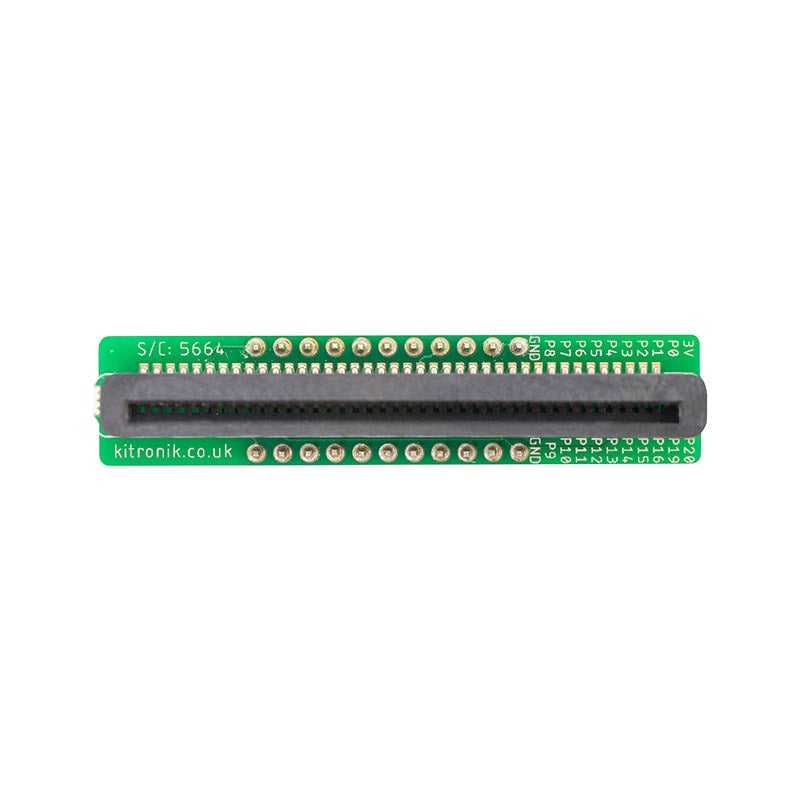

This breakout board slots the micro:bit into the on-board edge connector, with the micro:bit inserted so the LED side faces the same side as the 3V pin. The PCB plugs straight across the middle slot of the breadboard, similar to how an IC component is placed. It breaks out the micro:bit pins to two 11-way header pins to connect jumper wires from the micro:bit to your breadboard circuit. No soldering or tools are required, making it a simple and effective interface for breadboard prototyping with the micro:bit.

• The micro:bit slots into the on-board edge connector.

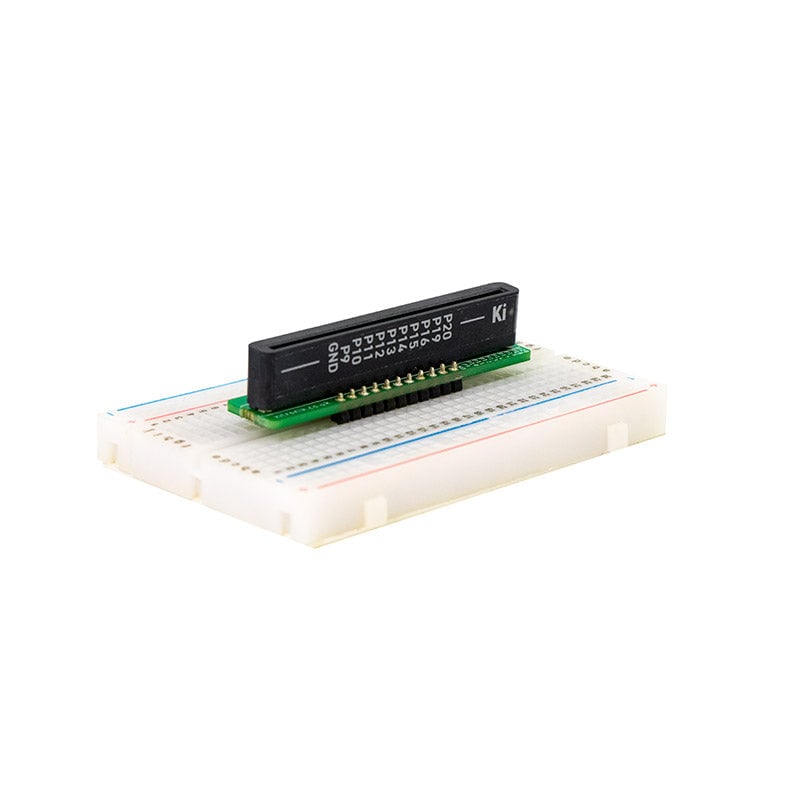

• Plugs straight across the middle slot of a standard 2.54mm pitch breadboard.
• Breaks out micro:bit pins to 2 x 11 way header pins.
• Use jumper wires to connect from header pins to breadboard.
• No tools or soldering required.
• Easy breadboard prototyping with micro:bit.

Contents:

• 1 x Breadboard Breakout for the BBC micro:bit

Dimensions:

• Length: 58.4mm
• Width: 12.8mm
• Height: 20.76mm
• Pin Pitch: 2.54mm

Requires: BBC micro:bit, suitable breadboard, and male-to-female jumper wires (not included).

Download the Datasheet (PDF)
