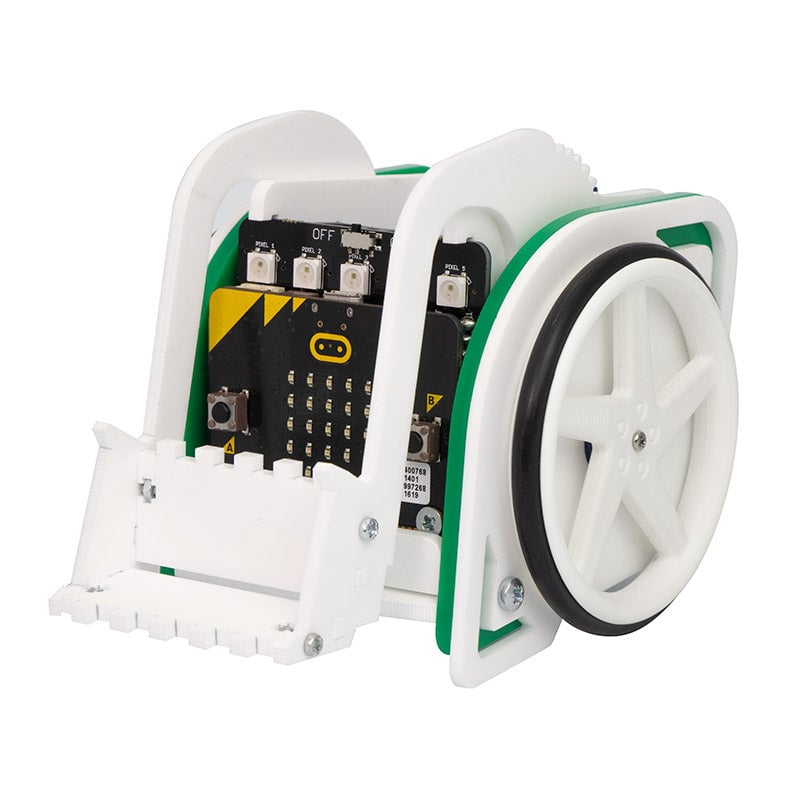

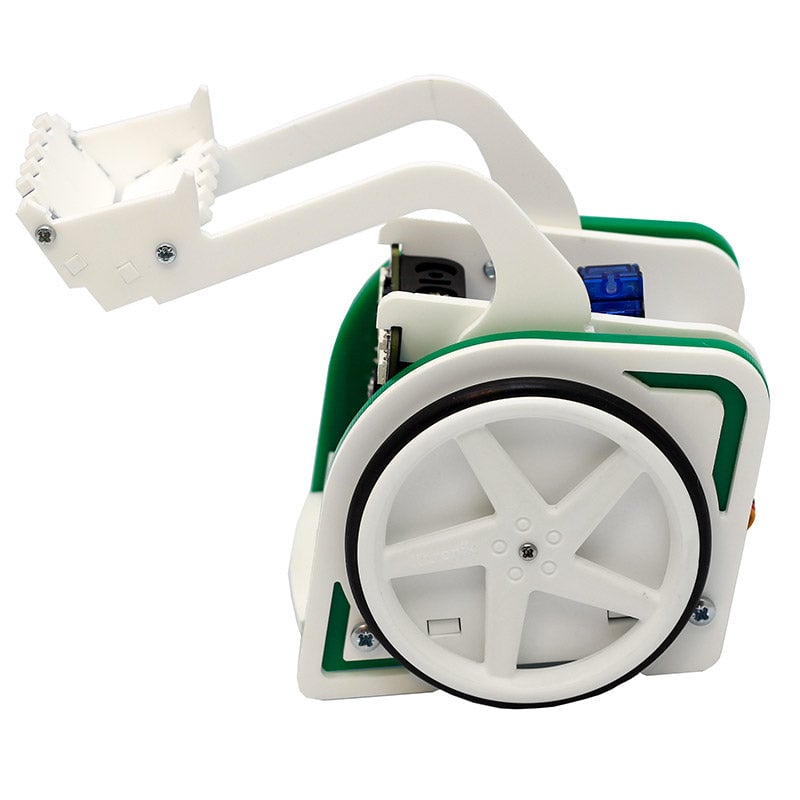

Kitronik BullDozer Add On for :MOVE mini Mk2

The Kitronik BullDozer add on for :MOVE mini Mk2 enhances the popular programmable robot buggy with lifting and carrying capabilities. Compatible with both :MOVE mini MK2 and the original :MOVE mini, this kit requires mechanical assembly and some soldering. It includes a servo to move the bulldozer arm up and down and offers an engaging introduction to DIY robotics. Program the bulldozer using the Microsoft MakeCode Editor and control it over Bluetooth or with a second micro:bit using radio functionality.

Features:

• Compatible with :MOVE mini MK2 and original :MOVE mini kits
• Adds lifting and carrying functionality to your robot buggy
• Includes Mini 180 Degree Servo for bulldozer movement
• Programmable with Microsoft MakeCode Editor
• Supports Bluetooth and radio control with a second micro:bit

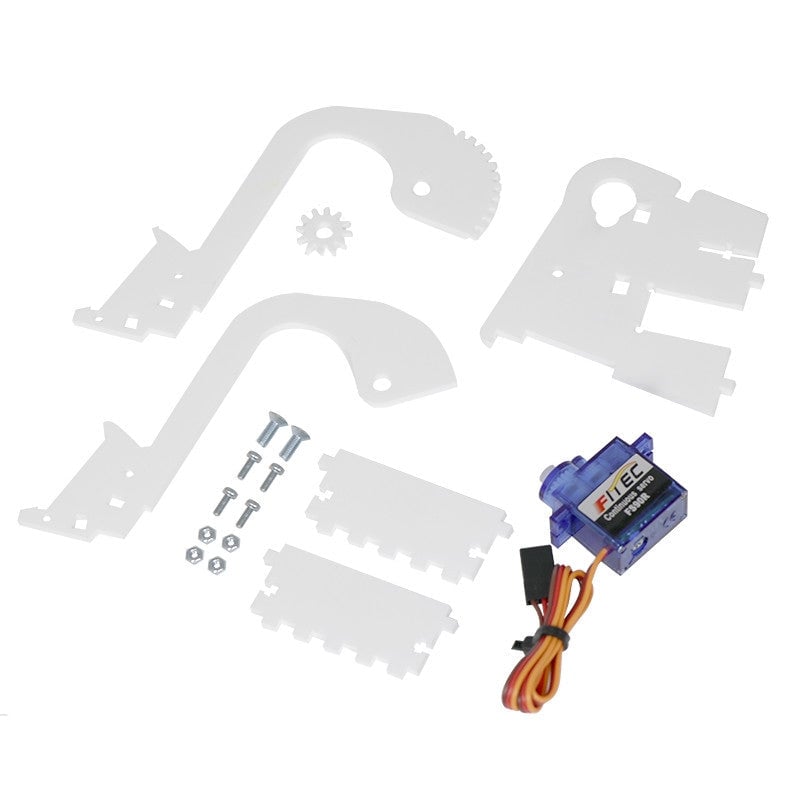

Contents:

• Set of Bulldozer parts
• Mini 180 Degree Servo
• 4 x M2 6mm pan head steel screws
• 4 x M2 hex full width nuts
• 2 x Counter sunk M3 screws
• 3 x Straight PCB pin headers

Dimensions:

• Length: 110mm
• Width: 50mm
• Height: 75mm

Notes: Requires enabling third servo functionality on the Servo:Lite board (soldering required). This disables on-board ZIP LEDs while enabled. Build instructions for both MK1 and MK2 versions are provided.
