Kitronik Edge Connector Breakout Board for BBC micro:bit

Unlock the full potential of your BBC micro:bit with the Kitronik Edge Connector Breakout Board. This breakout board offers an easy way to connect additional circuits and hardware to the pins on the edge of the BBC micro:bit.

The board breaks out 21 pins from the BBC micro:bit edge connector, giving access to extra I/O lines, buttons A and B, the LED matrix outputs, and the I2C bus. It features a dedicated prototyping area with 3V and 0V rows for easy soldering of switches, sensors, pull-up or pull-down resistors, and other components.

• Breaks out 21 pins for additional connections
• Dedicated prototyping area with 3V and 0V rows
• Easy to identify SCL and SDA pins
• Clear, labeled pins and detailed documentation
• Compatible with BBC micro:bit V1 and V2
• Requires soldering and assembly

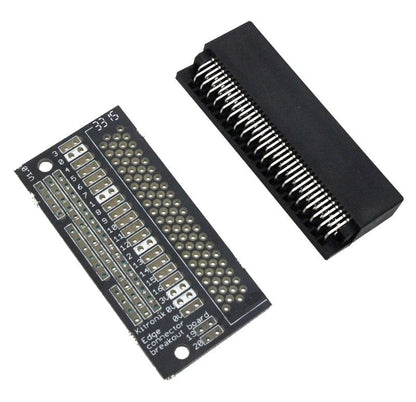

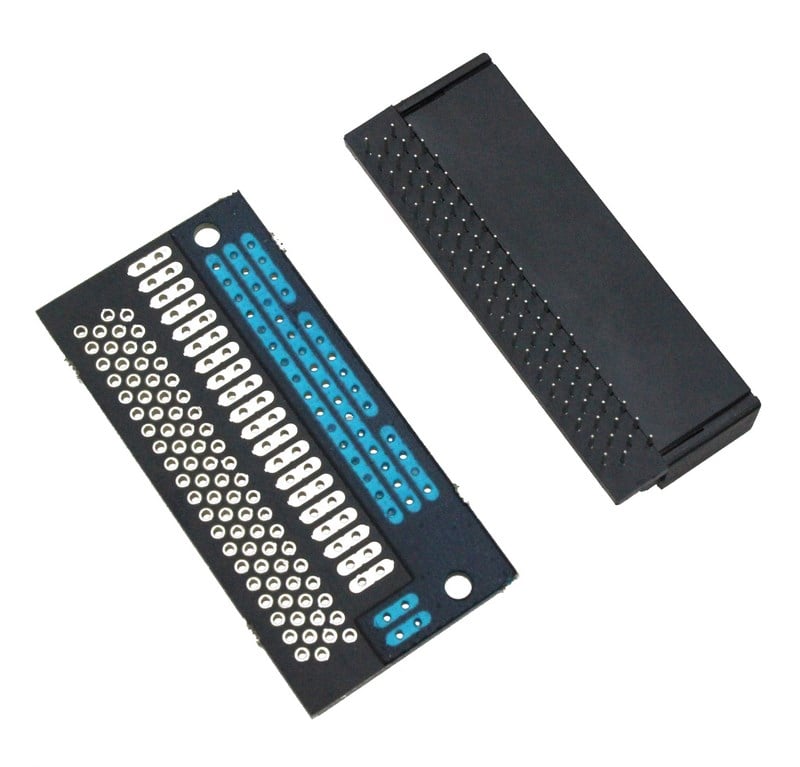

This kit contains one Edge Connector PCB and one edge connector for the BBC micro:bit. It is ideal for expanding your micro:bit projects, including use in the Collision Detection Buggy and Inventors Kit from Kitronik.

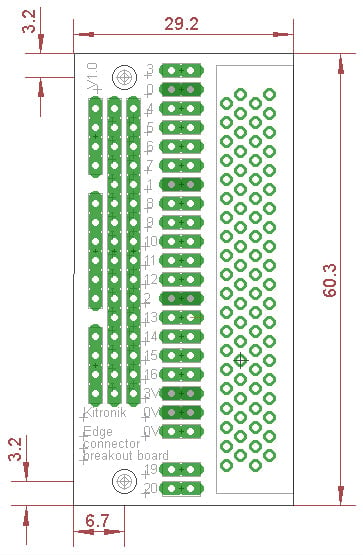

Dimensions:
Length: 60mm
Width: 40mm
Height: 11.8mm

Requires: A BBC micro:bit, soldering iron, and solder (not included).

For detailed wiring and pin information, refer to the datasheet.
