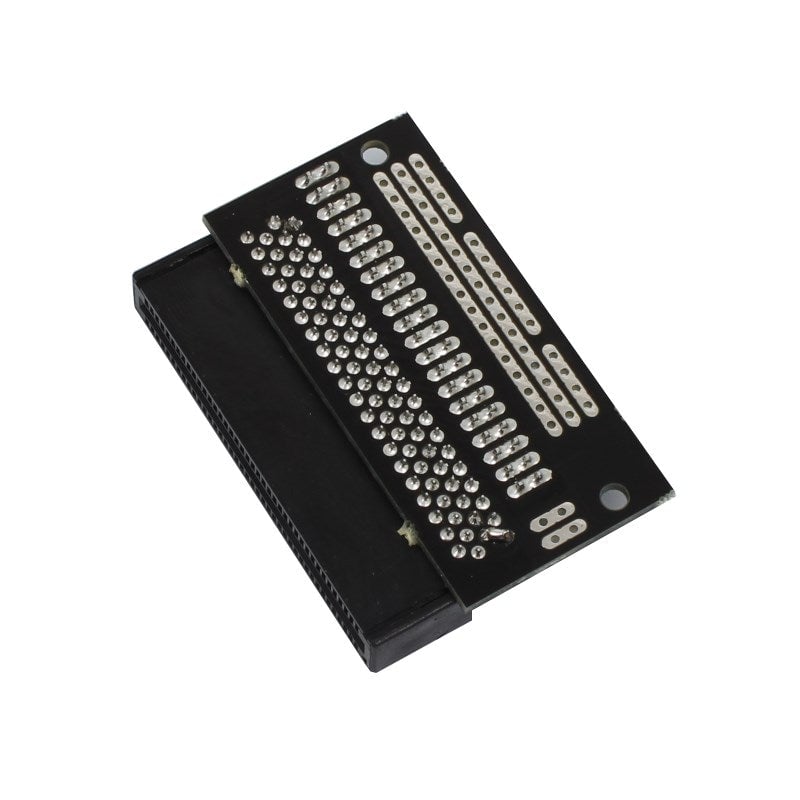

Kitronik Edge Connector Breakout Board for BBC micro:bit - Pre-built

Unlock the full potential of your BBC micro:bit with the Kitronik Edge Connector Breakout Board pre-built version. This breakout board provides access to all 21 pins on the edge of the BBC micro:bit, allowing you to connect additional circuits and hardware easily using jumper wires. It breaks out all important processor pins including buttons A and B, LED matrix outputs, and the I2C bus. The board also includes a dedicated prototyping area with 3V, 0V, and unconnected rows for simple connection of switches, sensors, and resistors.

The breakout board comes with straight double row PCB pin headers pre-soldered for quick setup. Its compact dimensions make it suitable for various projects and applications, ideal for makers, educators, and students aged 11 and up.

Features:

• Breaks out 21 pins from the BBC micro:bit edge connector
• Dedicated prototyping area with labeled 3V and 0V rows
• Straight double row pin headers pre-soldered
• Clear pin labeling and documentation
• Supports micro:bit V1 and V2

Applications:

• Access additional I/O lines and functionality on micro:bit
• Ideal for use with Kitronik Inventor’s Kit and Collision Detection Buggy

Contents:

• 1 x Kitronik Edge Connector Breakout Board for BBC micro:bit (pre-built)

Dimensions:

• Length: 60 mm
• Width: 40 mm
• Height: 11.8 mm

Requires:

• BBC micro:bit (not included)

Accessories:

• Jumper Wires 20cm M/F

Resources:

• Datasheet PDF
