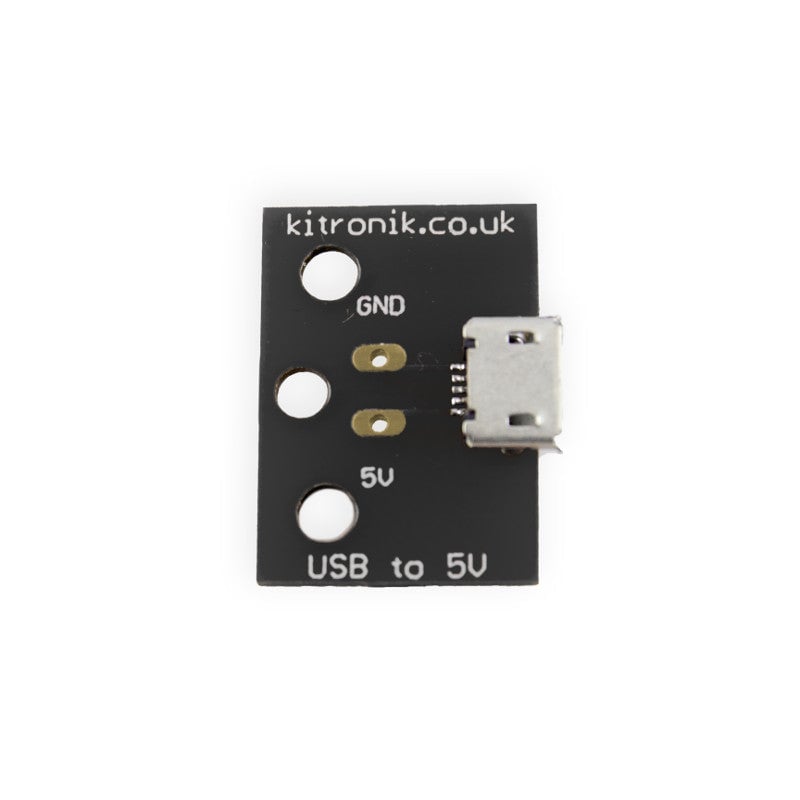

Kitronik Micro USB to 5V Breakout Board

This compact Micro USB Breakout Board offers an easy way to connect circuits to 5V power lines supplied by a USB connection. The breakout features two large solder-able pads on the PCB for 5V and GND connections.

Ideal for replacing batteries in circuits such as the Kitronik Mono Amp kit, the board is compatible with Micro USB chargers used by most mobile phones and tablets.

• Power your electronics projects via USB.
• Compatible with Kitronik Mono Amp kit.

Contents:

• 1 x USB to 5V Breakout Board.

Dimensions: PCB Length: 22mm, PCB Width: 16mm.

Note:

• Some soldering required to connect the breakout board to your project.
• Typical PC USB ports supply 100mA up to a max of 500mA; exceeding this may damage the USB port.
