Kitronik Pen Lifter for the Autonomous Robotics Platform for Pico

Get creative with the Pen Lifter add-on for the Autonomous Robotics Platform. This add-on allows you to take full advantage of the pen hole in the Kitronik Autonomous Robotics Platform (Buggy) for Pico.

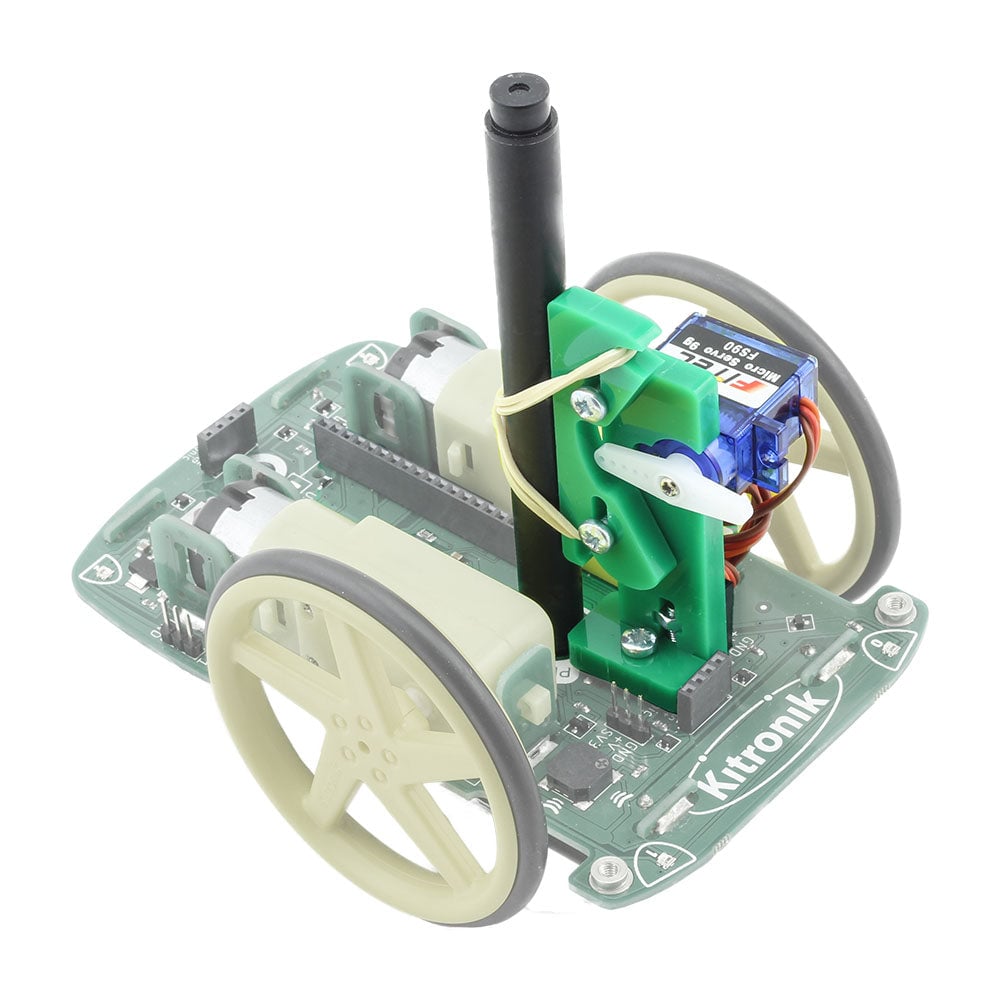

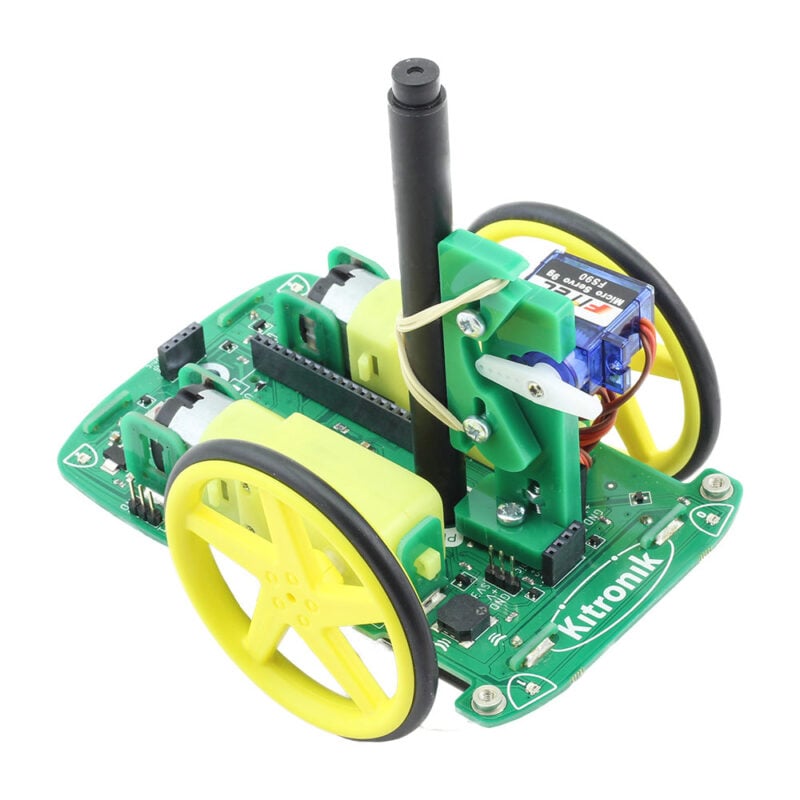

Once fitted, the add-on lets you control when the pen is in use with code. The assembly holds the pen firmly in place and the supplied servo can be used to raise and lower the pen, allowing users to create complex patterns without any unsightly travel marks.

The kit comprises 3 laser cut parts, a single 180-degree servo, a rubber band, and the fixings required for assembly. It requires no soldering but involves simple mechanical assembly. A booklet is provided to guide you through the assembly process.

We have created an online guide with MicroPython code to help you get started quickly, compatible with Thonny and other code editors.

Note:

• This kit does not include a pen.
• No soldering required; simple mechanical assembly needed.
• Designed for use with the Kitronik Autonomous Robotics Platform (Buggy) for Pico and Raspberry Pi Pico (sold separately).

Features:

• Add a pen to the Autonomous Robotics Platform (Buggy) for Pico that can be raised or lowered with code.
• Draw complex shapes without unsightly travel lines.
• Full assembly instructions included.
• Online guide with MicroPython code available.

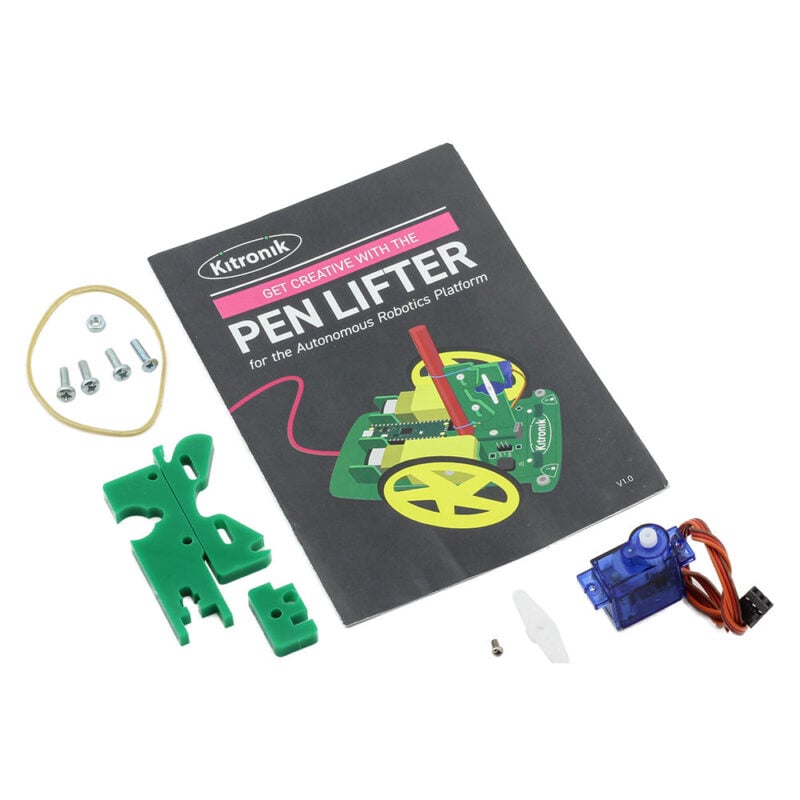

Contents:

• 1 x 180-degree servo
• 3 x 10mm Pan Head M3 Machine Screws
• 1 x 12mm Countersunk M3 screw
• 1 x M3 Hex Nut
• 3 laser-cut parts
• 1 x Rubber band

Requires:

• Kitronik Autonomous Robotics Platform (Buggy) for Pico
• Raspberry Pi Pico with headers installed
• Small cross-head screwdriver

Designed and manufactured in the UK by Kitronik.
