Kitronik Simply Servos Board for Raspberry Pi Pico

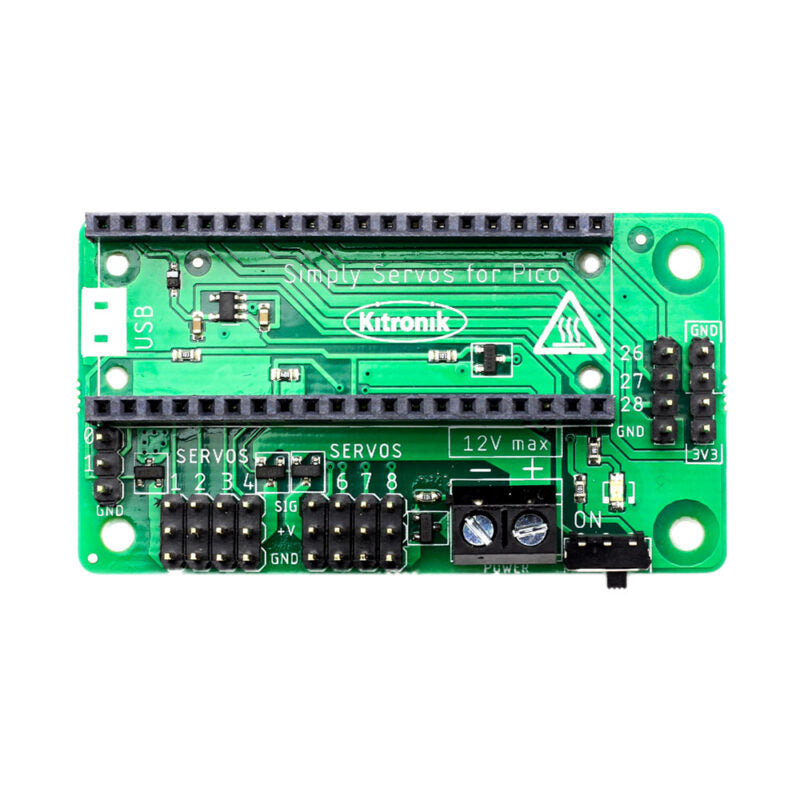

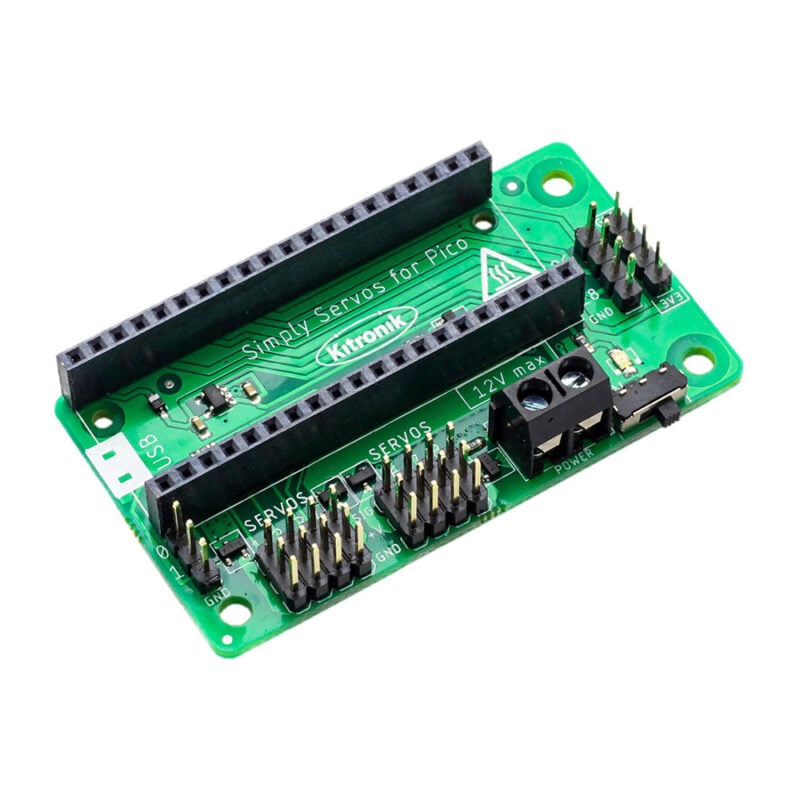

Make the Raspberry Pi Pico the brains of your next robotics project with the Kitronik Simply Servos Board. This compact servo controller board allows for up to 8 servos to be controlled simultaneously, making it ideal for advanced robotics projects using the Raspberry Pi Pico.

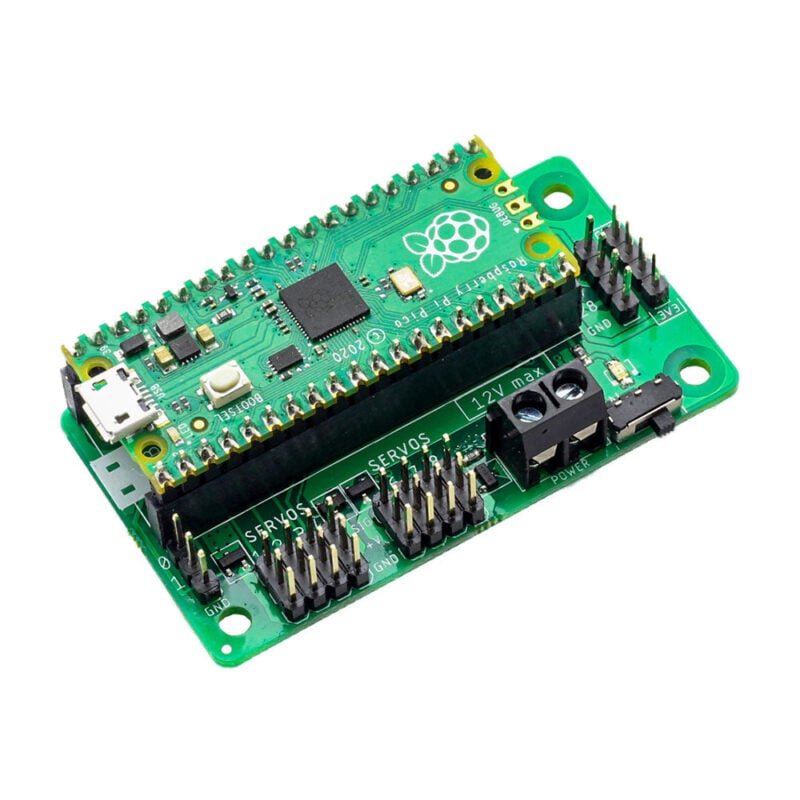

The board is designed for use with a Raspberry Pi Pico that has pre-soldered pin headers, which can be slotted directly into the board for quick and easy setup. It features standard 3-pin servo connectors, allowing servos to be plugged in without the need for adaptors or soldering.

Additional features include 5 GPIO pin breakouts (3 ADC pins plus GP0 and GP1) with a 3V and GND supply, providing ample IO for more complex projects. Powered via a terminal block connector with an on/off switch and a green power LED, the board supplies regulated 3V power to the attached Pico and servos while offering reverse polarity protection.

Kitronik provides a MicroPython module and sample code for easy servo control with the Pico, available on their GitHub repository.

Features:

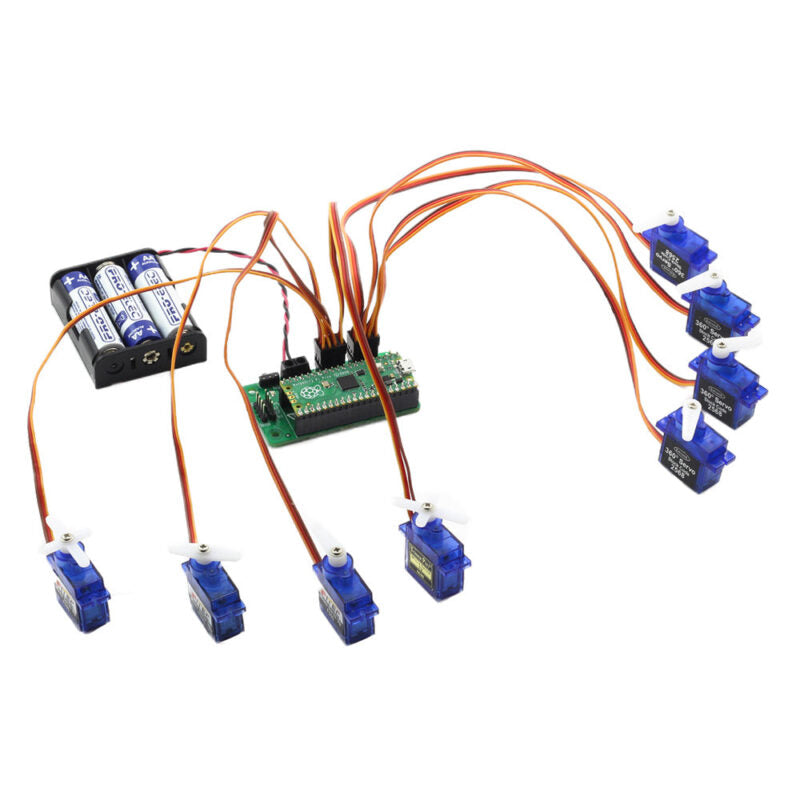

• Control up to 8 servos simultaneously with the Raspberry Pi Pico.
• 5 external GPIO connections including 3 ADC pins, GP0 and GP1 with 3V and GND.
• Standard 3-pin servo connectors for easy servo attachment.
• Terminal block power input with on/off switch and power status LED.
• Regulated 3V supply powers both the servos and the Pico.
• Reverse polarity protection for safe operation.
• Supported by a MicroPython module and sample code from Kitronik.

Specifications:

• Dimensions: 65mm (L) x 36mm (W) x 14mm (H)
• Servo channels: 8
• GPIO breakouts: 5 (3 ADC pins, GP0, GP1)
• Power input: Terminal block connector with on/off switch
• Power supply: Regulated 3V output
• Reverse polarity protection: Yes

Contents:

• 1 x Simply Servos Board for Raspberry Pi Pico

Requires:

• Raspberry Pi Pico with pre-soldered headers (sold separately)
