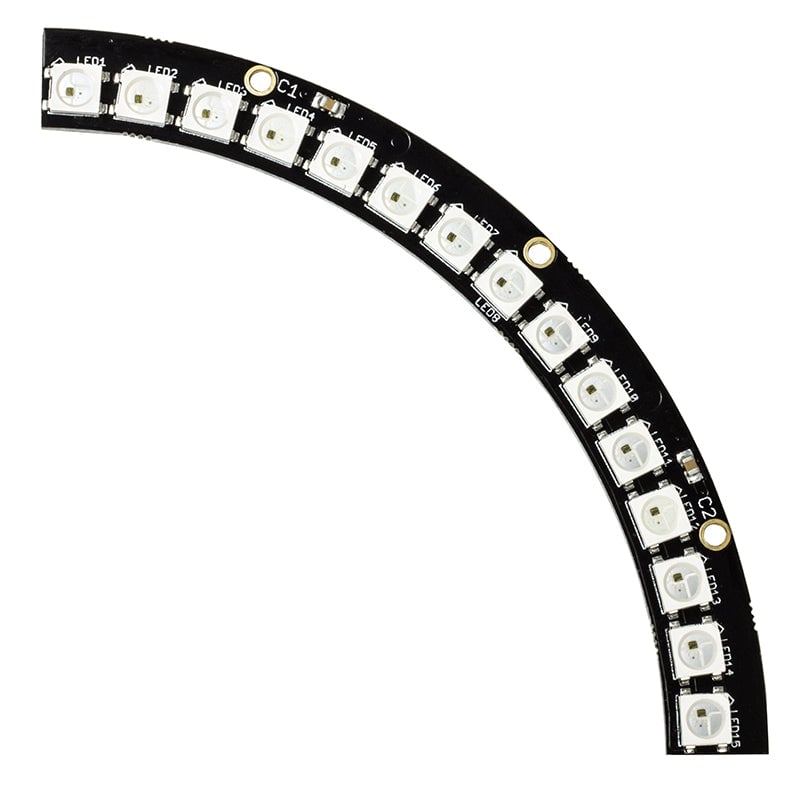

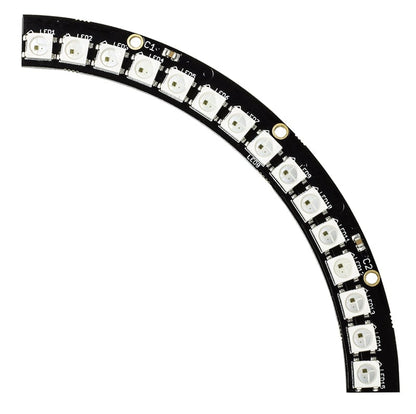

Kitronik ZIP Arc - 15 ZIP LEDs

The Kitronik ZIP Arc features 15 individually addressable RGB LEDs based on the WS2812B LED, allowing for vivid and customizable lighting effects. Each LED can be independently controlled, creating a full spectrum of colors with 16,777,216 possible outputs. The 3-wire connection simplifies wiring, and multiple arcs can be connected together to create longer LED strings or a complete circle of lighting.

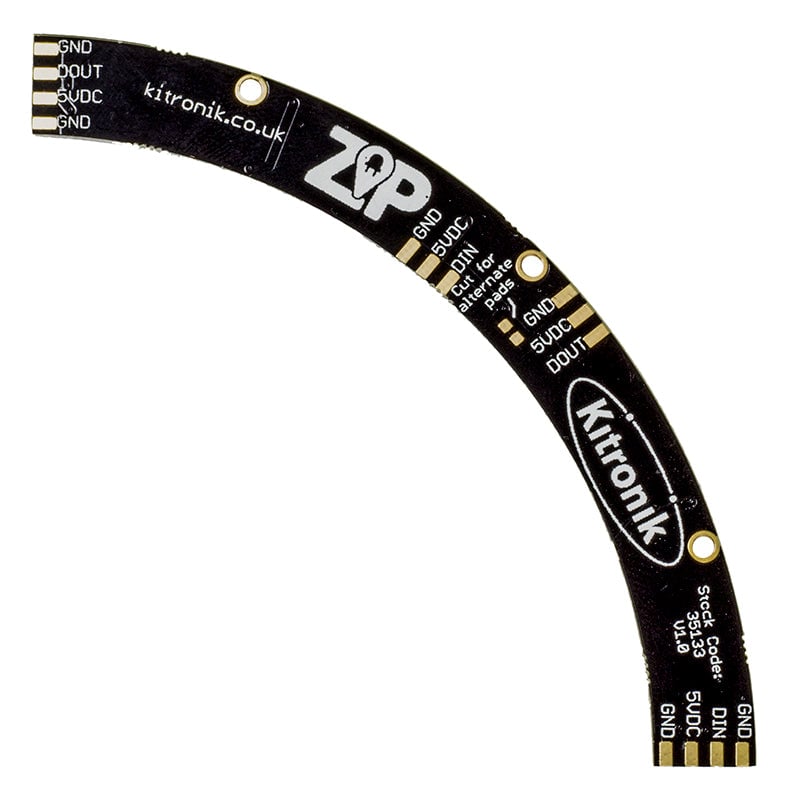

• Simple 3 wire connection for all LEDs.
• Compatible with any WS2812B driver code.
• Programmable via Microsoft PXT Editor for the BBC micro:bit.
• Integrated reset circuit for stable operation.

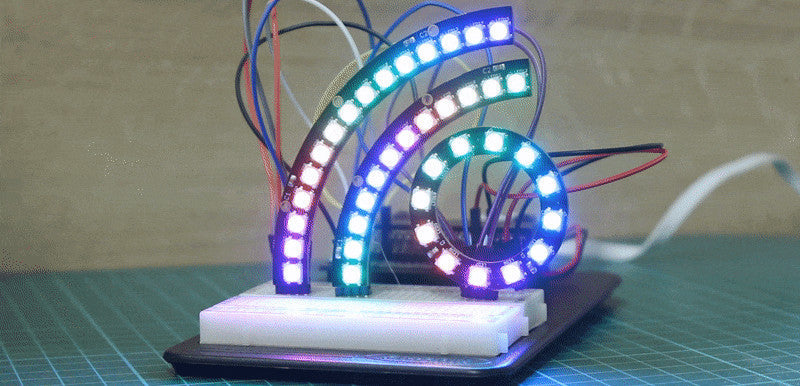

• Connect up to four arcs together to form a circle of 60 LEDs.

Dimensions:
Length: 102.8mm
Width: 10.2mm
Height: 3mm
PCB Height: 1.5mm
Inner Radius: 62.5mm
Outer Radius: 72.7mm
