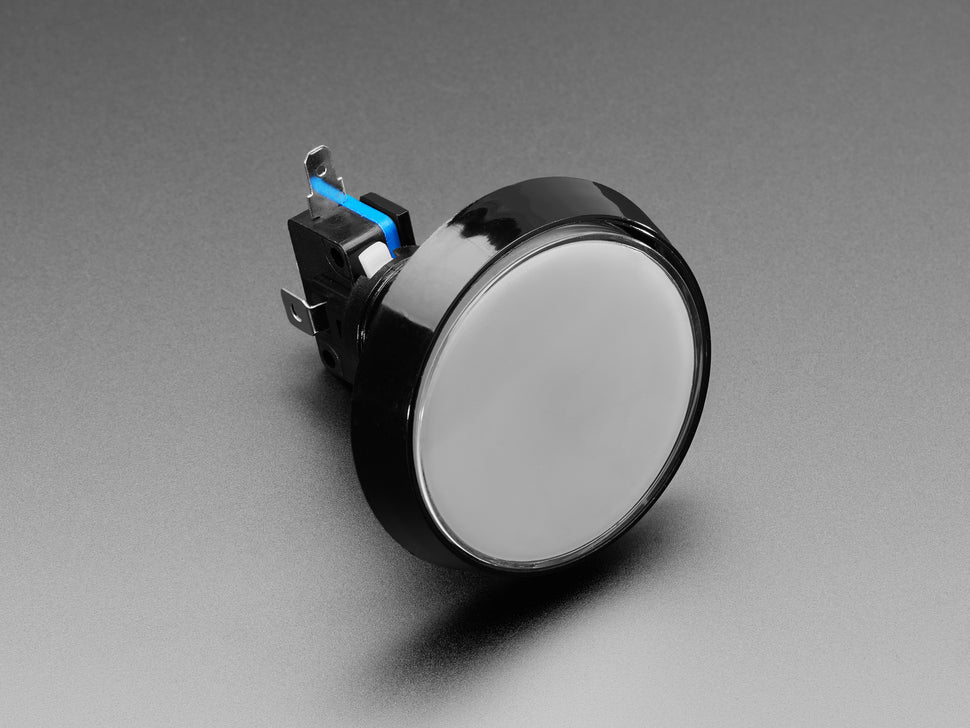

Large Arcade Button with LED - 60mm White

BAM! This 60mm diameter arcade button is large and inviting and ready for all sorts of pressing and pushing. Perfect for various arcade games of skill, this button is easy to mount on nearly any enclosure. Please note it is not waterproof or weatherproof, ideal for indoor use.

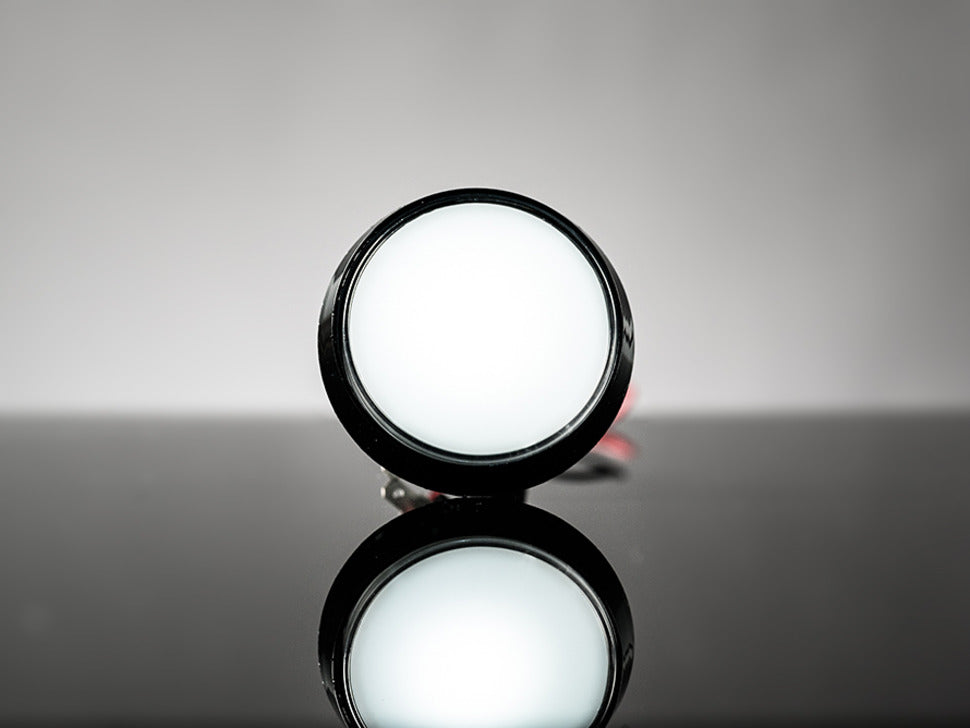

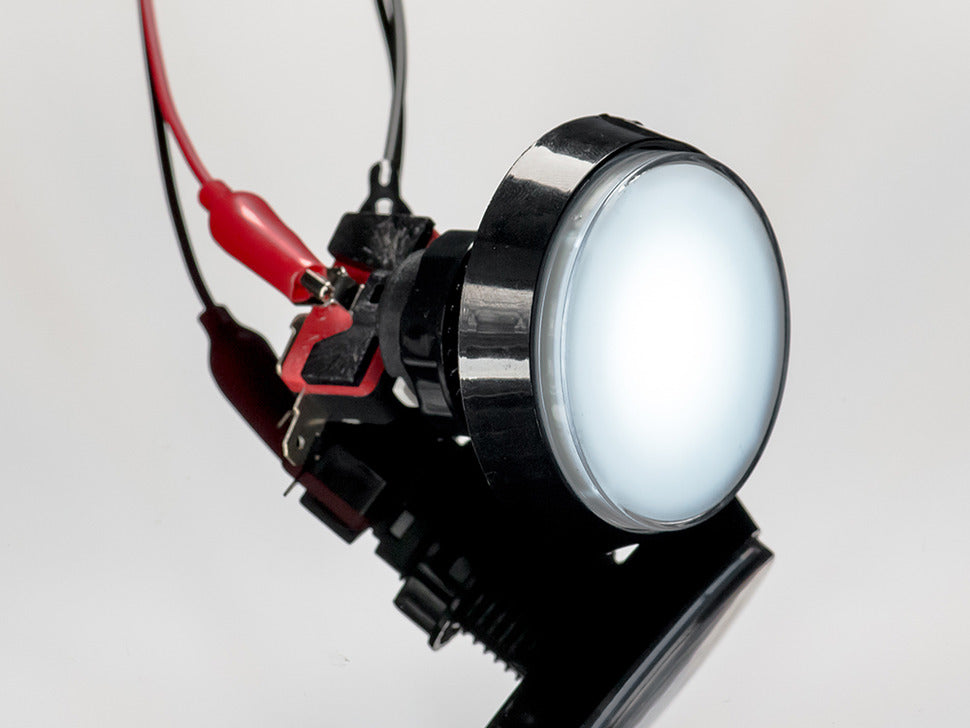

The button features a flat white plastic cover with a black retaining ring and includes an optional LED that lights up the button. It has a built-in resistor allowing operation up to 12V. However, the shallow depth means the LED does not illuminate the entire button face evenly.

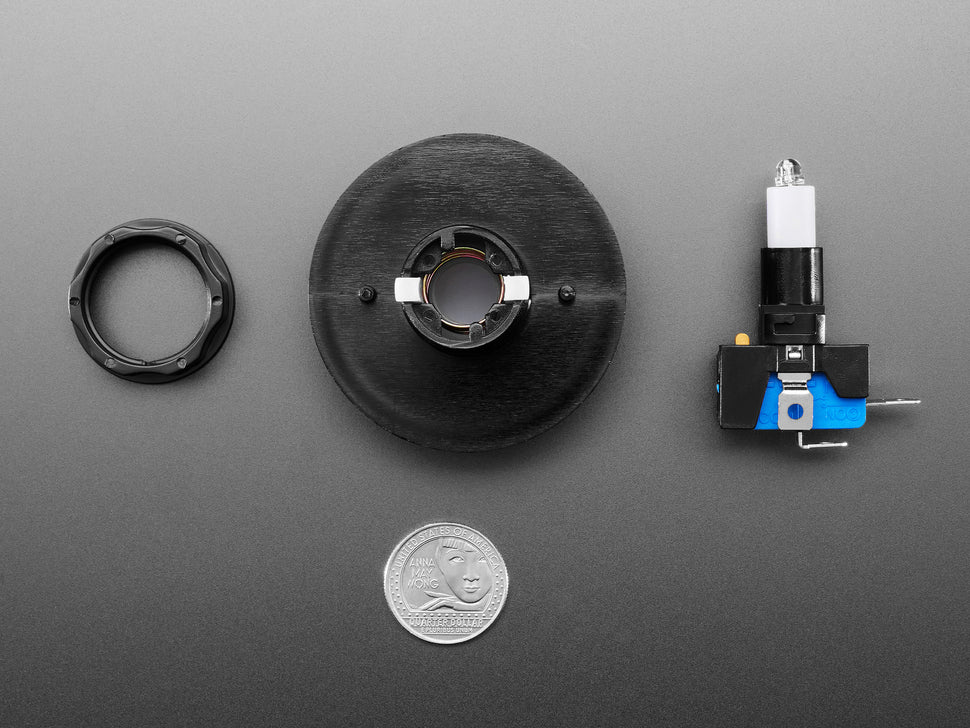

The button activates a common arcade microswitch (included). The switch contacts are normally open and close when the button is pressed.

Features:

• 60mm diameter large arcade button

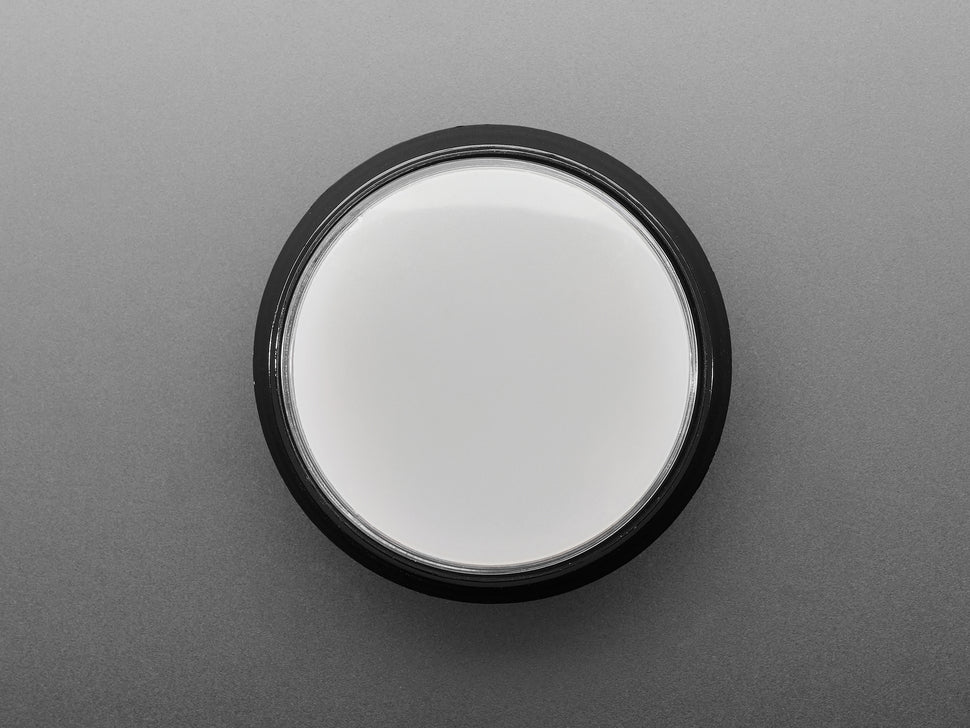

• White flat plastic cover with black retaining ring
• Includes optional LED with built-in resistor (up to 12V)
• Common arcade microswitch included, normally open contacts
• Easy to mount on almost any enclosure
• Not waterproof or weatherproof; best for indoor use

Technical Details:

• Height when pressed: 12mm / 0.5"
• Height when not pressed: 15.2mm / 0.6"
• Stem length with switch installed: 52.5mm / 2.1"

For more details, see diagram.
