LED Charlieplexed Matrix - 9x16 LEDs - Red

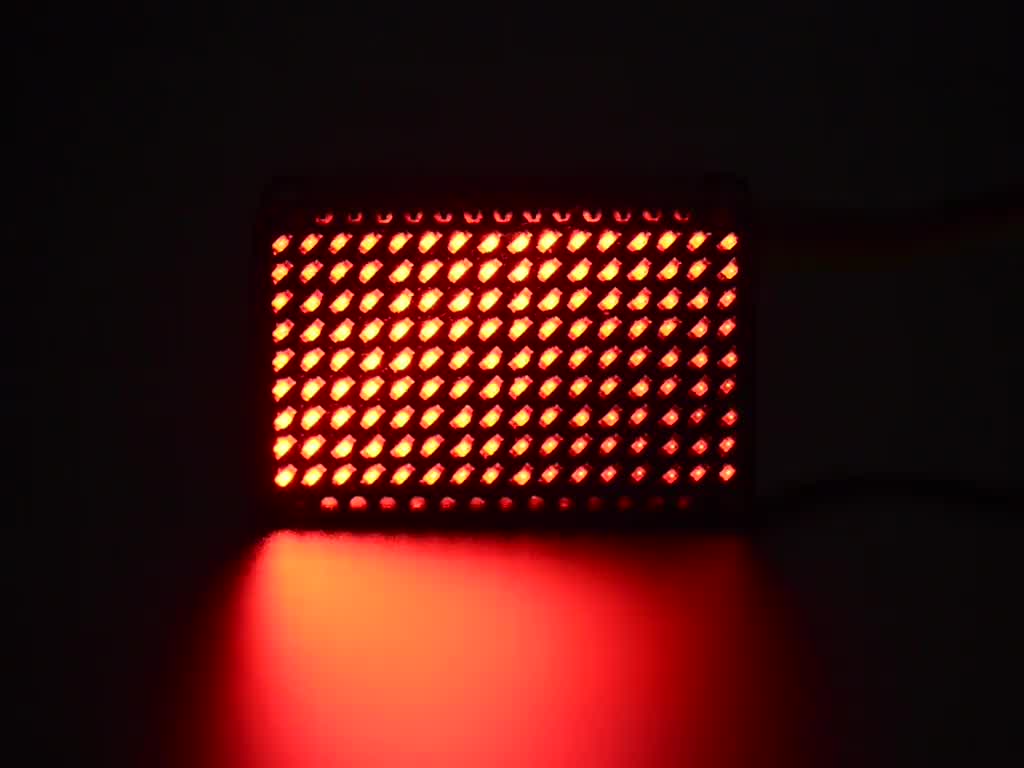

These are 9x16 Charlieplexed LEDs designed to match with the Adafruit 16x9 Charlieplexed PWM LED Matrix Driver - IS31FL3731. You don't get any resistors or driver chips with this grid, it's just a matrix of LEDs in a charlieplexed arrangement.

This is the Red version. Check out our other colors!

Check out our detailed tutorial for Arduino & CircuitPython support, pinouts, assembly, wiring, and more!

Features:

• 9x16 Charlieplexed LED matrix
• Designed to work with Adafruit 16x9 Charlieplexed PWM LED Matrix Driver (IS31FL3731)
• No resistors or driver chips included
• Compact size suitable for various projects

Technical Details:

• Dimensions: 43.3mm x 27.8mm x 2.4mm (1.7" x 1.1" x 0.09")
• Weight: 3.8g
• Datasheet, schematic, EagleCAD PCB files, and Fritzing available in the product tutorial

Revision History:

• As of November 2022 – PCB updated with Adafruit Pinguin for legible silkscreen; both new and older versions are identical except for silkscreen style.
