LPC810 Mini Starter Pack

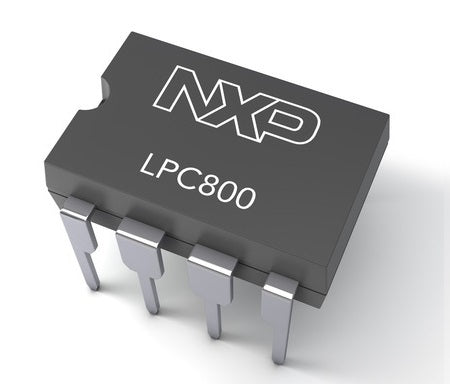

If you like the speed and simplicity of ARM Cortex M0+ chips, but want to just dip a toe in, you'll fall in love with the adorable little LPC810. This particular chip in DIP8 is unique and compact with 4KB flash and 1KB SRAM, making it a challenge but fun to work with.

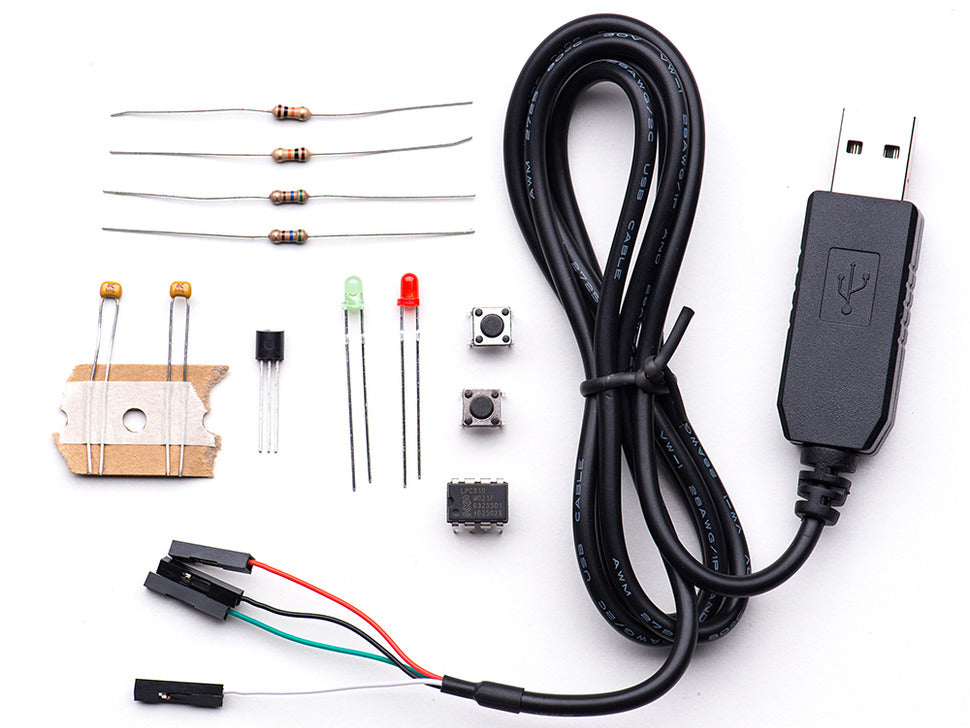

This starter pack includes:

• LPC810 DIP chip
• Two LEDs with matching 560 ohm resistors
• Two tact switches with matching 10K pullups
• MCP1700-3.3V regulator plus 2 x 0.1uF capacitors
• USB-serial programming/debug cable

Features include a 32-bit processor, 12MHz internal oscillator, I2C/SPI/UART with configurable pin-matrix, and built-in serial bootloader. Perfect for beginners, all you need is a breadboard and a computer to follow the step-by-step starter tutorial written by KTOWN.

Note: The analog comparator on the LPC810 does not work in this silicon revision; do not purchase if an analog comparator is required.

For more details about this chip, visit the NXP product page.
