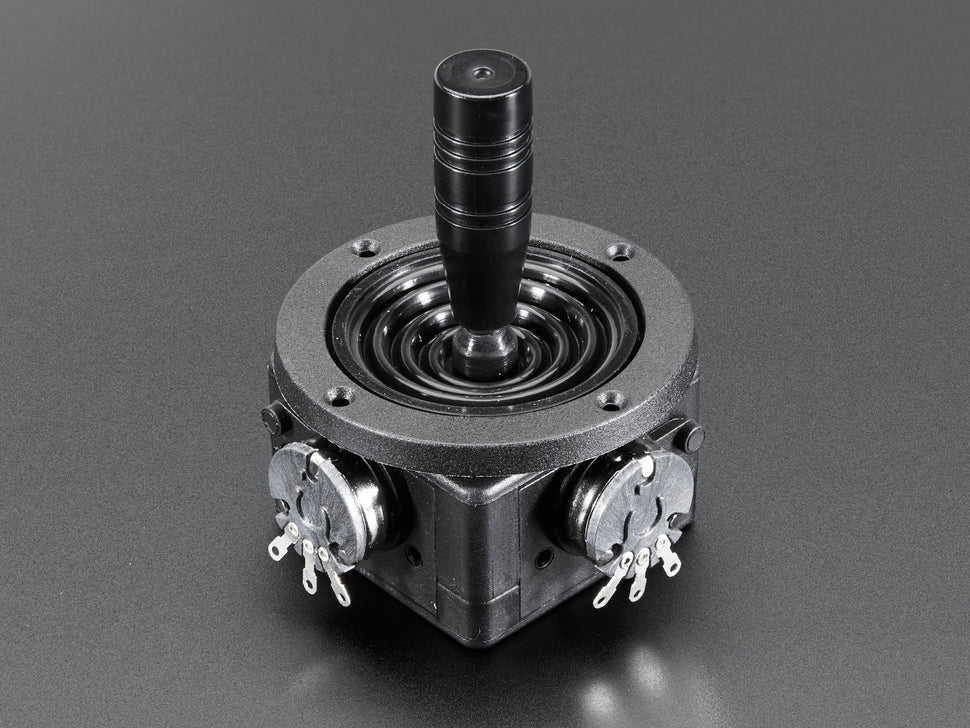

Mini Analog Joystick - 10K Potentiometers

Sometimes a simple analog control device can be the perfect tactile solution for your project, but they can be surprisingly hard to come by. Luckily we've found a low-cost, quality Mini Analog Joystick to fill your directional analog input needs!

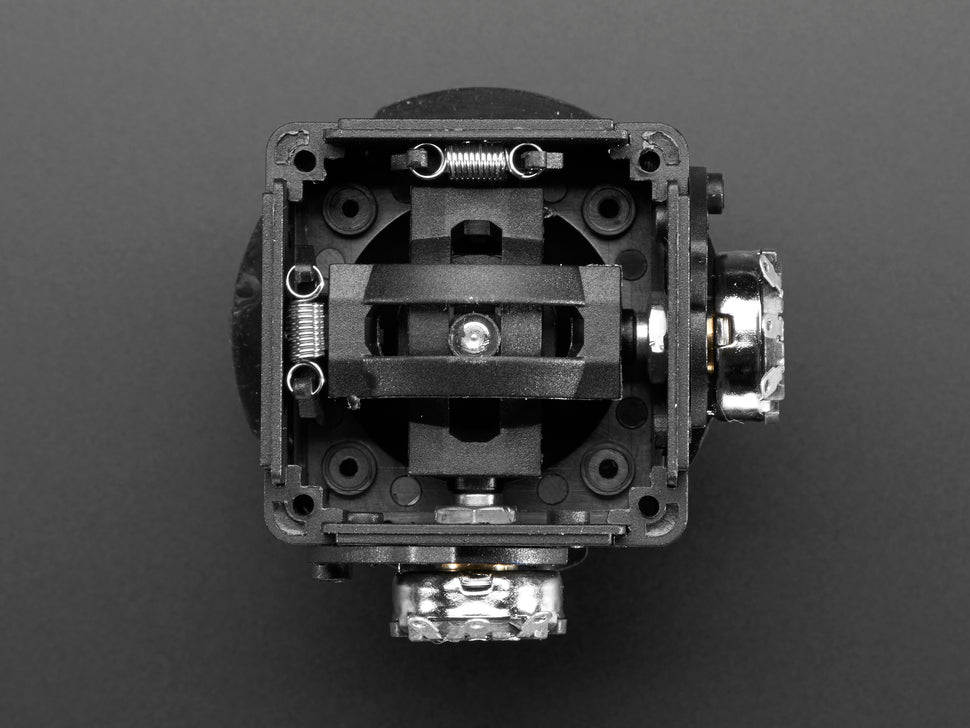

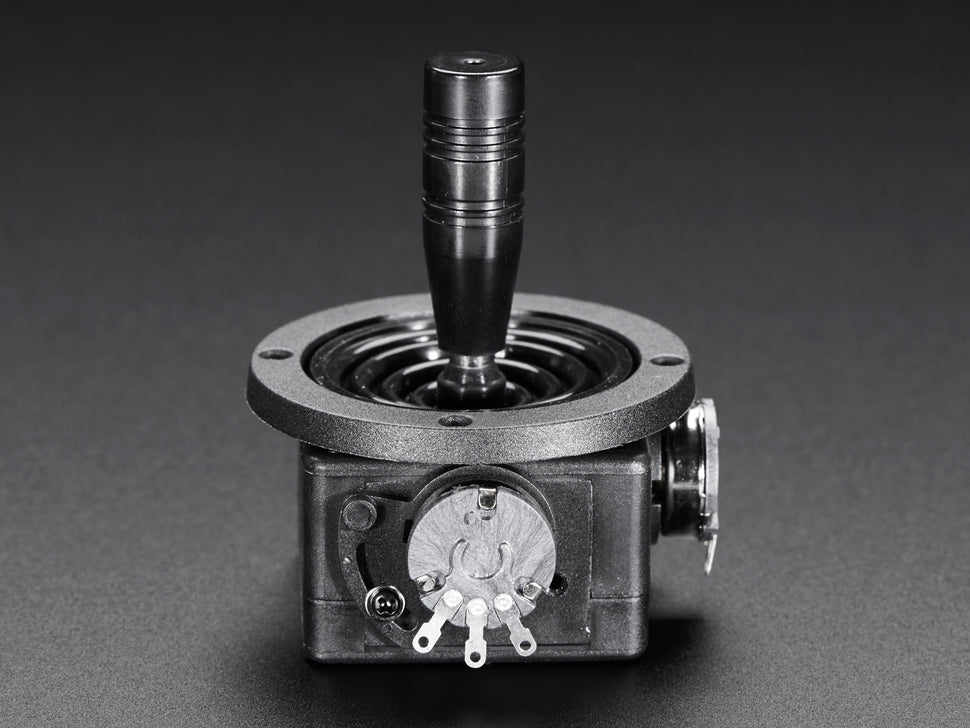

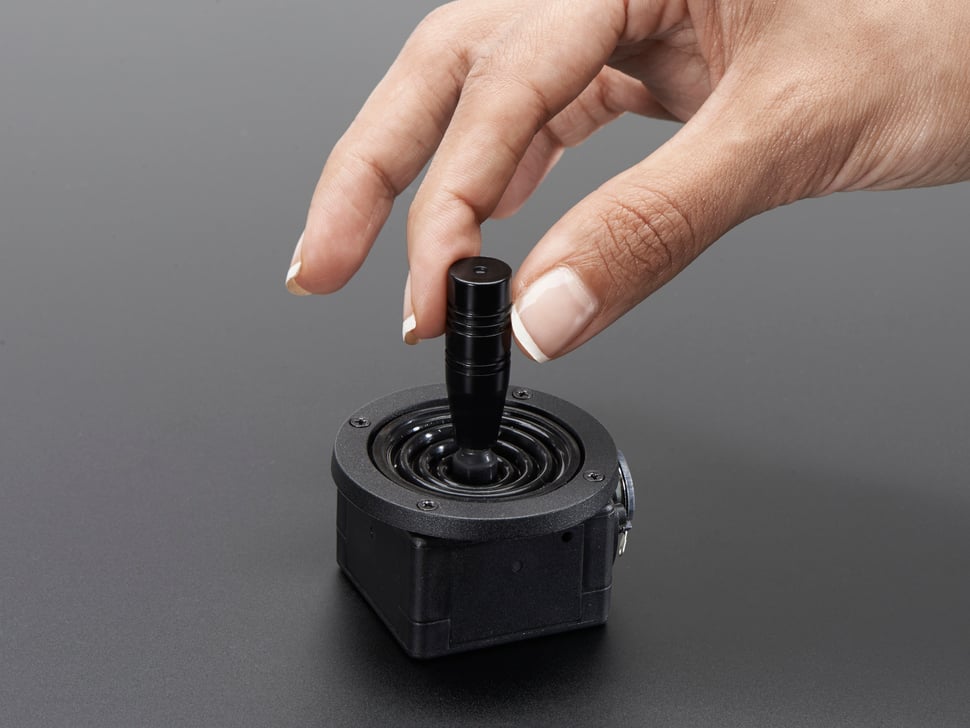

Unlike most arcade-style joysticks, which come with four clicking switches, this product has two 10KΩ potentiometers and a spring-back system. You can get a full 50 degrees in both X and Y directions. Connect one side of each potentiometer to ground, and the other side to a higher voltage and read the analog voltage off the middle. Great for robotics and other control interfaces. This joystick is durable and has a great feel to it. You could replace the springs if you want a stronger or weaker spring-back force.

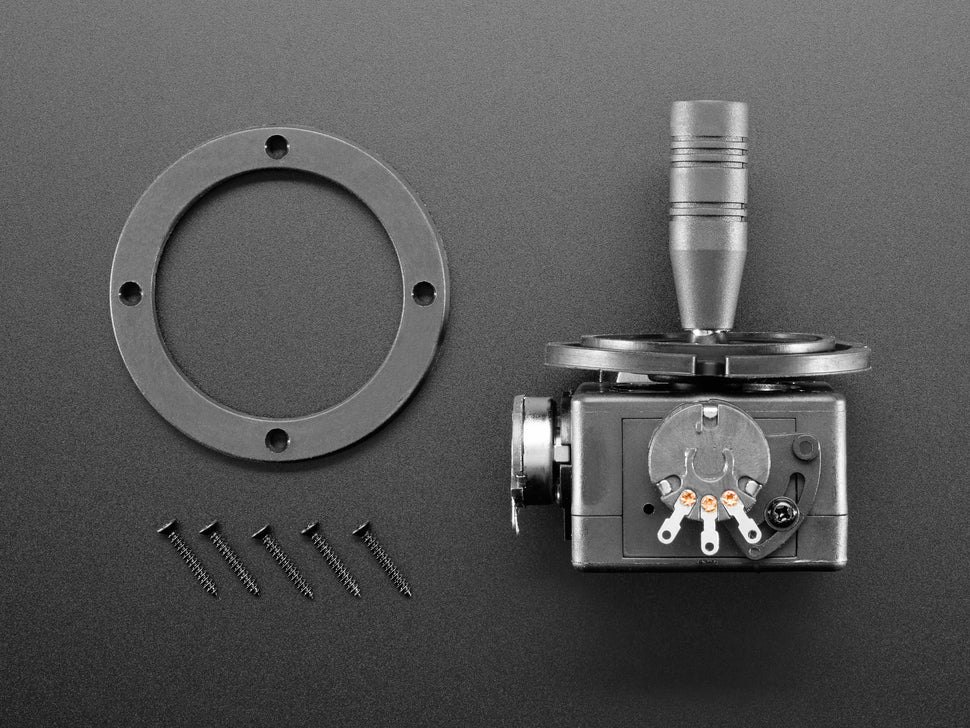

The 2.8mm spade connector in this DIY kit fits nicely.

Technical Details:

• Resistance Value: 10 Kohm
• Resistance Tolerance: ±10%
• Independent Linearity: ±1%
• Temperature Coefficient Resistance: ±400ppm/°C
• Output Smoothness: 0.5% max
• X and Y Axis range: ±25°
• Mechanical Lifecycle: 500,000 cycles
• Operating Temperature Range: -10~80°C

Product Dimensions: 67.4mm x 52.7mm x 52.7mm / 2.7" x 2.1" x 2.1"

Product Weight: 55.9g / 2.0oz
