Mini Metal Speaker with Wires - 8 Ohm 0.5W

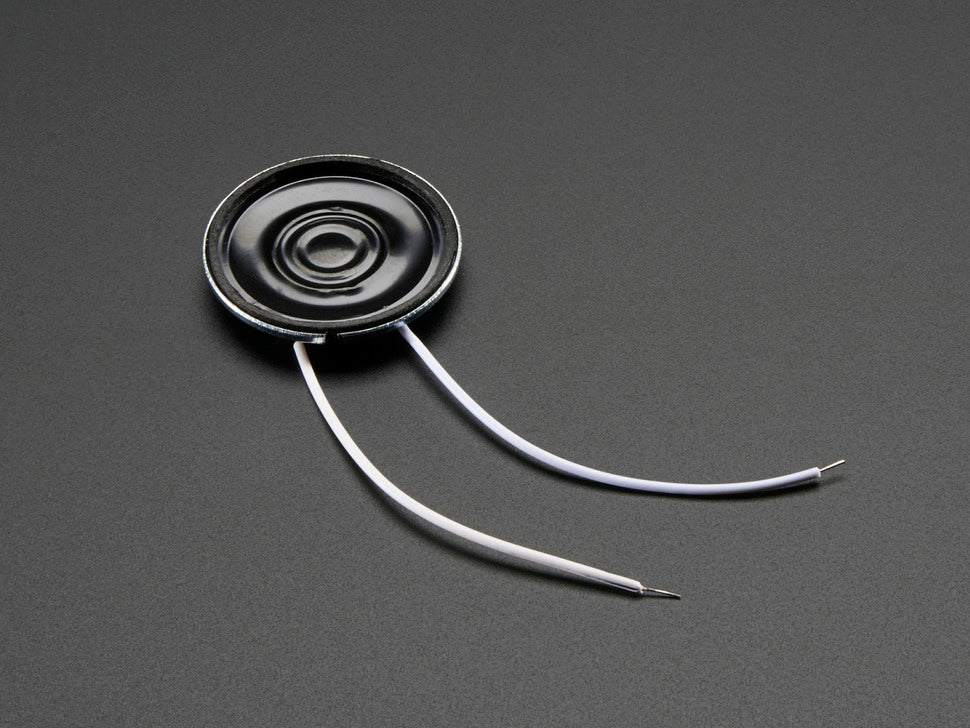

Listen up! This tiny 1" diameter speaker cone is the perfect addition to any small audio project where you need an 8 Ω impedance and will be using 0.5W or less of power. The speaker features a very simple design with a lightweight metal body, making it ideal for compact audio solutions.

This speaker works great with Adafruit's Wave shield and class D amplifier board, but care should be taken not to overdrive it, as class D amps can deliver up to 1.7W which may damage the speaker. Start at a lower volume and increase carefully.

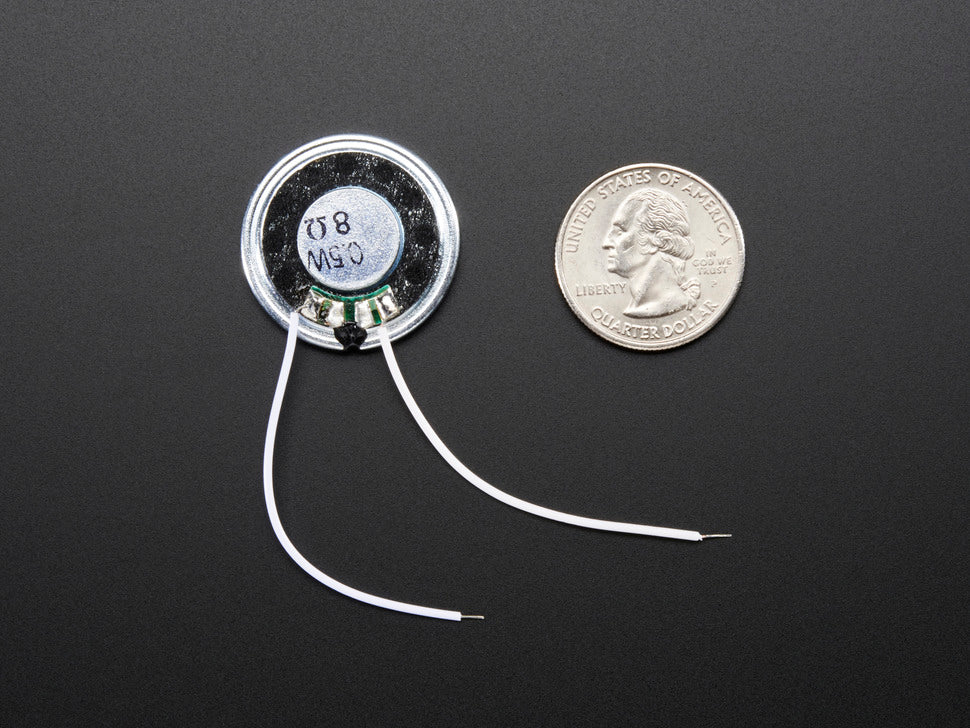

• Diameter: 28mm / 1.1"
• Height: 4.5mm
• Weight: 6g
• Resonance Frequency (FO): 680 ±20% Hz at 1V
• Rated Impedance: 8 ±20% Ω (at 1KHz)
• Frequency Range: ~600-10KHz
• Rated Input Power: 0.25W
• Max Input Power: 0.5W
• Temperature Range: -20ºC to 55ºC

For more details, see the datasheet.
