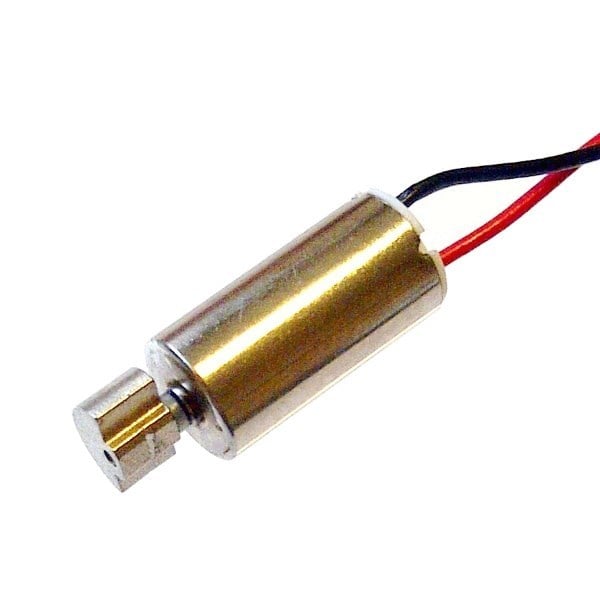

Miniature 3V Vibrating Motor

The Miniature 3V Vibrating Motor is a compact vibration motor measuring only 12mm in length and 6mm in diameter. It features a coreless motor design and is rated at a nominal voltage of 3V DC. Pre-wired with red and black leads of 90mm length, this vibration motor is widely used in silent alert functions for mobile phones, tools, robotics, control sticks, and various handheld equipment requiring silent vibration alerts.

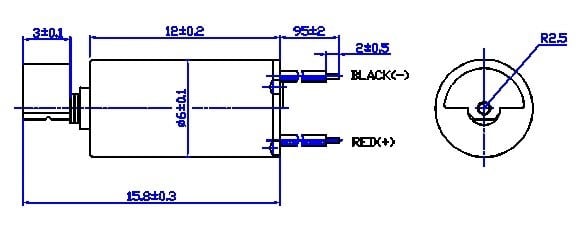

• Dimensions: 12mm length x 6mm diameter
• Rated voltage: 3.0V DC
• Operating voltage range: 1.7-3.6V DC
• Rated speed: 14,000 RPM (±2000 RPM)
• Vibration amplitude: 1.5 mm
• Starting voltage: Maximum 1.7V
• Rated current: 75mA
• Stall current: maximum 140mA
• Weight: 1.85g
• Coreless motor design for silent operation
• Pre-wired with 90mm leads

This motor is ideal for applications requiring small size and silent vibration feedback such as mobile devices, handheld tools, and robotics components.

Download datasheet (PDF)
