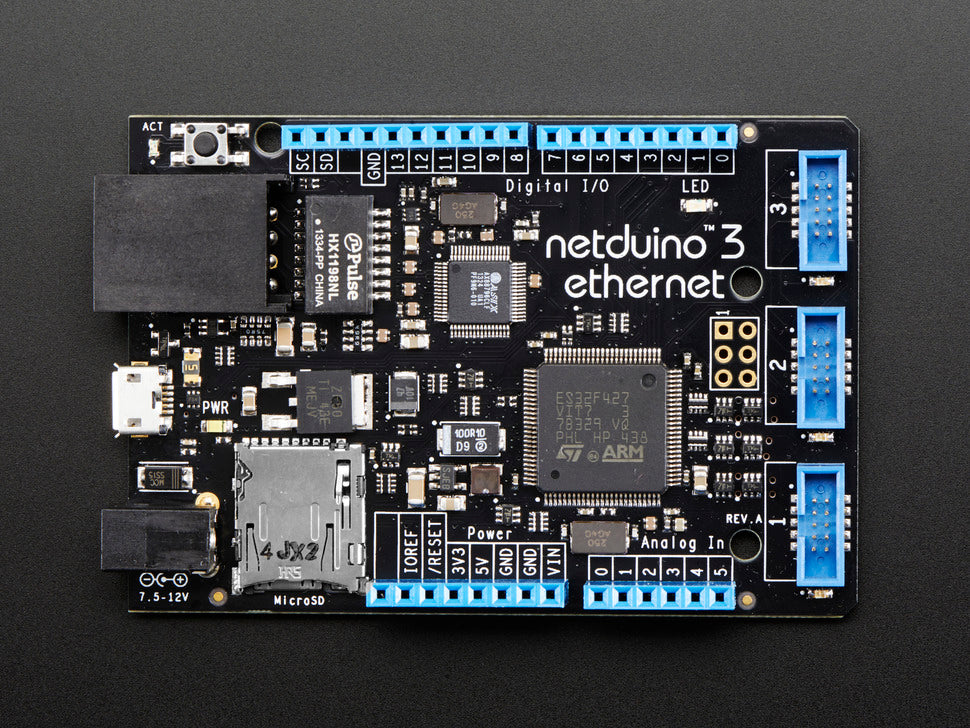

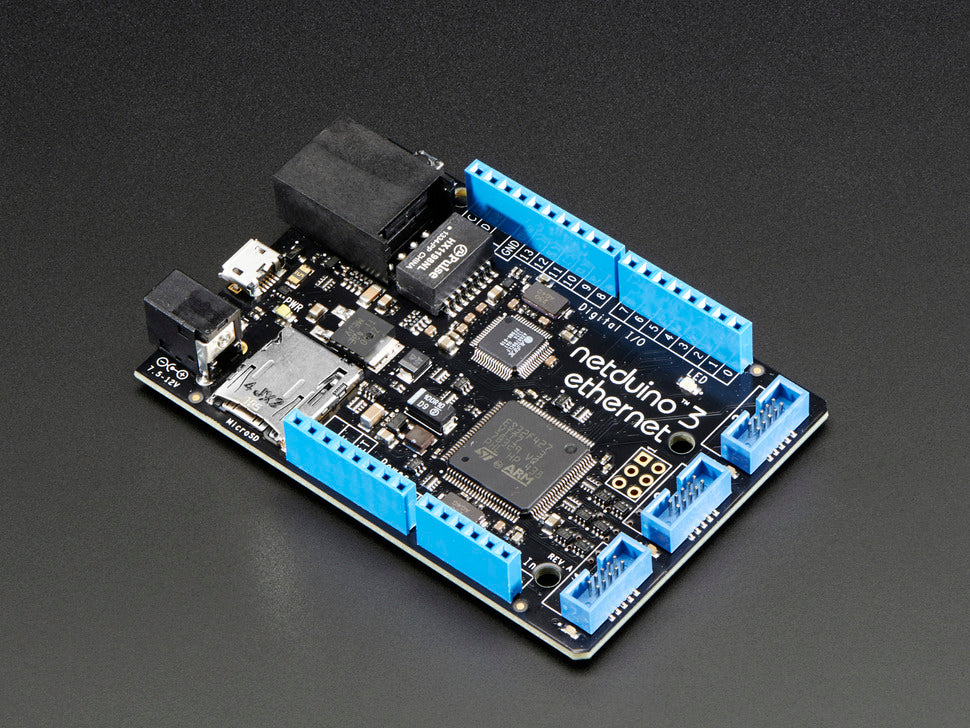

NETduino 3 Ethernet Development Board

NETduino 3 Ethernet is an open source electronics platform using the .NET Micro Framework, featuring a powerful 32-bit STM32F427VI Cortex-M4 microcontroller running at 168 MHz. This board combines the ease of high-level .NET programming with the raw features of microcontrollers, suitable for both engineers and hobbyists.

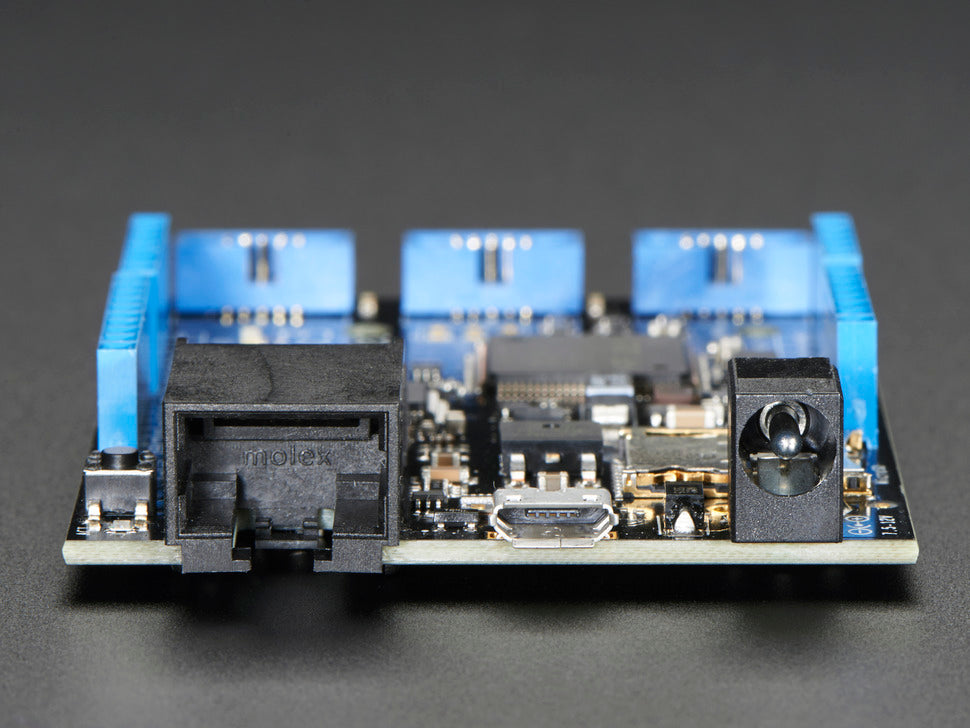

The NETduino 3 offers almost four times the code storage (1408 KB) and nearly double the RAM (164+ KB) of its predecessor. The Ethernet model also includes MicroSD storage up to 2GB and an integrated Ethernet jack for high-speed IP networking.

• Compatible with most Arduino shields (some require .NET MF drivers)
• 1408 KB code storage capacity
• 164+ KB RAM
• 6 ADC channels (12-bit resolution)
• Micro SD storage (up to 2GB)
• 3 GoBus ports
• Operating temperature: 0° - 70°C
• Power input: 7.5-12 VDC or USB powered
• Power output: 5 VDC and 3.3 VDC regulated
• Max current: 25 mA

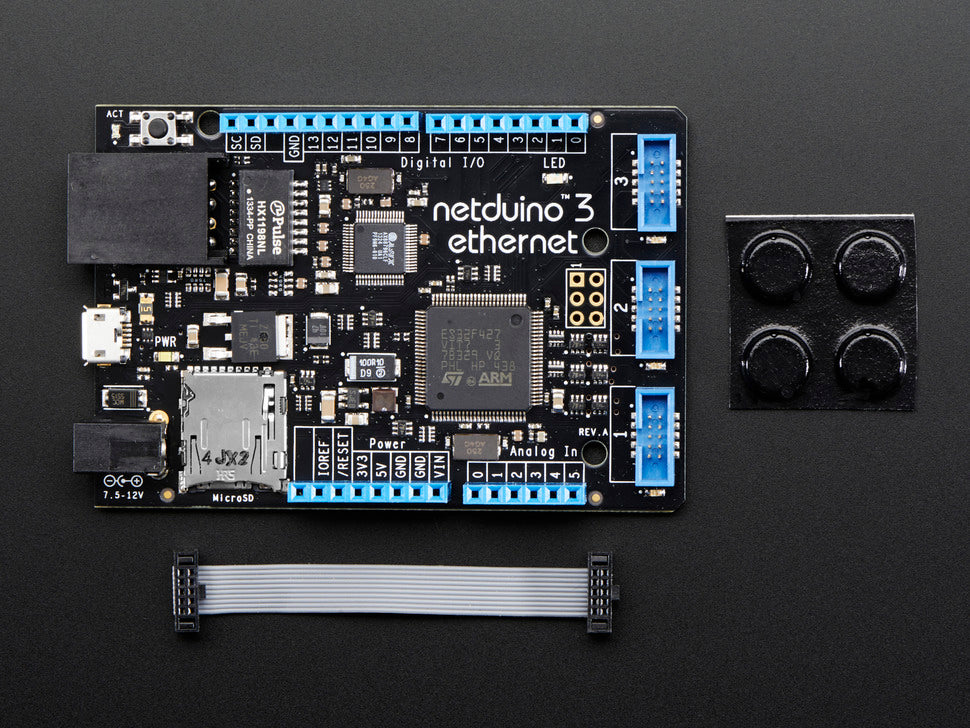

In the box:

• NETduino 3 Ethernet board
• Four sticky feet
• 5 cm GoBus cable

Dimensions: 80.3mm x 53.3mm x 12.7mm (3.2" x 2.1" x 0.5")

Weight: 27.0g (1.0oz)

For detailed schematics, datasheets, and community support, visit official documentation and forums.
