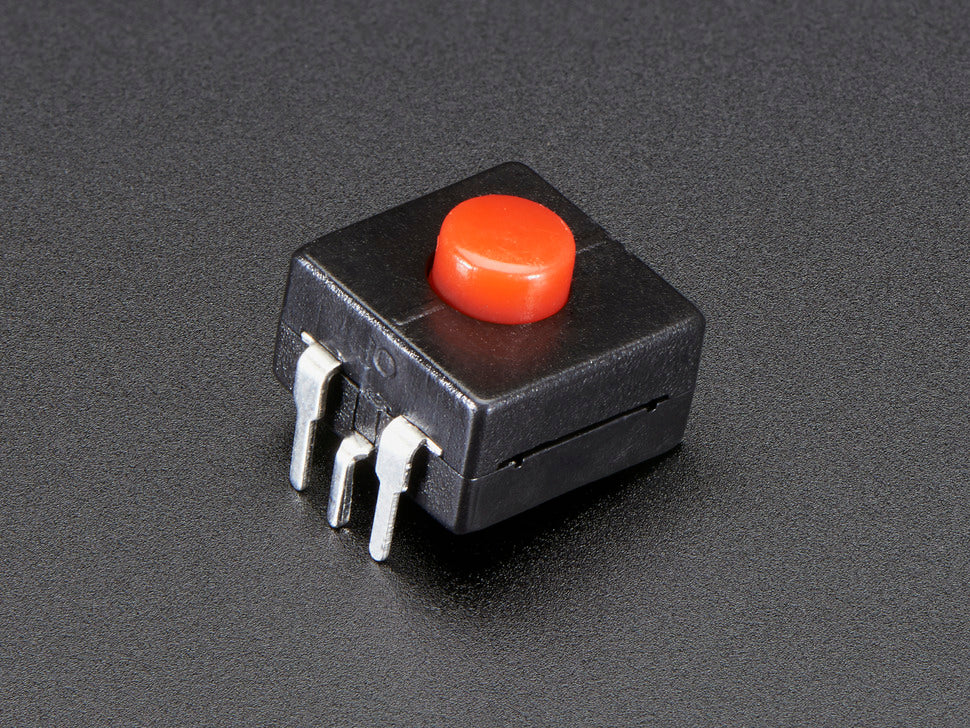

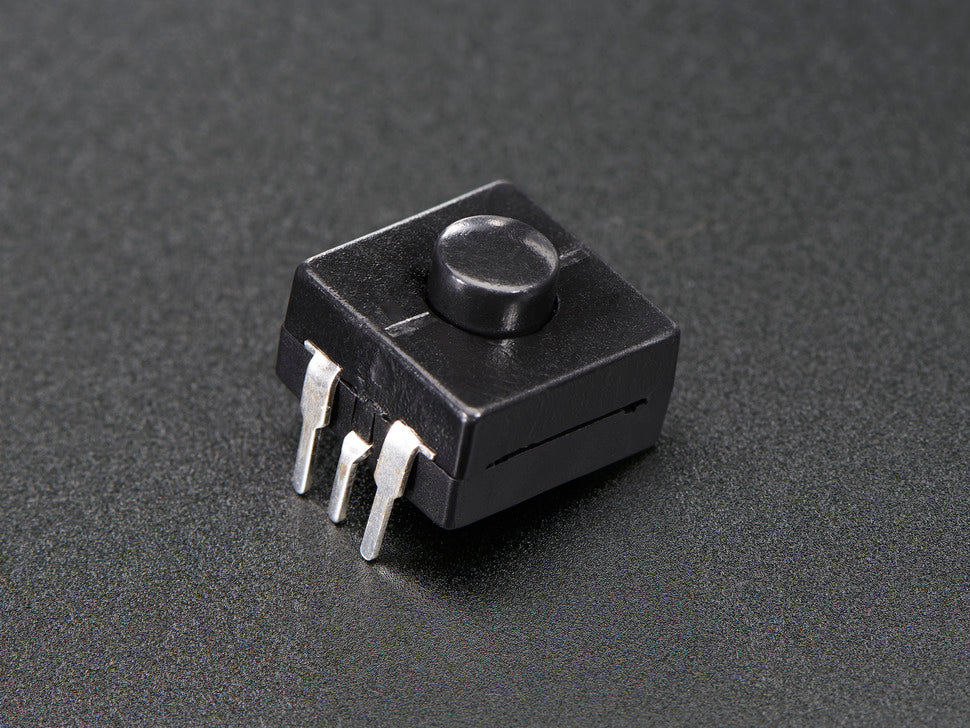

On-Off-On-Off Alternating Power Button / Pushbutton 3-Way Toggle

Push once to turn one side on, push again to turn off, push again to turn the other side on, one last push and it's off again! This is essentially a push-button toggle switch connecting and disconnecting the middle pin from either of the two side switches with every click. It functions as a clicky switch perfect for power switching or mode toggling.

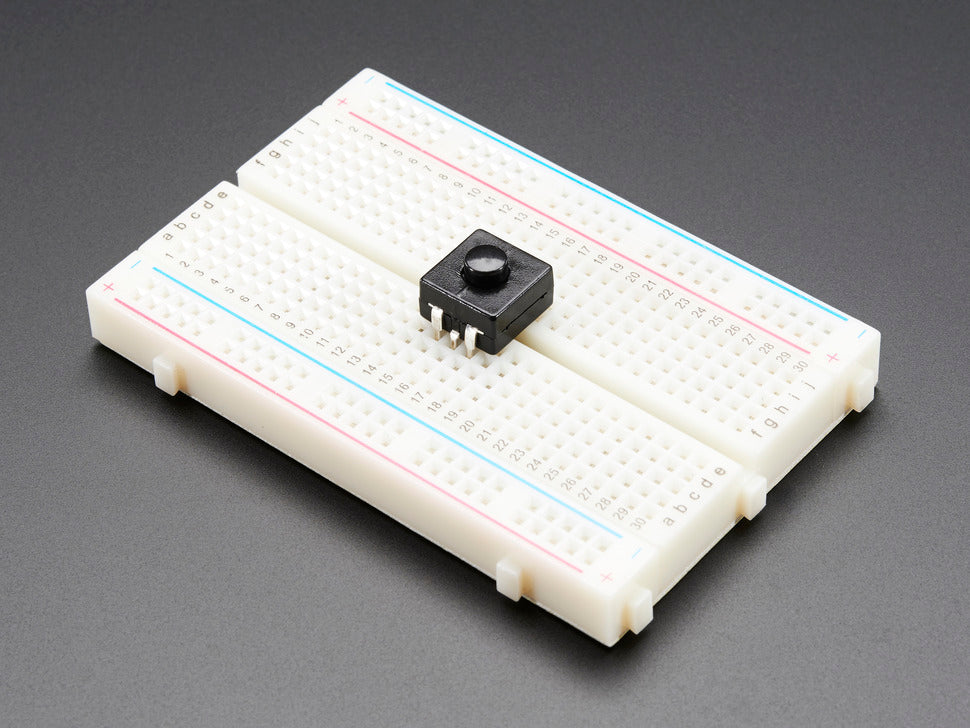

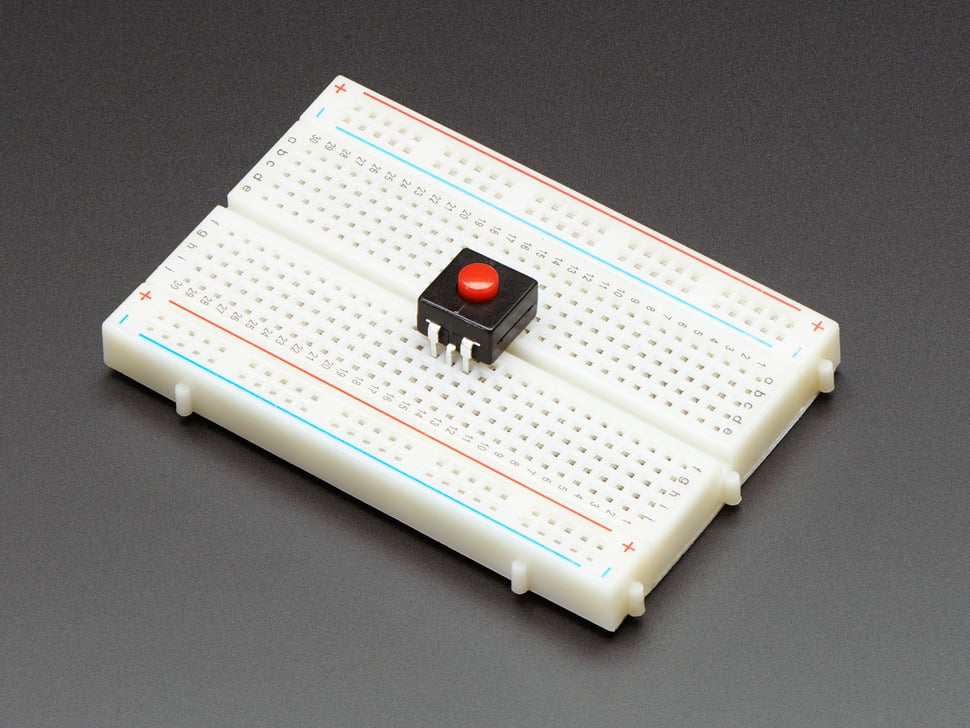

This switch is breadboard friendly and recommended for those looking for a fun and reliable switch. It can handle up to 500mA and 12VDC. The top button color may come in red or black; both colors are identical. The leads are slightly off the 0.1" grid but can be adjusted for breadboard or perfboard use.

• Rated for 12V at 0.5A
• Ambient Temperature: -25ºC to 70ºC
• Contact Resistance: ≤50mΩ
• Operating Force: 5N to 12N

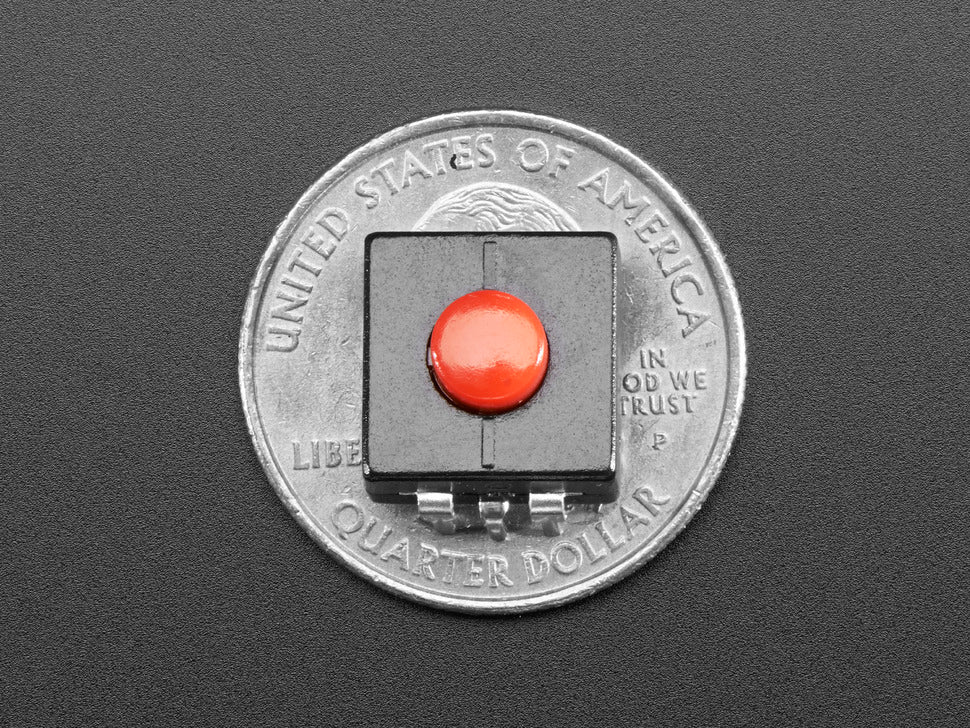

• Dimensions: 12mm x 12mm x 7mm (0.5" x 0.5" x 0.3")
• Weight: 1.2g

The switch is RoHS 2 2011/65/EU and 2015/863/EU compliant.
