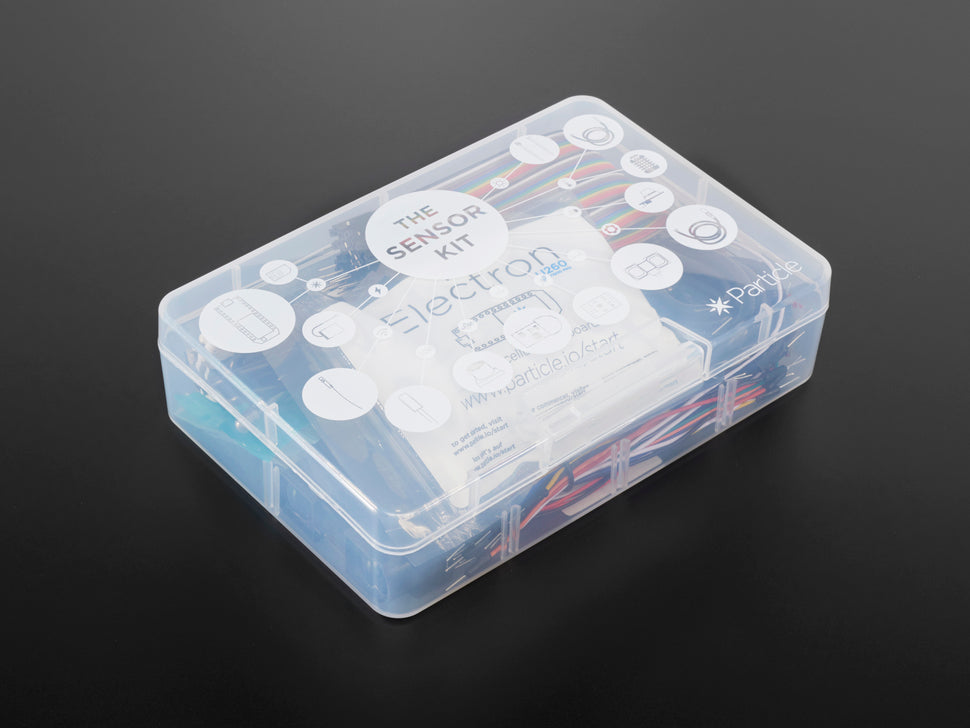

Particle Sensor Kit 3G - Americas/Aus

Quantify the world! The Particle Sensor Kit is a curated collection of sensors and electrical components handpicked by Particle engineers. Ideal for measuring temperature, loudness, distance, motion, and noxious gases, this kit is perfect for building connected robots or environmental measurement projects.

The kit includes a Particle SIM card with coverage in over 100 countries and 3 months of Particle's 1MB monthly data plan. It uses the GSM-only Electron 3G modem designed for North and South America frequency bands (850/1900 MHz).

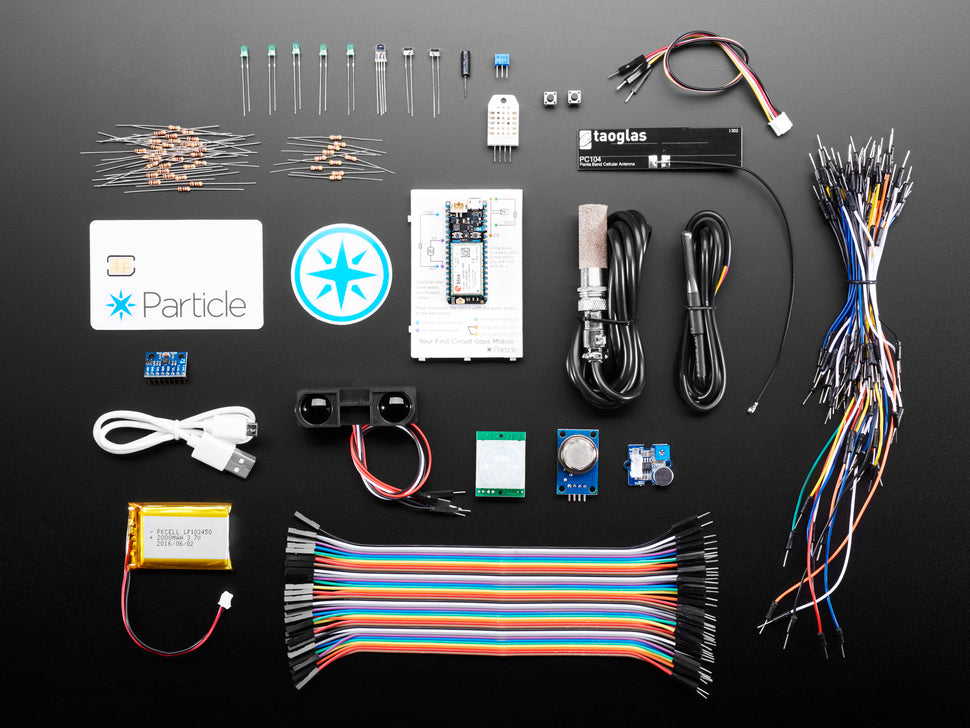

Kit Contents:

• 3 months of Particle's 1MB monthly data plan (email delivery)
• 10 sensors for acceleration, distance, temperature, humidity, motion, vibration, and gases

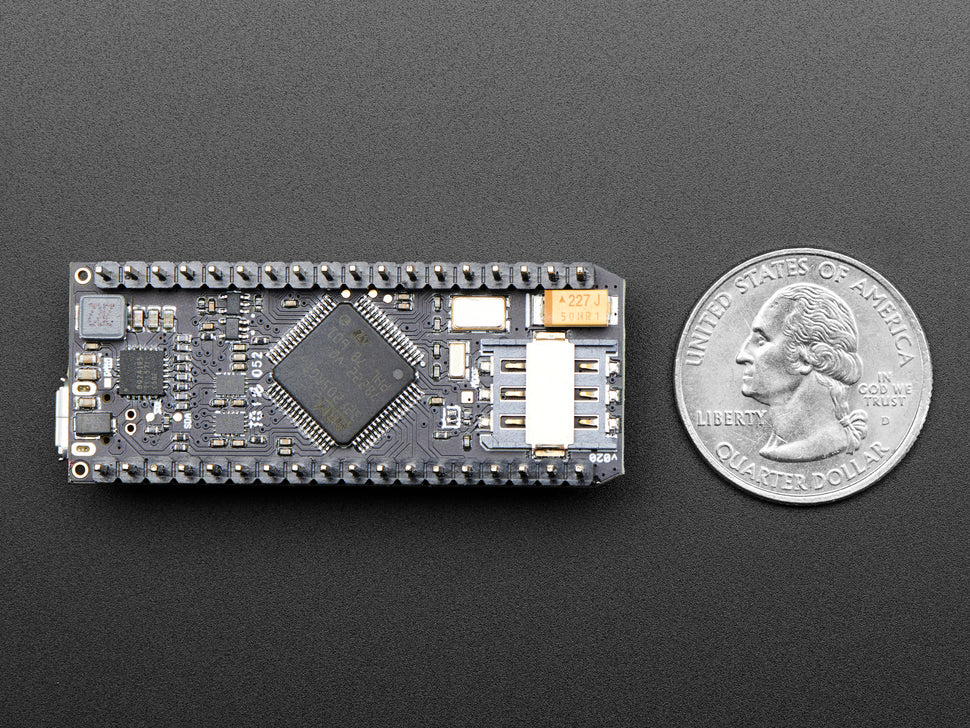

• Particle Electron PCB
• Particle SIM Card
• 2000mAh Li-Po battery
• Taoglas Cellular Antenna
• USB cable

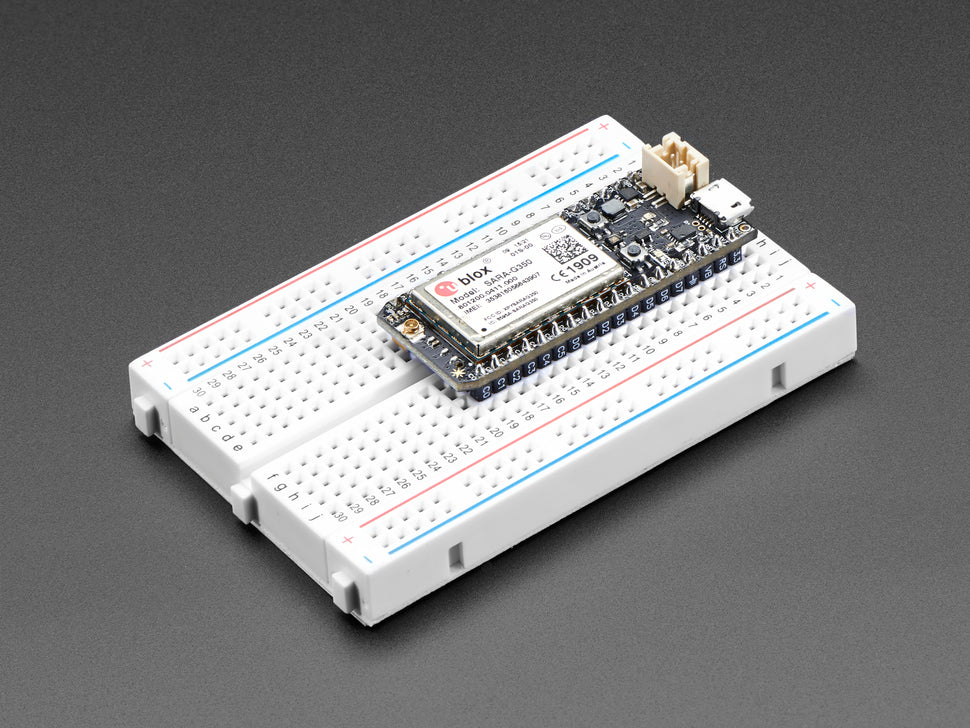

• Breadboard

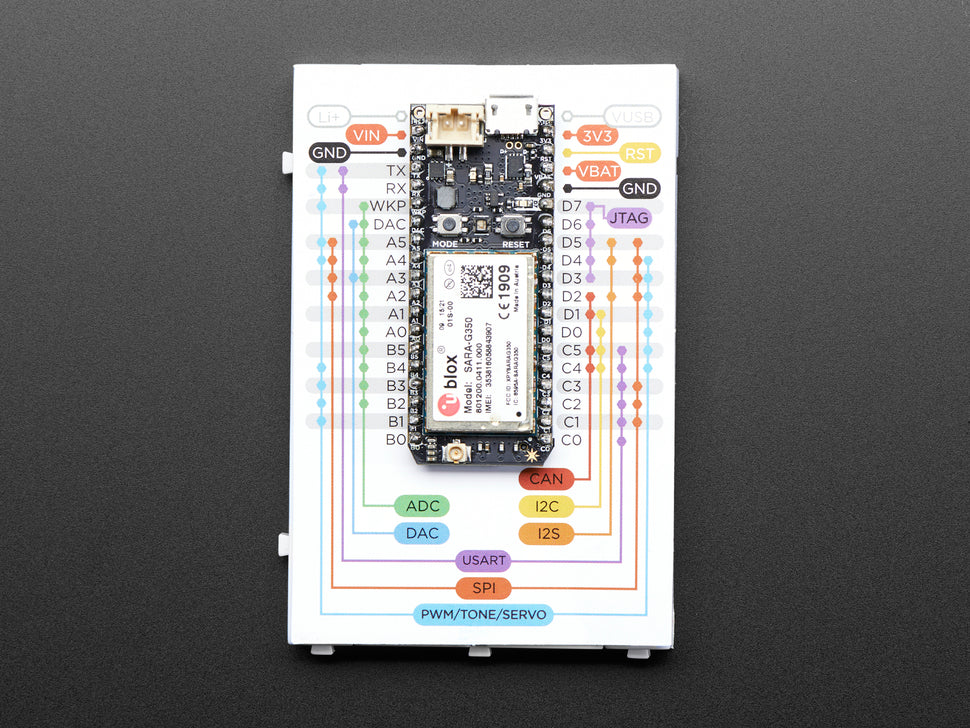

• Pinout reference card
• Components for a sample product

For detailed components list, see documentation.

Technical Specifications:

• STM32F205 ARM Cortex M3 microcontroller
• 1MB Flash, 128KB RAM
• Cellular modem: U-Blox SARA U-series (3G)
• 36 pins (28 GPIO including D0-D13, A0-A13), TX/RX, GND, VIN, VBAT, WKP, 3V3, RST
• Board dimensions: 2.0" x 0.8" x 0.3" (0.5" including headers)

Note: The Electron is GSM-only and not compatible with CDMA networks. Coverage and data plans vary by country.

This product is no longer stocked.
