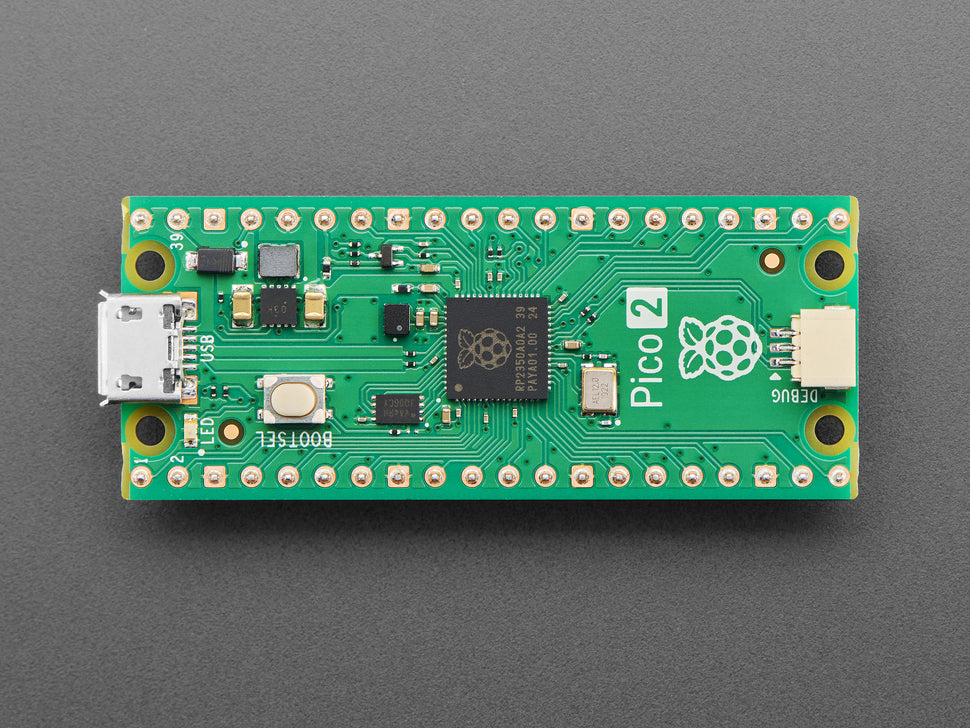

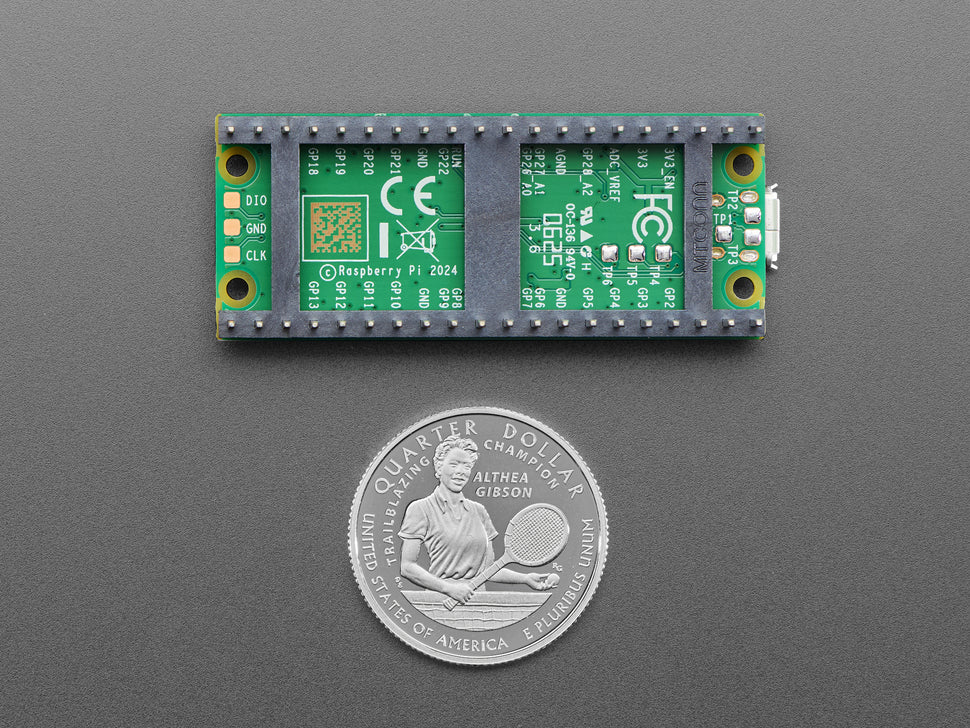

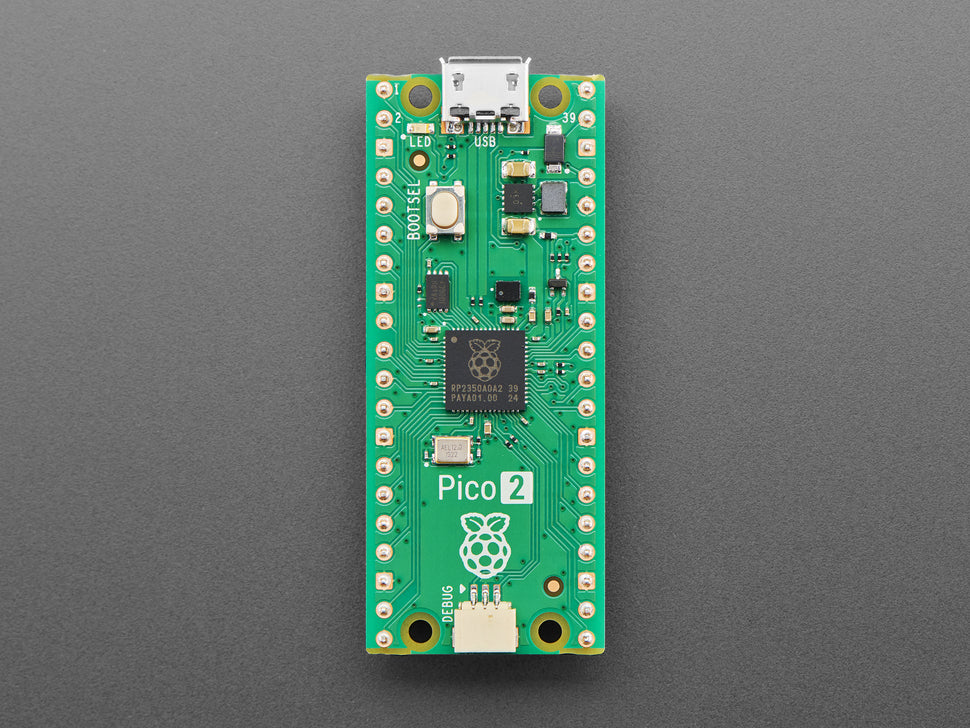

Raspberry Pi Pico 2 with Pre-Soldered Header

The Raspberry Pi Pico 2 with Header is the latest update from the Raspberry Pi Foundation, featuring the RP2350 microcontroller, a high-performance and secure dual-core processor. This board offers a significant upgrade over its predecessor, the RP2040, with improved clock speed, doubled SRAM to 520KB, increased flash memory to 4MB, more powerful Arm Cortex-M33 cores, and enhanced security features including TrustZone and hardware random number generation.

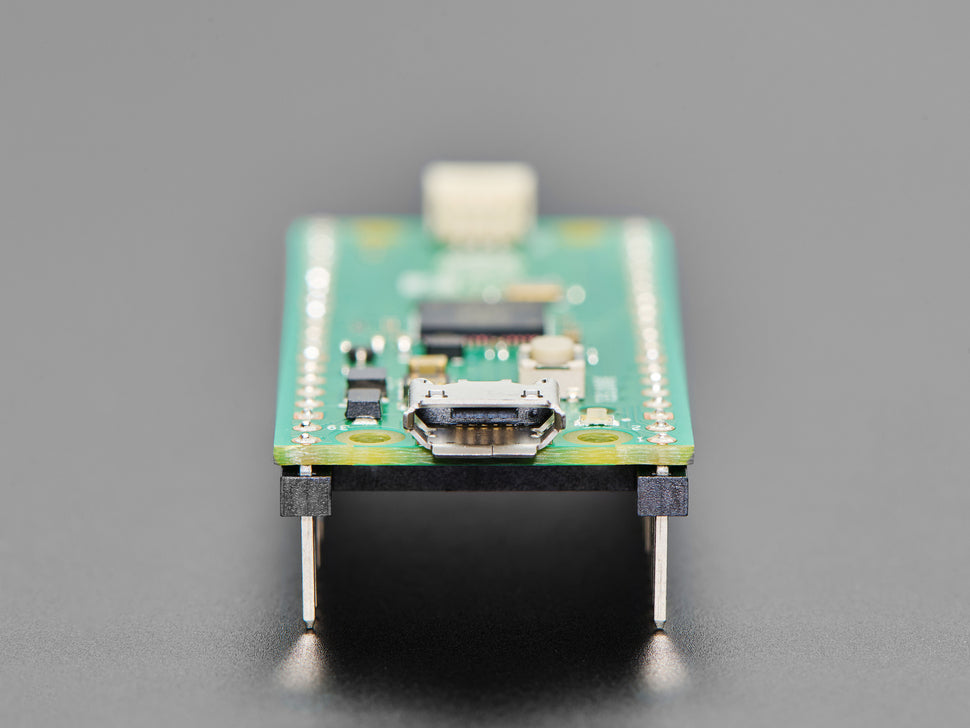

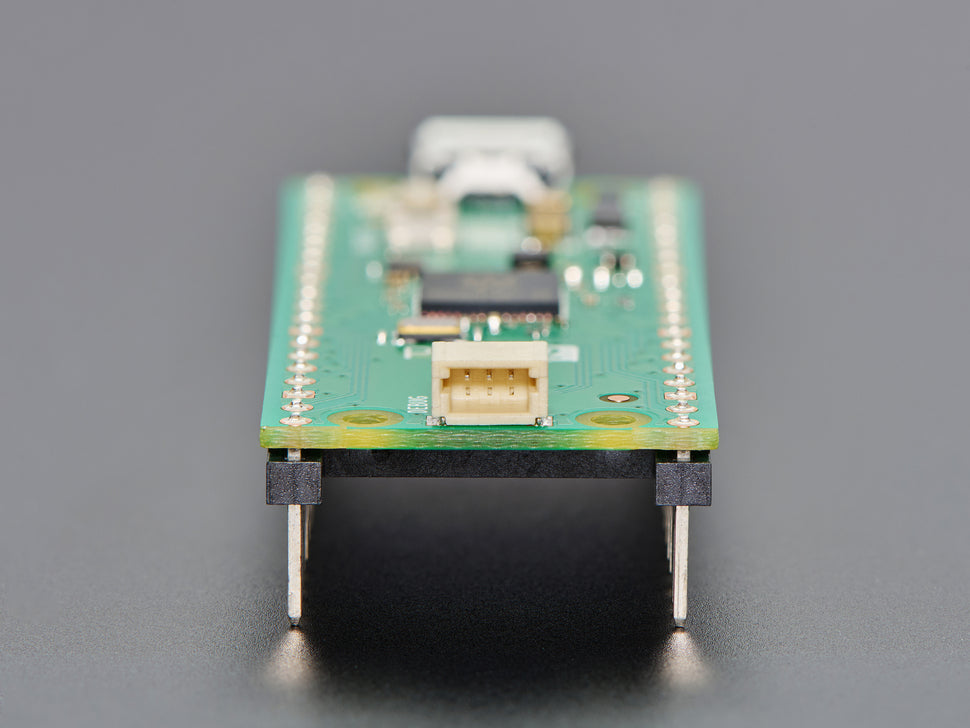

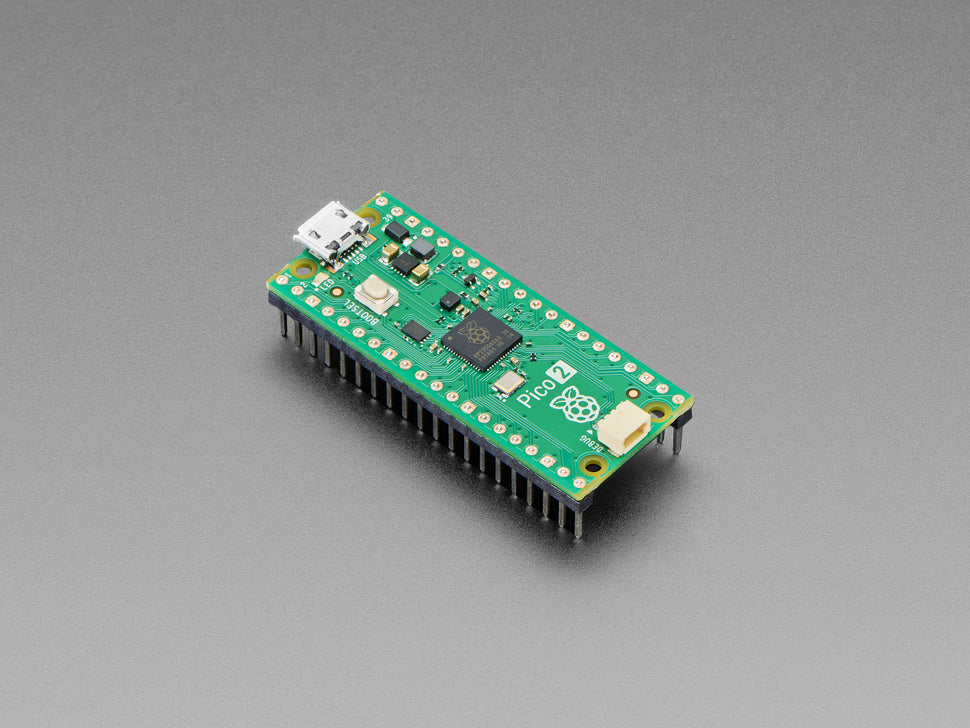

This version comes with pre-soldered 40-pin headers for easy prototyping and integration. The dual-core RP2350 supports both Arm Cortex-M33 and RISC-V Hazard3 processor architectures, allowing flexibility for developers. It's compatible with C/C++ and CircuitPython/MicroPython programming environments.

Key features include:

• Dual Arm Cortex-M33 or dual RISC-V Hazard3 processors running at 150MHz
• 520KB on-chip SRAM
• 4MB on-board QSPI flash memory
• 26 multi-purpose GPIO pins including 4 ADC inputs
• Peripherals: 2 UARTs, 2 SPI controllers, 2 I2C controllers, 24 PWM channels, USB 1.1 with host and device support
• 12 programmable I/O (PIO) state machines
• Secure boot and hardware security features with TrustZone, SHA-256 acceleration, TRNG
• Input power range from 1.8 V to 5.5 V DC
• Operating temperature from -20°C to +85°C

The Pico 2 with Header offers enhanced performance and security for IoT, education, and embedded applications while maintaining full hardware and software compatibility with previous Raspberry Pi Pico boards.

Note: This product uses the RP2350 A2 revision, which currently has an E9 erratum affecting GPIO and PIO behaviors.
