Raspberry Pi Touchscreen 10.1" IPS Capacitive Touch Display 1520×720 HDMI Monitor
Couldn't load pickup availability
Description
[Raspberry Pi Exclusive] Comes with various adapters and a stand for a tight back-to-back installation, eliminating messy cables.

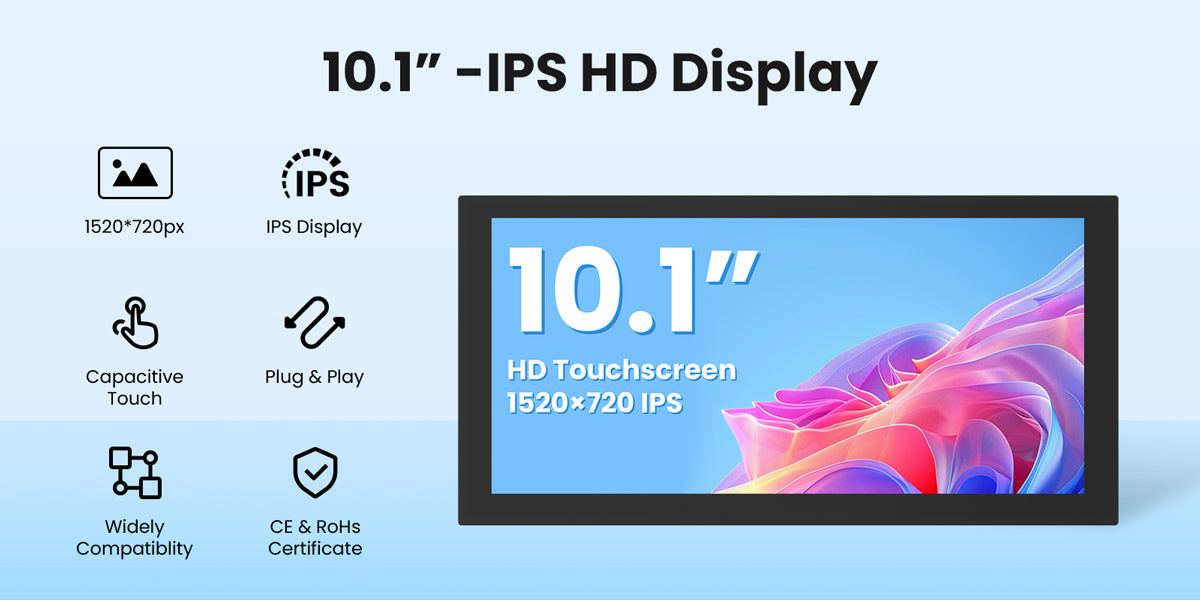

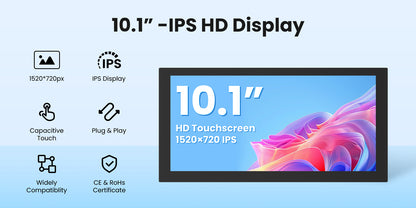

[Long Strip IPS Screen] 10.1-inch 1520×720 resolution, vertically displaying code/web pages/monitoring data.
[5-Point Capacitive Touch] USB driverless plug-and-play, compatible with Windows/Raspberry Pi OS/Ubuntu.
[Multi-Functional Screen] Raspberry Pi companion, PC secondary monitor, fully compatible with Switch/Xbox game consoles.
[Simple Connection] HD video transmission + USB-powered touch control, with physical buttons to adjust brightness and contrast.
This is a 10.1-inch elongated IPS touchscreen with a resolution of 1520x720, designed specifically for Raspberry Pi and PC secondary display applications. The screen uses an elongated IPS display, naturally suited for displaying code, browsing long web pages, monitoring data, or serving as a secondary timeline for video editing, effectively saving desktop space.
The product comes with a dedicated Raspberry Pi adapter and stand, allowing for a tight, back-to-back installation of the Raspberry Pi and screen. The integrated design is sleek and aesthetically pleasing, completely eliminating the messy cables of traditional separate connections. The screen supports 5-point capacitive touch and is plug-and-play on mainstream systems such as Windows, Raspberry Pi OS, and Ubuntu, requiring no additional driver installation. Physical menu buttons allow for easy adjustment of display parameters such as brightness and contrast. Only one HDMI cable is needed for image transmission, and one USB-C cable is needed for power and touch control, easily covering various scenarios such as development debugging, daily office work, and gaming. Whether used as a dedicated Raspberry Pi monitor, a PC secondary display, or an extended screen for Switch/Xbox game consoles, it can handle the job perfectly.
Hardware Overview
Features

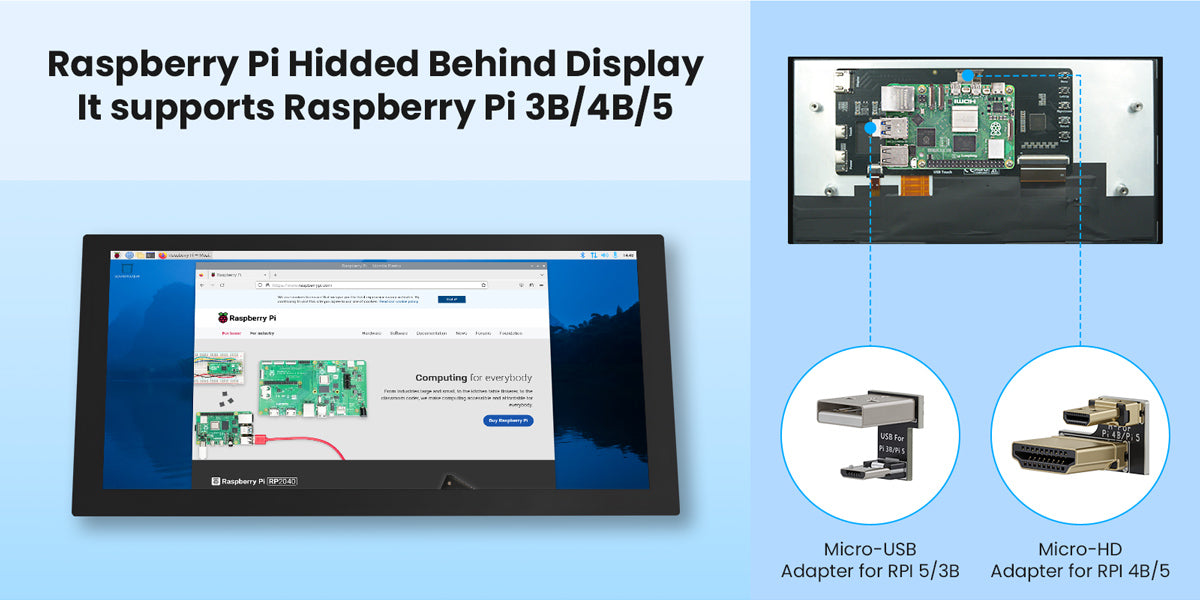

- Simple Connection for Raspberry Pi: Comes with adapters and stands to allow for a tight, back-to-back installation of the Raspberry Pi (3B/4B/5) and the screen, resulting in a clean and aesthetically pleasing integrated appearance.

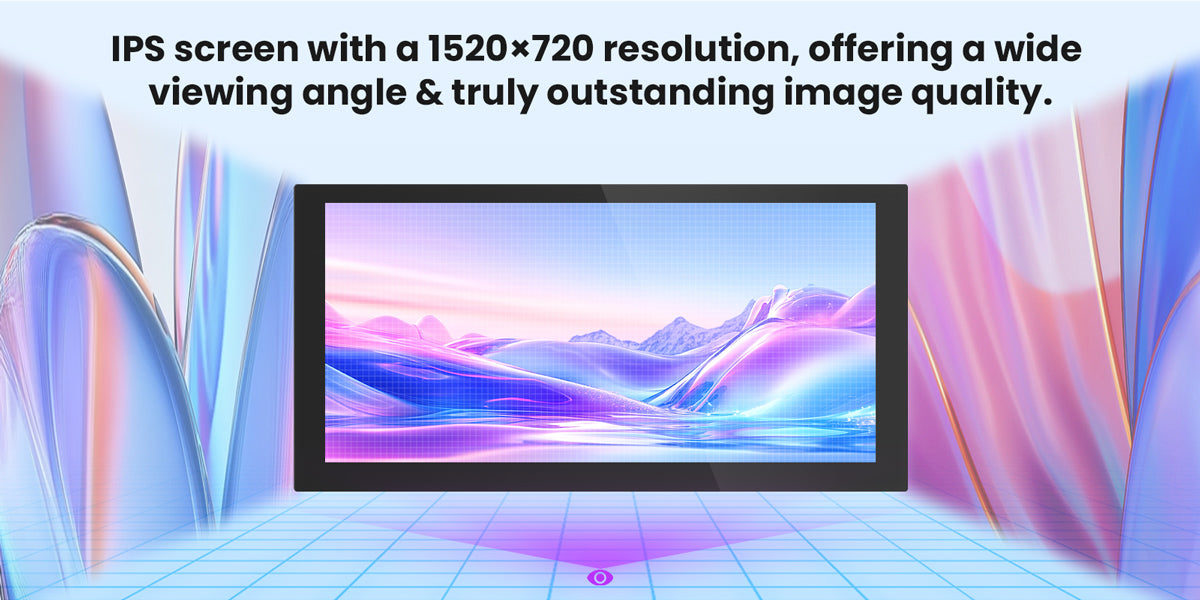

- High-Efficiency IPS Screen with Long Shape: 10.1-inch long, elongated IPS screen with a resolution of 1520×720, ideal for vertically displaying code, browsing long web pages, or serving as a secondary timeline for video editing.

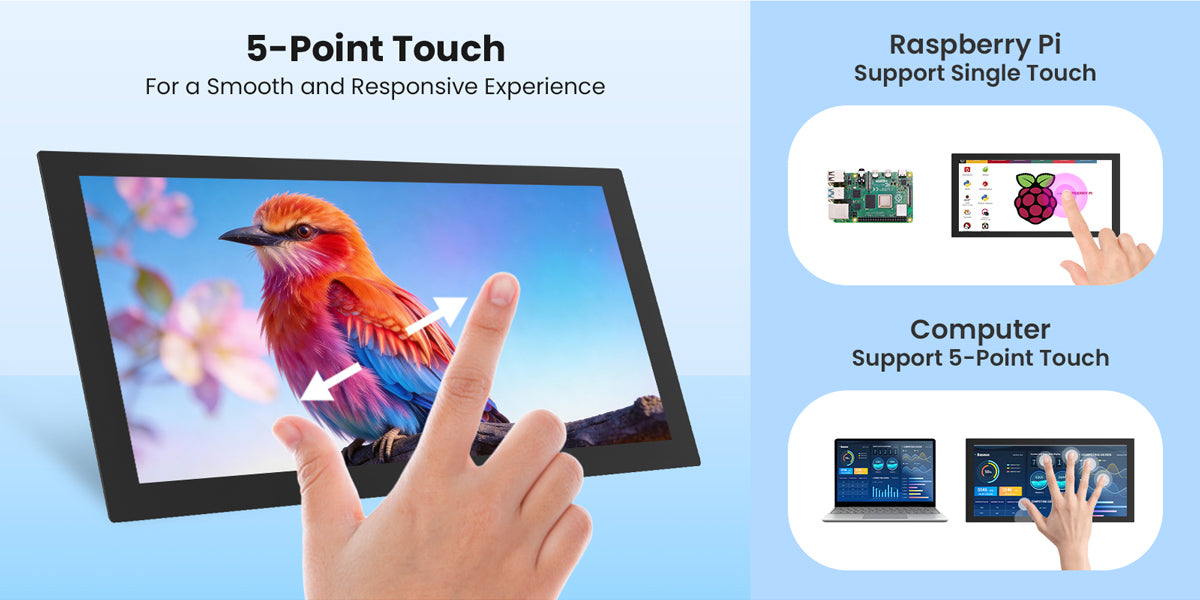

- USB Driverless 5-Point Touch: Capacitive touch technology supports 5-point touch; plug and play with mainstream systems, no additional drivers required.

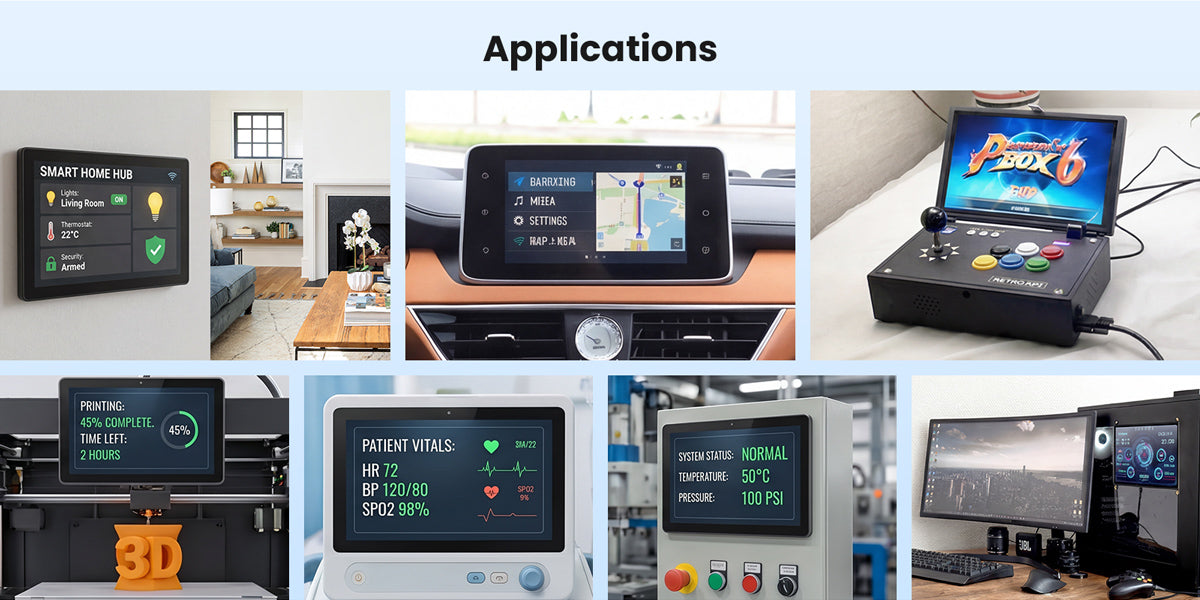

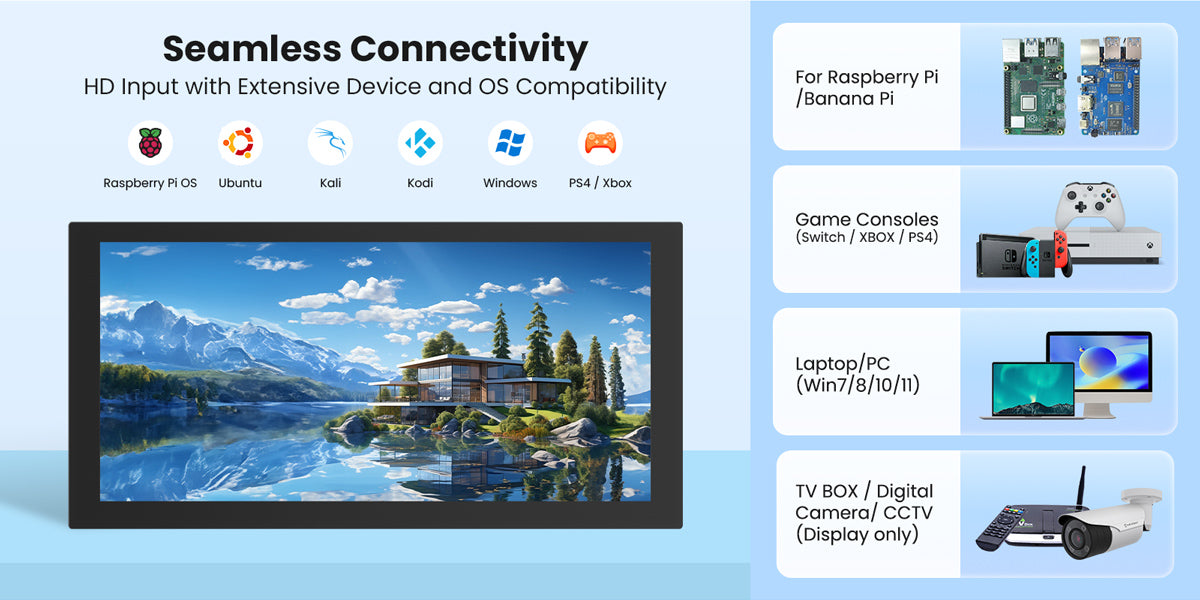

- Wide Compatibility, Multi-Functional Display: Not only the perfect companion for the Raspberry Pi, but also a perfect secondary screen for a PC, and also supports game consoles such as the Switch and Xbox.
- Simple Interface and Convenient Operation: Only requires HD for image transmission, USB for power, and touch control; the device features physical menu buttons for easy adjustment of parameters such as brightness and contrast.
Specifications
| Category | Specification |
|---|---|
| Panel Size | 10.1 inch |
| Panel Type | IPS |
| Touch Screen Type | Capacitive touch screen (5-point) |
| Resolution | 1520×RGBx720 pixels |
| Video Input Interface | HDMI |
| Brightness (TYP) | 280 cd/m² |
| Power Voltage | Type-C (5V) |
| Power | 3.45W |
| Operating Temperature | -40°C to 85°C |
| Module Size | 260.14(W) × 130(H) × 16.93(D) mm |
| Net Weight (Display Unit) | 470g |
Package List
- 1× 10.1-inch HD Display
- 1× Micro-USB Adapter for RPi 4B
- 1× Micro-HDMI Adapter for RPi 5/4B
- 1× Micro-USB Adapter for RPi 5/3B
- 1× Micro-HDMI Adapter for RPi 4B/5
- 1× USB-C to USB Cable (1m)
- 1× HDMI to HDMI Cable (1m)
- 1× Acrylic Mounting Brackets
- 1× Hardware Screw Pack (M2.5)
