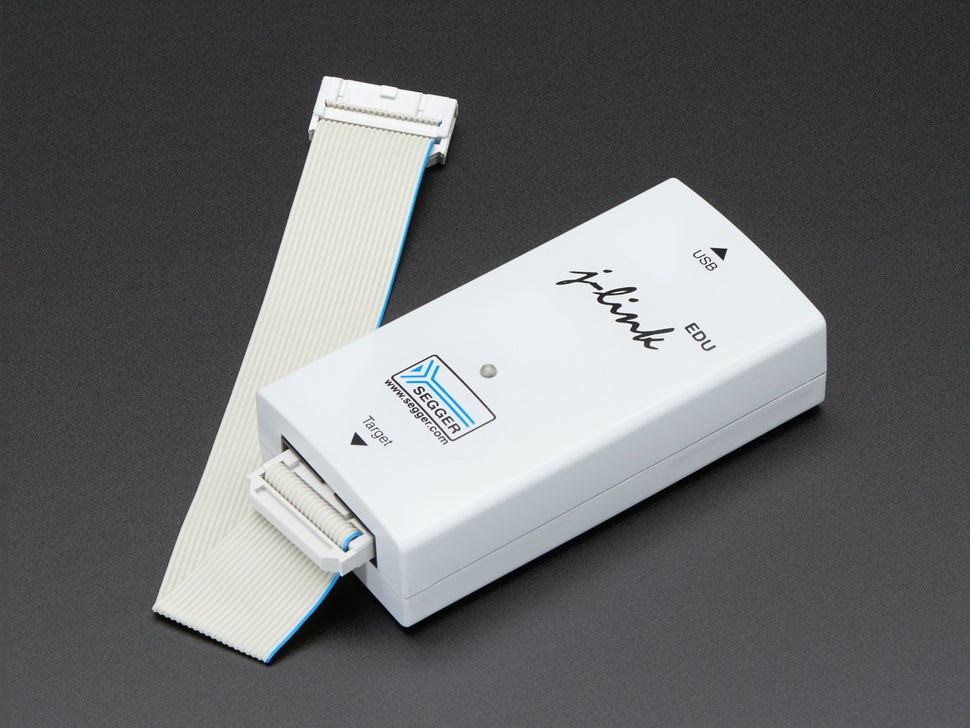

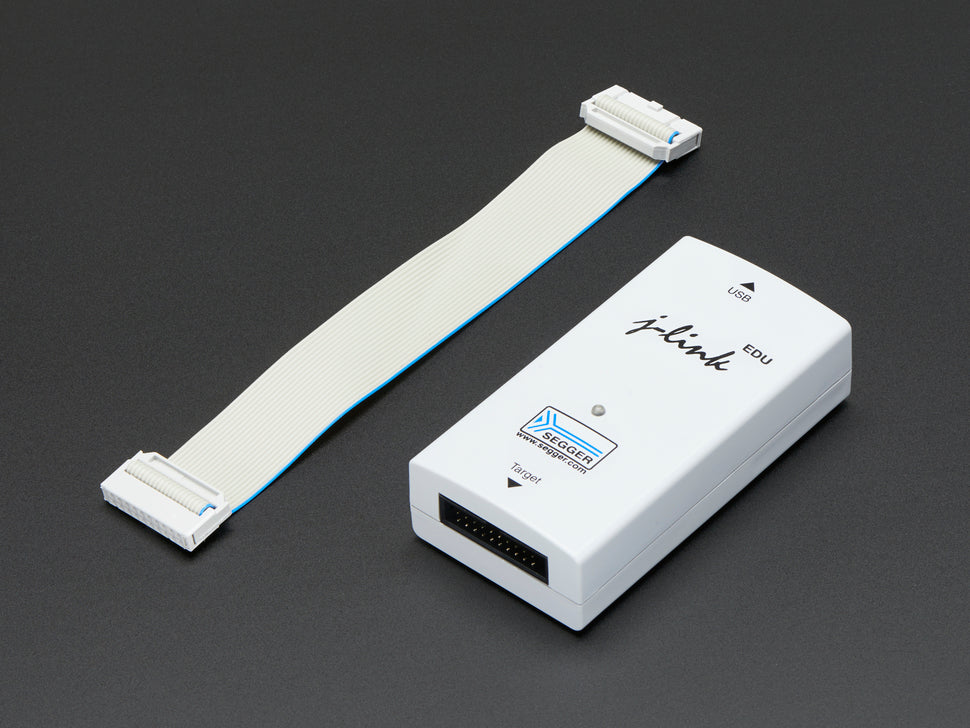

SEGGER J-Link EDU JTAG/SWD Debugger

The SEGGER J-Link EDU is a powerful hardware debugger designed for ARM-based platforms, identical to the more expensive J-Link BASE model but intended strictly for non-commercial educational use.

This USB-based debugger supports both JTAG (ARM7/9/11) and SWD (ARM Cortex) interfaces with compatibility across a wide spectrum of ARM cores including ARM7/9/11, Cortex-A5/A8/A9, Cortex-M0/M0+/M1/M3/M4, and Cortex-R4.

Key features include:

• High-speed USB connection with an internal MCU for faster debugging compared to FTDI-based debuggers.
• Vendor and toolchain neutrality supporting GDB-based debugging and flash programming on Linux, Windows, and Mac through the free GDB Server.
• Compatibility with major IDEs like Keil, IAR Atmel Studio, and Crossworks for ARM.
• Preloaded flash programming algorithms for numerous MCUs, continuously updated by SEGGER.
• Fast execution of breakpoints and flash programming.

The EDU version is limited for use strictly in non-profit educational purposes and personal projects; commercial uses require the purchase of the full J-Link BASE debugger.

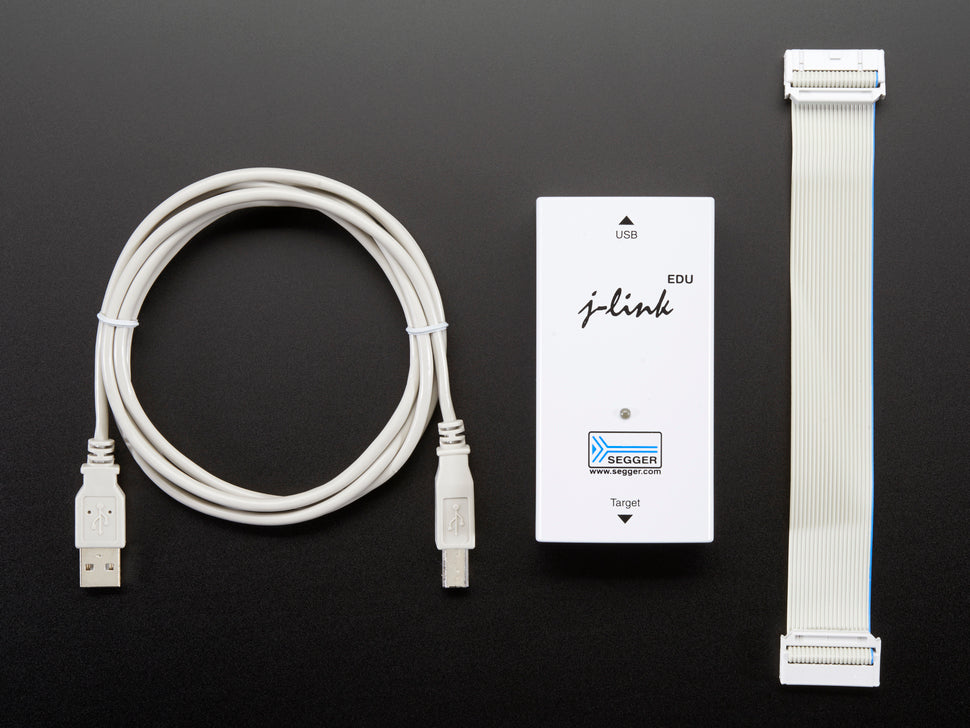

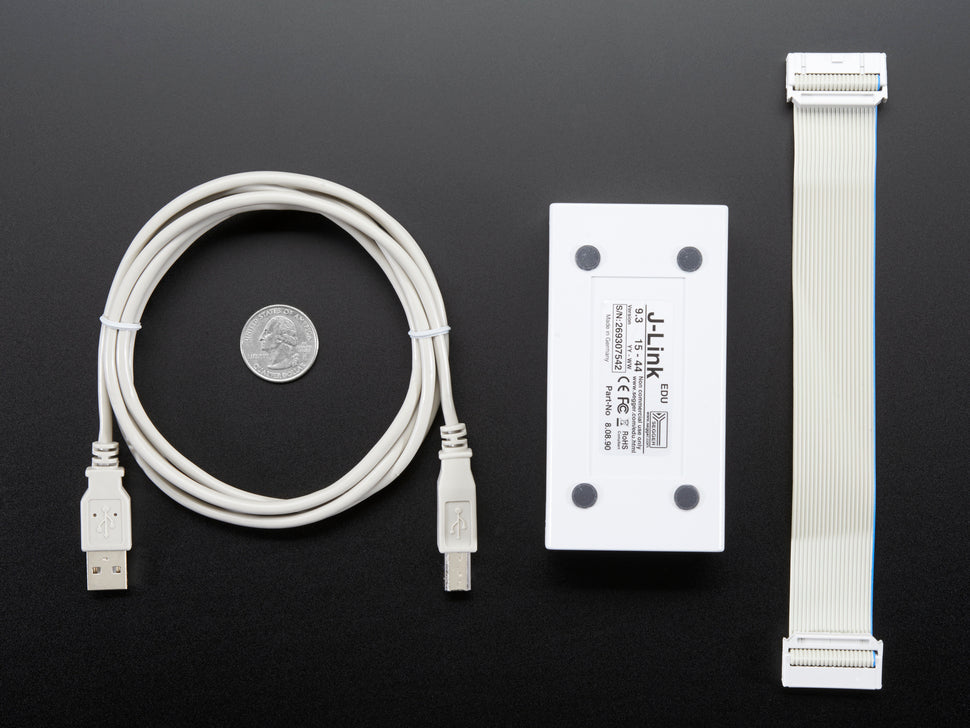

Included in the package:

• J-Link EDU with standard 20-pin 0.1" male connector
• 20-pin 0.1" target ribbon cable
• USB cable

Note: This product is no longer stocked by Adafruit. A recommended alternative is the SEGGER J-Link EDU Mini - JTAG/SWD Debugger.
