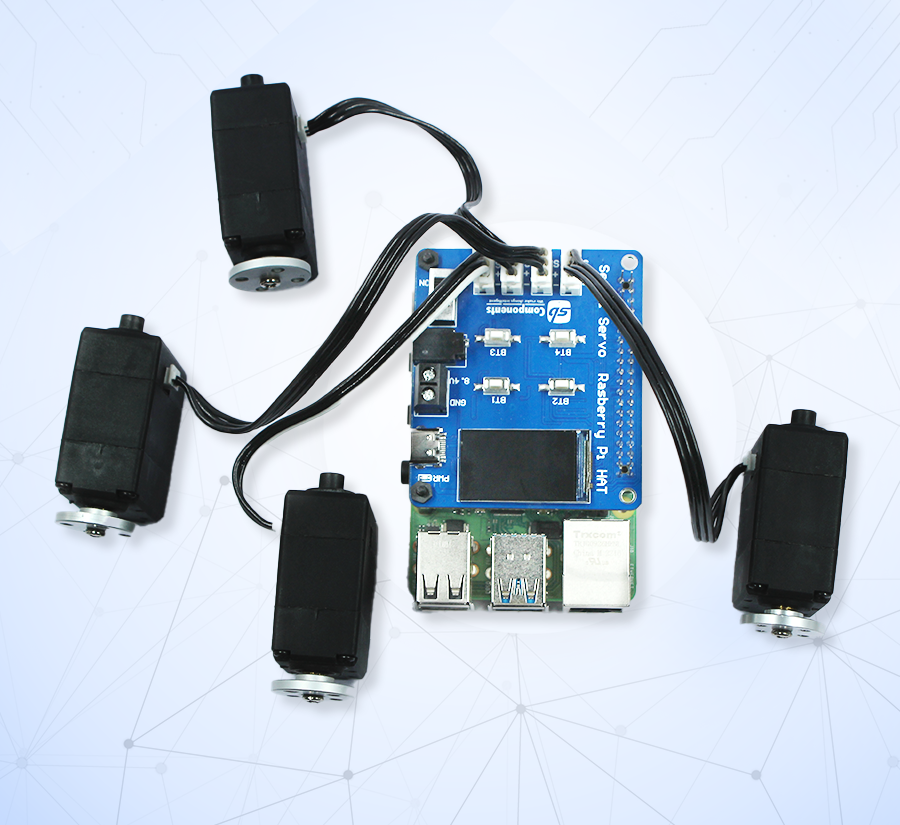

Features:

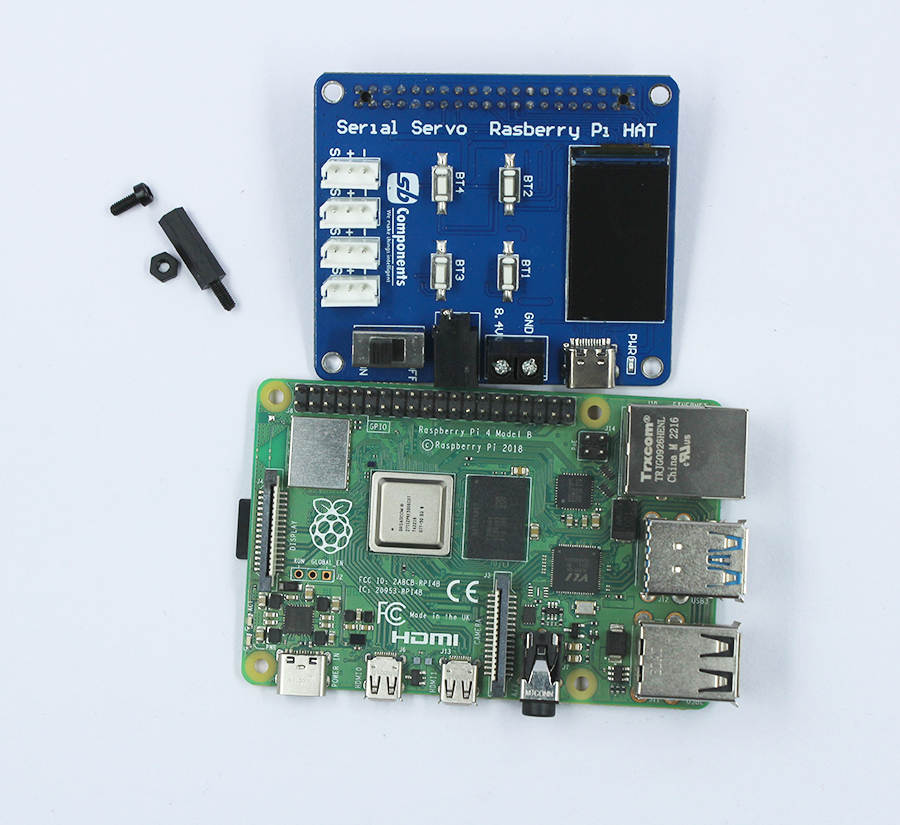

- Pi HAT with standard 40-pin Headers to connect various Raspberry Pi boards and compatible SBCs
- TFT 1.14” display for user interactions
- Four slots to connect Serial Servo Motors, and easily cascade servo to connect more number of motor*
- Four Programmable Buttons to add additional control features to your project
- Screw terminal and DC jack options to connect the 6-8.4V adapter with an onboard regulator
- Power status LED to indicate board power.
- Type C interface for direct use with PC/laptop using standalone GUI software
Servo Motor Key Features:
- Real-Time Position, Load, Temperature, Speed, and Voltage Feedback.
- Servo/Motor Mode Switchable
- High Precision And Large Torque
- ID Range 1~253
- 38400 bps ~ 1Mbps (1Mbps by default)
*NOTE: Avoid Connecting More Than 6 Servos At A Time; not Recommended Due To High Current Demand By Servos.

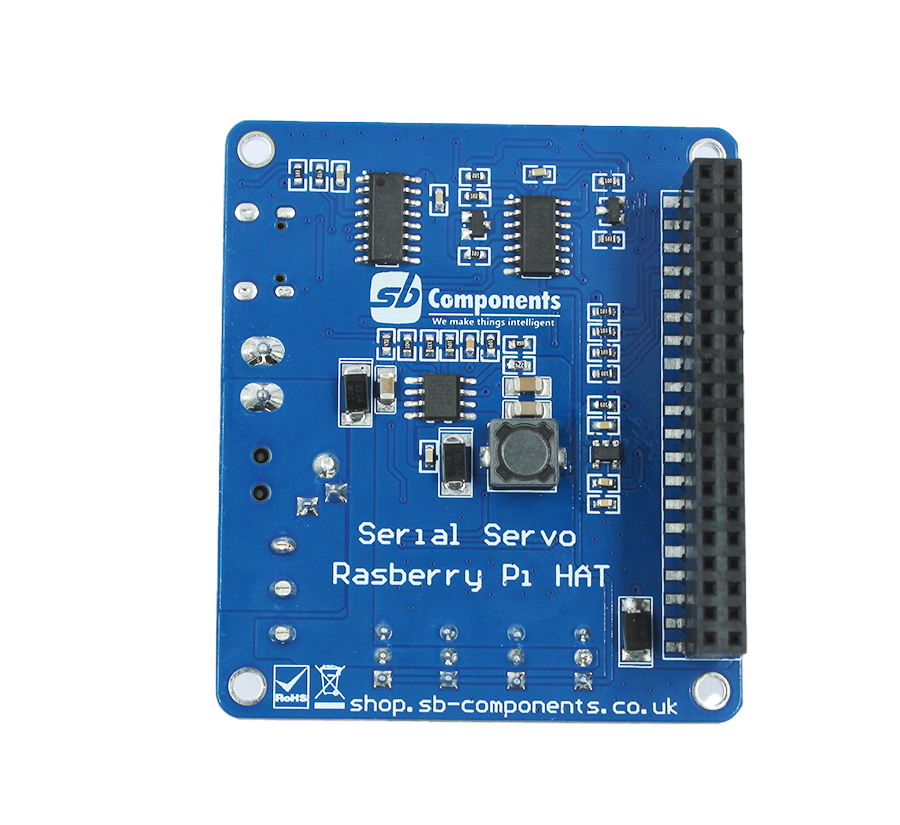

Specifications:
- Microcontroller: Raspberry Pi boards and compatible SBCs
- Board Supply Voltage: 5V
- Operating Pin Voltage: 3.3V
- Operating Servo voltage: 6~8.4V
- Display Size: 1.14”
- Display Resolution: 240×320 pixels
- Display Driver: ST7789
- Display Appearance: RGB, 65K/262K
- Temperature Range: -20°C ~ +70°C
- Compatible Servo Motors =>
SB-SS023 – For Lightweight Projects
SB-SS15 – For Heavier Applications
Pinout:

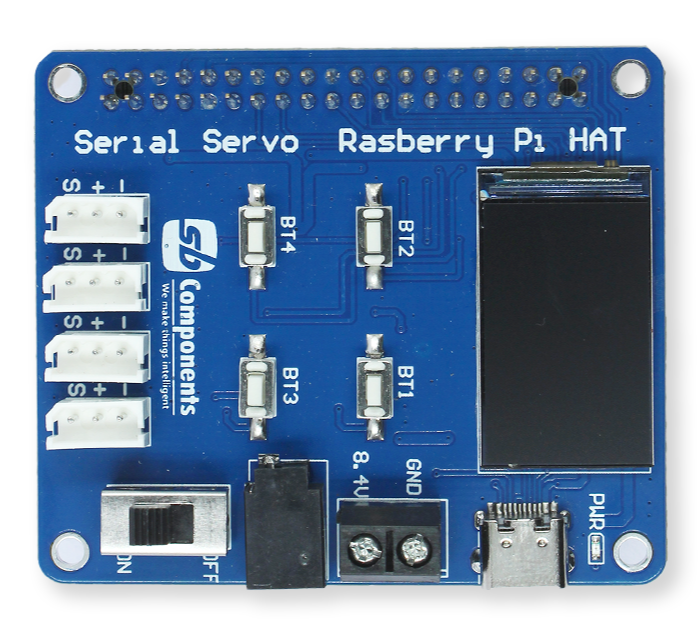

- (1), (3), (9), (11) Programmable Buttons
- (2) Serial Servo connector
- (4) ON/OFF Motor Supply
- (5) DC Jack Input (6~8.4V DC)
- (6) Screw Terminal input (6~8.4V)
- (7) Type C
- (8) Power Status LED
- (10) TFT 1.14” Display
- (12) Standard 40-pin Raspberry Pi Header
Dimension:
Applications:
- Robotic Arm Control
- Camera Gimbal Stabilization
- Automated Surveillance Systems
- 3D Printer Axis Control
- Automated Window Blinds
- CNC Machine Positioning
- Animatronics and Puppetry
- Laboratory Automation
- Remote-Controlled Vehicles
- Industrial Automation
Resources:
Software Github: Getting Started Guide and Example Codes.
Hardware Github: Hardware Design files like Schematic, 3D File, PCB, Step File, etc.
