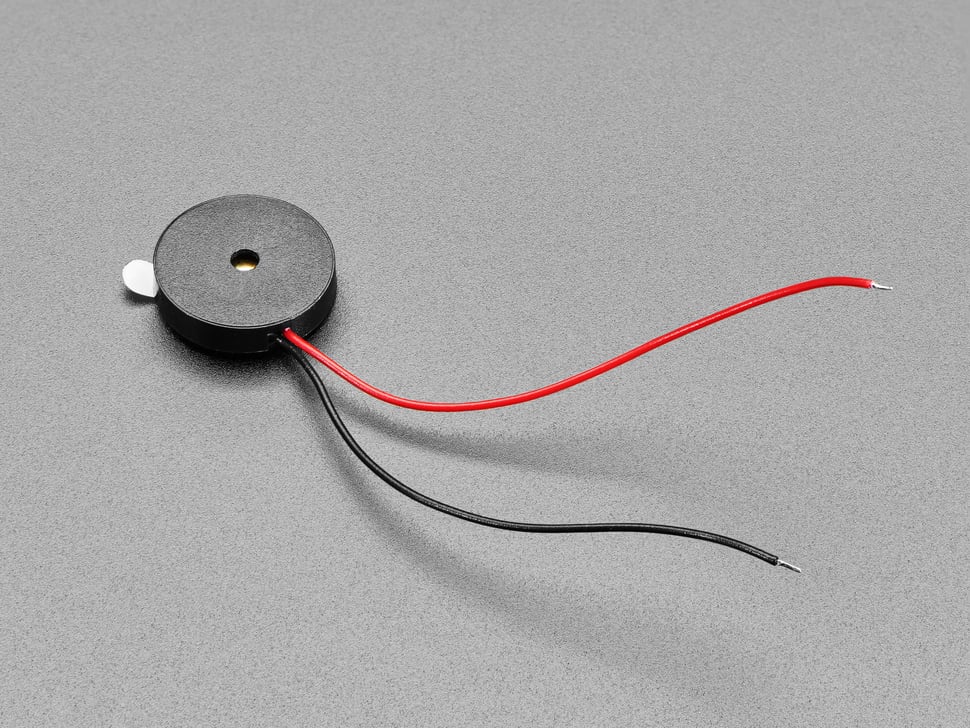

Small Enclosed Piezo with Wires

This small 14mm diameter piezo element is enclosed for easy attachment. Piezo elements convert vibration to voltage or voltage to vibration, making them suitable as buzzers for beeps, tones, and alerts as well as sensors to detect fast movements like knocks. It can also be used as a drum or crash sensor under a drum pad.

It is rated for up to 9Vpp use and can be driven with 3V square waves for ample sound volume. Thin wires are attached and can be plugged into solderless breadboards, though they may be too thin for direct Arduino socket header connections.

For usage guidance, see the Arduino Tone tutorial and the Knock tutorial.

• Resonant Frequency: 8kHz
• Max Rated Current: 3.0mA
• Rated Voltage: 9V
• Operating Temperature: -20ºC to 70ºC
• Maximum Input Voltage: 40V

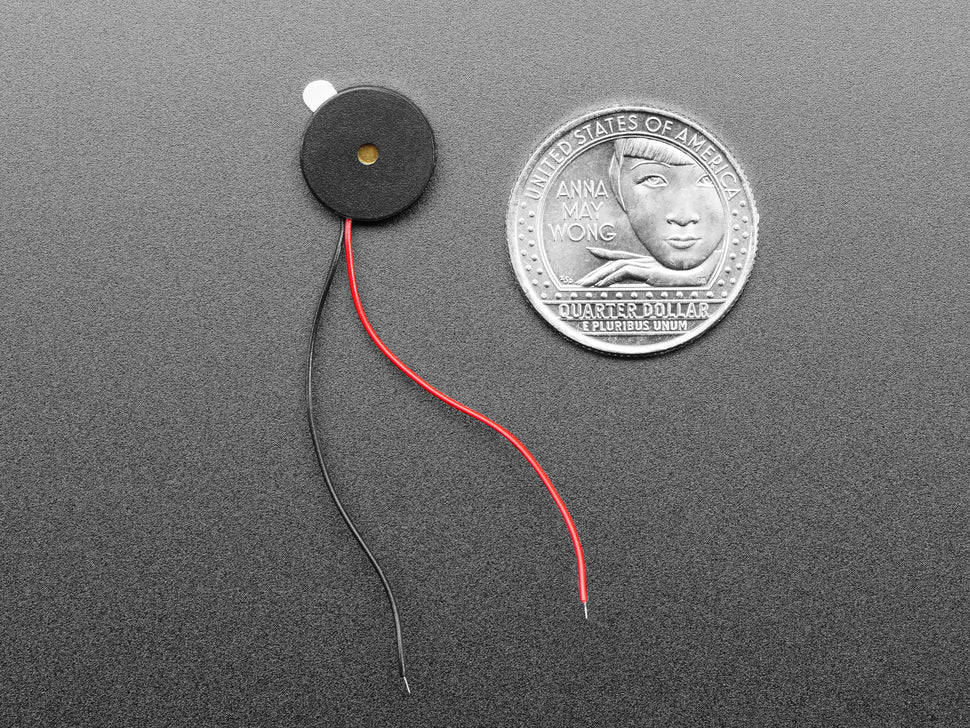

• External Diameter: 13mm (0.51")
• Center Circumference: 2mm (0.07")
• Thickness: 3mm (0.1")
• Weight: 0.1g

Note: Dimensions slightly changed as of January 24, 2023. Previous version dimensions and datasheets are available.
