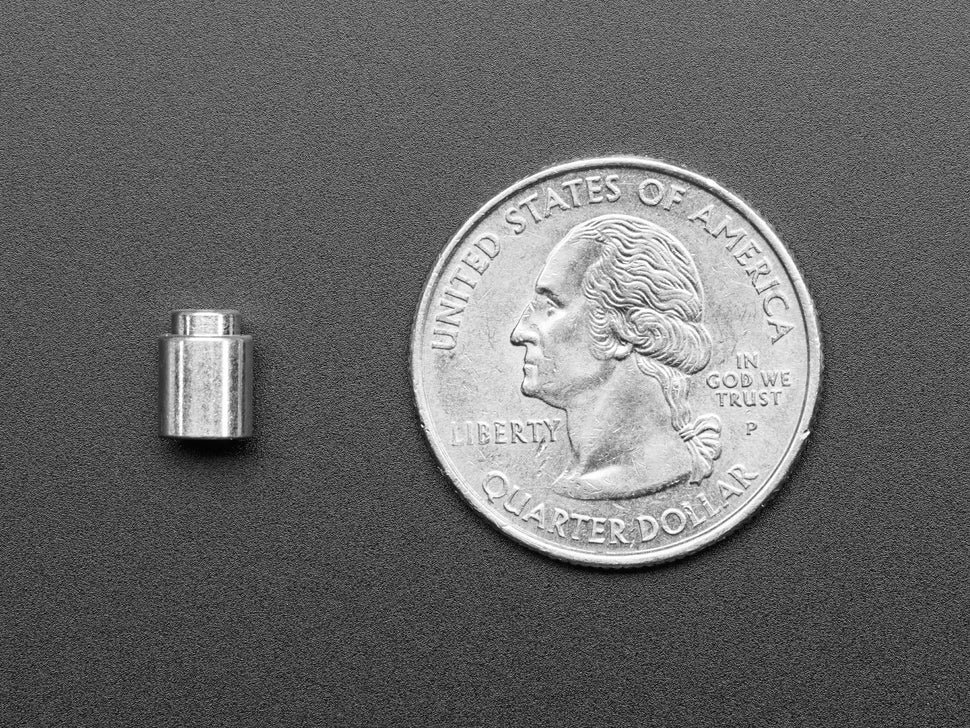

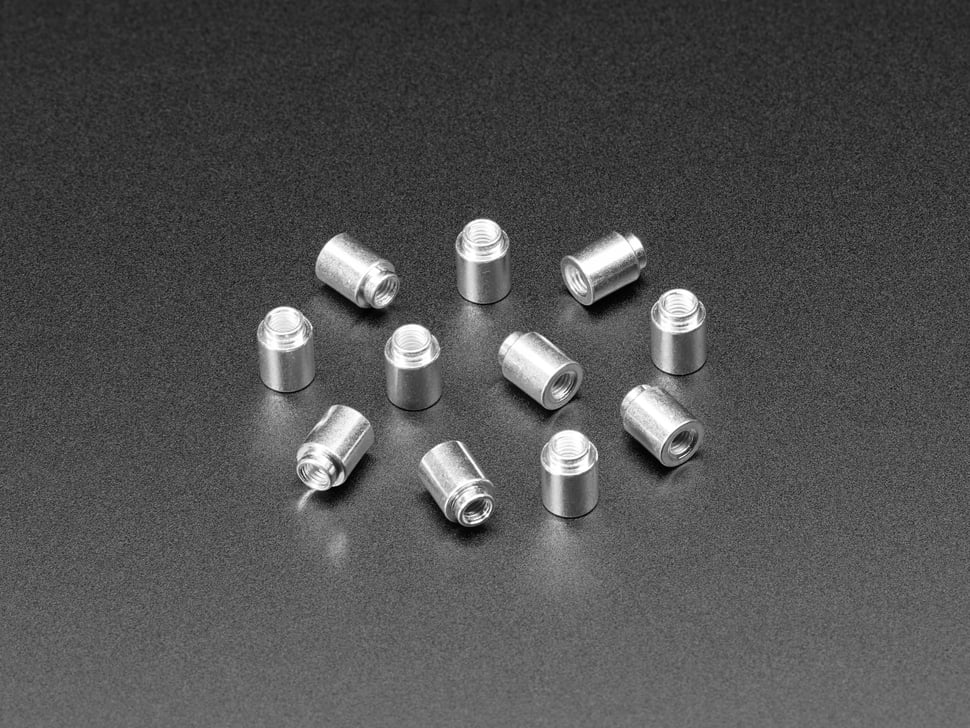

SMT / Solderable Standoff Nuts - M3 x 6mm - 10 pack

These brilliant solder-able standoffs will make your mechanical PCB mounting problems go away. They're super simple - round M3 standoffs that are coated with tin so you can solder them in an oven or with a very powerful soldering iron & some patience. All you have to do is put a 4.25mm hole with 6.2mm solder ring on your PCB, then this component's snout goes into the PCB, and solder it in place. The part is incredibly strong and saves you a hex nut or standoff. You don't even need a plated through hole (although it's recommended since they're stronger).

• Fully threaded and works with any M3 machine screw

Need slightly shorter M3 standoffs? We also have a 10-pack of 3mm height!

Technical Details

• 5.56mm diameter x 7.5mm total height (6mm above PCB, 1.5mm seated length)

Diagram
