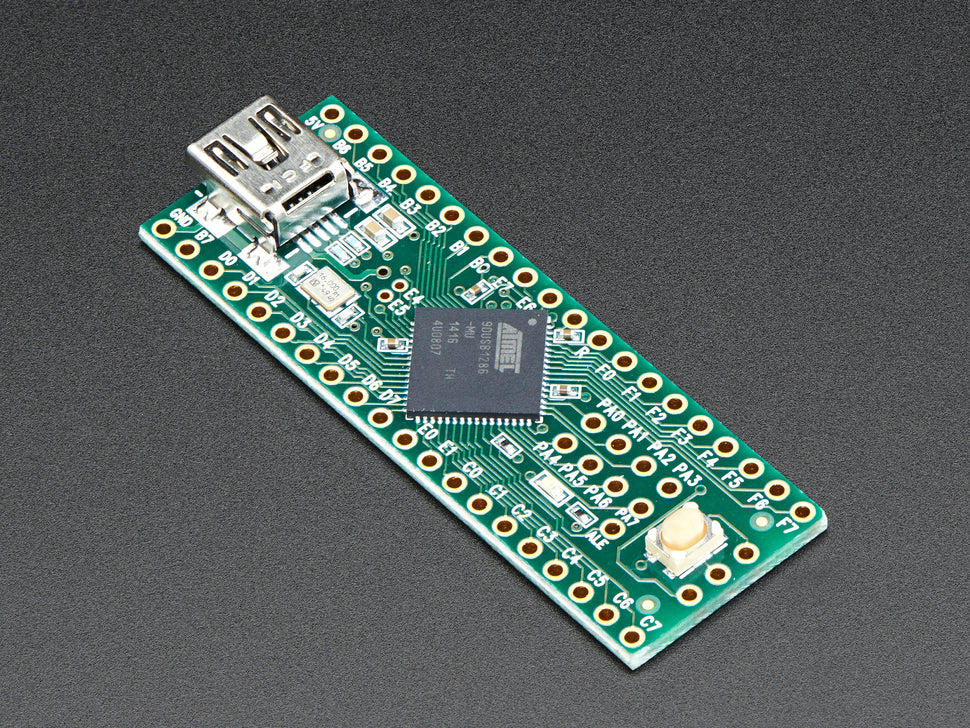

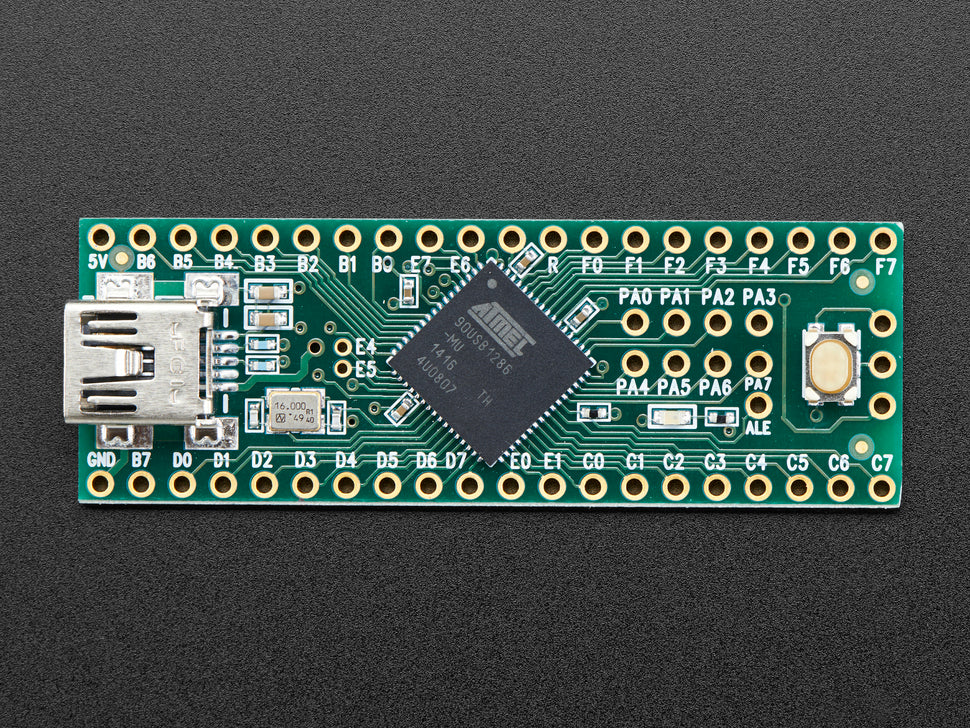

Teensy++ AT90USB1286 USB Development Board with Header

The Teensy++ is a complete USB-based microcontroller development system housed in a compact footprint. Featuring an AVR processor running at 16 MHz, this board requires no special programmer—just a standard Mini-B USB cable and a PC or Macintosh with USB port. This updated 2.0 version offers abundant Flash, RAM, and pins, making it ideal for a wide variety of projects.

• USB can be configured as any type of device
• 16 MHz AVR processor (AT90USB1286) with built-in bootloader
• Single pushbutton programming
• Compatible with Teensy Loader application and free development tools
• Works on Mac OS X, Linux, and Windows
• Compact size for versatile use
• Comes with header pins for easy breadboard integration

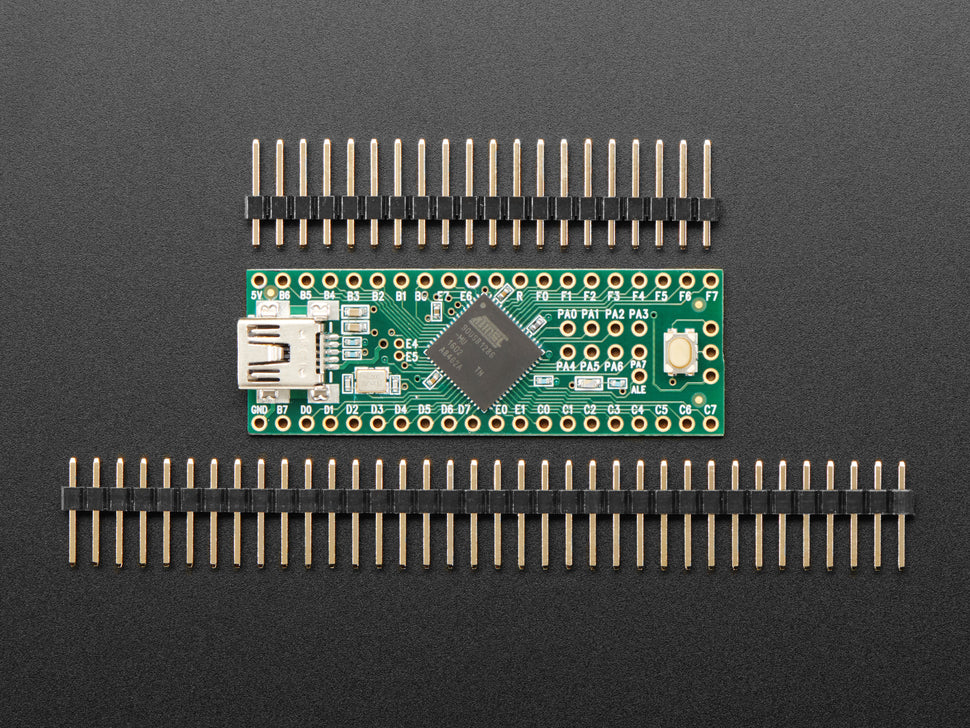

The package includes the assembled Teensy++ board and header pins for breadboarding. Recommended software development uses AVR-gcc with LUFA library or Teensyduino. Explore resources at PJRC for full support.

Technical Specifications:

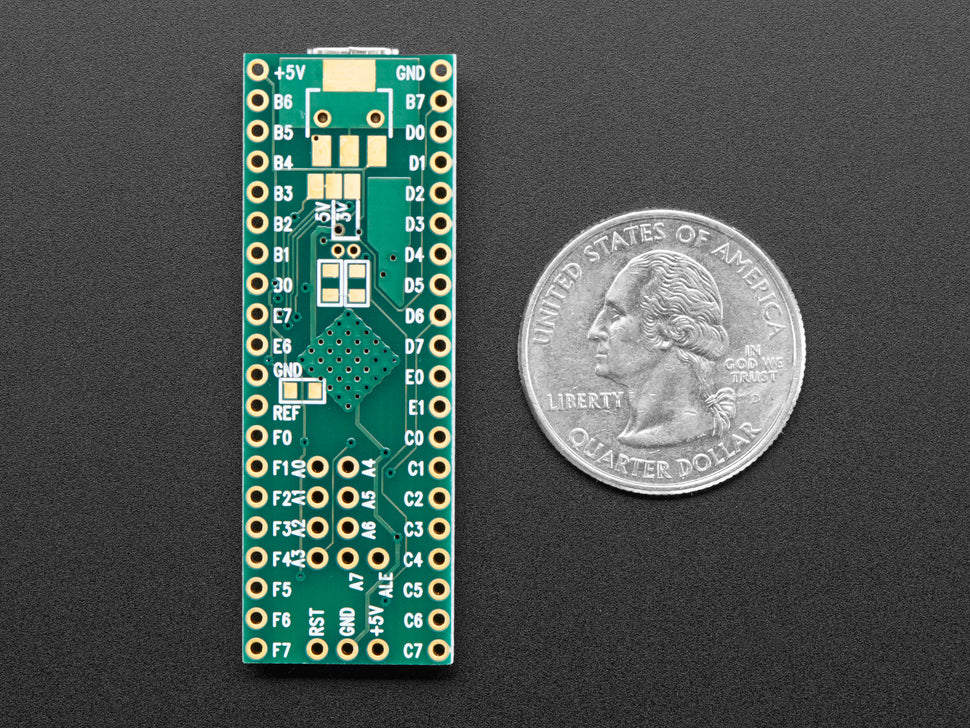

• Dimensions: 2" x 0.7"
• Flash Memory: 130048 bytes
• RAM: 8192 bytes
• EEPROM: 4096 bytes
• I/O Pins: 46
• ADC: 8 analog inputs (multiplexed to one ADC)
• PWM Outputs: 9
• Interfaces: UART, I2C, SPI hardware
