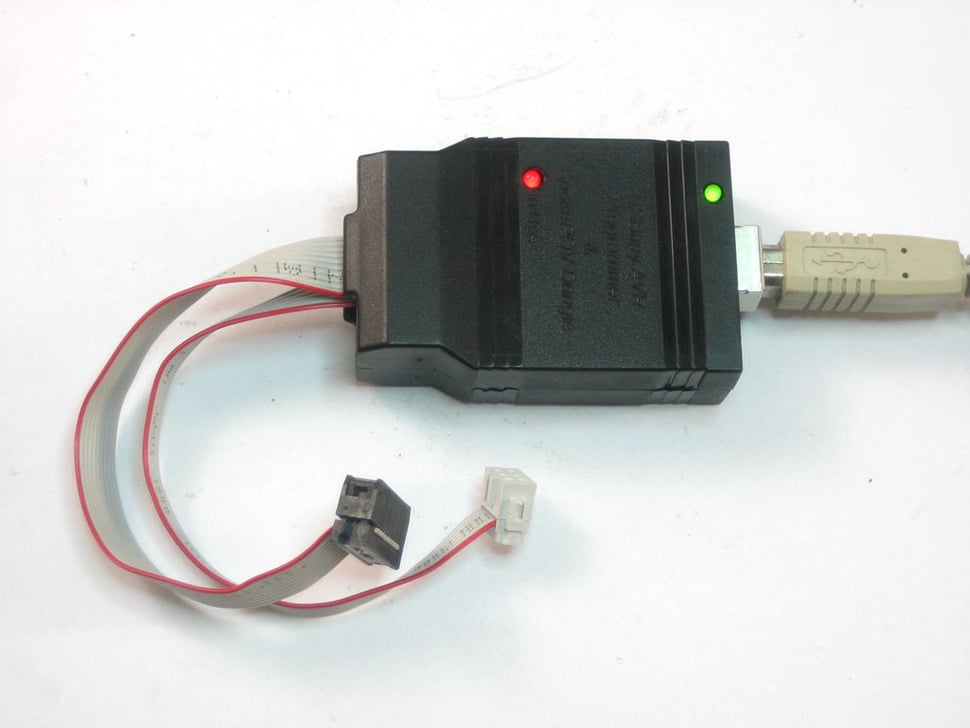

USBtinyISP AVR Programmer Kit (USB SpokePOV Dongle) - v2.0

USBtinyISP is a simple open-source USB AVR programmer and SPI interface that is low cost and easy to assemble. It works great with avrdude and supports both 6 and 10 pin standard ISP cables. Compatible with AVRStudio and tested on Windows XP and MacOS X. Please check the Adafruit forums for compatibility with Vista/Windows 7.

This programmer allows programming of any in-circuit 'serial' programmable AVR chip supported by avrdude, but does not support JTAG or High Voltage programming. It cannot program chips with more than 64K of flash, such as the Atmega1280/1281 or Atmega2560/2561.

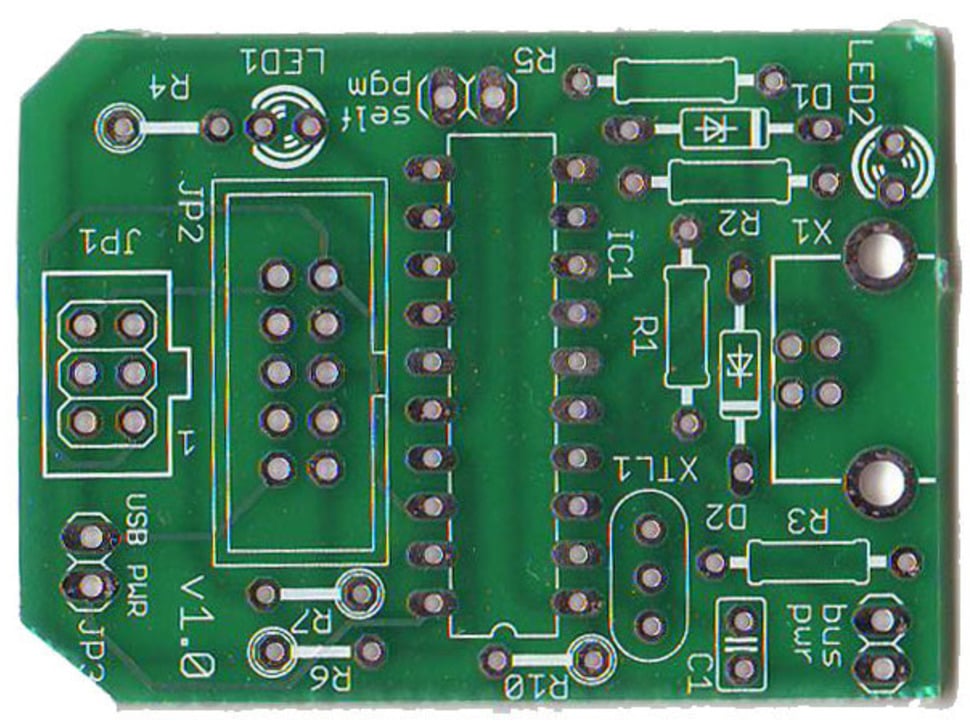

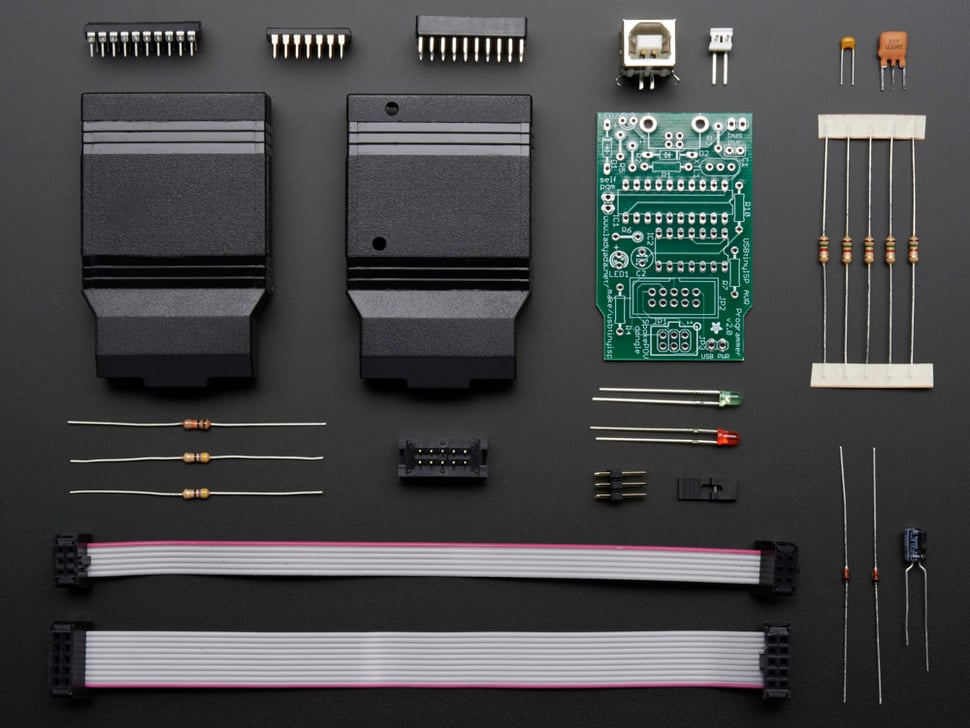

The kit includes all necessary parts including microcontroller, PCB, and enclosure. A standard USB A to B cable is not included.

This device also functions as a USB SpokePOV dongle.

• Open-source USB AVR programmer and SPI interface
• Supports 6 and 10 pin ISP cables
• Compatible with avrdude and AVRStudio
• Kit includes microcontroller, PCB, enclosure; USB cable not included
• Functions as USB SpokePOV dongle

Dimensions: 67mm x 42mm x 24mm (2.5in x 1.7in x 0.9in)

Weight: 43.5g / 1.5oz

Includes 6-inch 6 & 10 pin ISP cables

For more information and downloads, visit the USBtinyISP page.
