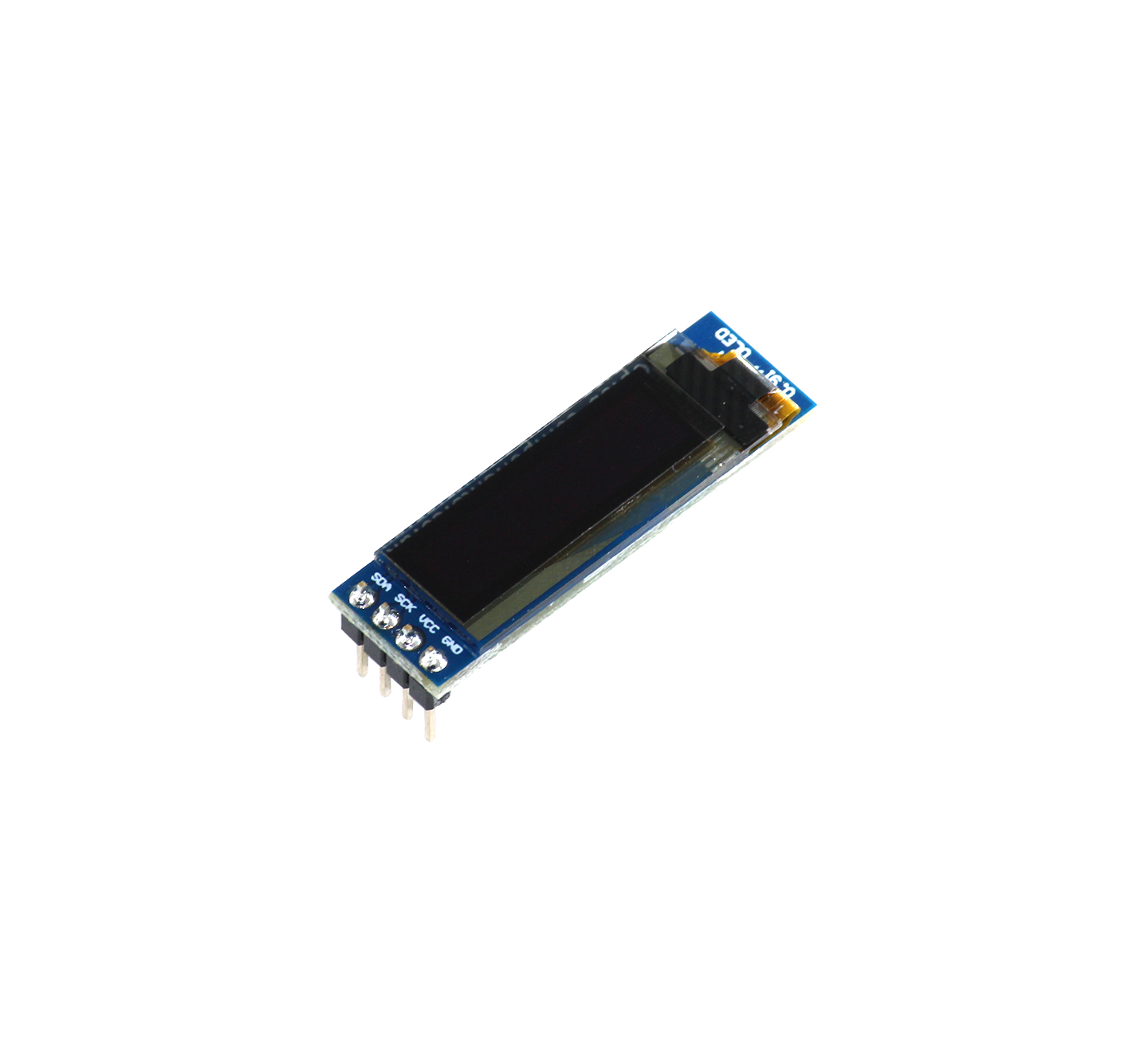

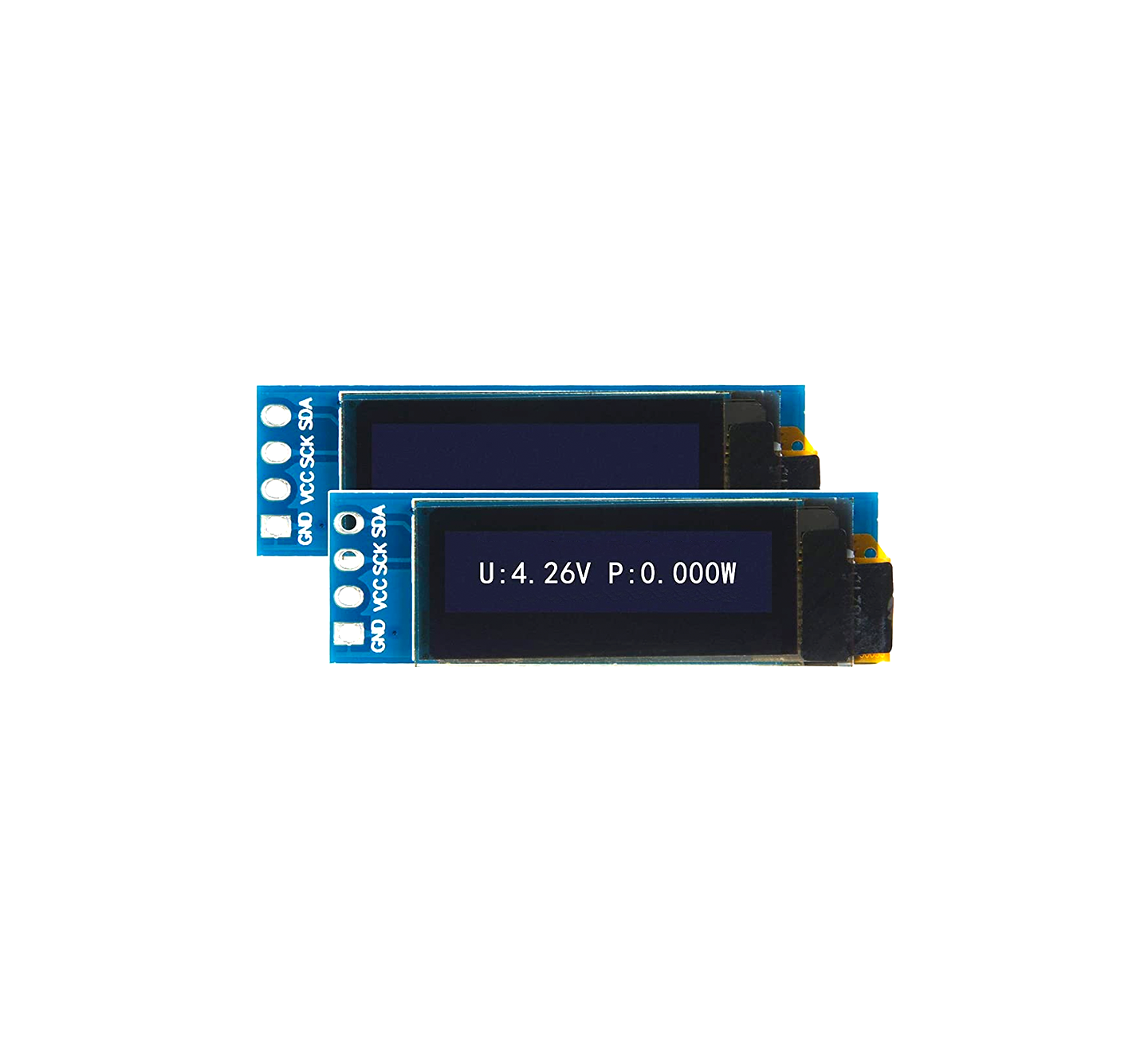

0.91” OLED Breakout

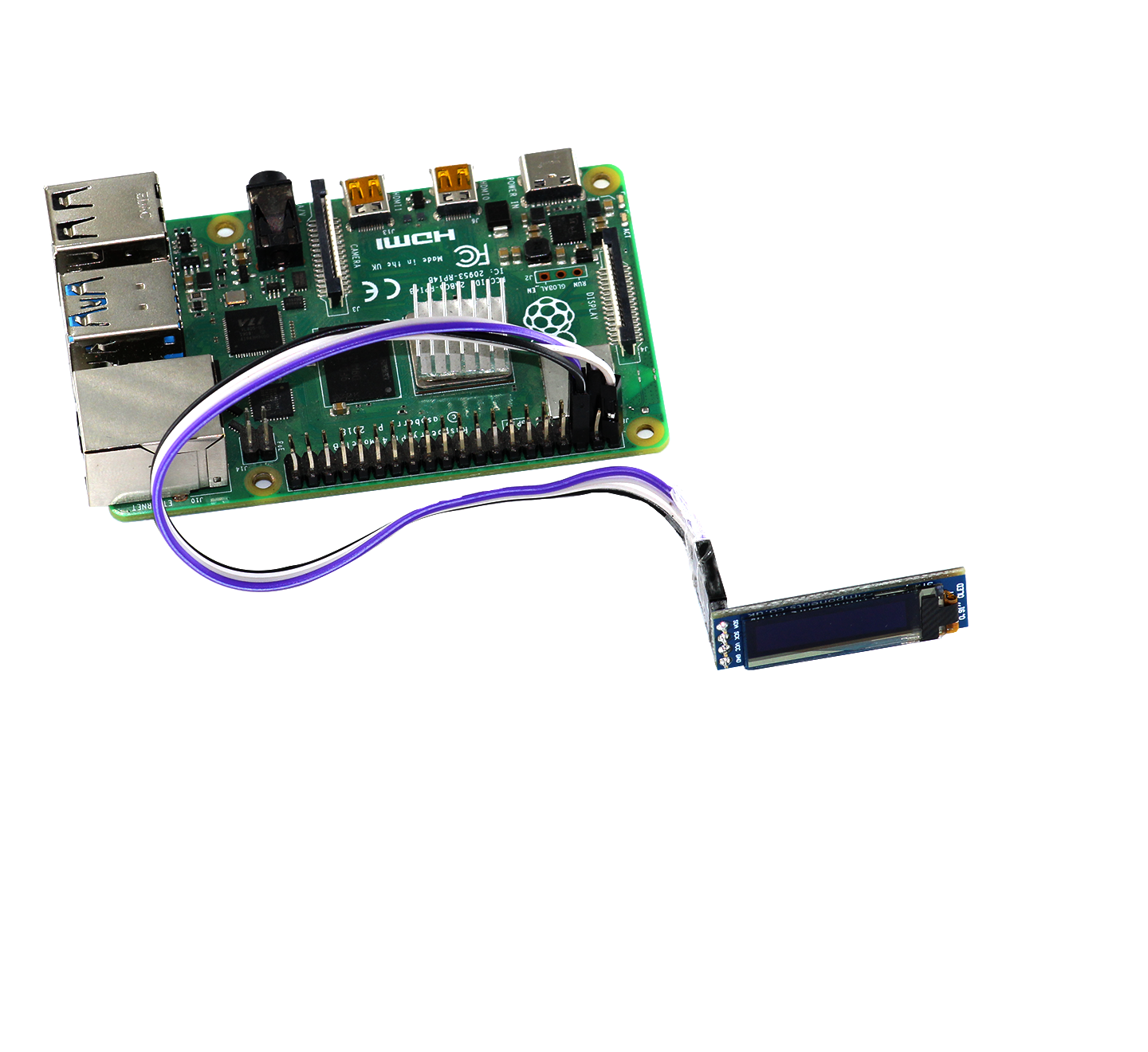

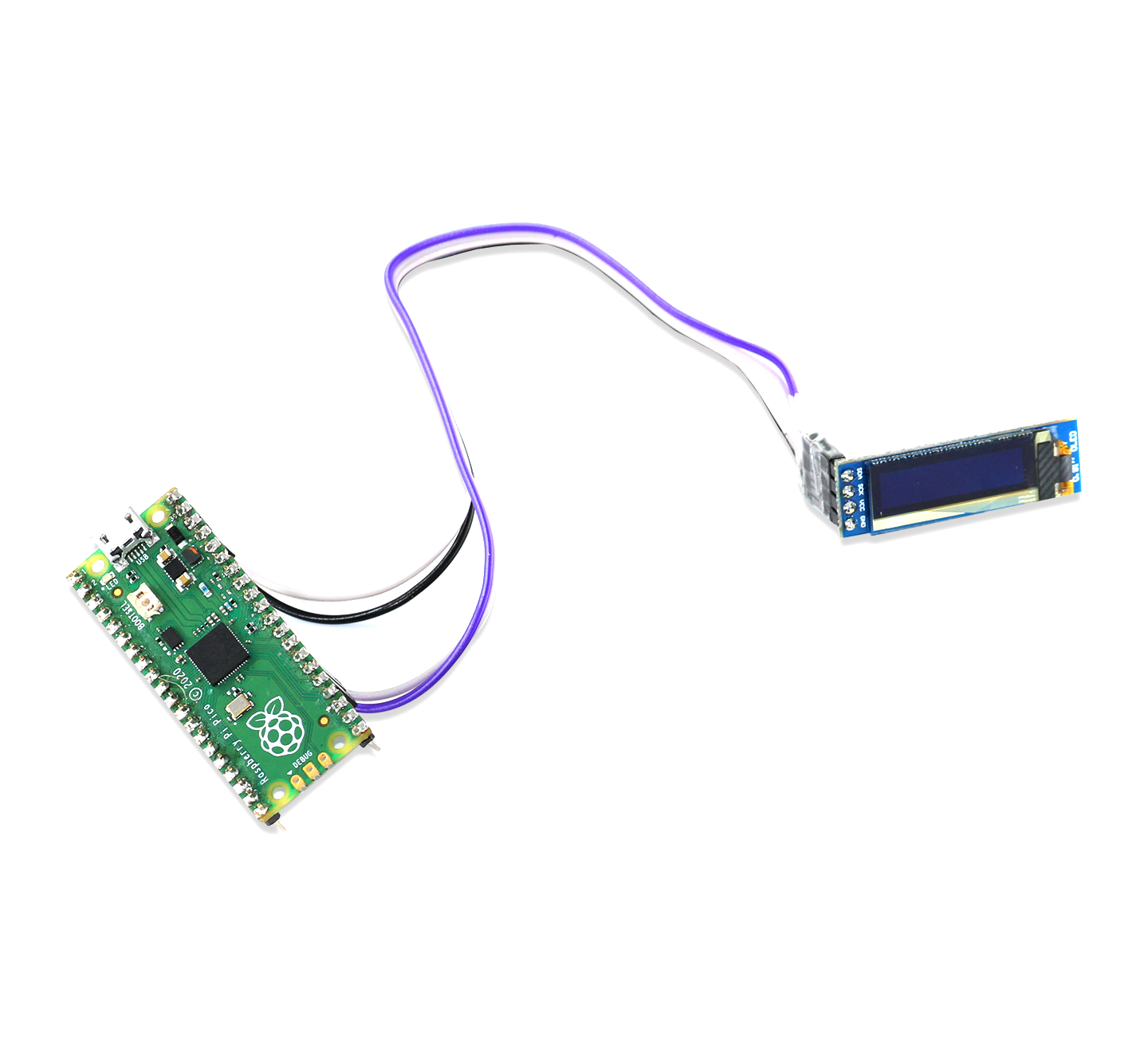

The 0.91 OLED breakout is a general-purpose OLED display breakout. The OLED display is 128x32 pixels. The breakout can be powered with 5V or 3.3V, making it versatile with any controller or processor board like Arduino, Raspberry Pi, Pico, STM32, Rock Pi, etc.

The 0.91” OLED is based on an SSD1306 display driver and we have created multiple examples to play with it. Using the I2C interface you can program it with any of your boards. It comes with 4 Pin male header pins for the soldering.

Features :

• 0.91” OLED Display
• 128x32 Pixels
• 5v/3v3 Compatible
• I2C Interface

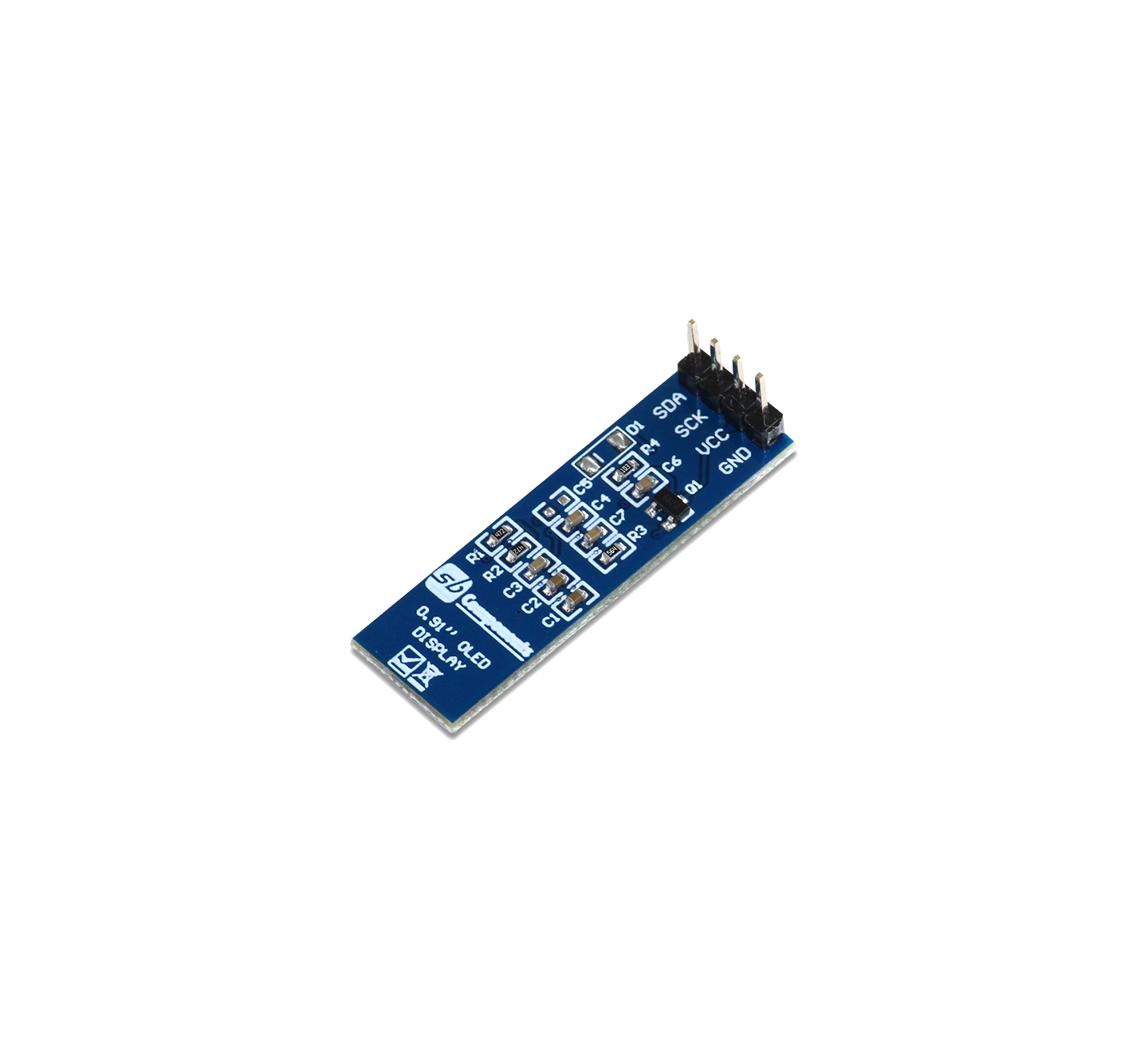

Pinouts:

1. Display
2. Communication Pin

• GND - Ground
• VCC - Power with 3v3 and 5v compatible
• SDA - I2C Data
• SCK - I2C Clock
