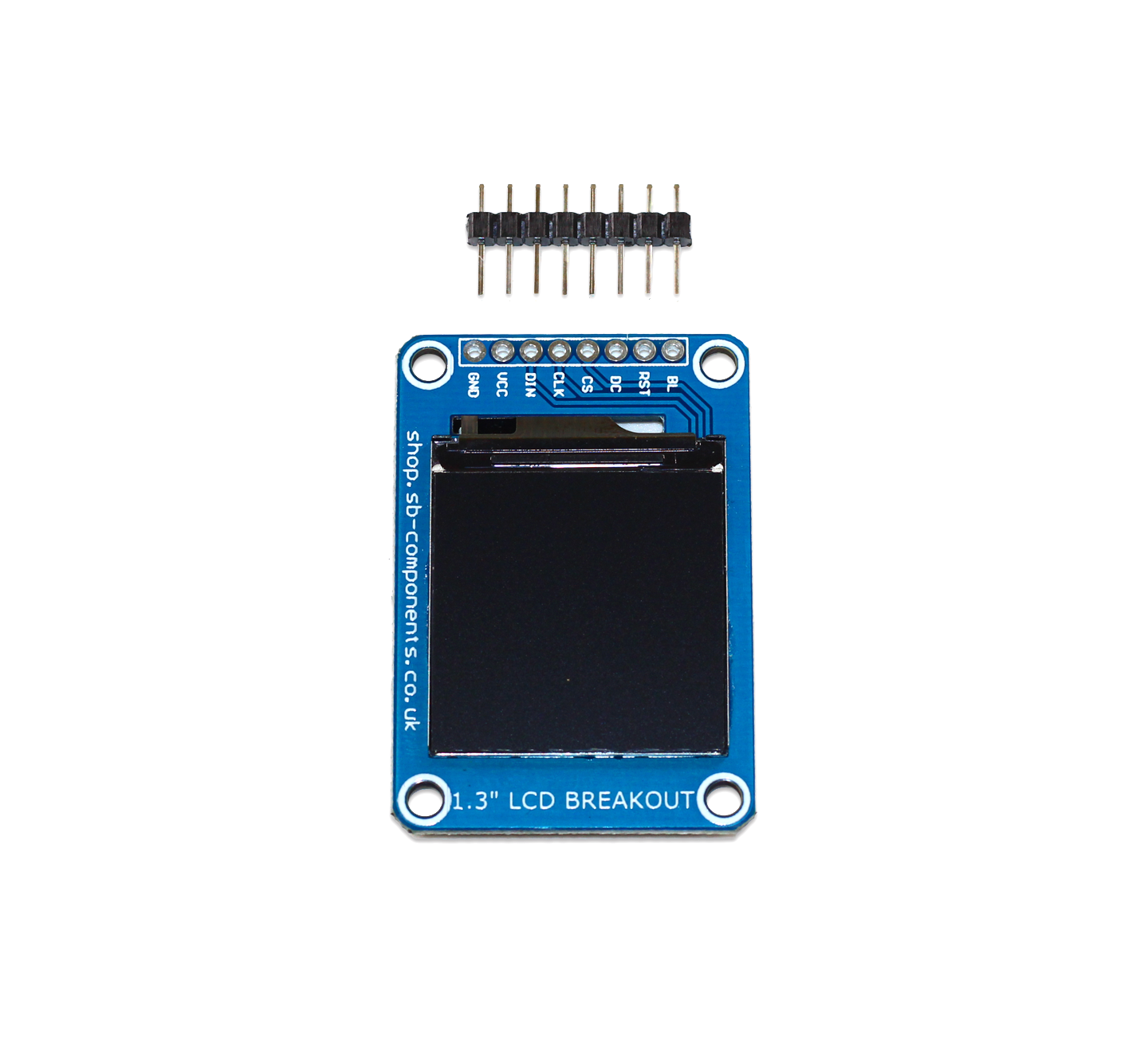

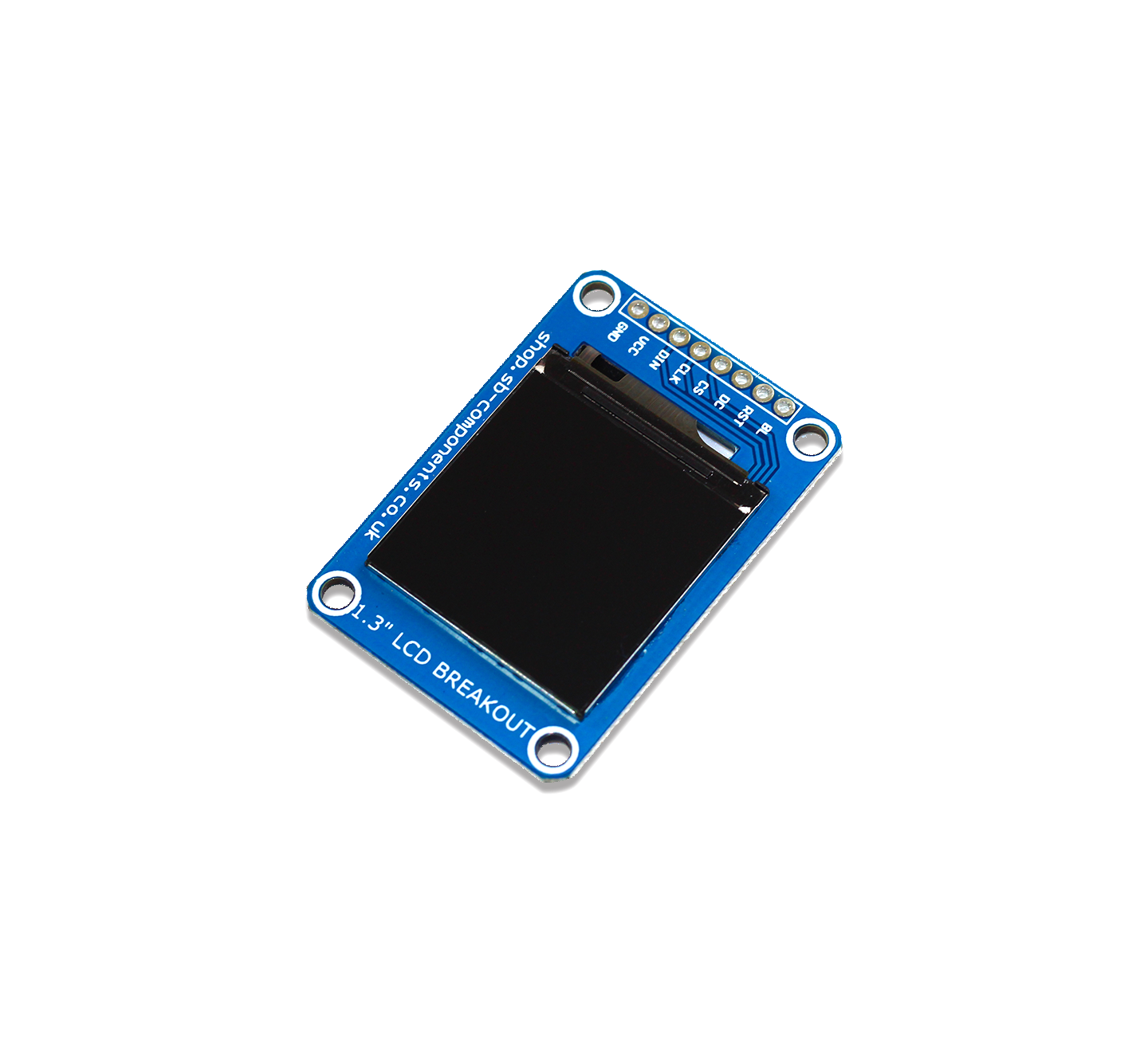

1.3" LCD Breakout

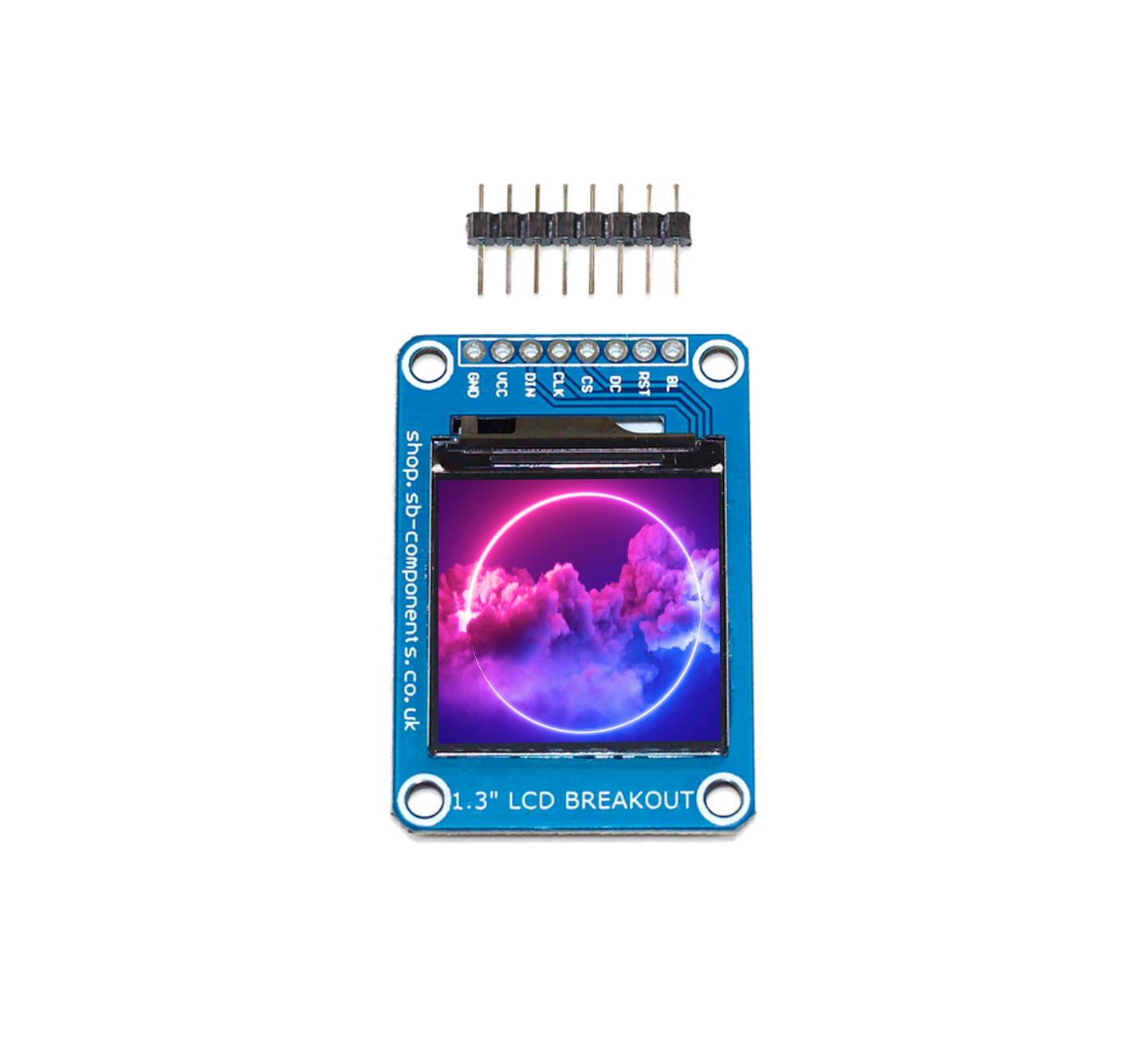

The 1.3” LCD breakout is colorful and easy to experiment with graphics. The display is of 240x240 resolution, IPS display, and 65k RGB colors to create a colorful user interface for your project. The breakout can be powered with 5V or 3.3V, making it versatile with any controller or processor board like Arduino, Raspberry Pi, Pico, STM32, Rock Pi, etc.

1.3” LCD is based on the ST7789 display driver and we have created multiple examples to play with it. Using the SPI interface you can program it with any of your boards. It comes with 8 Pin male header pins for the soldering.

Features:

• 1.3” LCD Display
• 240x240 Resolution

• IPS Display
• 65K RGB Colors
• 5v/3v3 Compatible
• SPI Interface
• ST7789 Display Driver

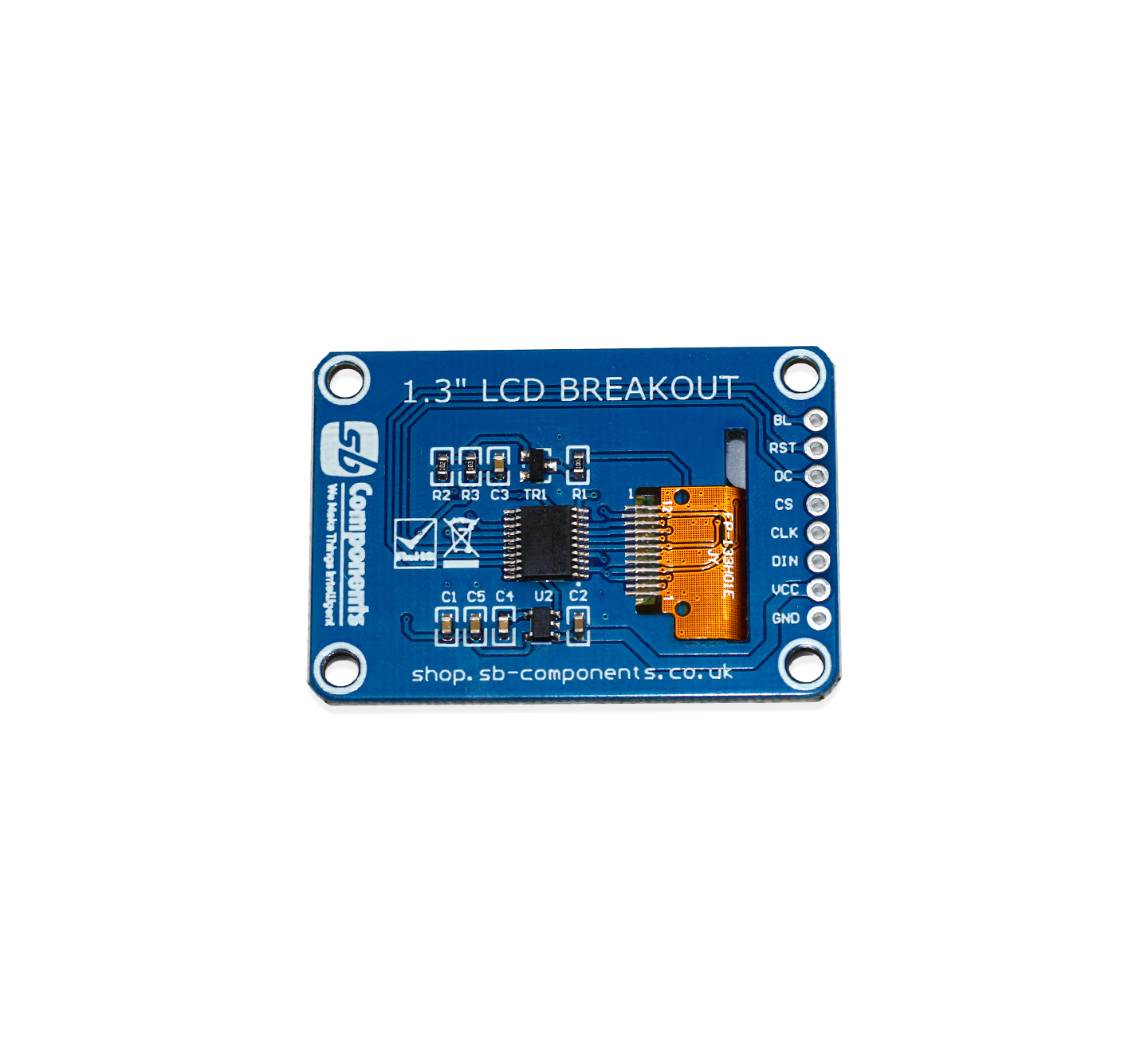

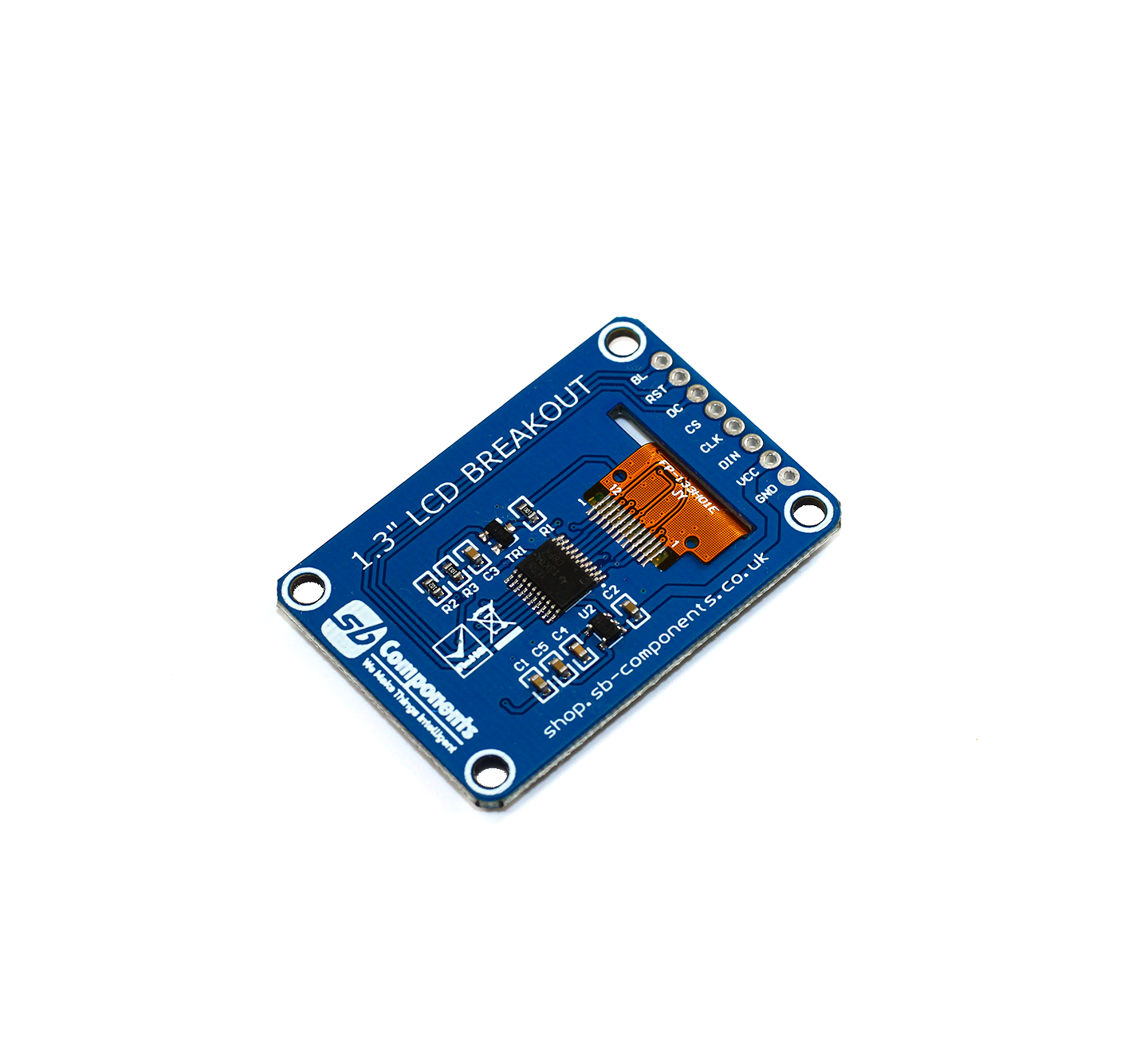

Pinouts:

1. Display
2. Level Shifter
3. Communication Pin

• BL - LCD Backlight
• RST - Reset, Low Active
• DC - Data/Command Selection (High - Data and Low - Command)
• CS - Chip Select (Low Active)
• CLK - SPI Clock Input
• DIN - SPI Data Input
• VCC - Power with 3V3 and 5V compatible
• GND - Ground

Resources:

• Software GitHub - This Repo contains Library and Example codes.
• Hardware GitHub - This Repo contains Schematic, Datasheet, etc.
