8 Bit Level Shifter

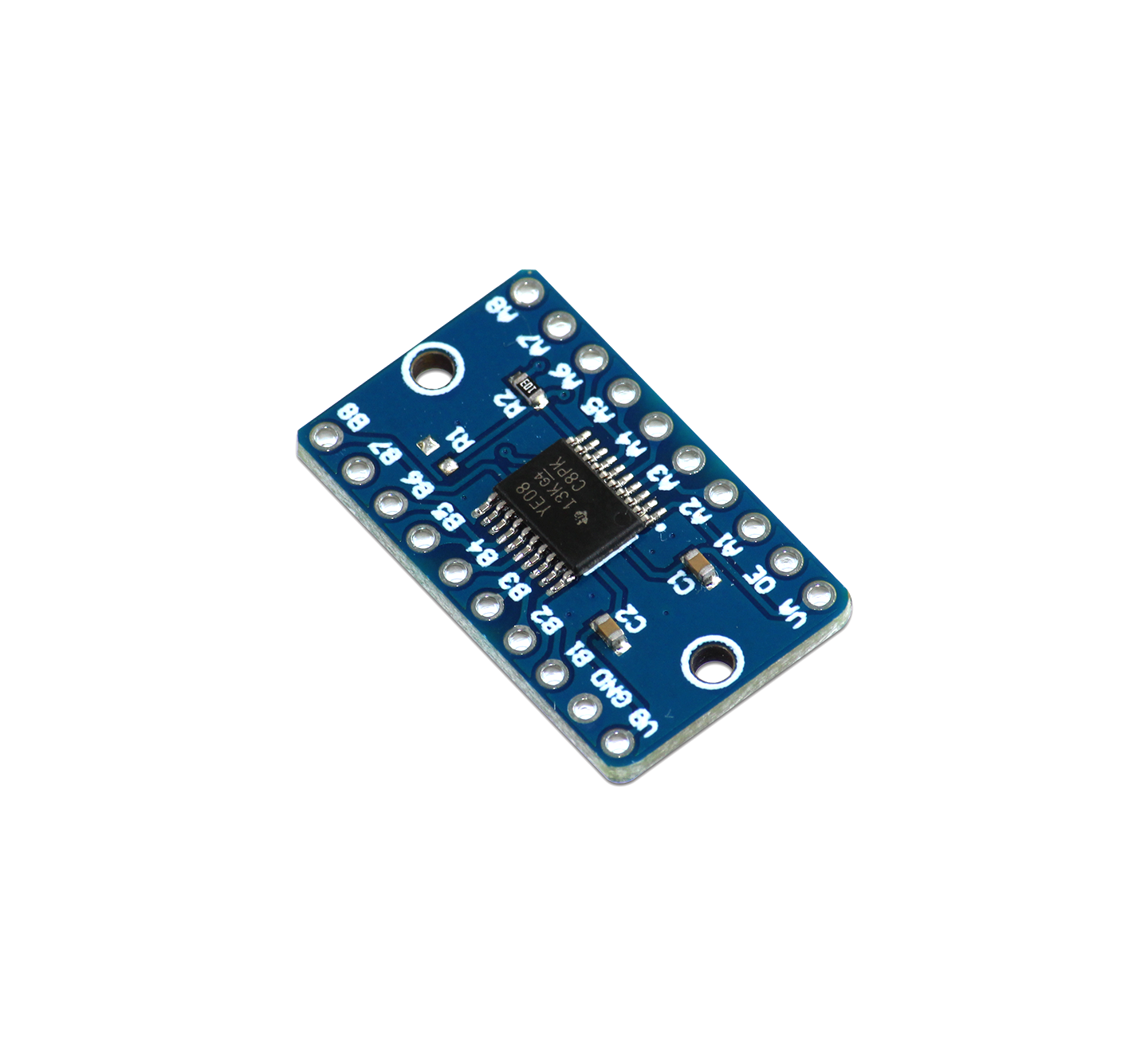

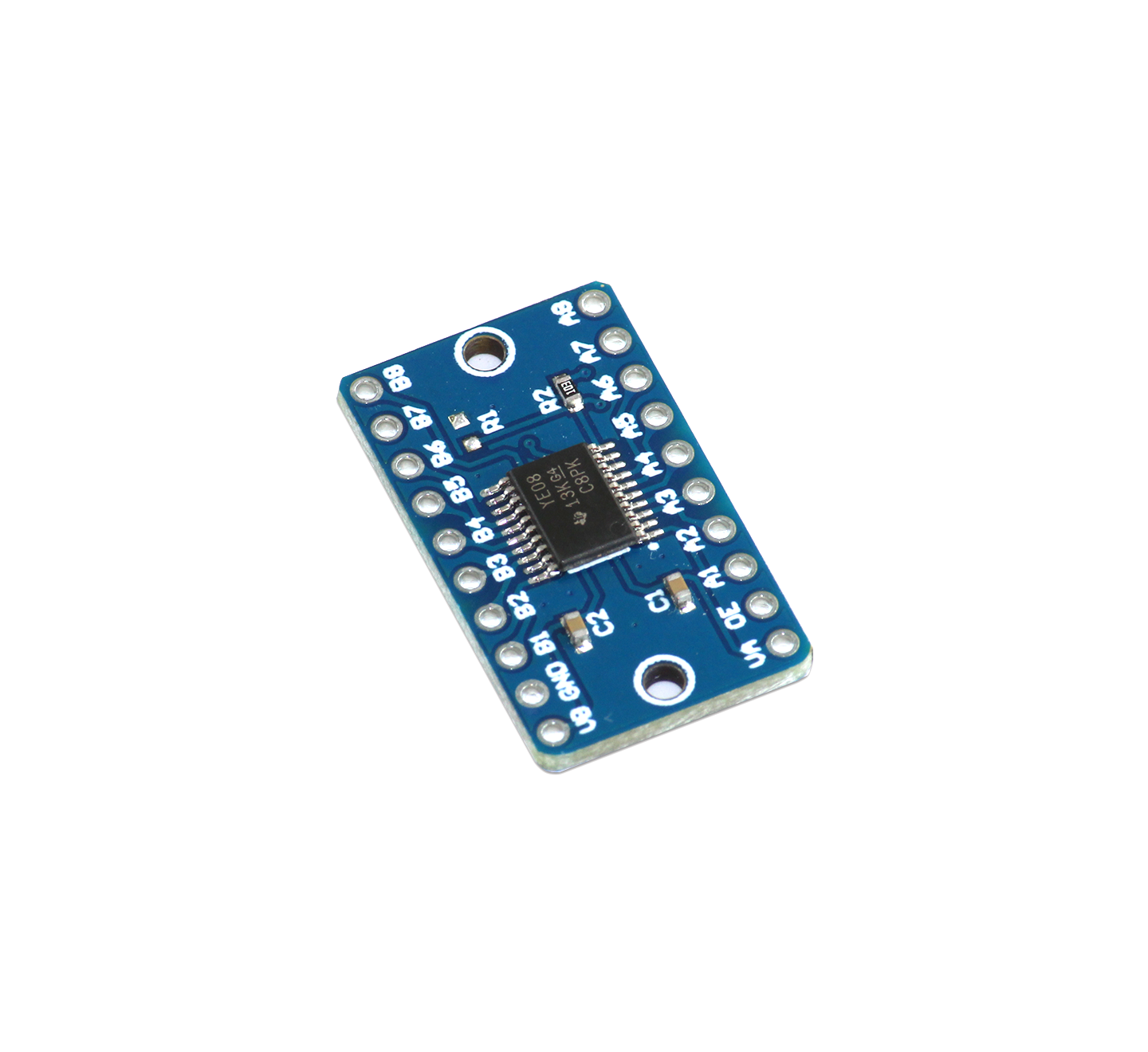

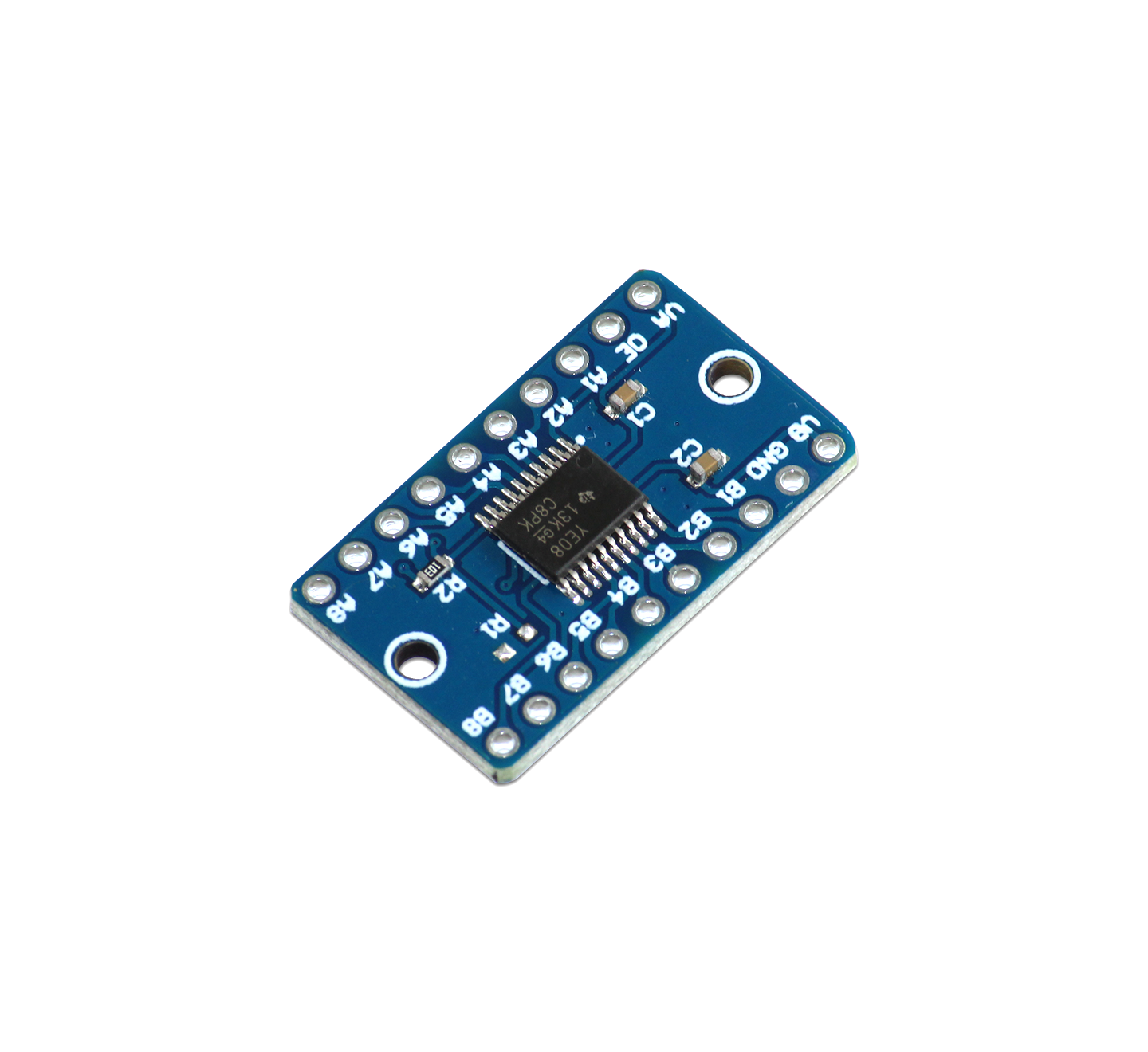

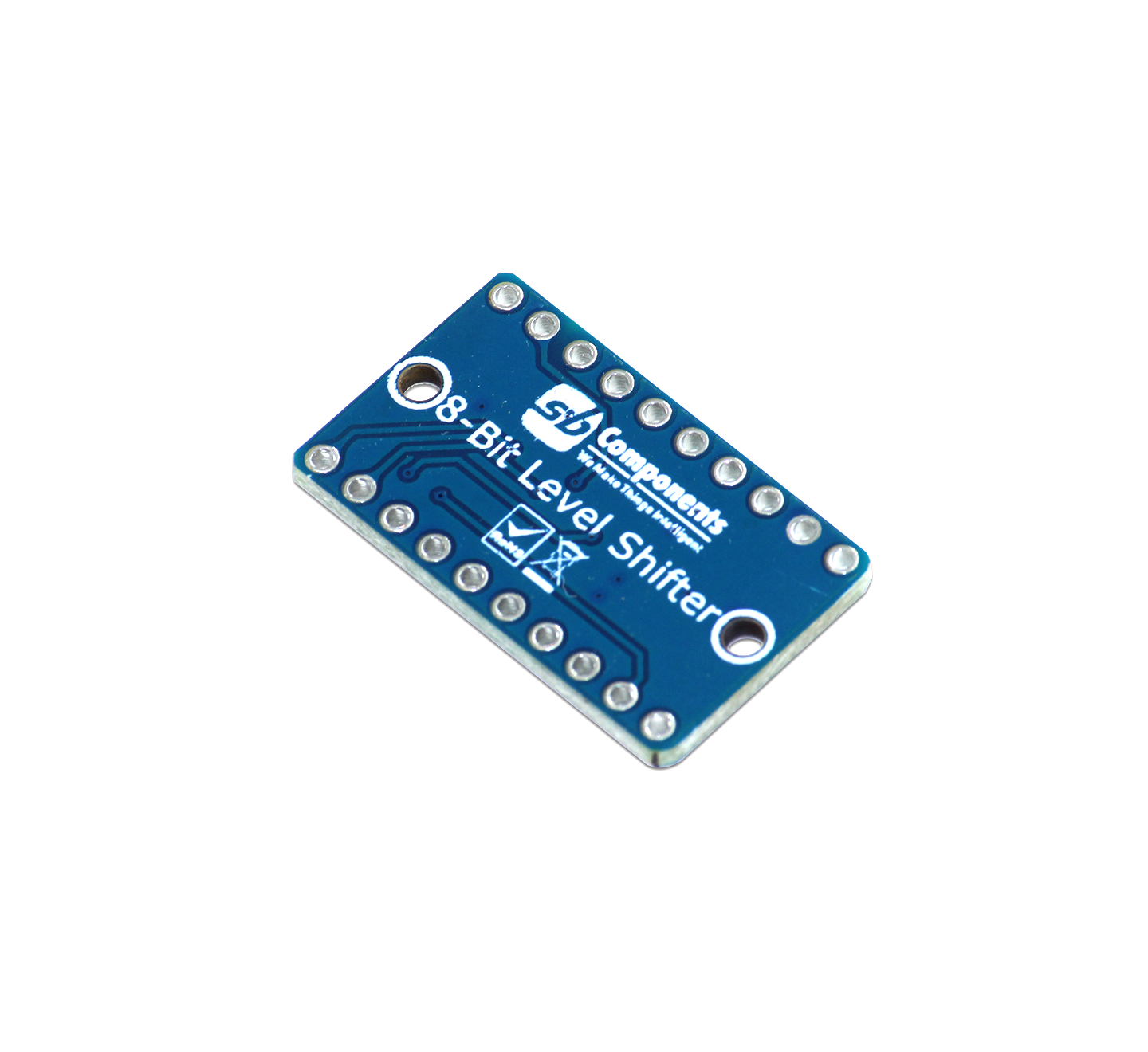

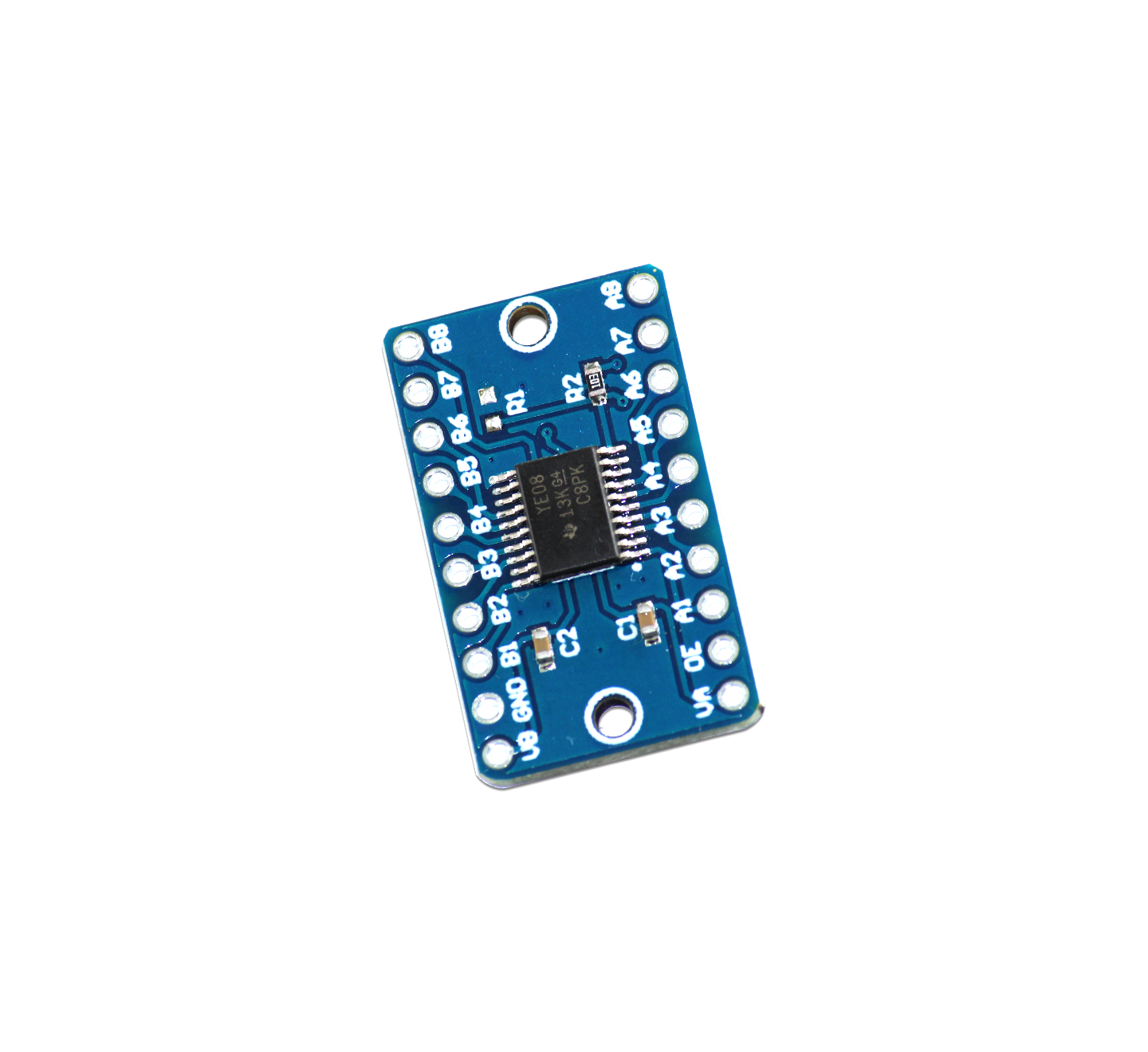

The 8-bit level shifter is an 8-bit non-inverting shifter breakout board with the powerful and compact IC TXB0108 and VCCA Voltage Range: 1.2V-3.6V and VCCB Voltage Range: 1.65V-5.5V that acts as a bridge between applications with differing source voltage and input-output voltage levels. The efficiency of your work can be improved by using an 8-bit level shifter, which has a low propagation latency and a wide supply voltage range.

Ports A and B are designed to track VCCA and VCCB, respectively, with VCCA accepting any supply voltage between 1.2V and 3.6V and VCCB accepting any supply voltage between 1.65V and 5.5V with the condition that VCCA does not exceed VCCB. The 8-bit level shifter can therefore be used for universal low-voltage bidirectional translation between any of the voltage nodes 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V.

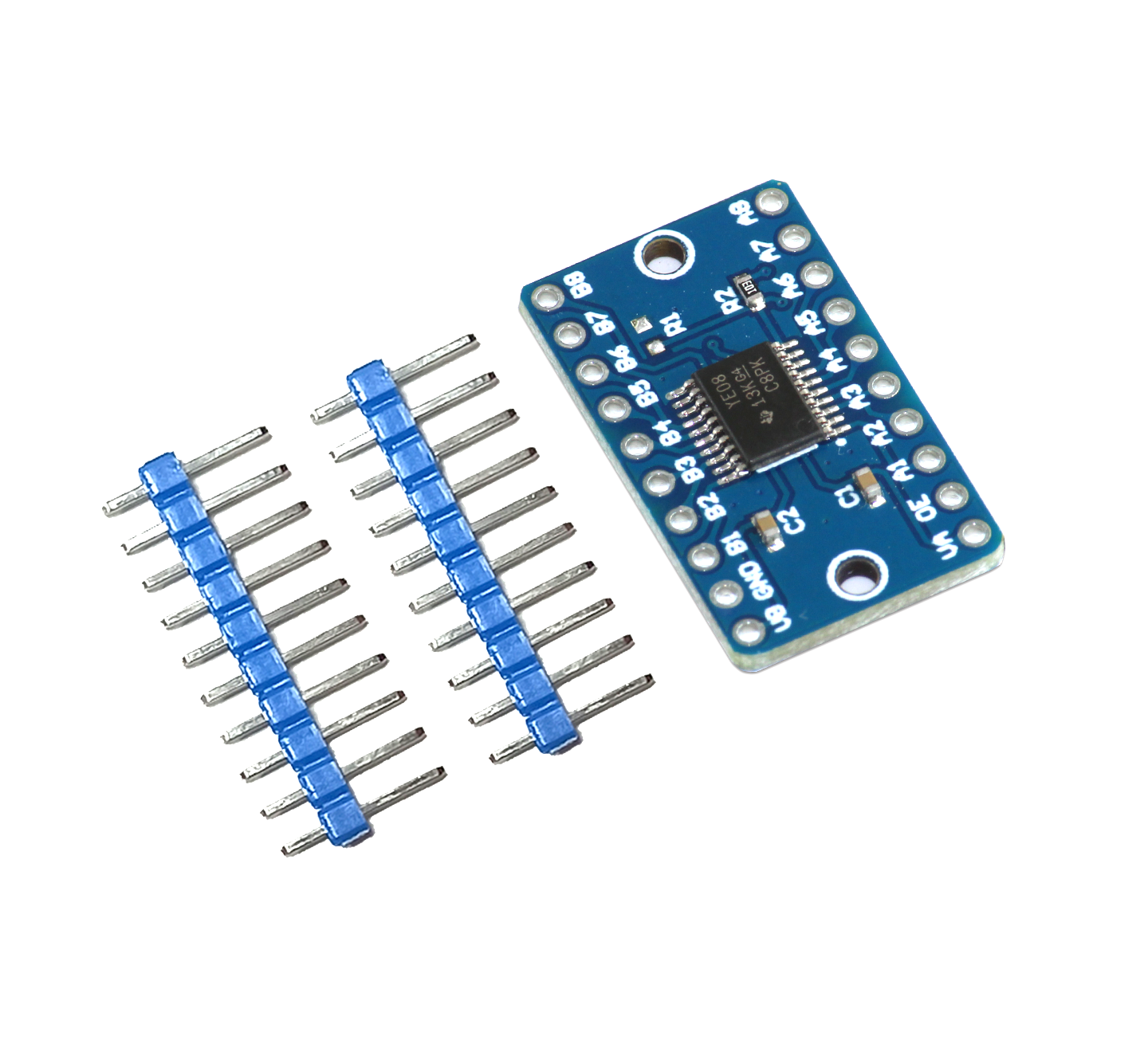

• 1 x Level shifter unit only
• 2 x 10 Pins Berg Strip
