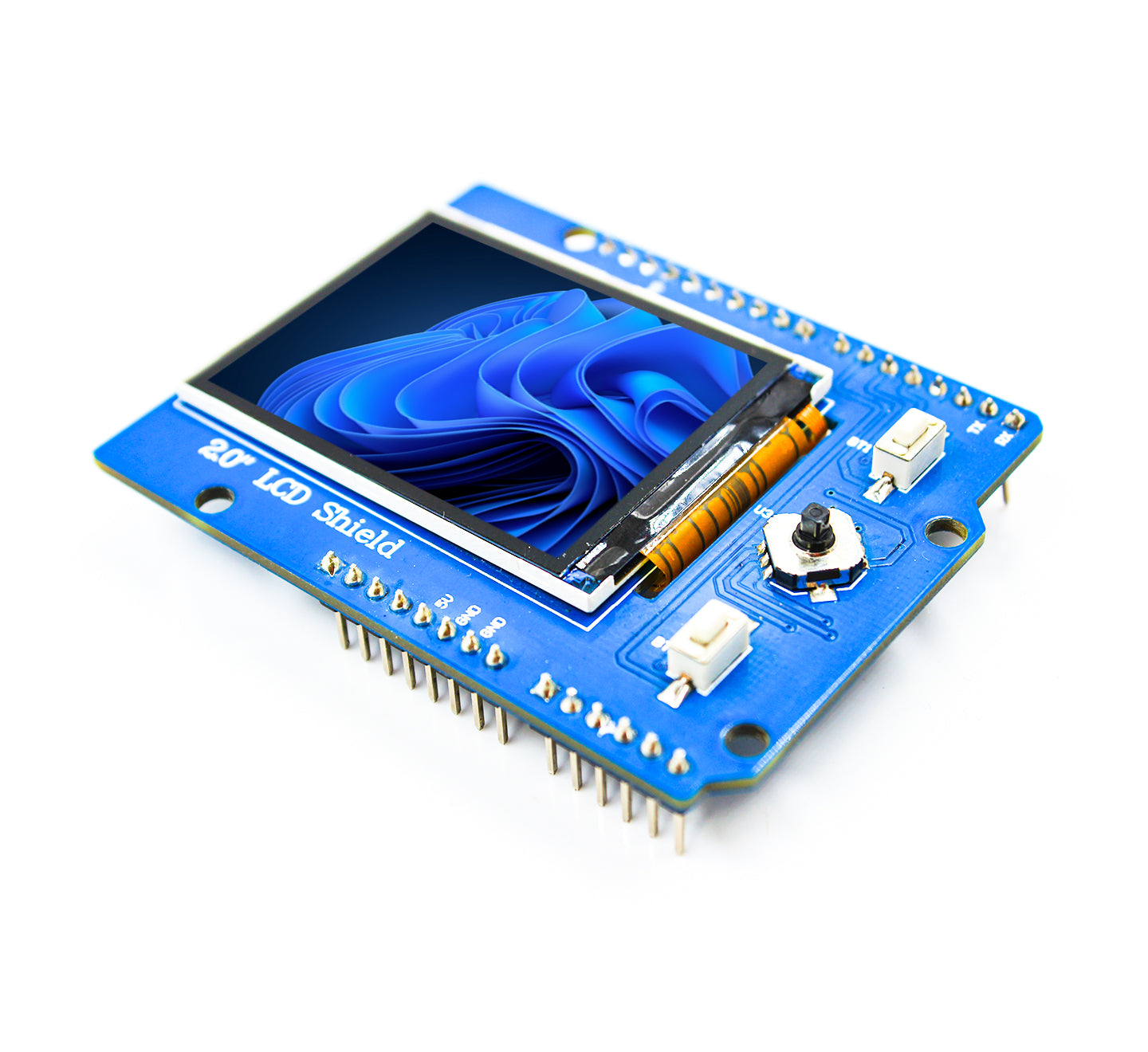

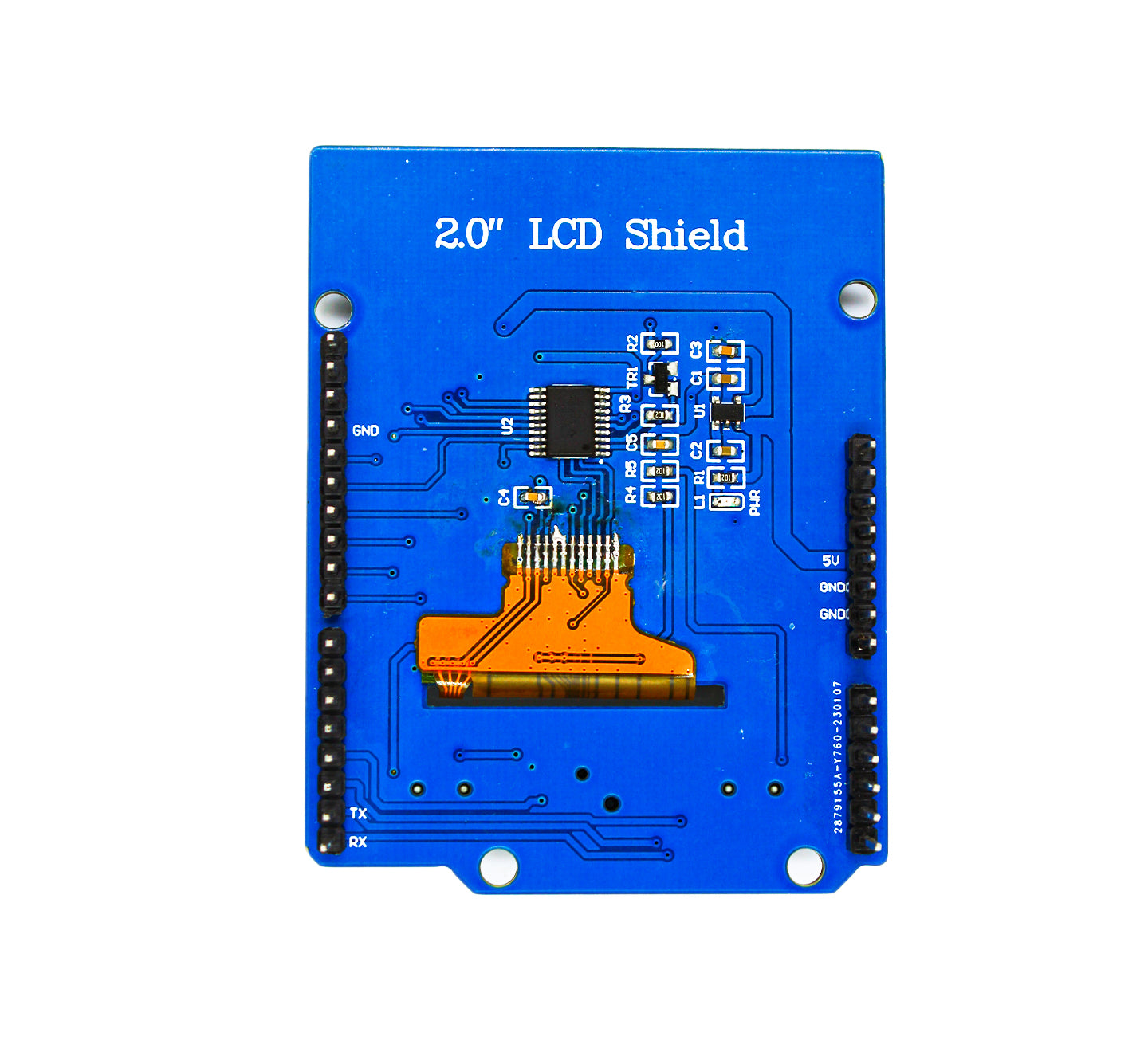

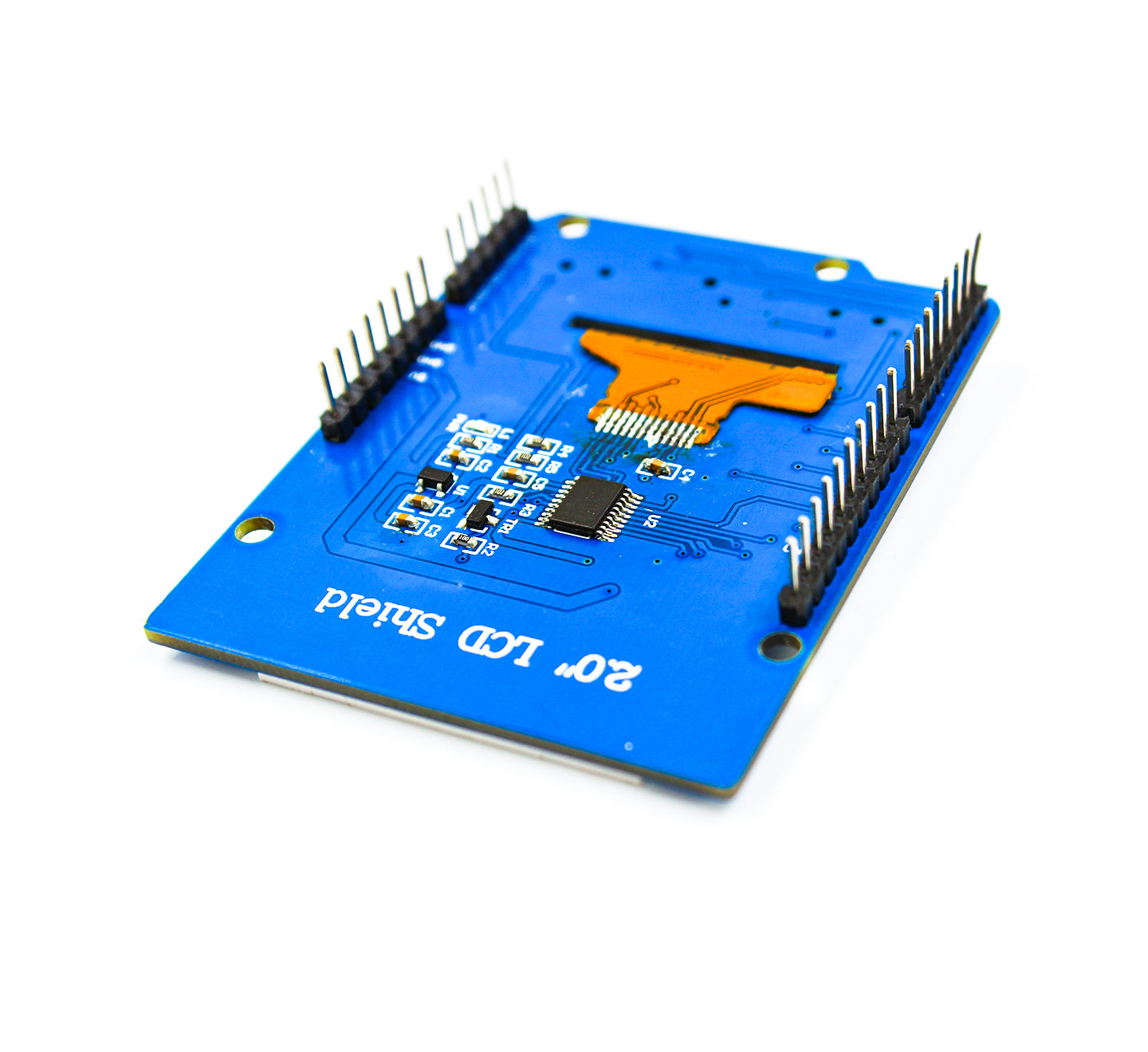

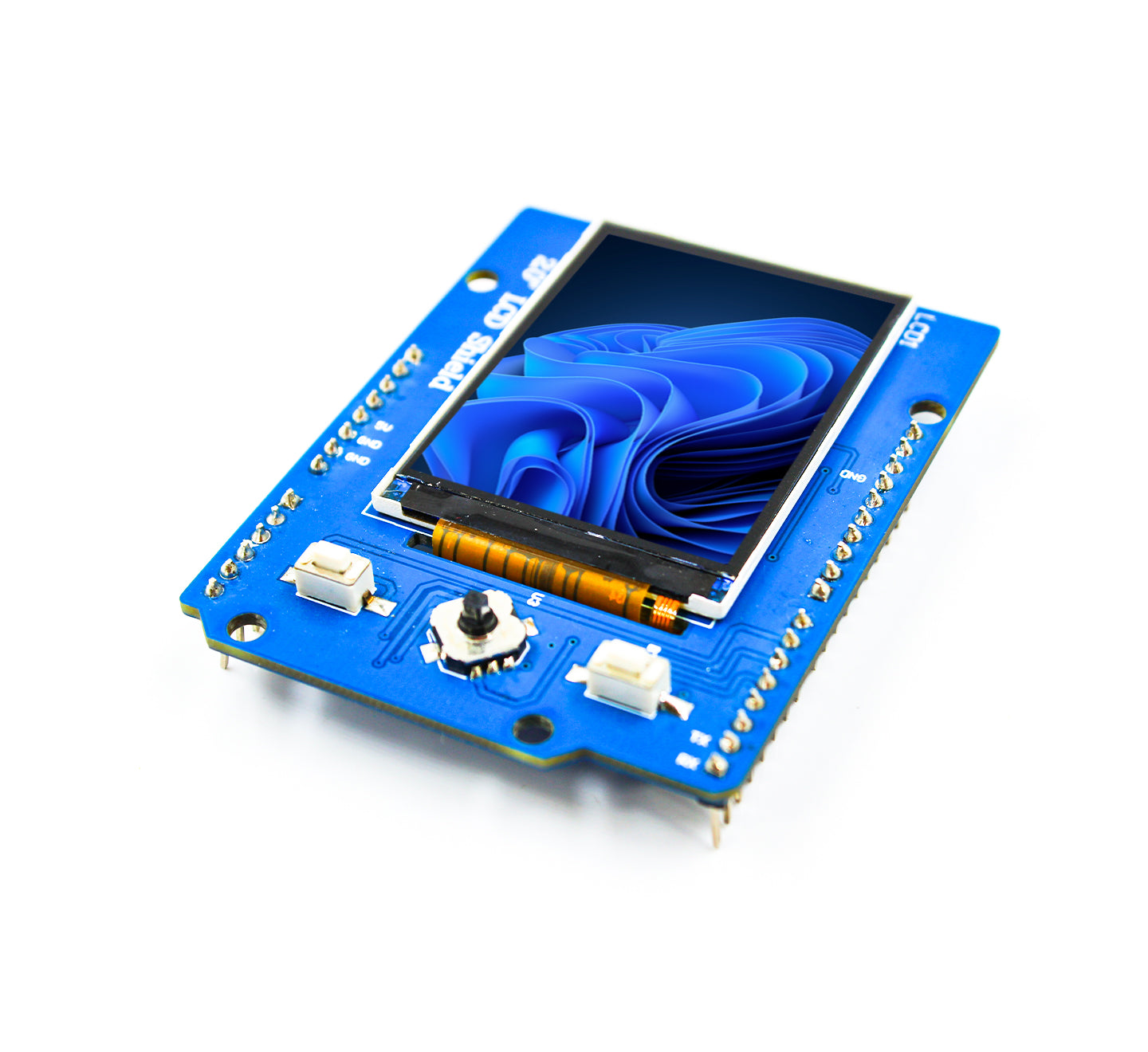

Ardi Display Shield for Arduino Uno

Introducing the Ardi Display Shield, the perfect companion for your Arduino Uno board! Enhance your Arduino projects with this feature-packed display shield that offers unparalleled functionality and convenience.

The Ardi Display Shield features a vibrant 2" IPS screen with a resolution of 240 x 320 pixels, providing sharp and crisp visuals for your projects. Whether you're working on a small-scale project or a complex prototype, this display shield ensures clear and vibrant display output.

With 2 programmable buttons, you have the flexibility to create interactive experiences and user-friendly interfaces. Customize the buttons to trigger specific actions or navigate through menus effortlessly.

The possibilities are endless, limited only by your imagination. In addition to the programmable buttons, the Ardi Display Shield also includes a 5-way joystick for intuitive control. With the joystick's SPI interface, you can easily navigate menus, scroll through options, and control various aspects of your Arduino project with precision and ease.

Designed with compatibility and ease of use in mind, the Ardi Display Shield seamlessly integrates with the Arduino Uno board. Simply connect it to your Arduino Uno and unlock a world of possibilities for visual feedback, user interaction, and data visualization.

Whether you're a hobbyist, a student, or a professional developer, the Ardi Display Shield is a must-have tool for adding visual appeal and interactivity to your Arduino projects. Take your creations to the next level and captivate your audience with this powerful display shield.

Upgrade your Arduino experience today with the Ardi Display Shield and let your projects shine with its impressive display, programmable buttons, and joystick control. Unleash your creativity and bring your ideas to life like never before!

Features:

• Onboard 2.0” TFT Display
• Compatible with 3.3V/5V MCU, Selection provided
• Onboard 5-Way Joystick allows better control-related projects
• Two programmable Buttons to add additional functionality to project
• Mounts directly onto your ArdiPi, Ardi32, and Arduino compatible boards

Specifications:

• Display resolution 240x320 pixels
• Pixel Pitch: 0.1275(H) x 0.1275(V) mm
• Active Area: 30.6(H) x 40.8(V) mm
• Module Size: 34.6(H) x 47.8(V) x2.05(D) mm
• SPI Interface
• Display Colors: 65K colors
• Drive IC: ST7789V2
• Viewing Direction: All-view the best image

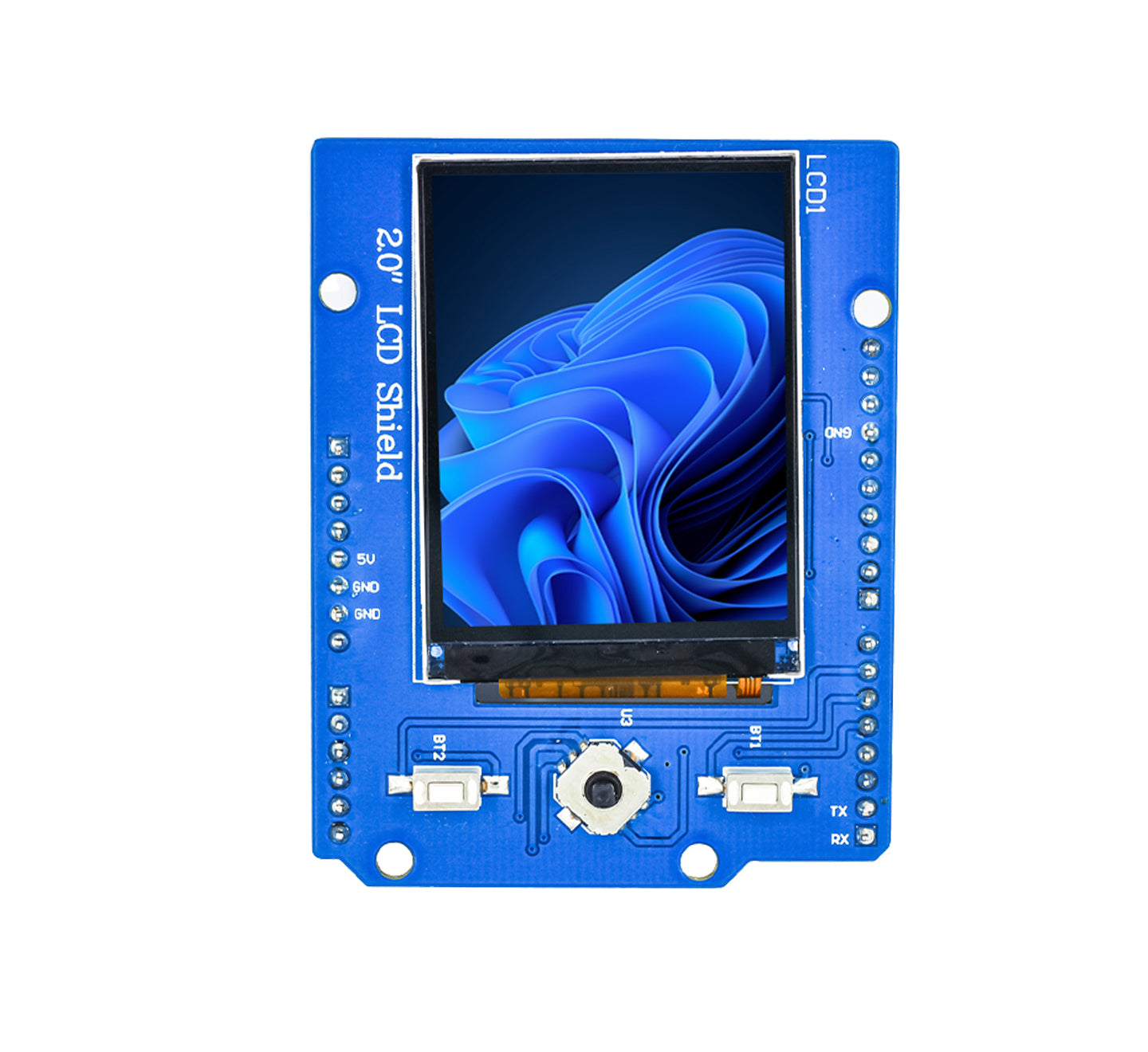

Pinout:

(1) & (4) Programmable Buttons
(2) Voltage Selection 3.3V/5V
(3) TFT 2.0 Display
(5) 5-Way Joystick

Dimension:

Resources:

Software GitHub: Getting Started Guide

Hardware GitHub: Hardware design files like Schematic, Step and 3D
