We have also extended our support to the Arduino community with the introduction of the Arduino Serial Servo Shield. This shield, which bears a striking resemblance to Arduino itself, closely mirrors the functionality of the previously mentioned serial servo controller. It is equipped with two serial servo connectors, providing seamless integration into your projects. Additionally, it features two programmable buttons, offering customization options to meet your specific requirements.

Furthermore, the shield incorporates a 1.14” TFT display for comprehensive feedback and status updates, ensuring a user-friendly experience. Notably, the Serial Servo Arduino Shield is fully compatible with a wide range of Arduino boards, including Arduino Uno, Arduino Mega, ArdiPi, Ardi32, and more. If you have a fondness for Arduino, you'll find immense value in working with this versatile and adaptable Serial Servo Arduino Shield.

Features:

• Serial Servo Shield with standard headers for Arduino and compatible boards
• Jumper selection to switch between 3.3V and 5V compatible boards
• TFT 1.14” display for user interactions

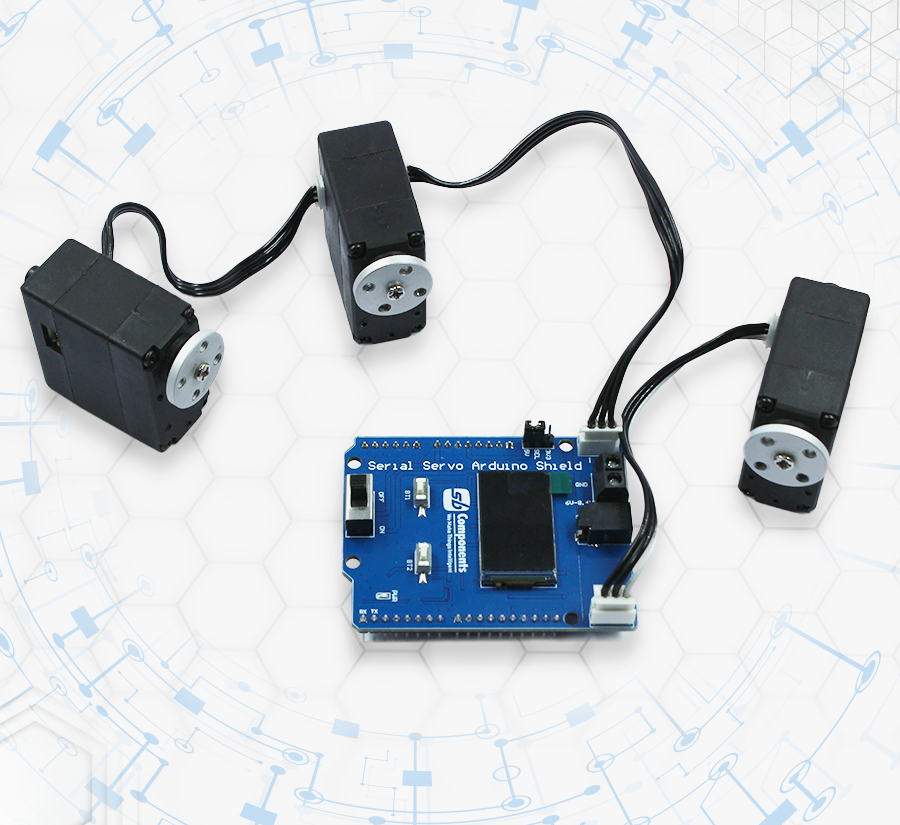

• Two slot to connect Serial Servo Motors, and easily cascade servo to connect more number of motor*
• Two Programmable Buttons to add additional control features to your project
• Screw terminal and DC jack options to connect 6-8.4V adapter with onboard regulator
• Power status LED to indicate board power.

Servo Motor Key Features:

• Real-Time Position, Load, Temperature, Speed, and Voltage feedback.
• Servo/Motor Mode Switchable
• High Precision And Large Torque
• ID Range 1~253
• 38400 bps ~ 1Mbps (1Mbps by default)


*NOTE:  Avoid Connecting More Than 6 Servos At A Time, Not Recommended Due To High Current Demand By Servos.

Specification:

• Microcontroller: Arduino and compatible Boards
• Board Supply Voltage: 5V
• Operating Pin Voltage: 3.3/5V switchable
• Operating Servo voltage: 6~8.4V
• Display Size: 1.14”
• Display Resolution : 240x320 pixels
• Display Driver: ST7789
• Display Appearance: RGB, 65K/262K
• Temperature Range: -20°C ~ +70°C
• Compatible Servo Motors =>
  SB-SS023 - For Lightweight Projects                                                                      SB-SS15 - For Heavier Applications

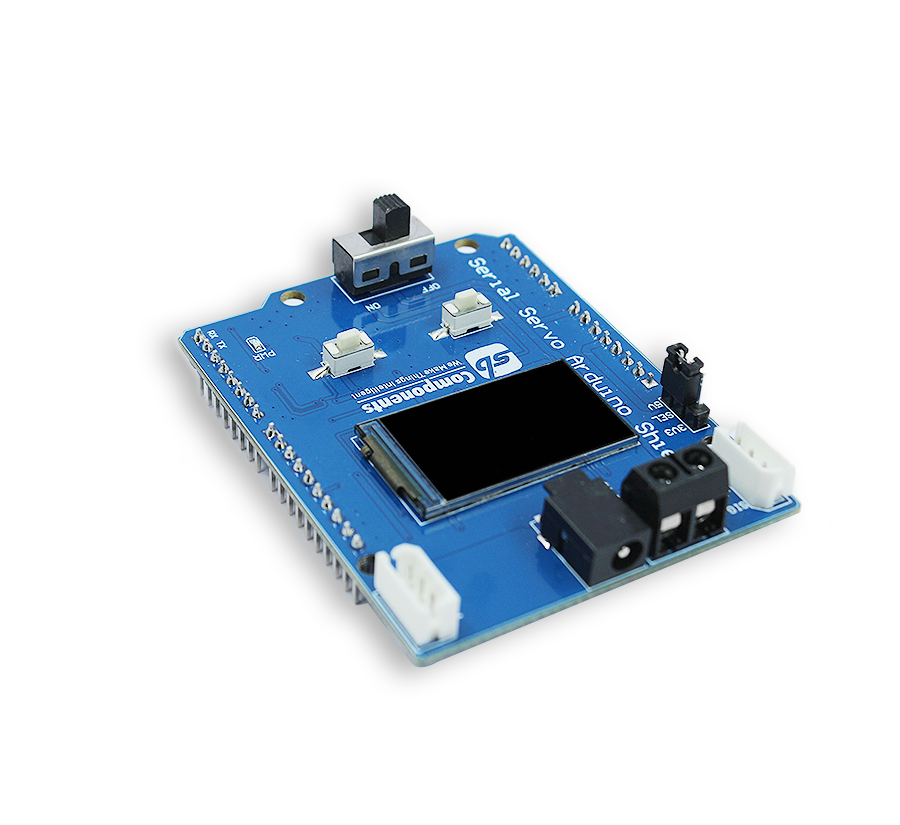

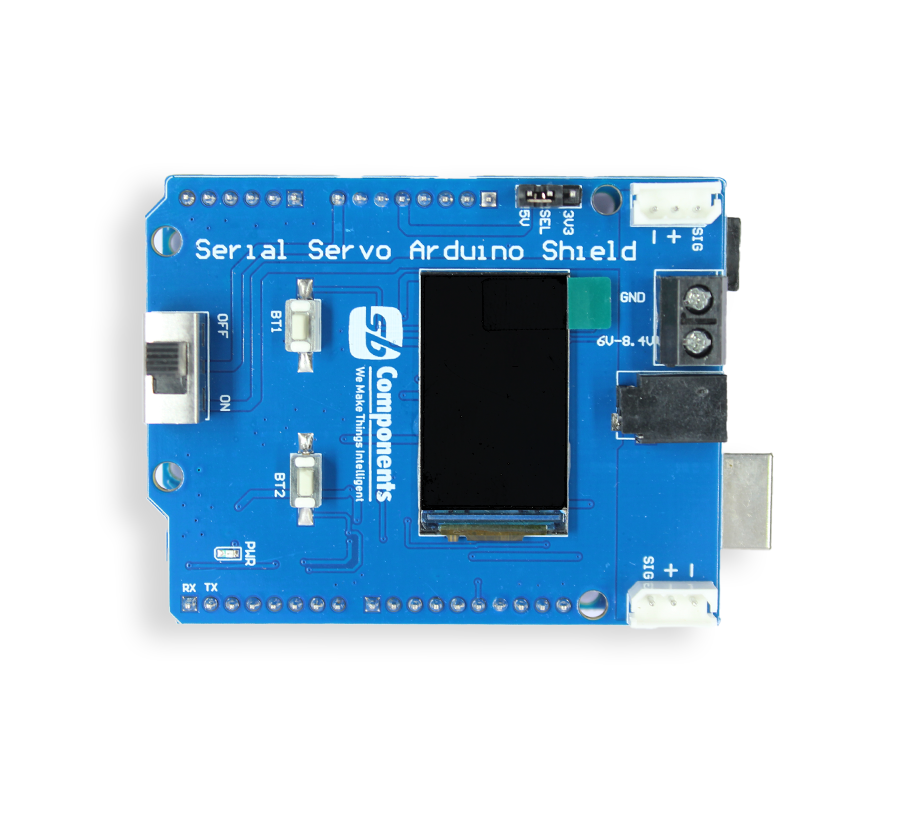

Pinout:

• (1) ON/OFF Servo Motor Supply
• (2) & (10) Programmable Buttons
• (3) Power Status LED
• (4) TFT 1.14” Display
• (5) & (8) Serial Servo Connector
• (6) DC Jack Input (6~8.4V DC)
• (7) Screw Terminal Input (6~8.4V DC)
• (9) Jumper Selection for 3.3V/5V boards
• (11) & (12) Standard Arduino Header

Dimension:

Applications:

• Robotic Arm Control
• Camera Gimbal Stabilization
• Automated Surveillance Systems
• 3D Printer Axis Control
• Automated Window Blinds
• CNC Machine Positioning
• Animatronics and Puppetry
• Laboratory Automation
• Remote-Controlled Vehicles
• Industrial Automation

Resources:

Software Github: Getting Started Guide and Example Codes.

Hardware Github: Hardware Design files like Schematic, 3D File, PCB, Step File, etc.
