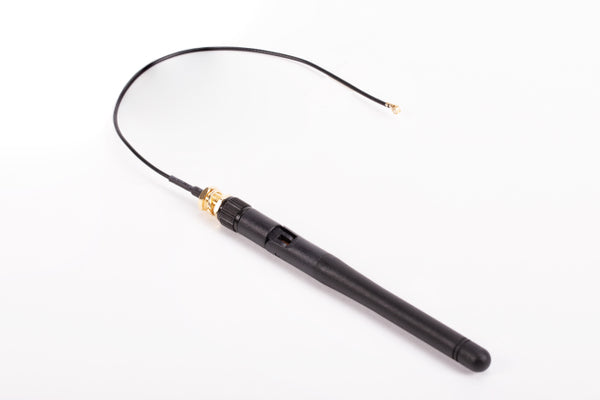

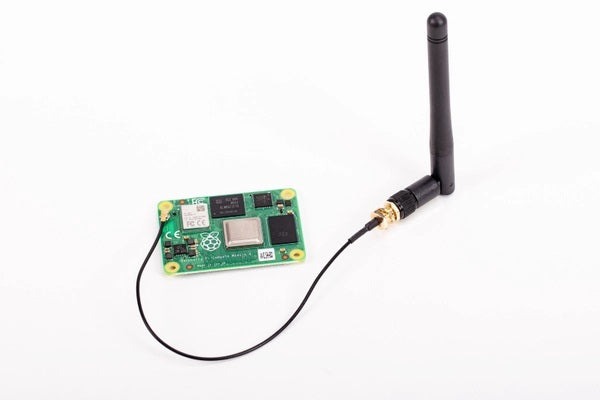

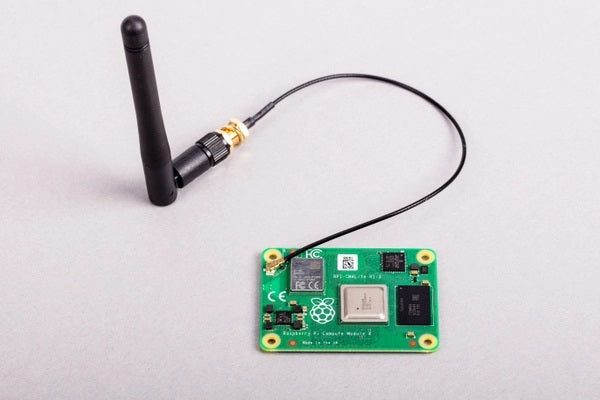

Raspberry Pi Compute Module 4 Antenna Kit

The Raspberry Pi Compute Module 4 Antenna Kit has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance.

This Antenna Kit is certified for use with Raspberry Pi Compute Module 4. If a different antenna is used, then separate certification will be required, and this must be arranged by the end-product design engineer.

• Frequency range: 2400-2500/5100-5800 MHz
• Bandwidth: 100–700MHz
• VSWR: ≤ 2.0
• Gain: 2 dBi
• Impedance: 50 ohm
• Polarisation: Vertical
• Radiation: Omnidirectional
• Maximum power: 10W
• Antenna dimensions: 108 mm × 10 mm
• Compute Module 4 Antenna Kit x1
