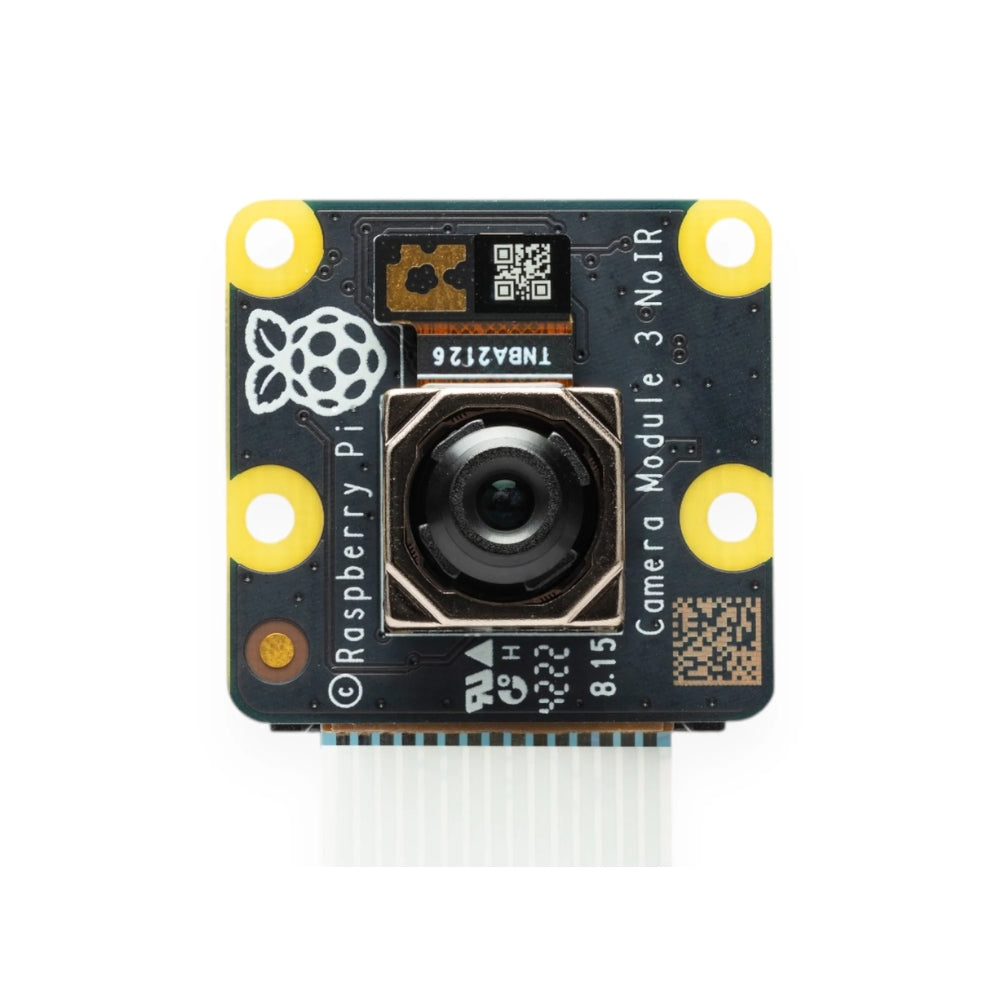

Raspberry Pi Camera Module 3 NoiR

Bring your Raspberry Pi projects to life—even in the dark—with the Raspberry Pi Camera Module 3 NoIR, the latest official camera from Raspberry Pi featuring the powerful 12MP Sony IMX708 image sensor. This version is infrared-sensitive (NoIR), making it ideal for low-light photography, infrared imaging, and night surveillance when paired with an IR light source.

Equipped with powered autofocus, enhanced low-light performance, and HDR (High Dynamic Range) capability, this camera delivers crisp, detailed images in virtually any lighting condition. Whether you're building a wildlife camera, security system, or nighttime time-lapse setup, the NoIR module gives you incredible flexibility and clarity.

You can choose between a standard 75° lens or a wide-angle 120° lens to suit your project needs. Just make sure to select the right option before checkout.

⚠ Important Compatibility Notes:

• To use this module with Raspberry Pi 5 or Raspberry Pi Zero, you’ll need the appropriate camera adapter cable (sold separately).

• Requires Raspberry Pi OS update and libcamera—legacy software like raspistill and raspivid are not supported.

Key Features:

• 12MP Sony IMX708 sensor with back-illuminated stacked CMOS architecture

• Infrared-sensitive (NoIR) – No IR-cut filter for low-light and IR imaging

• Autofocus (PDAF) – Fast and reliable focus across a wide range

• HDR support for more dynamic and balanced images

• Supports up to 4608×2592 stills & 120FPS video (in lower resolutions)

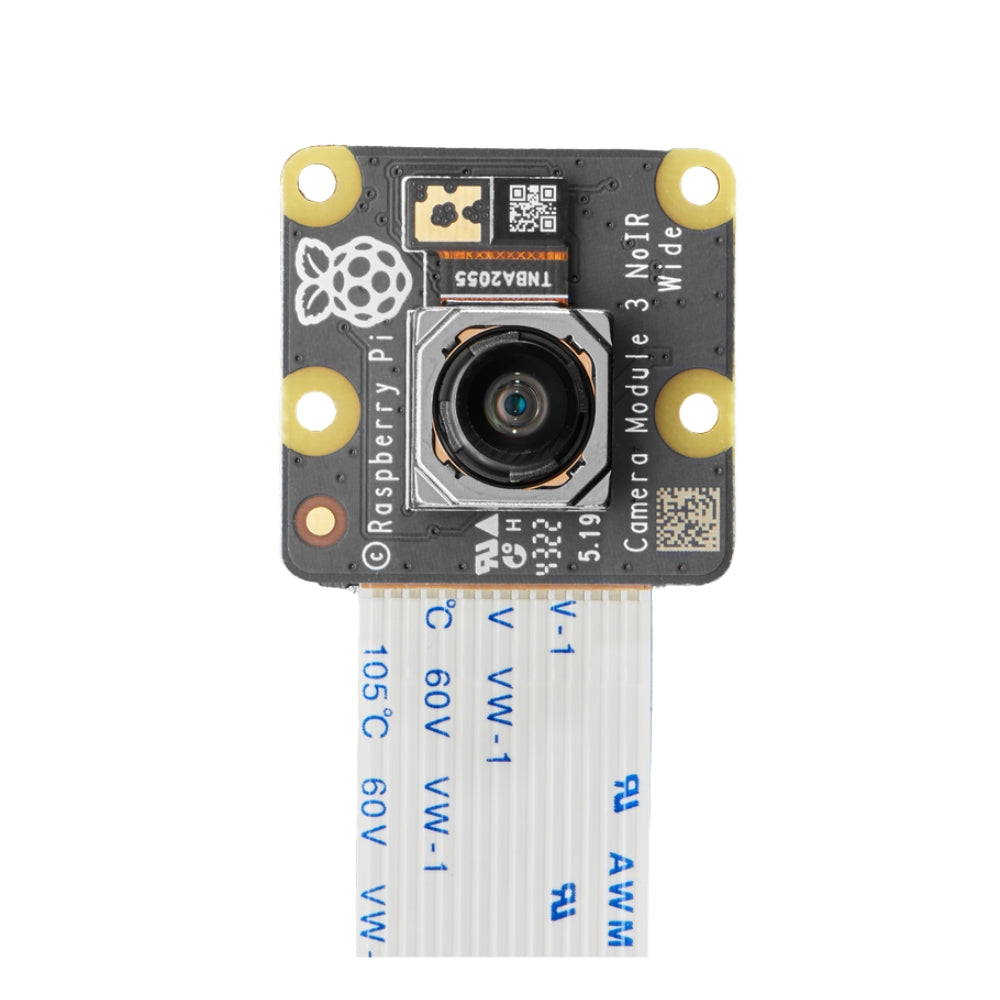

• Choice of Standard (75°) or Wide (120°) field of view lens

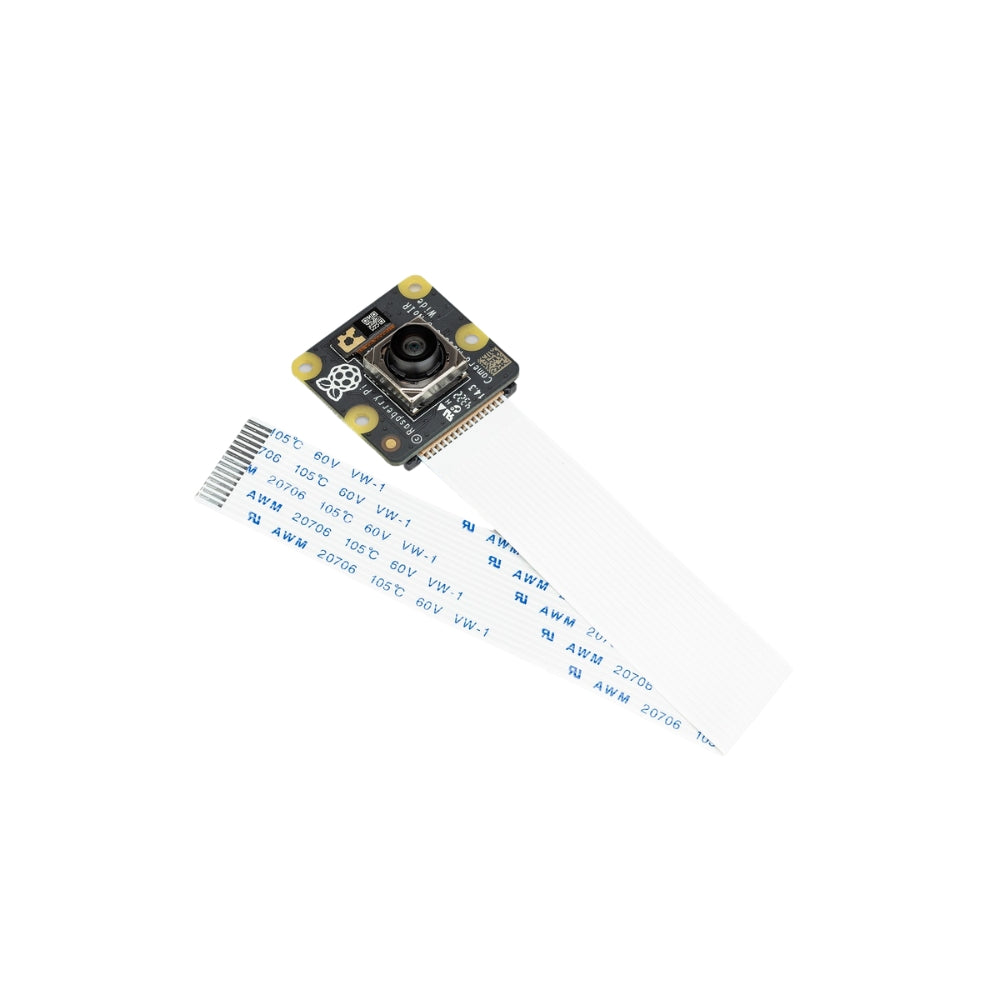

• Includes 150mm camera ribbon cable (pre-attached)

Technical Specifications:

• Sensor: Sony IMX708, 11.9MP, 1.4μm pixel size

• Video: Up to 1080p50, 720p100, 480p120

• Dimensions: 25 × 24 × 11.5mm (Standard), 12.4mm height (Wide)

• Output Format: RAW10

• Focus:

  • Standard lens: 10cm–infinity

  • Wide lens: 5cm–infinity

Package Contents:

• 1x Raspberry Pi Camera Module 3 NoIR (Standard or Wide, select version)

• 1x 150mm Camera Ribbon Cable (pre-fitted)
