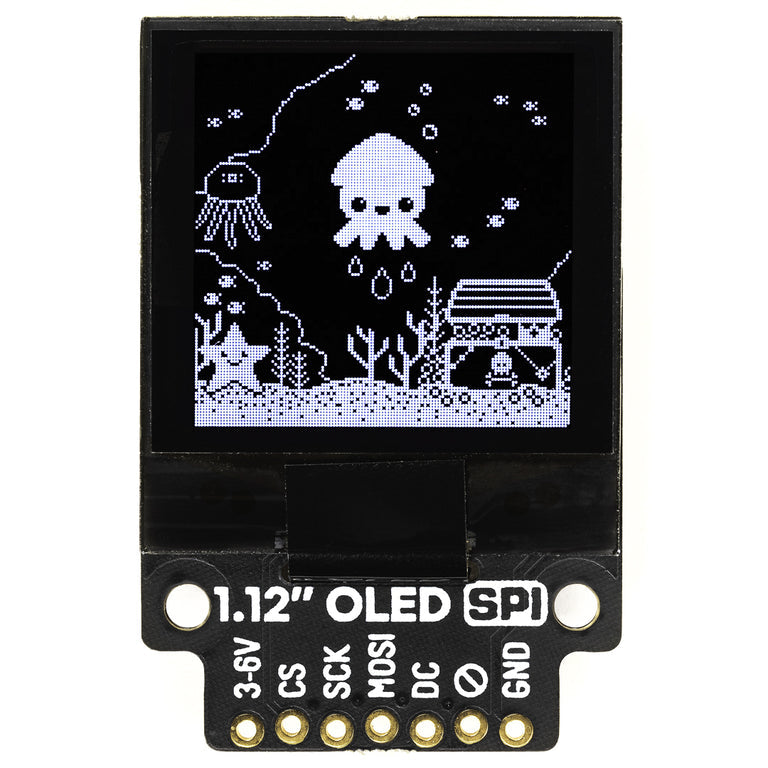

1.12" Mono OLED (128x128, White/Black) Breakout

A crisp, bright 1.12" OLED display perfect for adding a small, high-contrast screen to your projects. With 128x128 pixels in monochrome white/black, it is ideal for graphing, readouts, and displaying basic icons. Available in SPI or I2C versions.

We recommend the SPI version when available, as it allows much faster driving for smooth animations. This OLED uses the SH1107 driver chip and has a 20x20mm active area. It is compatible with all models of Raspberry Pi and Arduino and includes reverse polarity protection.

Features include:

• 1.12" white/black OLED display (128x128 pixels)
• SH1107 driver chip
• 20x20mm active area
• SPI or I2C interface (address 0x3C/0x3D with a cuttable trace)
• 3.3V or 5V compatible
• Reverse polarity protection
• Compatible with Raspberry Pi and Arduino
• Python library support via the Luma.OLED library

The kit includes the OLED breakout, headers for SPI or I2C connections, and a female right-angle header with the I2C version for easy Raspberry Pi GPIO connection.

Software setup uses the Luma Python library for driving the display with examples provided for SPI and I2C interfaces.

Dimensions are 28x42x5.5mm.
