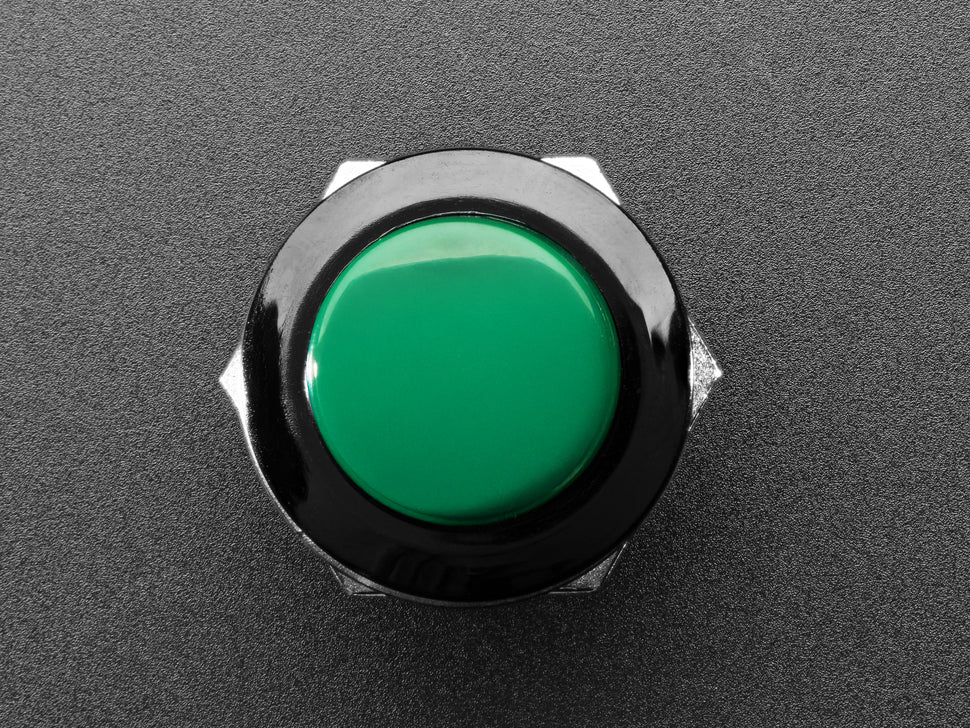

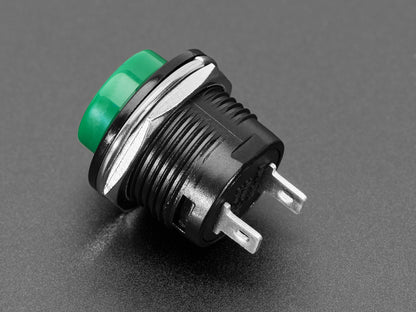

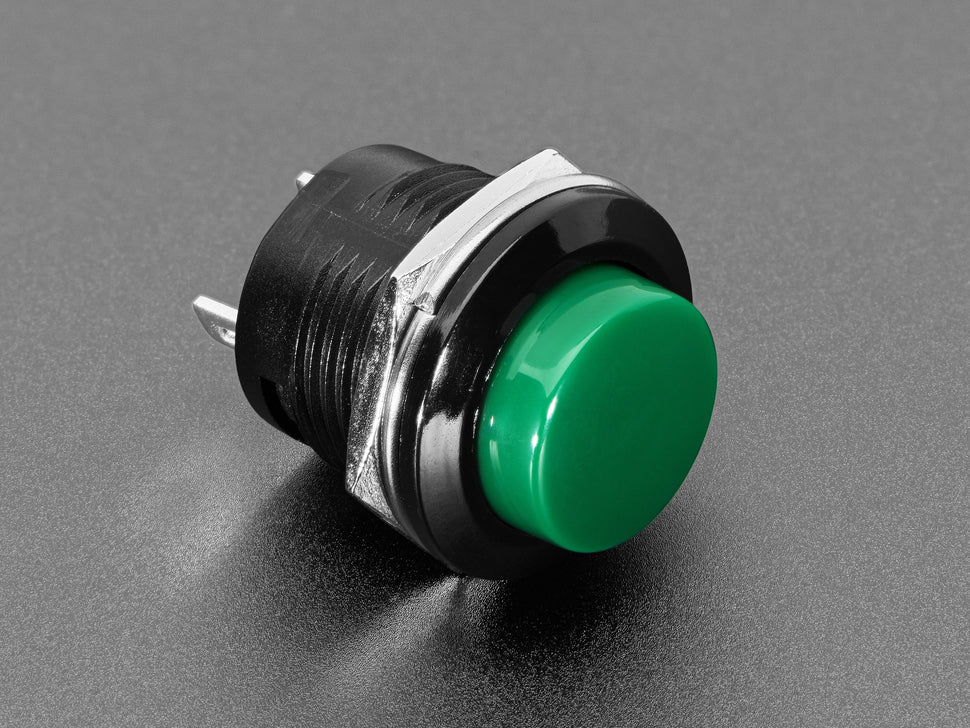

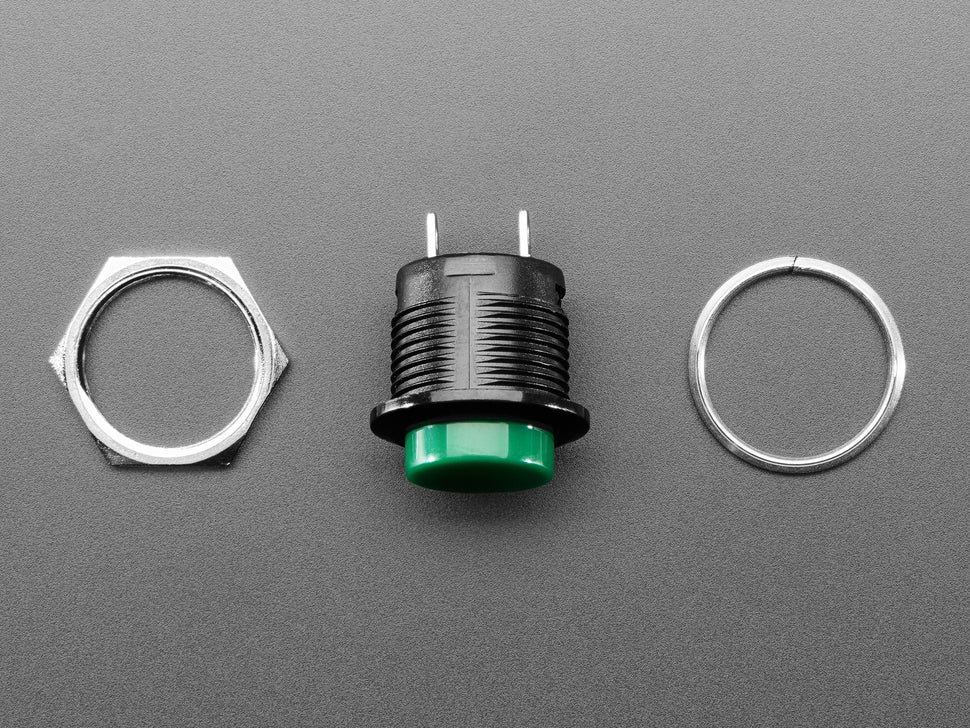

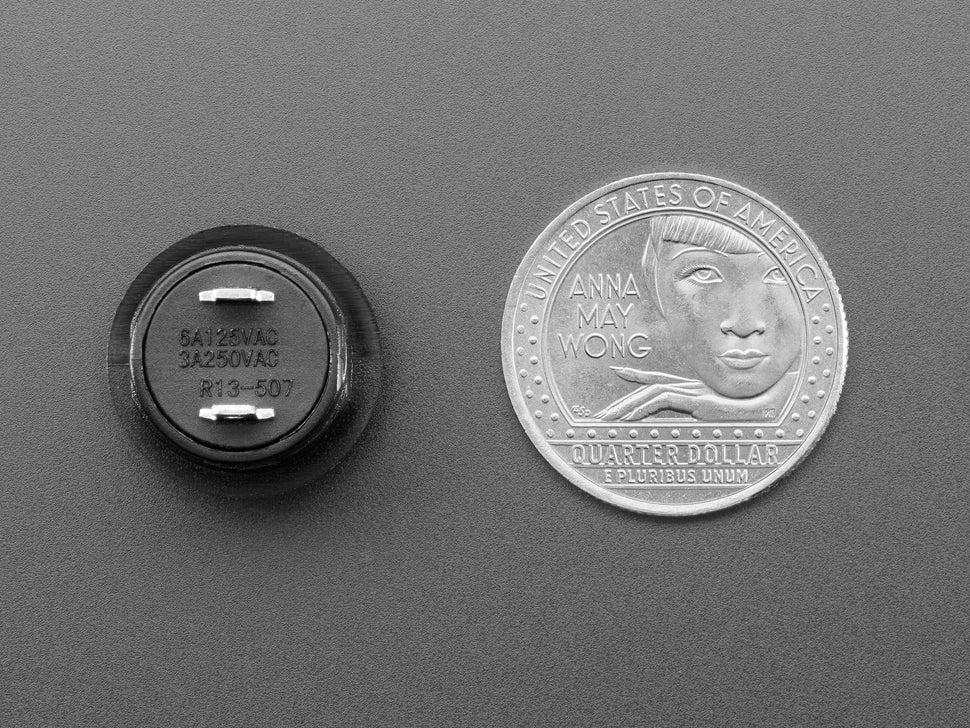

16mm Panel Mount Momentary Pushbutton - Green

The 16mm Panel Mount Momentary Pushbutton is a simple, reliable panel mount that offers a lovely rounded shape and elegant bevel design. This normally-open micro-switch closes the contacts when pressed, making it an excellent choice for momentary pushbutton needs.

Features include:

• Normally-open micro-switch for momentary activation
• Compact dimensions and lightweight design
• Compatible with Arcade Button Quick-Connect Wire Pairs - 0.11" (10 pack)

Technical details:

• Max Dimensions: 18.06mm x 18mm x 29.4mm (0.7" x 0.7" x 1.15")
• Shaft Dimensions: 14.89mm x 15.56mm x 18.7mm (0.58" x 0.6" x 0.73")
• Button Height: 5mm (0.2")
• Button Height Depressed: 3.5mm (0.15")
• Weight: 4.6g

This product is RoHS 2 2011/65/EU and RoHS 2 2015/863/EU compliant.
