2.2" 18-bit Color TFT LCD Display with microSD Card Breakout - HX8340BN

Note: This TFT display has been discontinued. We recommend our newer 2.2" TFT display available here. Please note it does not use the same wiring or controller and is not a drop-in replacement.

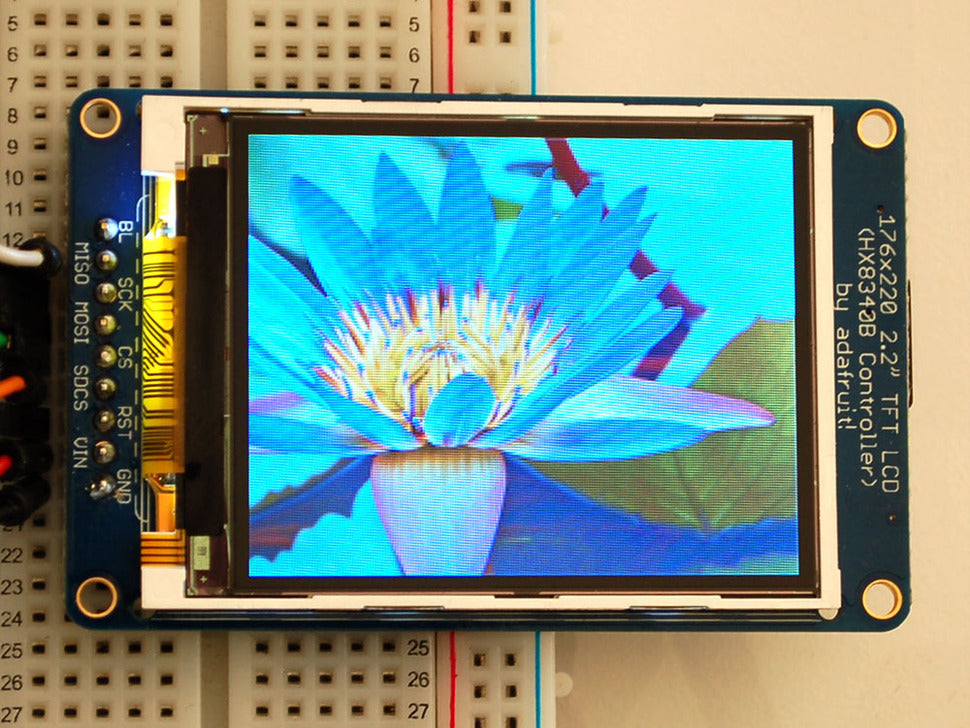

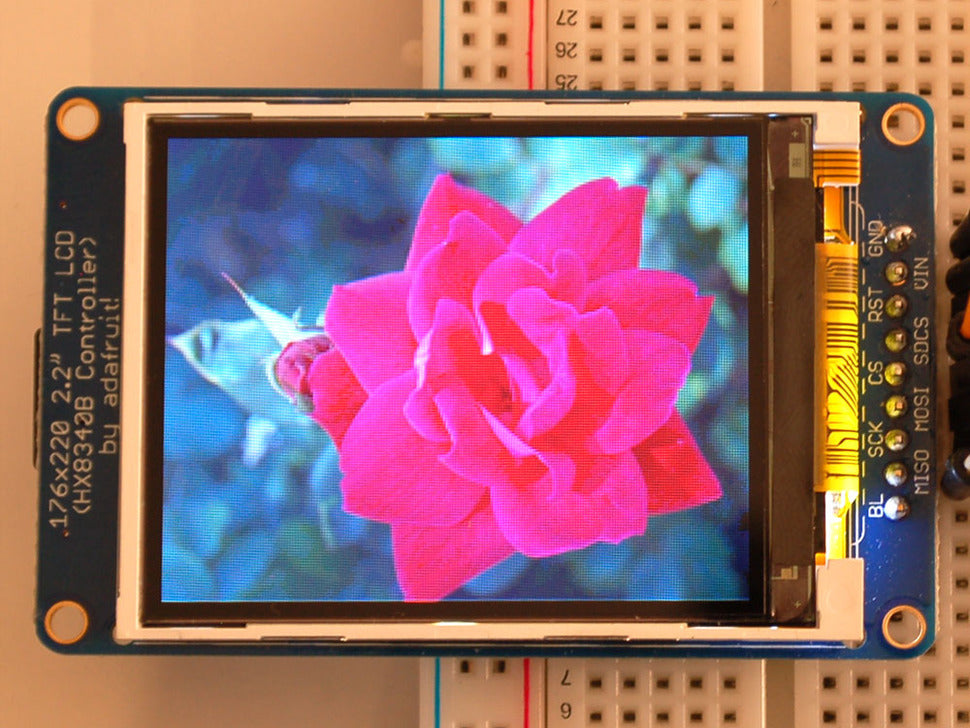

This 2.2" 18-bit color TFT LCD display breakout board is an excellent choice to add a small, bright, vivid color display to your microcontroller projects. Utilizing the HX8340BN controller with built-in pixel-addressable video RAM, this display supports 220x176 resolution with 262,144 colors via 3-wire SPI communication.

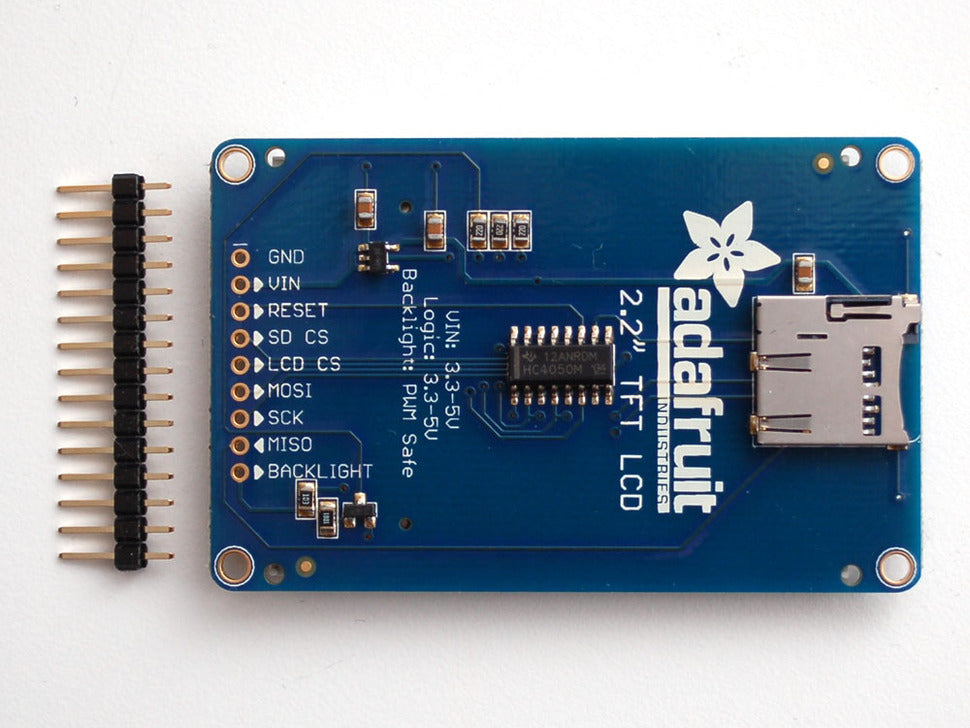

The breakout board includes:

• 2.2" diagonal TFT LCD with 18-bit color (220x176 pixels)
• HX8340B(N) controller with 9-bit SPI interface
• Built-in ultra-low-dropout 3.3V regulator and 3/5V level shifter for compatibility with 3.3V or 5V logic systems
• MicroSD card slot (not included) for loading full-color bitmaps (requires 2 additional digital lines)
• 3 white LED backlight with transistor for PWM dimming control
• 1x10 header for breadboarding and four 0.1" mounting holes
• Overall dimensions: 43mm x 68mm x 6.5mm (1.7" x 2.7" x 0.25")

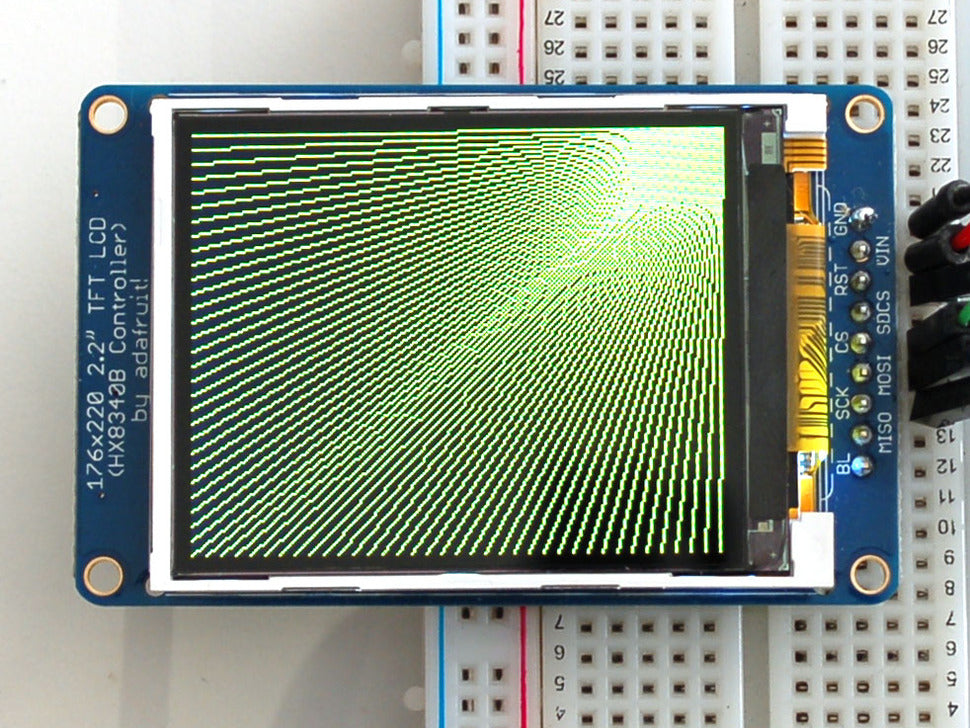

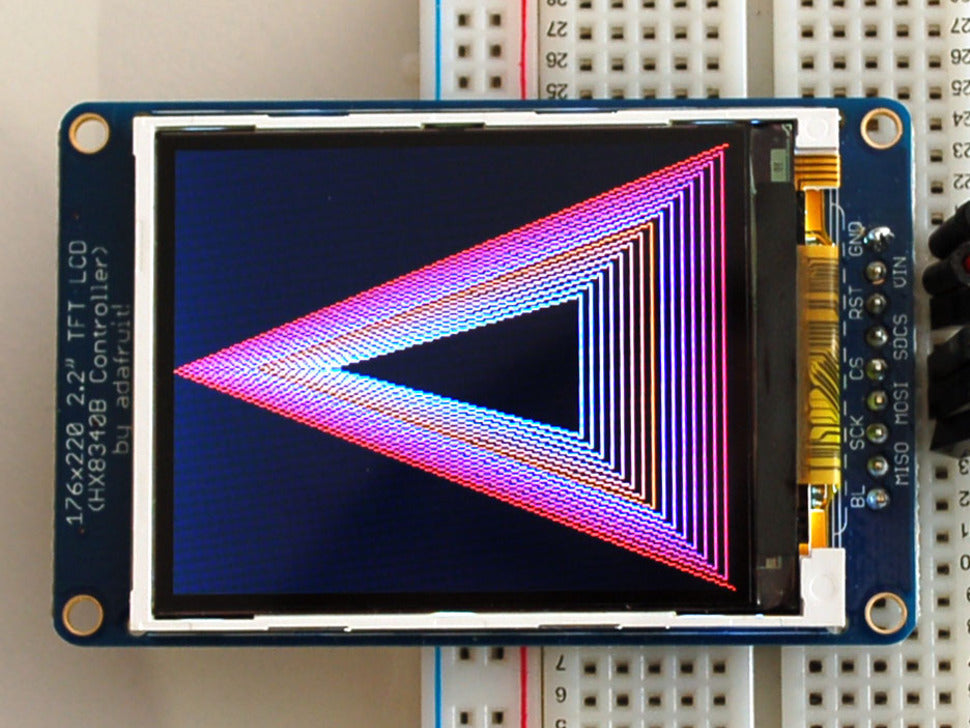

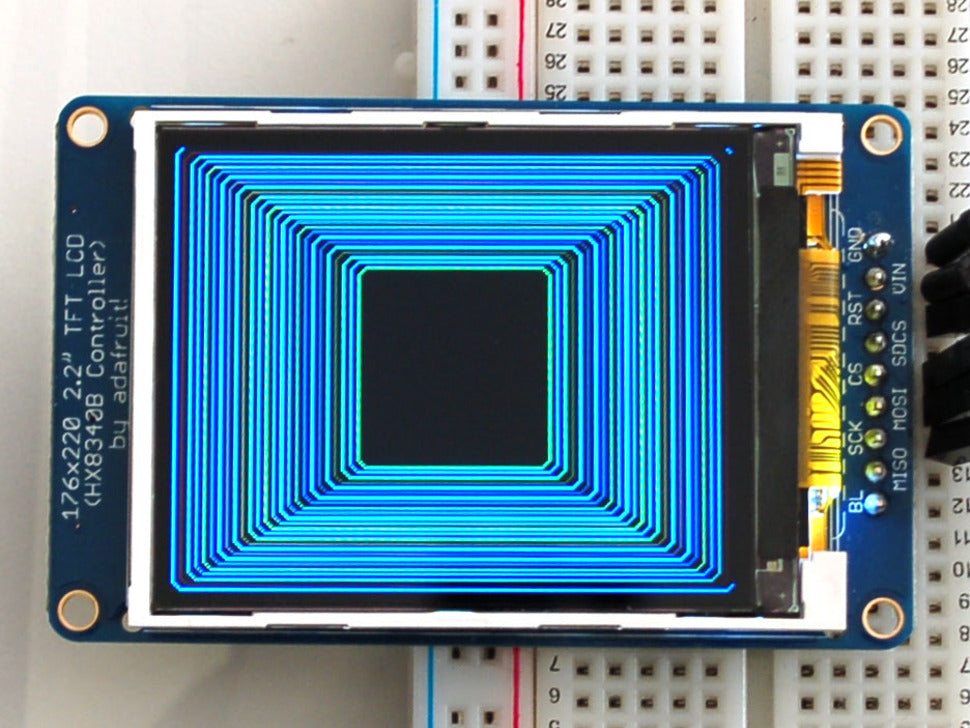

Unlike CSTN type displays, this TFT offers high quality, fast refreshing color graphics. The open-source Arduino graphics library supports drawing pixels, lines, shapes, text, and bitmaps, with example code and wiring tutorials available.

For more details and software, visit the product guide, and access datasheets below:

• HX8340B(N) Datasheet
• BTL221722-276L Display Datasheet
